ELAR Q1

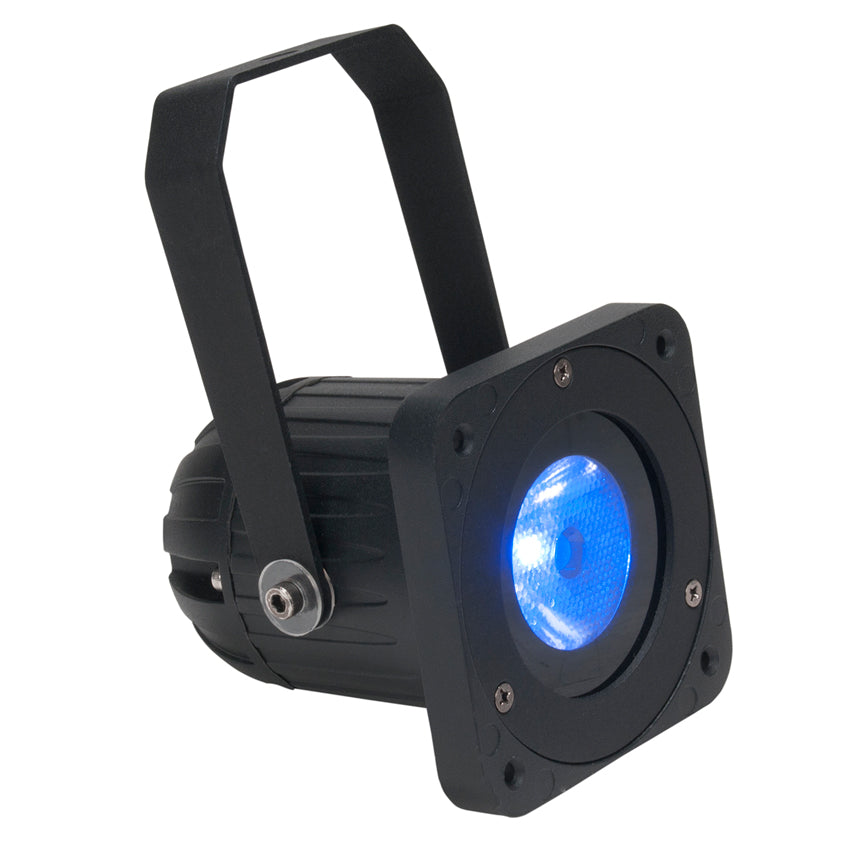

ELAR Q1 is a professional-grade lighting solution. The IP65 rated ELAR Q1™ features a single 18W RGBW Quad LED, a 7° beam 14° field angles, 4 DMX channels, RDM (remote device management) with direct DMX auto addressing option, 24VDC, flicker free operation for broadcast TV and FILM, 18W max power consumption, and an integrated adjustable yoke or flush mounting options. IP65 Rated 7° Beam 14° Field Angles RDM (Remote Device Management) Direct DMX Auto Addressing Option.
ELAR Q1
The IP65 rated ELAR Q1™ features a single 18W RGBW Quad LED, a 7° beam 14° field angles, 4 DMX channels, RDM (remote device management) with direct DMX auto addressing option, 24VDC, flicker free operation for broadcast TV and FILM, 18W max power consumption, and an integrated adjustable yoke or flush mounting options.
- IP65 Rated
- 7° Beam 14° Field Angles
- RDM (Remote Device Management)
- Direct DMX Auto Addressing Option
Specifications
18W RGBW Quad LED
100,000 Average Hour LED Life
PHOTOMETRIC DATA
9,310 LUX (865 FC) @3.3 ft. (1m) 7° Full ON
COLOR
16.7 Million Colors / 8 Bits Per Color
CONTROL / CONNECTIONS
4 DMX Channels
8pin Data/Power Combo IP Cables In/Out
Multiple Unit Linkable (Max 15 units per ELAR Q1 PSU™)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 3.8” (96mm)
Width: 2.9” (73mm)
Vertical Height: 2.9” (73mm)
Weight: 1.1 lbs. (0.5kg)
ELECTRICAL / THERMAL
24VAC
18W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
ACCESSORIES:

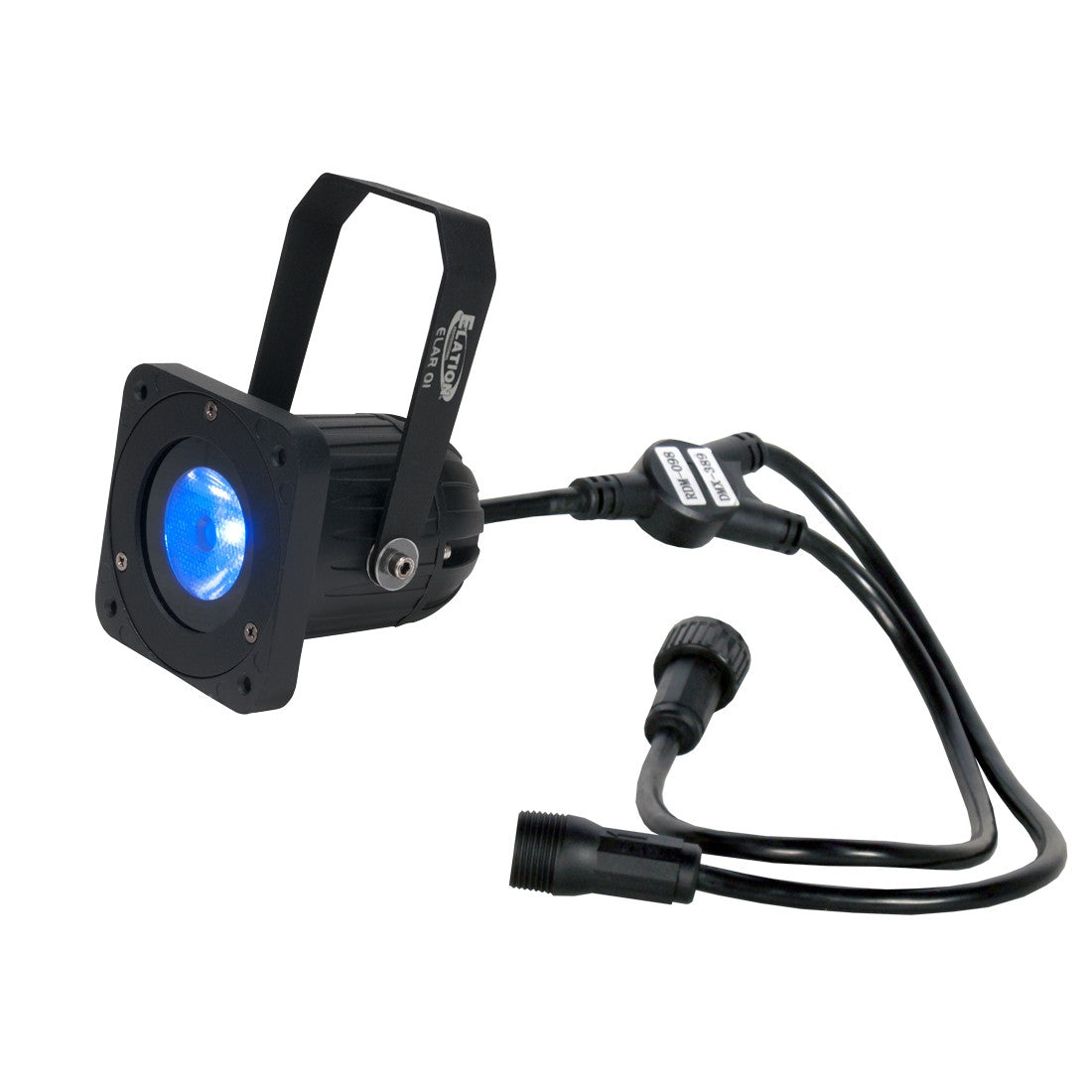

60413010144 - ELAR Q1IP Starter Y-Cable
60413010149 - ELAR Q1IP Extension Y-Cable
60413010146 - ELAR Q1 PSUIP Power Cable
60413010145 - ELAR Q1IP Extension Cable 3.3 ft (1m)
60413990038 - ELAR Q1IP Extension Cable 9.8 ft (3m)
Specifications and documentation subject to change without notice.
