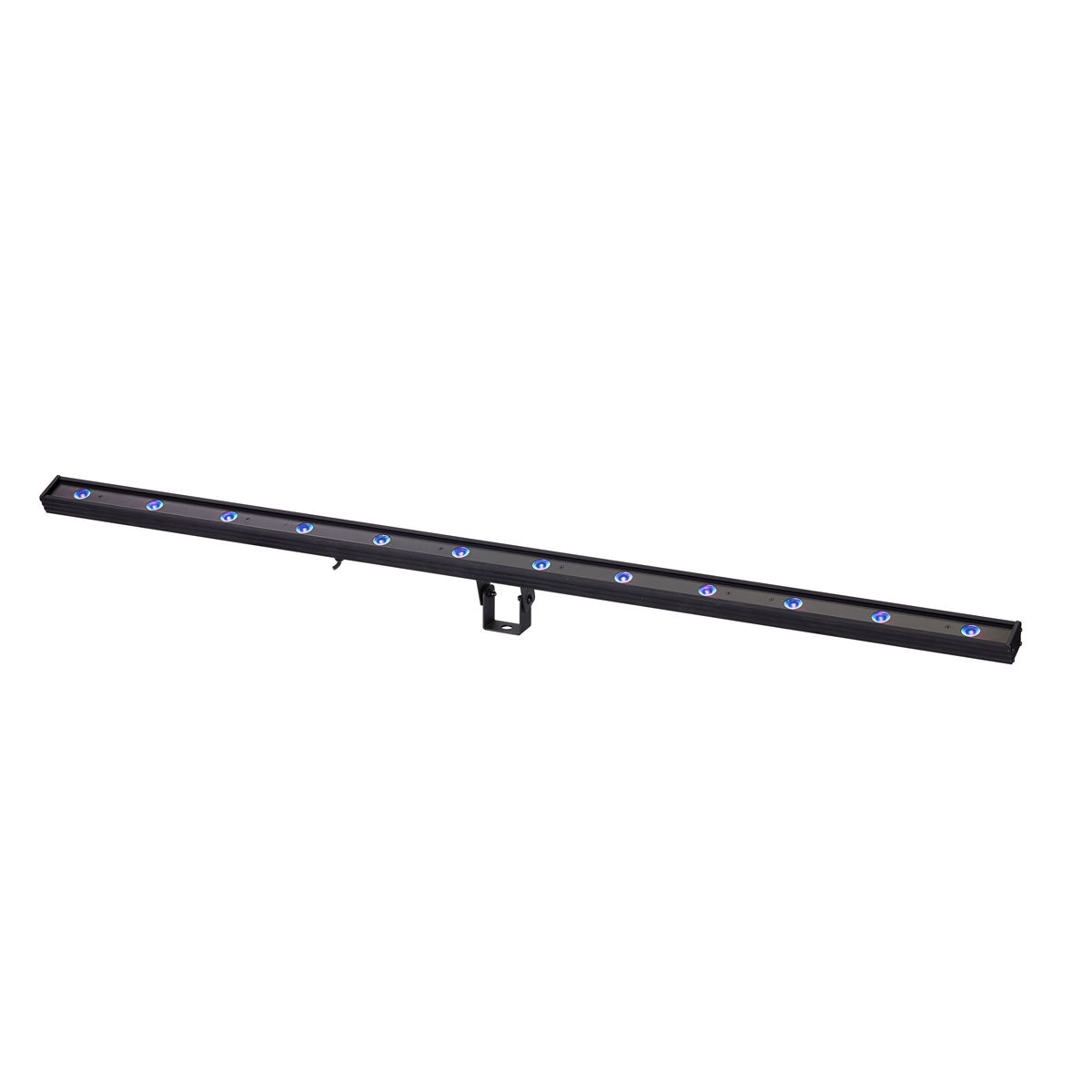

DarkFX Strip 1020

Features

* * * P R E L I M I N A R Y  * * *

High Efficiency UV LED Bar

40-Degree Beam Angle

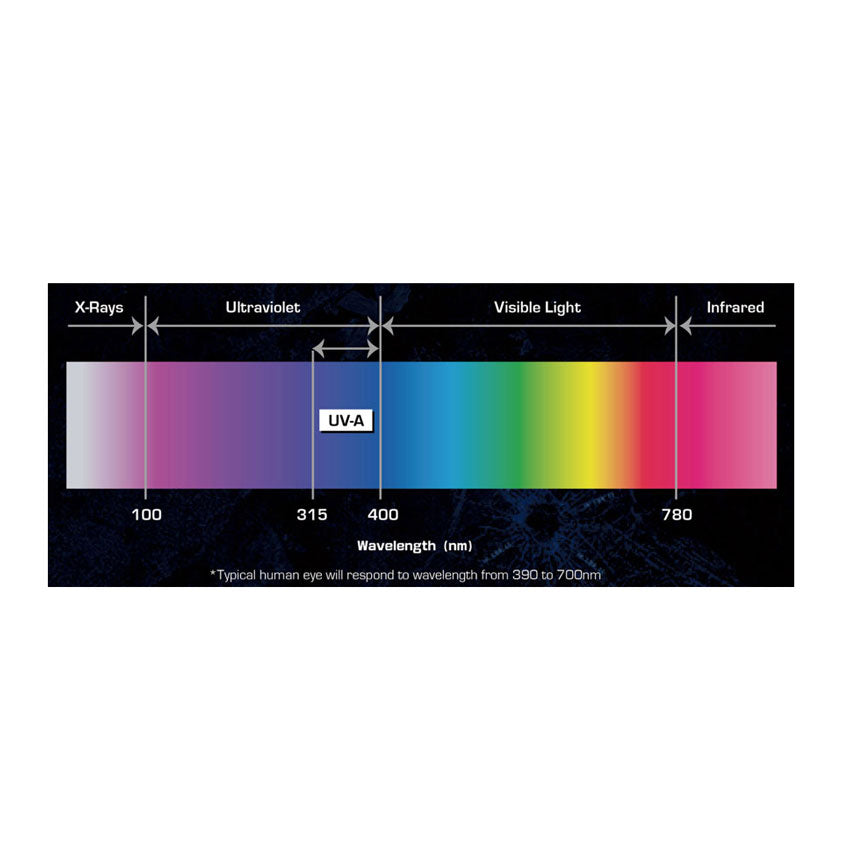

365nm Peak Wavelength with Minimum Visible Light

9000+mW High Output at Full Intensity

Special Optics to Prevent Wear Degradation from High UV Exposure

Flicker Free Operation for TV and FILM

Resources

Guides/ Manuals

Related Categories

Specifications

SOURCE

(12) 1.9W High Power UV LEDs

20,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

Optics: 40 Degrees

Peak Wavelength: 365nm

Radiant Flux Output: 9000+ mW


CONTROL / CONNECTIONS

DarkFX Drive 4 II Power/DMX Fixture Driver (sold separately)

Cable Connection: Bare Wire Power/Data Combo Cable


SIZE / WEIGHT

Dimensions (no mounting brackets)

Length: 47" (1194mm)

Width: 2" (51mm)

Vertical Height: 2" (51mm)

Dimensions (including mounting brackets)

Length: 47" (1194mm)

Width: 3" (76.2mm)

Vertical Height: 2.5" (64mm)

Dry Weight: 5lbs / 2.3kg


ELECTRICAL / THERMAL

DC 20-24V

Max Power Consumption: 24 Watts


APPROVALS / RATINGS

CE | IP20 Indoor Use Only






Specifications and documentation subject to change without notice.
