DARKFX STRIP 1020

Discontinued

DarkFX Strip 1020 is a professional-grade lighting solution. * * * P R E L I M I N A R Y * * * The Antari DarkFX Strip 1020 is an efficient high output low power consumption UV LED bar that delivers a peak wavelength of 365nm and radiant flux output of 9000+mW at full intensity with minimum visible light.

UPC: 837874007947SKU: AUV655

DARKFX STRIP 1020

* * * P R E L I M I N A R Y * * *

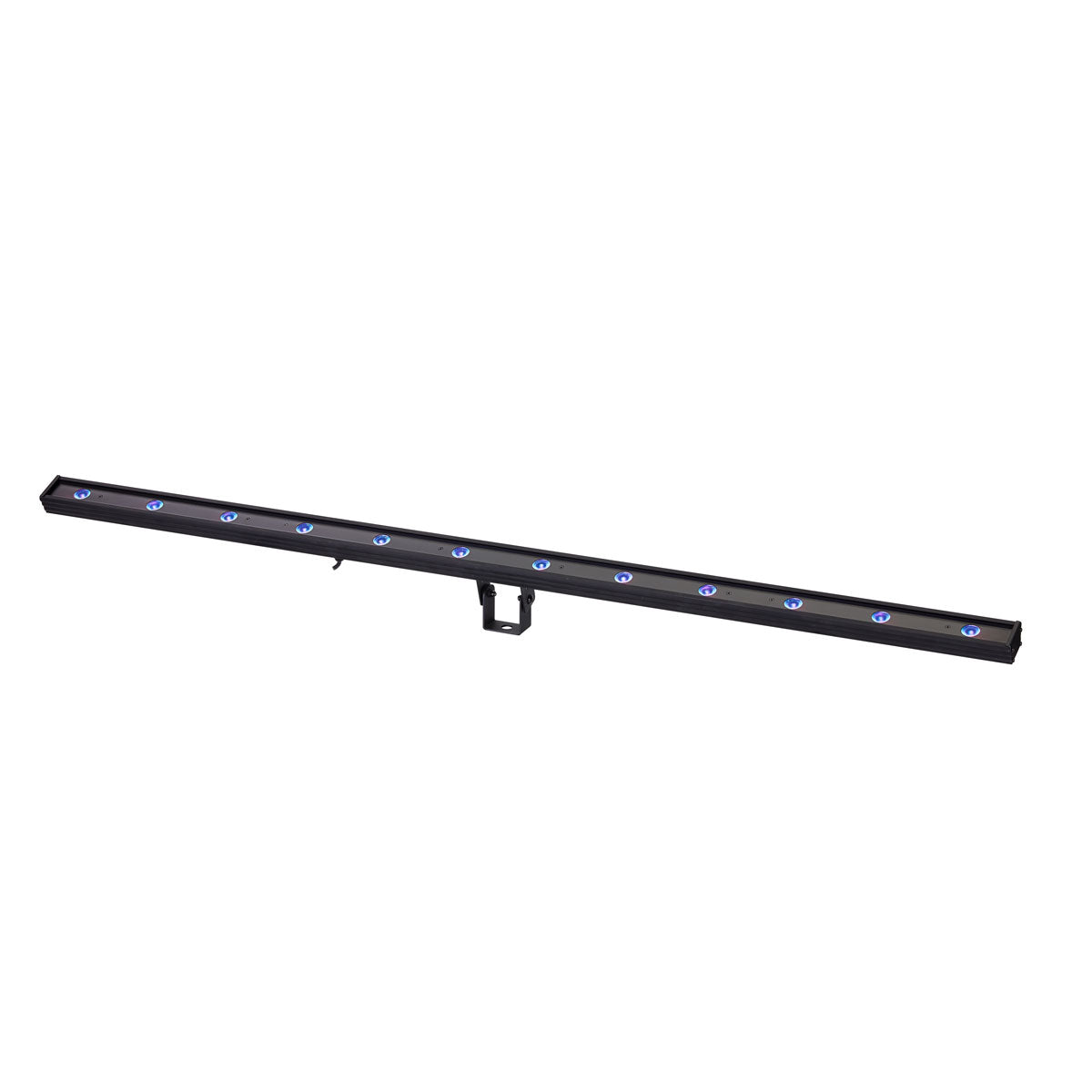

The Antari DarkFX Strip 1020 is an efficient high output low power consumption UV LED bar that delivers a peak wavelength of 365nm and radiant flux output of 9000+mW at full intensity with minimum visible light. This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors. It features (12) 1.9W high power UV LEDs, a 40-degree beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and FILM, an IP20 rated (indoor use only) aluminum extruded housing, an adjustable mounting bracket, and comes with a 22AWG power/data bare wire end pigtail cable attached on the back which connects to the Antari DarkFX Drive 4 fixture driver (sold separately) which is required for power and DMX control.

  • * * * P R E L I M I N A R Y * * *
  • High Efficiency UV LED Bar
  • 40-Degree Beam Angle

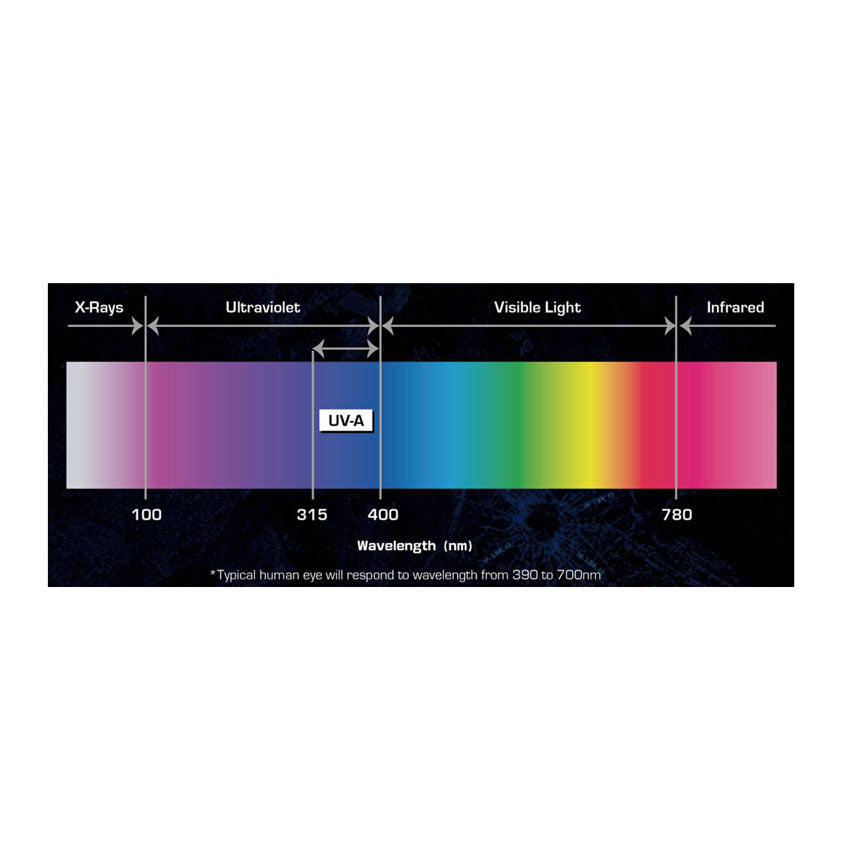

  • 365nm Peak Wavelength with Minimum Visible Light
  • 9000+mW High Output at Full Intensity
  • Special Optics to Prevent Wear Degradation from High UV Exposure
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE

(12) 1.9W High Power UV LEDs

20,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

Optics: 40 Degrees

Peak Wavelength: 365nm

Radiant Flux Output: 9000+ mW


CONTROL / CONNECTIONS

DarkFX Drive 4 II Power/DMX Fixture Driver (sold separately)

Cable Connection: Bare Wire Power/Data Combo Cable


SIZE / WEIGHT

Dimensions (no mounting brackets)

Length: 47" (1194mm)

Width: 2" (51mm)

Vertical Height: 2" (51mm)

Dimensions (including mounting brackets)

Length: 47" (1194mm)

Width: 3" (76.2mm)

Vertical Height: 2.5" (64mm)

Dry Weight: 5lbs / 2.3kg


ELECTRICAL / THERMAL

DC 20-24V

Max Power Consumption: 24 Watts


APPROVALS / RATINGS

CE | IP20 Indoor Use Only






Specifications and documentation subject to change without notice.

Downloads

User manual
