DarkFX UV Spot 670
DarkFX UV Spot 670SKU# AUV100

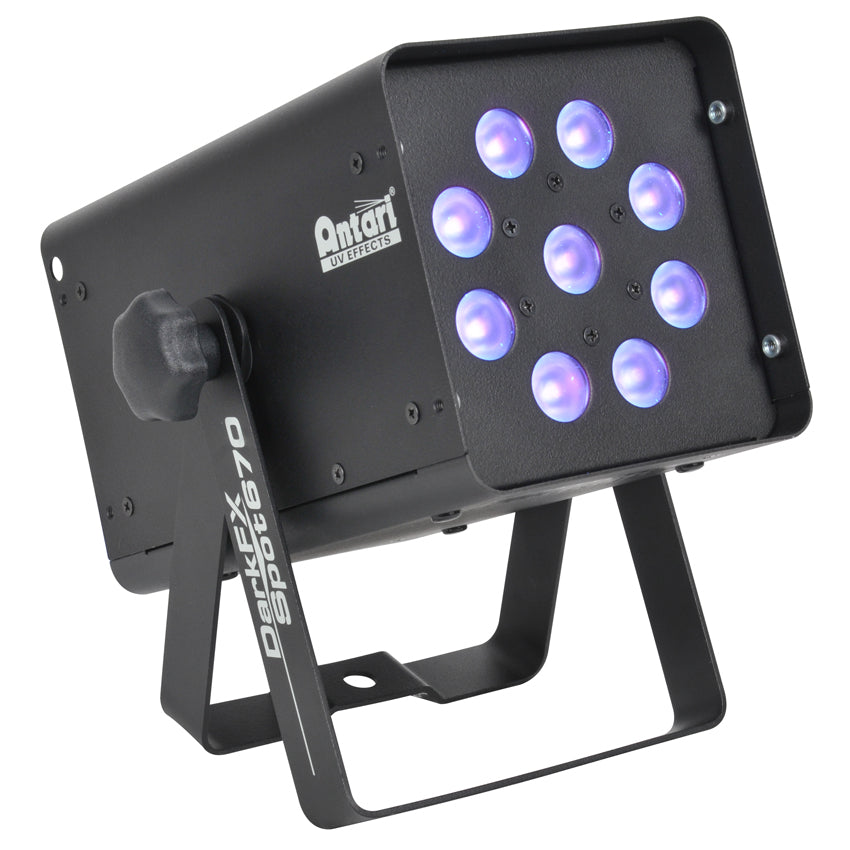

The Antari DarkFX Spot 670 is an efficient high output low power consumption UV LED spot that delivers a peak wavelength of 365nm and radiant flux output of 6760mW at full intensity with minimum visible light. This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors.

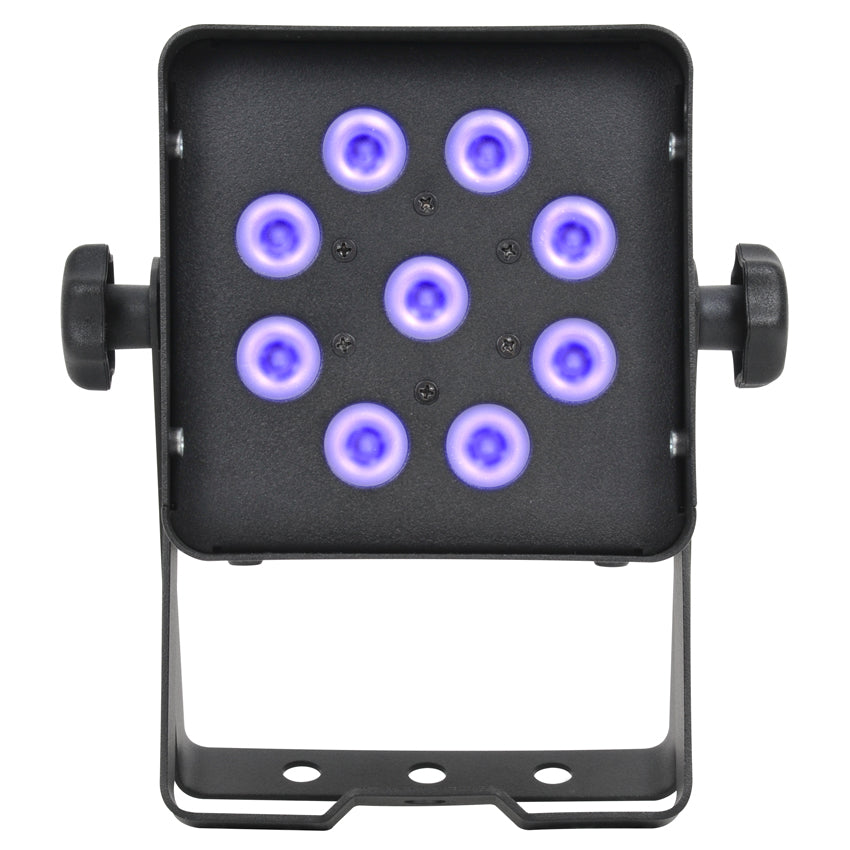

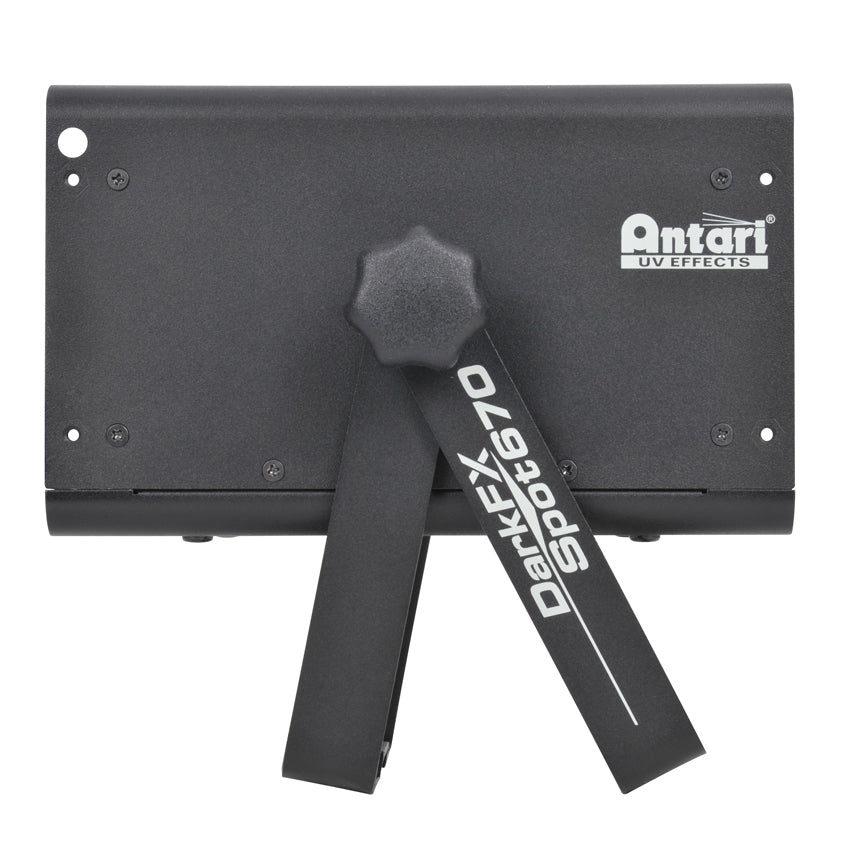

It features (9) 1.9W high power UV LEDs, a 15-degree narrow beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and FILM, an aluminum housing, manual and DMX controllable, 5pin DMX and powerCON in/out connections, dual adjustable/removable mounting yokes, 4 button control panel, and a multi-voltage universal auto switching power supply (100-240V) 50-60Hz).
15-Degree Narrow Beam Angle

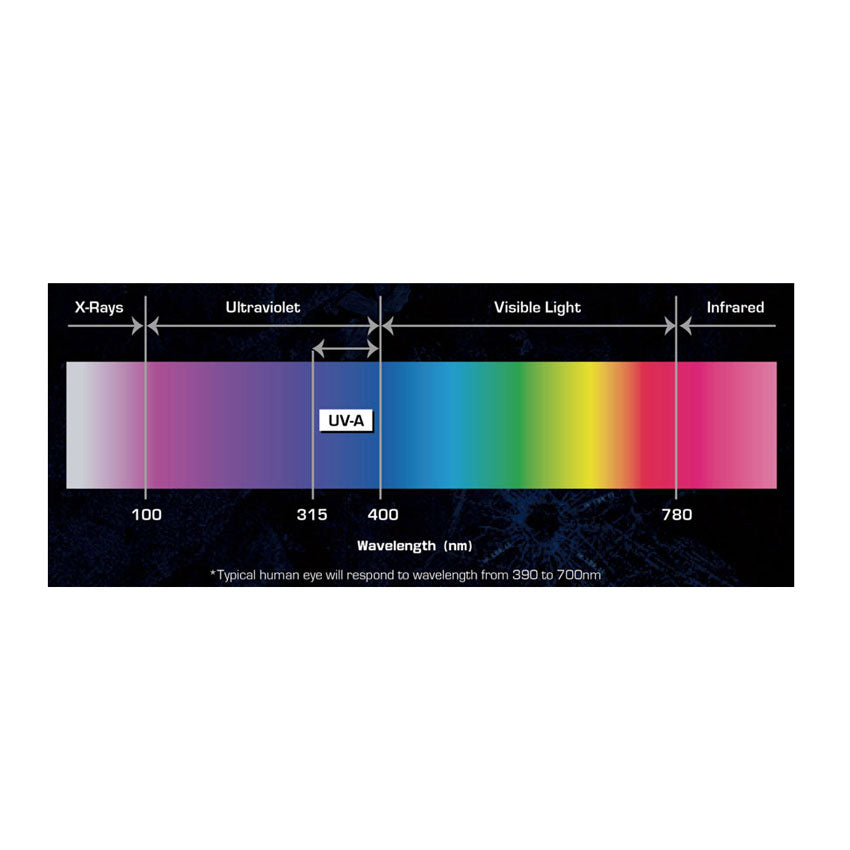

365nm Peak Wavelength with Minimum Visible Light
6760mW High Output at Full Intensity
Special Optics to Prevent Wear Degradation from High UV Exposure
Flicker Free Operation for TV and FILM
Photometric Test Report
- DarkFX UV SPOT 670 Vectorworks 2014 Symbol
- DarkFX UV SPOT 670 Vectorworks 2015 Symbol
- DarkFX UV SPOT 670 Vectorworks 2016 Symbol
(9) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optics: 15 Degrees
Peak Wavelength: 365nm
Radiant Flux Output: 6760 mW
CONTROL / CONNECTIONS
Manual and DMX 512 Control
4 Button Control Panel
5pin DMX In/Out
SIZE / WEIGHT
Length: 8.0” (205mm)
Width: 4.9” (125mm)
Vertical Height: 4.9” (125mm)
Weight: 5.82 lbs. (2.64 kg)
19.1W @110VAC / 18.8W @220VAC Max Power Consumption
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
