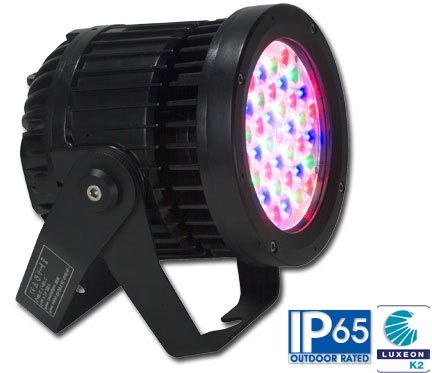

Design LED 108IP
Features
FEATURES
• 36 x 3W K2 LEDs - (12 each R, G, B)
• Long Life L.E.D. (rated at 100,000 Hours)
• Linear RGB color mixing allows for infinite color possibilities and smooth transitions
• IP 65 outdoor rated, compact design, die cast case
• Silent operation, convection cooled (No fans)
• 15º standard beam angle (25º & 45º optional lens kits available)
• Built-in, auto switching power supply
• DMX controllable / Built-in Programs / Manual Control
• Linkable power / data IP rated cables supplied w/ fixture - 3' leads
• Flicker free

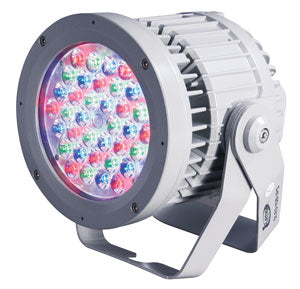

• Available in BLACK or SILVER case finish - DLED 108IP and DLED 108IPS
• 36 x 3W K2 LEDs - (12 each R, G, B)
• Long Life L.E.D. (rated at 100,000 Hours)
• Linear RGB color mixing allows for infinite color possibilities and smooth transitions
• IP 65 outdoor rated, compact design, die cast case
• Silent operation, convection cooled (No fans)
• 15º standard beam angle (25º & 45º optional lens kits available)
• Built-in, auto switching power supply
• DMX controllable / Built-in Programs / Manual Control
• Linkable power / data IP rated cables supplied w/ fixture - 3' leads
• Flicker free
• Available in BLACK or SILVER case finish - DLED 108IP and DLED 108IPS
Resources
Guides/ Manuals
- Design LED 108IP DMX Traits
- Design LED 108IP Dimensional Drawings
- Design LED 1081P User Manual
- Design LED 108IP Cutsheet
Related Categories
Specifications
CONTROL SPECIFICATIONS
• USITT DMX 512
• 3, 4 & 6 CH DMX control modes
• LED display with easy to use function keys
• 3 pin XLR data input & output
• AC Power input & output
CONTROL FEATURES
• 6 built-in programs with Speed control
• Strobe effect (1-18 flashes per second)
• Selectable dim options (Standard & Linear)
• 0-100% dimming
• Primary/Secondary auto program and sound trigger
POWER SUPPLY
• Multi-voltage: 100-240VAC, 50/60Hz
• Power Consumption: 150 watts
RIGGING
• Mounting bracket designed for floor, wall or truss mount
• Molded eye hole for safety cable
DIMENSIONS & WEIGHT
• (LxWxH): 8.8” x 8” x 10.8” / 223.52 x 203.20 x 274.32mm
• 15.2 lbs. / 6 kgs.
• USITT DMX 512
• 3, 4 & 6 CH DMX control modes
• LED display with easy to use function keys
• 3 pin XLR data input & output
• AC Power input & output
CONTROL FEATURES
• 6 built-in programs with Speed control
• Strobe effect (1-18 flashes per second)
• Selectable dim options (Standard & Linear)
• 0-100% dimming
• Primary/Secondary auto program and sound trigger
POWER SUPPLY
• Multi-voltage: 100-240VAC, 50/60Hz
• Power Consumption: 150 watts
RIGGING
• Mounting bracket designed for floor, wall or truss mount
• Molded eye hole for safety cable
DIMENSIONS & WEIGHT
• (LxWxH): 8.8” x 8” x 10.8” / 223.52 x 203.20 x 274.32mm
• 15.2 lbs. / 6 kgs.
