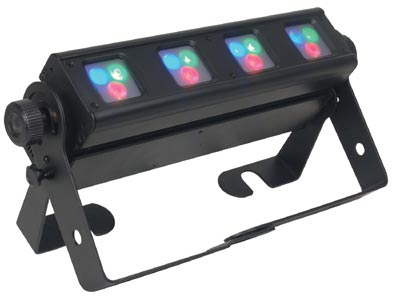

Design LED 12 Brick
Design LED 12 Brick
Discontinued
SKU# DLED 12 BRICK
HIGH OUTPUT LED COLOR CHANGER FEATURES • 12 x 1W Luxeon LED’s - (4 Ea. R, G, B) • Seamless RGB color mixing • Infinite Color possibilities • Compact Design • 44º Beam Angle • 480 lumens @ 1m per unit • 1340 lumens @ 1m per kit of 4 units • Long Life L.E.D. (rated at 100,000 Hours) • Built-in Power Supply and DMX 512 Control
Features
Resources
Guides/ Manuals
- DLED 12 Brick DMX Traits
- DLED 12 Brick Cutsheet
- Design LED 12 Brick User Manual
- DLED 12 Brick Data Sheet
- DLED 12 Brick CAD File
- DLED 12 Brick Dimensional Drawing
- DLED 12 Brick Photometric Data
Related Categories
Specifications
CONTROL SPECIFICATIONS
• USITT-DMX 512
• 6, 12 OR 15CH operation modes
• 12 Position Binary dip switches

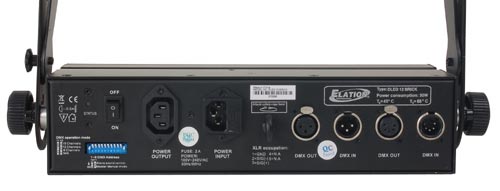

• 3 & 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• 90-250V AC, 50/60Hz
• On/Off Power switch
• Power Consumption: 30 watts
RIGGING
• Mounting bracket and safety I-hook installed
• Optional bracket kit for multiple units (DLEDKIT)
DIMENSIONS & WEIGHT:
• 13”L x 3”W x 4.5”H
• 4.5 lbs.
• USITT-DMX 512
• 6, 12 OR 15CH operation modes
• 12 Position Binary dip switches
• 3 & 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• 90-250V AC, 50/60Hz
• On/Off Power switch
• Power Consumption: 30 watts
RIGGING
• Mounting bracket and safety I-hook installed
• Optional bracket kit for multiple units (DLEDKIT)
DIMENSIONS & WEIGHT:
• 13”L x 3”W x 4.5”H
• 4.5 lbs.
