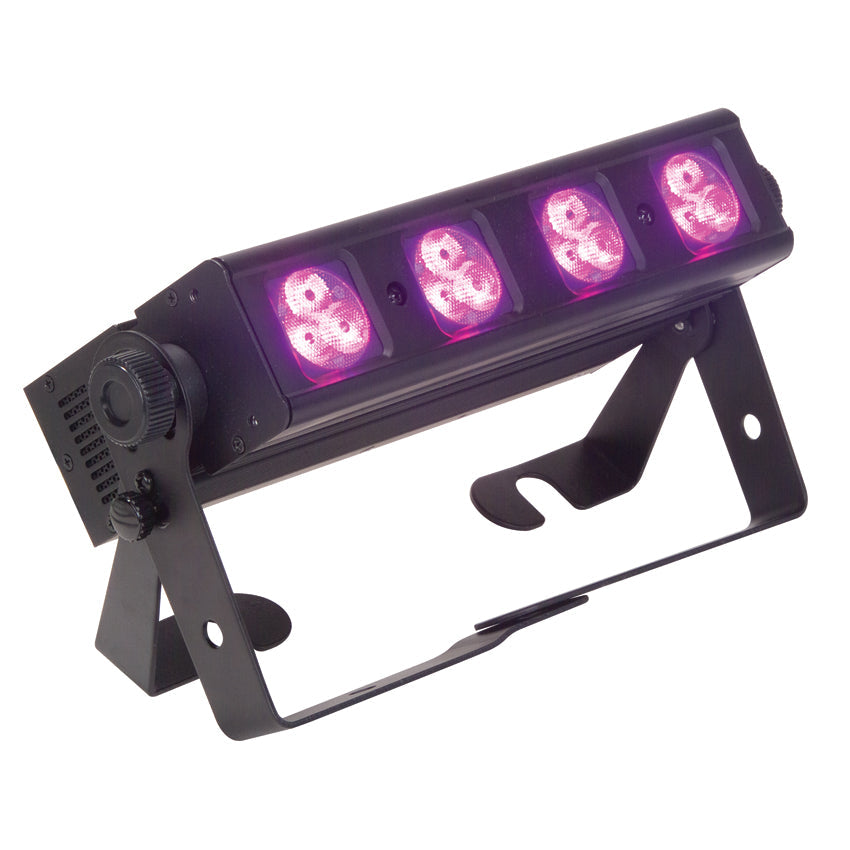

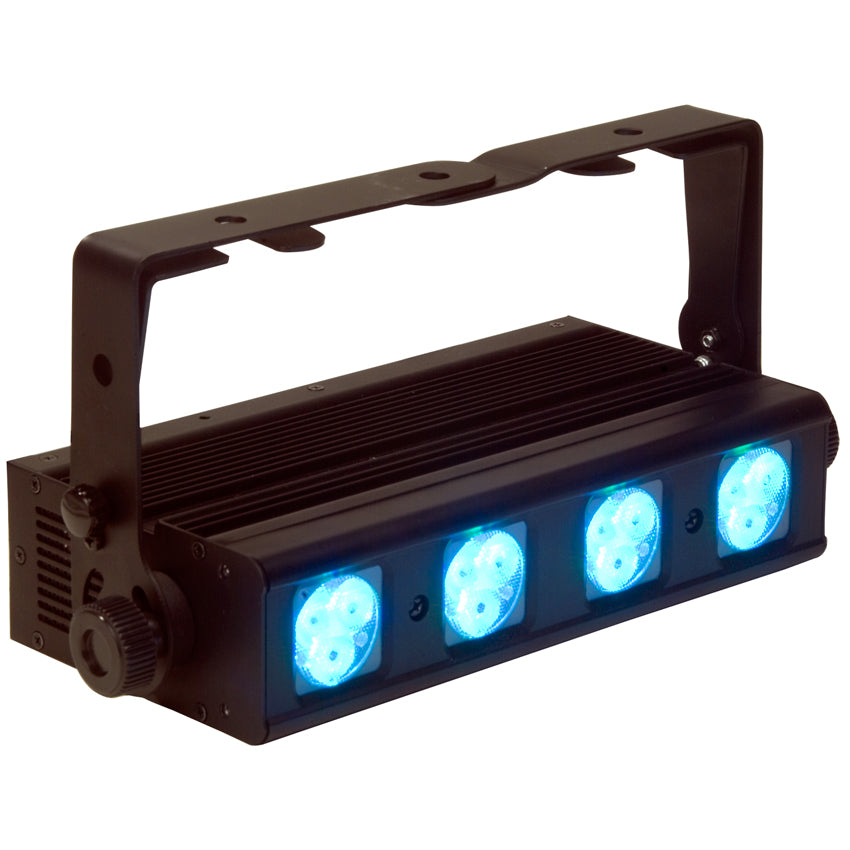

Design LED 36 Tri-Brick
Discontinued
Design LED 36 Tri-Brick is a professional-grade lighting solution. (rated at 100,000 Hours) • Built-in Power Supply and DMX 512 Control .
Design LED 36 Tri-Brick
Sale price$0.00
Design LED 36 Tri-Brick
36W DLED Brick 12 x Tri Color 3W LEDs
FEATURES
• 12 x "Tri-Color" 3W LEDs - (Uses 3-in-1 TRI LED system for superior color mixing - No three color shadows)
• Seamless RGB color mixing
• Infinite Color possibilities
• Compact Design
• Standard 45° Lens Kit, 48° Beam Angle
• 2720 LUX @ 1 meter
• 350 LUX @ 3 meters
• Long Life L.E.D. (rated at 100,000 Hours)
• Built-in Power Supply and DMX 512 Control
FEATURES
• 12 x "Tri-Color" 3W LEDs - (Uses 3-in-1 TRI LED system for superior color mixing - No three color shadows)
• Seamless RGB color mixing
• Infinite Color possibilities
• Compact Design
• Standard 45° Lens Kit, 48° Beam Angle
• 2720 LUX @ 1 meter
• 350 LUX @ 3 meters
• Long Life L.E.D. (rated at 100,000 Hours)
• Built-in Power Supply and DMX 512 Control
Specifications
CONTROL SPECIFICATIONS
• USITT-DMX 512
• 3, 4, 12 OR 15CH operation modes
• 4 Button Electronic Menu
• 3 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary Mode auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• Multi-voltage: 100-240V AC, 50/60Hz
• On/Off Power switch
. Fan cooled
RIGGING
• Mounting bracket and safety eye-hook installed
DIMENSIONS WEIGHT:
• (LxWxH): 16.3” x 9” x 3.15” / 415 x 230 x 80mm
• 9.5 lbs. / 4.3 kgs.
. cETLus Approved
• USITT-DMX 512
• 3, 4, 12 OR 15CH operation modes
• 4 Button Electronic Menu
• 3 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary Mode auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• Multi-voltage: 100-240V AC, 50/60Hz
• On/Off Power switch
. Fan cooled
RIGGING
• Mounting bracket and safety eye-hook installed
DIMENSIONS WEIGHT:
• (LxWxH): 16.3” x 9” x 3.15” / 415 x 230 x 80mm
• 9.5 lbs. / 4.3 kgs.
. cETLus Approved
Downloads
Cad drawing
Photometrics
Design LED 36 Tri-Brick Parts & Service
Our Design LED 36 Tri-Brick Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Design LED 36 Tri-Brick. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Design LED 36 Tri-Brick Parts & Service
