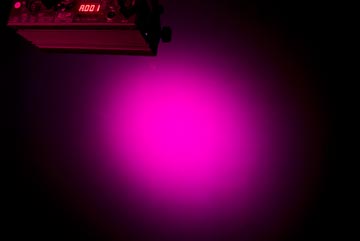

DESIGN LED 36 TRI-BRICK
Discontinued
Design LED 36 Tri-Brick is a professional-grade lighting solution. (rated at 100,000 Hours) #160; • Built-in Power Supply and DMX 512 Control#160; #160;.
DESIGN LED 36 TRI-BRICK
Sale price$0.00
DESIGN LED 36 TRI-BRICK
36W DLED Brick 12 x Tri Color 3W LEDs
- FEATURES
- 12 x "Tri-Color" 3W LEDs - (Uses 3-in-1 TRI LED system for superior color mixing - No three color shadows)
- Seamless RGB color mixing
- Infinite Color possibilities
- Compact Design
- Standard 45° Lens Kit, 48° Beam Angle
- 2720 LUX @ 1 meter
- 350 LUX @ 3 meters
- Long Life L.E.D. (rated at 100,000 Hours)
- Built-in Power Supply and DMX 512 Control
Specifications
CONTROL SPECIFICATIONS
• USITT-DMX 512
• 3, 4, 12 OR 15CH operation modes
• 4 Button Electronic Menu
• 3 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary Mode auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• Multi-voltage: 100-240V AC, 50/60Hz
• On/Off Power switch
. Fan cooled
RIGGING
• Mounting bracket and safety eye-hook installed
DIMENSIONS WEIGHT:
• (LxWxH): 16.3” x 9” x 3.15” / 415 x 230 x 80mm
• 9.5 lbs. / 4.3 kgs.
. cETLus Approved
• USITT-DMX 512
• 3, 4, 12 OR 15CH operation modes
• 4 Button Electronic Menu
• 3 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary Mode auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• Multi-voltage: 100-240V AC, 50/60Hz
• On/Off Power switch
. Fan cooled
RIGGING
• Mounting bracket and safety eye-hook installed
DIMENSIONS WEIGHT:
• (LxWxH): 16.3” x 9” x 3.15” / 415 x 230 x 80mm
• 9.5 lbs. / 4.3 kgs.
. cETLus Approved
