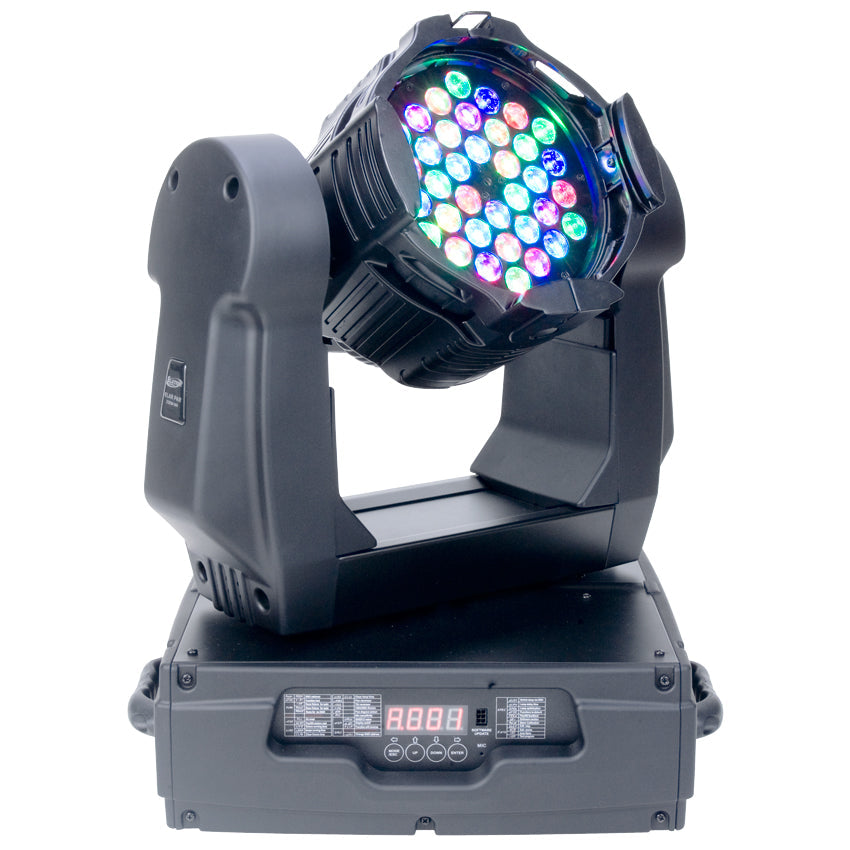

Design LED Par Zoom MH
Design LED Par Zoom MH
Discontinued
SKU# EDL492
Features • Rugged Design Par • 36 x 3 watt LEDs - 12 red, 12 blue, 12 green • Die Cast Aluminum Case • 10° to 60° motorized zoom • On board menu settings • Smooth Color Mixing Flicker Free • Electronic Shutter/Strobe • Electronic Dimming • Automatic Pan / Tilt position correction • Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit • Maximum TILT-movement 265° in 1.5 secs / 16 bit • Firmware Upgradable via Elation E-Load Programming Device
Features
Resources
Guides/ Manuals
- Design LED Par Zoom MH Cutsheet
- DLED Par Zoom MH Photometric Data
- DLED Par Zoom MH User Manual
- DLED Par Zoom MH DMX Traits
- DLED Par Zoom Dimensions
Related Categories
Specifications
Technical Specifications
• DMX Channels: 13 or 11 DMX Channel operation, RDMX - Remote DMX Addressing
• Control: 3-pin & 5-pin XLR serial input/output USITT DMX-512 (16-bit resolution)
• Dimmer: 0-100%
• Strobe: Maximum rate of 18 flashes per second - white or color
• Lux: 251 Lux / 23 FC at 10 feet / 3 meters at full
• IP Rating: IP 20
• Power Supply: 120v~240V 50/60Hz
• Power Consumption: 150W Maximum
• Lamp life: 100,000 hours rated LEDs
• Dimensions: (L x W x H) 20” x 16.9” x 13.9” / 505 x 429 x 353mm
• Weight: 42 lbs. / 19 kg
• Rigging: 2 X 1/4 turn fastening Omega Clamps
