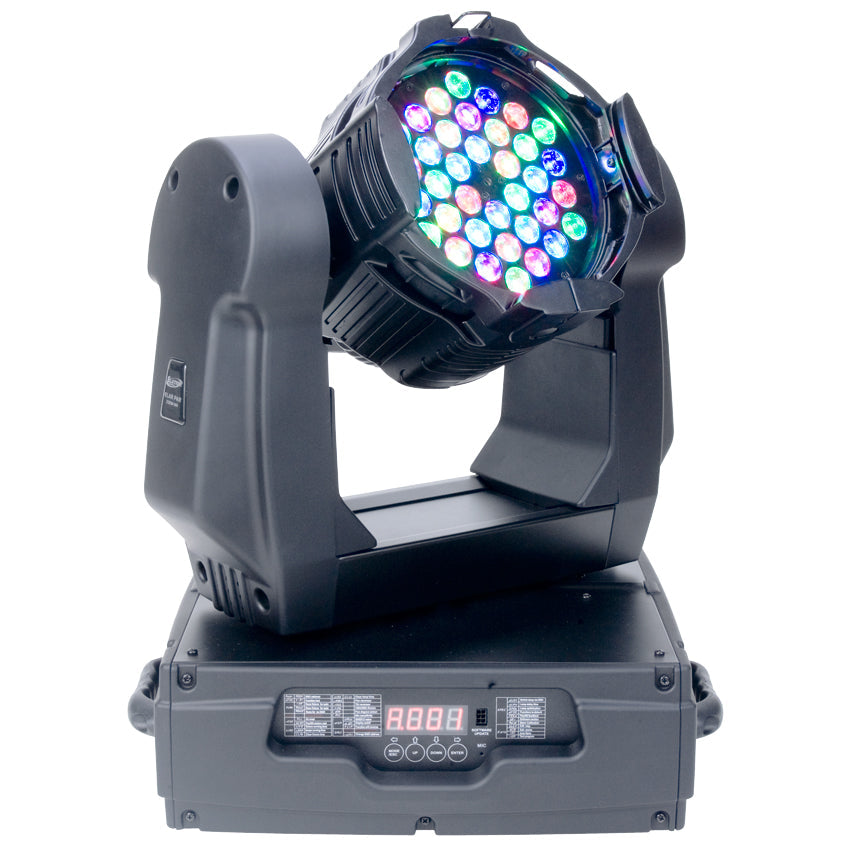

Design LED Par Zoom MH
Discontinued
Design LED Par Zoom MH is a professional-grade lighting solution. Features • Rugged Design Par • 36 x 3 watt LEDs - 12 red, 12 blue, 12 green • Die Cast Aluminum Case • 10° to 60° motorized zoom • On board menu settings • Smooth Color Mixing Flicker Free • Electronic Shutter/Strobe • Electronic Dimming • Automatic Pan / Tilt position correction • Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit • Maximum TILT-movement 265° in 1.5 secs / 16 bit • Firmware Upgradable via Elation E-Load Programming Device.
Design LED Par Zoom MH
Sale price$0.00
Design LED Par Zoom MH
Features
• Rugged Design Par
• 36 x 3 watt LEDs - 12 red, 12 blue, 12 green
• Die Cast Aluminum Case
• 10° to 60° motorized zoom
• On board menu settings
• Smooth Color Mixing Flicker Free
• Electronic Shutter/Strobe
• Electronic Dimming
• Automatic Pan / Tilt position correction
• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Firmware Upgradable via Elation E-Load Programming Device
Specifications
Technical Specifications
&• DMX Channels: 13 or 11 DMX Channel operation, RDMX - Remote DMX Addressing
&• Control: 3-pin & 5-pin XLR serial input/output USITT DMX-512 (16-bit resolution)
&• Dimmer: 0-100%
&• Strobe: Maximum rate of 18 flashes per second - white or color
&• Lux: 251 Lux / 23 FC at 10 feet / 3 meters at full
&• IP Rating: IP 20
&• Power Supply: 120v~240V 50/60Hz
&• Power Consumption: 150W Maximum
&• Lamp life: 100,000 hours rated LEDs
&• Dimensions: (L x W x H) 20&" x 16.9&" x 13.9&" / 505 x 429 x 353mm
&• Weight: 42 lbs. / 19 kg
&• Rigging: 2 X 1/4 turn fastening Omega Clamps
