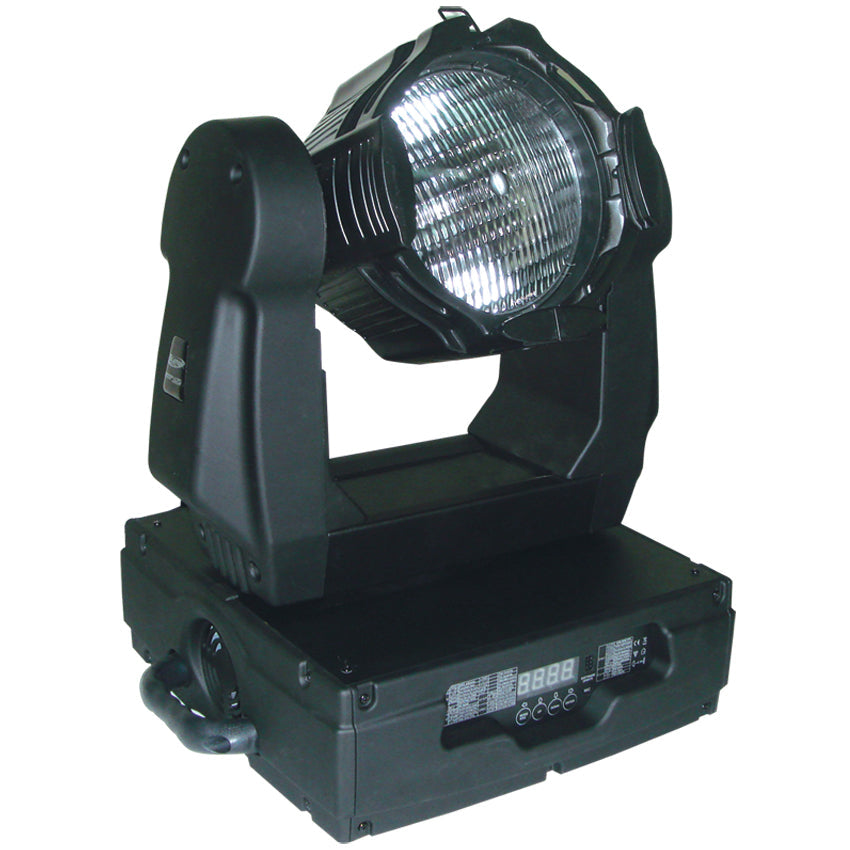

Design Par 575DETL
Design Par 575DETL
Discontinued
SKU# DPAR575DETL
Features
. Sku# DPAR575DETL
. Gel Frame Holder Included
. 575W Discharge “Opti Par” Moving Head Fixture
. 40° Beam Angle
. Includes 4 Lens Options: Very Narrow, Narrow, Medium & Wide
Features
Resources
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
Colors
. Gel frame holder included
Light Source
. 5,460 Lux / 507 FC @ 16 feet / 5 meters
. Lamp life: 1000hrs 7,200°k, 575W
. Lamp: ZB-MSR 575/2 575W Discharge (not included)
Optical System
. 40° beam angle
. Includes 4 lens options: very narrow, narrow, medium & wide
. Glass dichroic reflector for even lamp output
. Anti-reflective coated lenses
Movement
. Pan 630° or 540° (User selectable) / Tilt 265°
. Fine Pan & Tilt, Built-in programs
. Automatic repositioning
. Automatic Pan/Tilt Correction
Control
. 6 DMX channels default or 4 DMX channel user selectable
. Control board with 4-digit display and foil-keyboard
. Value of each DMX-channel can be displayed
. Digital display can be turned 180° to fit different installation positions
. USSIT DMX-512
. Built In lamp control via DMX
. RDMX - remote DMX addressing
. Internal programs
. Auto test for all functions
. 3 operation modes: DMX controlled, stand alone or sound activated
. 16 bit mode
Operation Parameters
. IP Rating: IP 20
. Quick out omega clamps
. Silent fan & operation
Power Supply
. Electronic ballast
. User Selectable Switching Power Supply (Internal)
. Voltage: 98V 50hz
. Power consumption: 700W
Connectors
. 3 pin XLR serial in/out
Dimensions and Weight
. Dimensions (L x W x H): 14.25” x 17” x 19.4” / 429 x 362 x 492mm
. Weight: 51 lbs / 23 kg
Approvals
. cETLus approved
