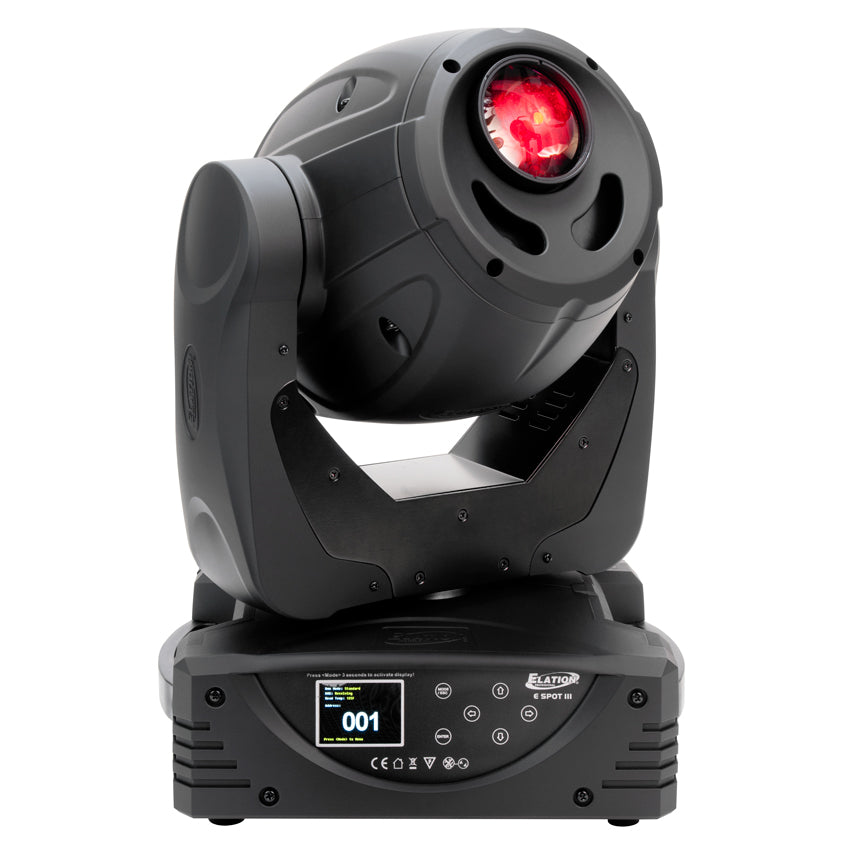

E Spot III
E Spot III
The E Spot III™ features a new 90W Cool White Solid State LED engine, a 19° beam, 8 dichroic colors, 7 rotating-interchangeable glass gobos, 3-facet and linear rotating prisms, frost filter, motorized iris and focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), 180° full color reversible LCD menu display with 6 button touch control panel, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Features
90W Cool White Solid State LED Spot Luminaire
19° Beam, 8 Dichroic Colors
7 Rotating-Interchangeable Glass Gobos
3-Facet and Linear Rotating Prisms and Frost Filter
High Speed Mechanical Shutter and Strobe
Motorized Iris and Focus and Variable Dimming Curves
Low Heat, Quiet Operation, Hibernation Mode
Flicker Free Operation For Broadcast TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- E SPOT III Vectorworks 2014 Symbol
- E SPOT III Vectorworks 2015 Symbol
- E SPOT III Vectorworks 2016 Symbol
Related Categories
Specifications
90W Solid State Cool White LED Engine
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,250 LUX 674 FC @8.2’ (2.5m) (19° Full ON)
EFFECTS
3-Facet and Linear Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Iris and Focus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves
COLOR
8 Dichroic Colors
GOBOS
7 Interchangeable-Rotating / Indexing Glass Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 16 / 20)
RDM (Remote Device Management)
6 Button Touch Control Panel
180° Reversible Full Color LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

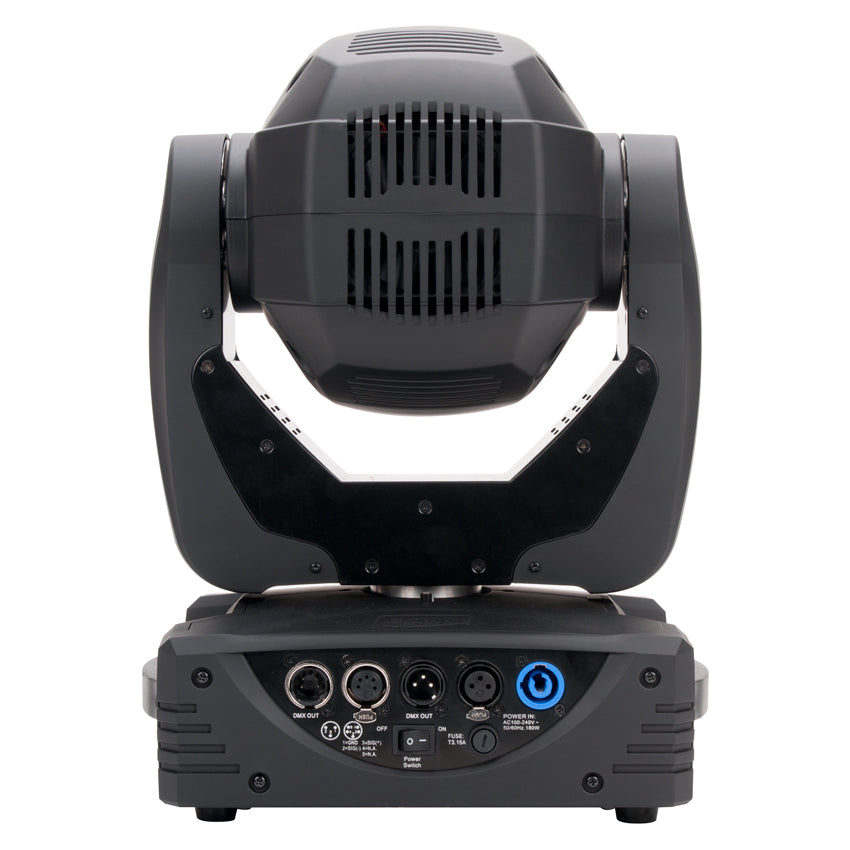

Locking 3pin & 5pin XLR DMX In/Out
Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.9” (301mm)
Width: 9.6” (243mm)
Vertical Height: 17.1” (435mm)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
