E Spot LED II
E Spot LED II
Discontinued
SKU# EES058

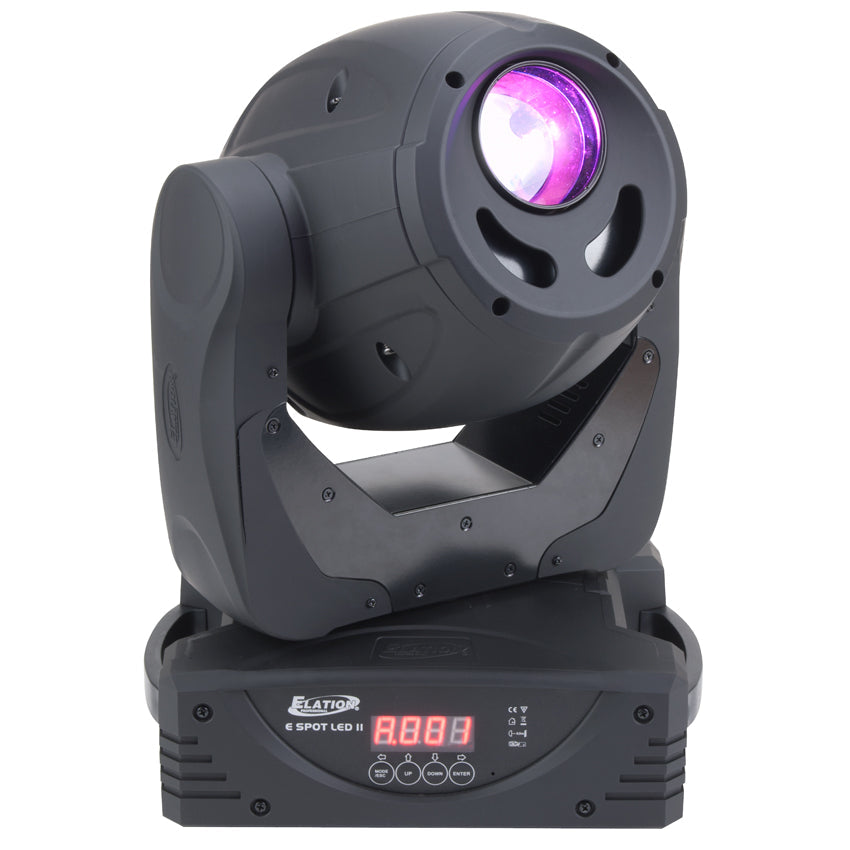

The E SPOT LED II™ features a 60W 6,500K, Cool White Solid State LED engine, with greater output and 1/2 the power of a 150W discharge fixture, 16-bit pan and tilt motors, motorized focus, electronic strobe, 0-100% dimming, rotating 3 facet, 5 facet, and infinity prisms, color wheel with (8) dichroic colors plus white, gobo wheel with (7) rotating, interchangeable gobos, flicker free operation for TV and FILM, 3 and 5pin DMX in/out connections, (4) button touch control panel, 180W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
Features
The E SPOT LED II™ features a 60W 6,500K, Cool White Solid State LED engine, with greater output and 1/2 the power of a 150W discharge fixture, 16-bit pan and tilt motors, motorized focus, electronic strobe, 0-100% dimming, rotating 3 facet, 5 facet, and infinity prisms, color wheel with (8) dichroic colors plus white, gobo wheel with (7) rotating, interchangeable gobos, flicker free operation for TV and FILM, 3 and 5pin DMX in/out connections, (4) button touch control panel, 180W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
SEE NEW VERSION
E SPOT III (click for more info)
FEATURES
Greater Output and 1/2 the Power of 150W Discharge
16 bit Pan and Tilt Motors
Motorized Focus
Flicker Free Operation for TV and FILM
SEE NEW VERSION
E SPOT III (click for more info)
FEATURES
Greater Output and 1/2 the Power of 150W Discharge
16 bit Pan and Tilt Motors
Motorized Focus
Flicker Free Operation for TV and FILM
Resources
Specifications Sheet
User Manual
Photometric Data
DMX Traits
Dimensional Drawing
CAD Drawing
Specifications
SOURCE
60W 6,500K Cool White Solid State LED Engine
60,000 Hour Average Life
PHOTOMETRIC DATA
2,636 LUX 245 FC @5M 15°
EFFECTS
3 Facet, 5 Facet, and Infinity Prisms and Macros
Variable Strobe Settings
Electronic Dimming: 0% - 100%
COLOR
8 Dichroic Colors + White
GOBOS
7 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 27mm / ID 22mm
CONTROL / CONNECTIONS
(2) DMX Channel Modes (12/14)

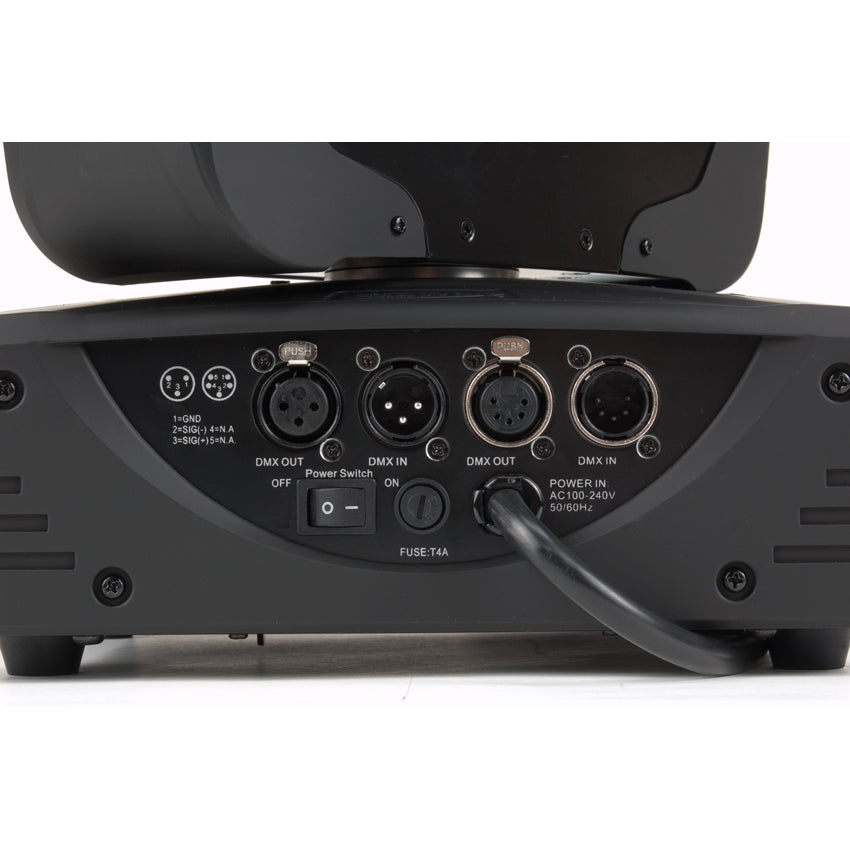

3pin & 5pin DMX In/Out

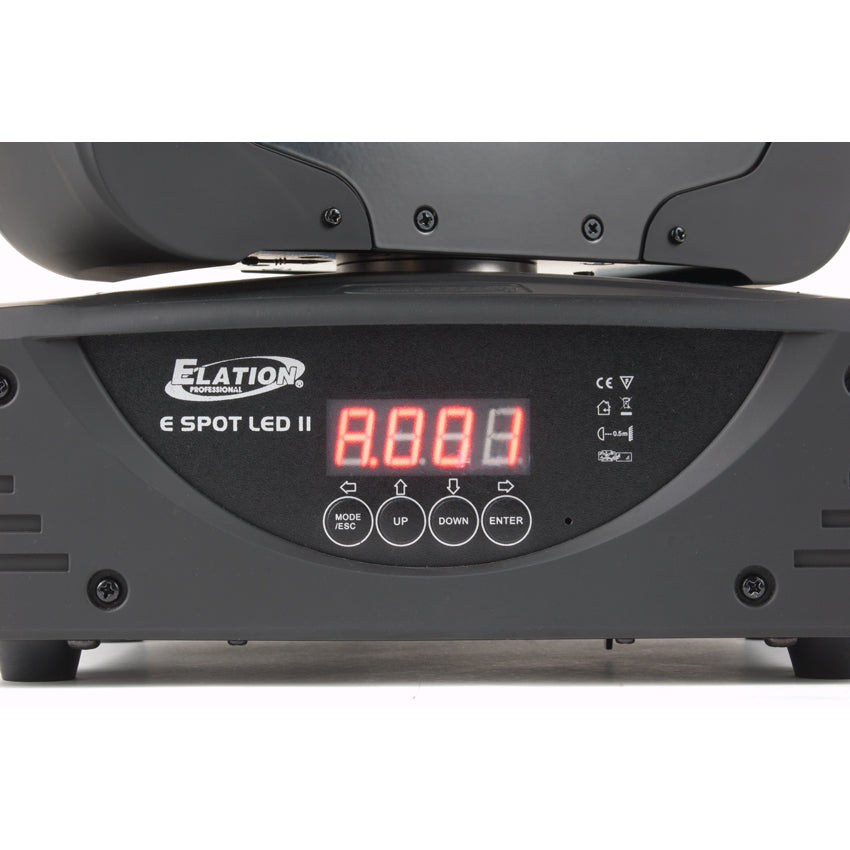

4 Button Control Panel
LCD Menu Display
Edison Power Cable
SIZE / WEIGHT
Length: 11.9” (301mm)
Width: 8.0” (204mm)
Vertical Height: 16.0” (407mm)
Weight: 25.0 lbs. (11.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20 Rated
INSTALLATION
Rigging: Omega Bracket
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 3pin XLR Cable
(1) Safety Cable
OPTIONAL ACCESSORIES:
CLAMPS (click for more info)
PRO CABLES (click for more info)
Specifications and documentation subject to change without notice.
