E SPOT LED II
Discontinued
E Spot LED II is a professional-grade lighting solution.
E SPOT LED II
Sale price$0.00
E SPOT LED II

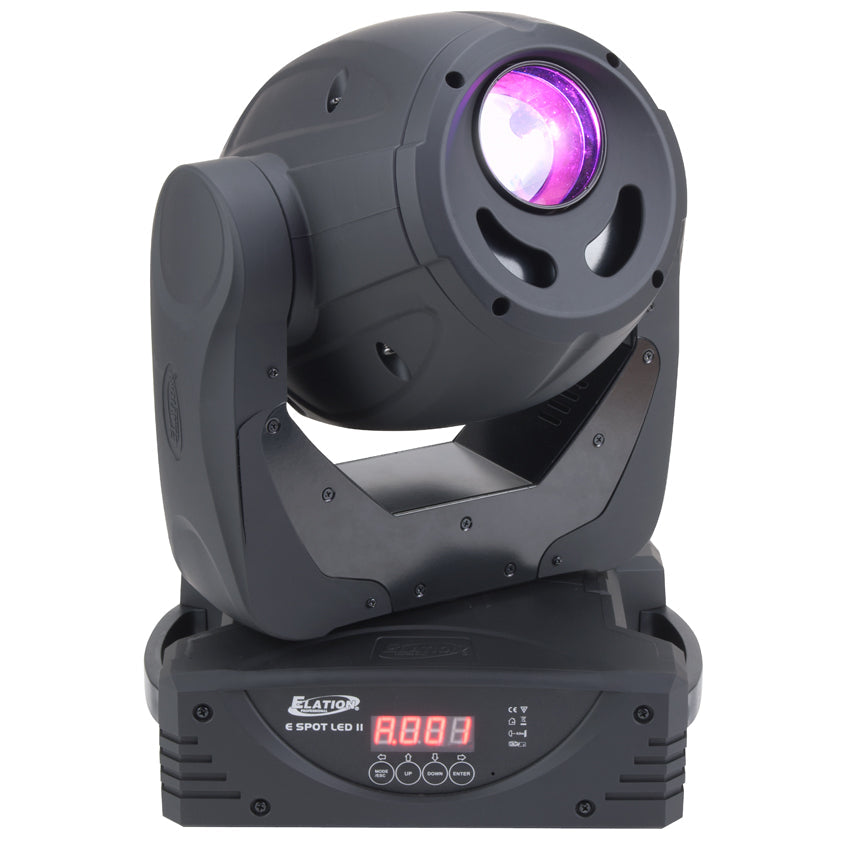

The E SPOT LED II™ features a 60W 6,500K, Cool White Solid State LED engine, with greater output and 1/2 the power of a 150W discharge fixture, 16-bit pan and tilt motors, motorized focus, electronic strobe, 0-100% dimming, rotating 3 facet, 5 facet, and infinity prisms, color wheel with (8) dichroic colors plus white, gobo wheel with (7) rotating, interchangeable gobos, flicker free operation for TV and FILM, 3 and 5pin DMX in/out connections, (4) button touch control panel, 180W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
- Greater Output and 1/2 the Power of 150W Discharge
- 16 bit Pan and Tilt Motors
- Motorized Focus
- Flicker Free Operation for TV and FILM
Specifications
SOURCE
60W 6,500K Cool White Solid State LED Engine
60,000 Hour Average Life
PHOTOMETRIC DATA
2,636 LUX 245 FC @5M 15deg;
EFFECTS
3 Facet, 5 Facet, and Infinity Prisms and Macros
Variable Strobe Settings
Electronic Dimming: 0% - 100%
COLOR
8 Dichroic Colors + White
GOBOS
7 Interchangeable / Rotating / Indexing Glass Gobos
Size: OD 27mm / ID 22mm
CONTROL / CONNECTIONS
(2) DMX Channel Modes (12/14)

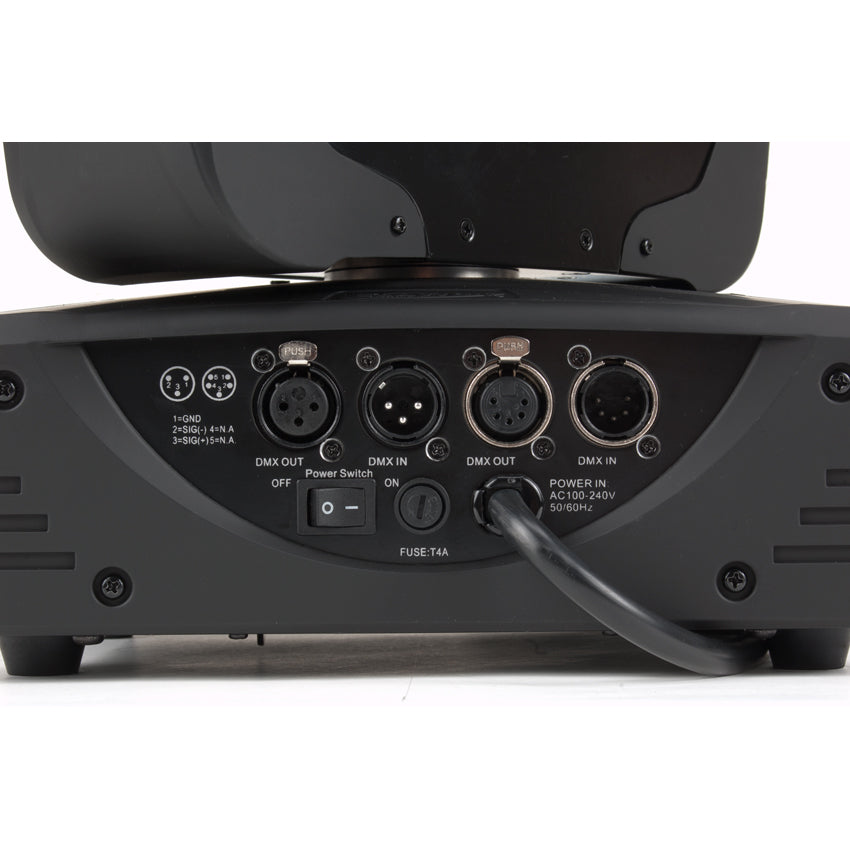

3pin amp; 5pin DMX In/Out

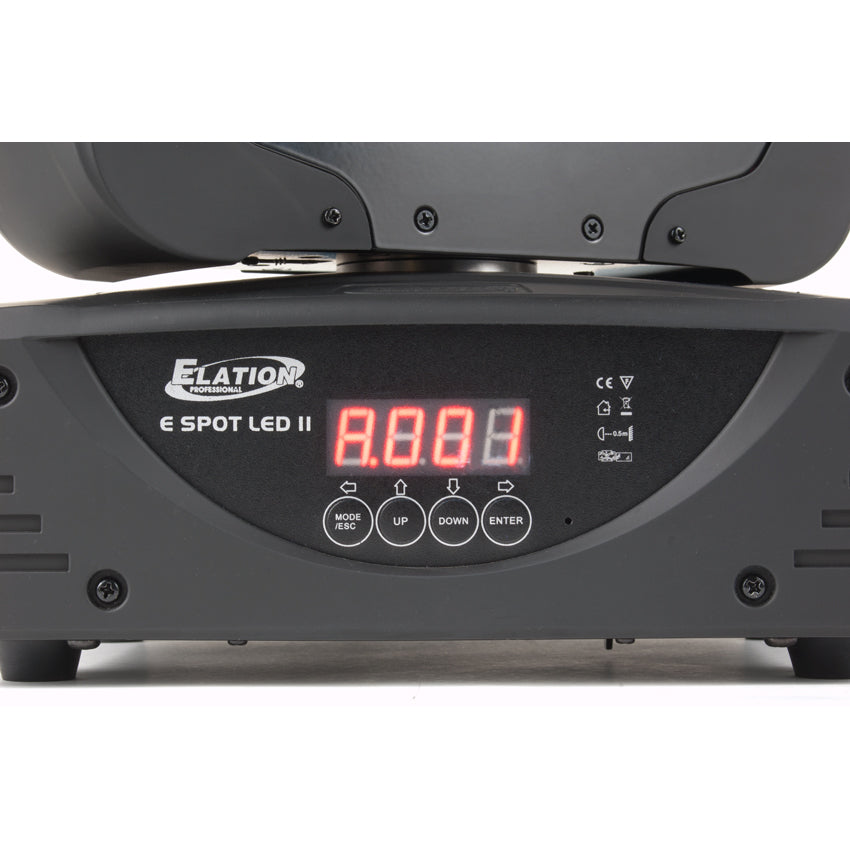

4 Button Control Panel
LCD Menu Display
Edison Power Cable
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.9" (301mm)
Width: 8.0" (204mm)
Vertical Height: 16.0" (407mm)
Weight: 25.0 lbs. (11.3kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
