ELAR-B2WBR0116
ELAR-B2WBR0116

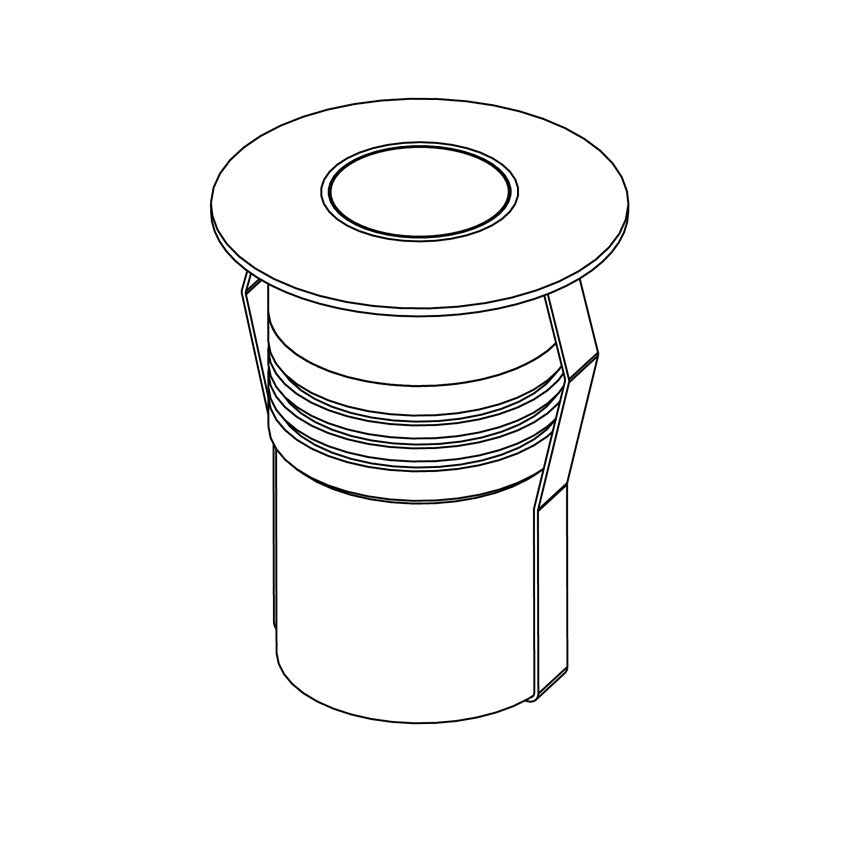

The ELAR-B2WBR0116™ inground IP67 rated 24V luminaire features a 2W Cool White (3,000K) >82 lumens LED producing a 30° beam angle, a tempered glass lens, stainless steel front cover, and a grey powder coated aluminum housing. It includes a removable PVC mounting sleeve, and a 20-inch (0.5m) bare end power cable.
Features
The ELAR-B2WBR0116™ inground IP67 rated 24V luminaire features a 2W Cool White (3,000K) >82 lumens LED producing a 30° beam angle, a tempered glass lens, stainless steel front cover, and a grey powder coated aluminum housing. It includes a removable PVC mounting sleeve, and a 20-inch (0.5m) bare end power cable.
FEATURES
30° Beam Angle
Tempered Glass Lens
Stainless Steel Front Cover
Removable PVC Mounting Sleeve
Grey Powder Coasted Aluminum Housing
Resources
Guides/ Manuals
- ELAR-B2WBR0116 Specification Sheet
- ELAR-B2WBR0116 Dimensional Drawings
- ELAR-B2WBR0116 Photometric Data
Related Categories
Specifications
2W Cool White 3,000K LED
10,000 Hour Average Life
PHOTOMETRIC DATA (Center Beam)
76.88 LUX @6.6’ (2m)
19.22 LUX @13.1’ (4m)
8.54 LUX @19.7’ (6m)
4.81 LUX @26.2’ (8m)
3.08 LUX @32.8’ (10m)
2.14 LUX @39.4’ (12m)
SIZE / WEIGHT
Top Ring : Ø 2.16” (55 mm)
Base: Ø 1.65” (42 mm)
Horizontal Height: 3.15” (80 mm)
Weight: 0.8 lbs. (0.36 kg)
ELECTRICAL / THERMAL
24VDC
2.5W Max Power Consumption
-4°F to 104°F (-20°C to 40°C)
APPROVALS / RATINGS
CE | RoHs | IP67
INCLUDED ACCESSORIES
PVC Mounting Sleeve
Specifications and documentation subject to change without notice.
