ELAR-B2WBR0116
ELAR-B2WBR0116 is a professional-grade lighting solution. It includes a removable PVC mounting sleeve, and a 20-inch (0.5m) bare end power cable. It includes a removable PVC mounting sleeve, and a 20-inch (0.5m) bare end power cable.
ELAR-B2WBR0116

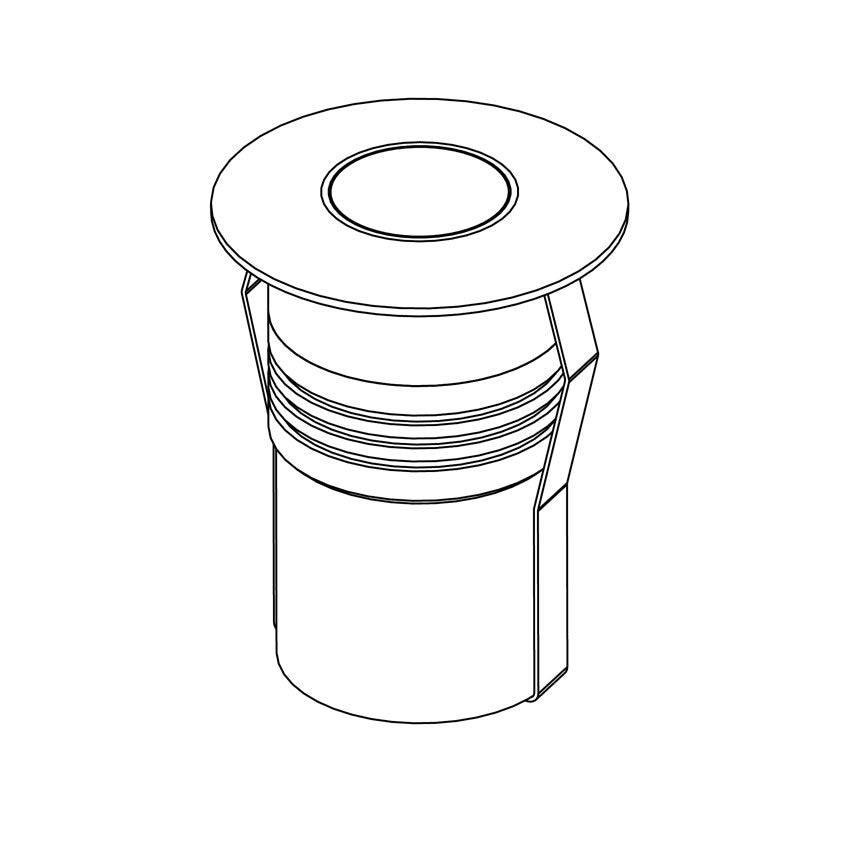

The ELAR-B2WBR0116™ inground IP67 rated 24V luminaire features a 2W Cool White (3,000K) >82 lumens LED producing a 30° beam angle, a tempered glass lens, stainless steel front cover, and a grey powder coated aluminum housing. It includes a removable PVC mounting sleeve, and a 20-inch (0.5m) bare end power cable.
The ELAR-B2WBR0116™ inground IP67 rated 24V luminaire features a 2W Cool White (3,000K) >82 lumens LED producing a 30° beam angle, a tempered glass lens, stainless steel front cover, and a grey powder coated aluminum housing. It includes a removable PVC mounting sleeve, and a 20-inch (0.5m) bare end power cable.
- FEATURES
- 30° Beam Angle
- Tempered Glass Lens
- Stainless Steel Front Cover
- Removable PVC Mounting Sleeve
- Grey Powder Coasted Aluminum Housing
Specifications
2W Cool White 3,000K LED
10,000 Hour Average Life
PHOTOMETRIC DATA(Center Beam)
76.88 LUX @6.6rsquo; (2m)
19.22 LUX @13.1rsquo; (4m)
8.54 LUX @19.7rsquo; (6m)
4.81 LUX @26.2rsquo; (8m)
3.08 LUX @32.8rsquo; (10m)
2.14 LUX @39.4rsquo; (12m)
SIZE / WEIGHT
Top Ring : Oslash; 2.16" (55 mm)
Base: Oslash; 1.65" (42 mm)
Horizontal Height: 3.15" (80 mm)
Weight: 0.8 lbs. (0.36 kg)
ELECTRICAL / THERMAL
24VDC
2.5W Max Power Consumption
-4deg;F to 104deg;F (-20deg;C to 40deg;C)
APPROVALS / RATINGS
CE | RoHs | IP67
INCLUDED ACCESSORIES
PVC Mounting Sleeve
Specifications and documentation subject to change without notice.
