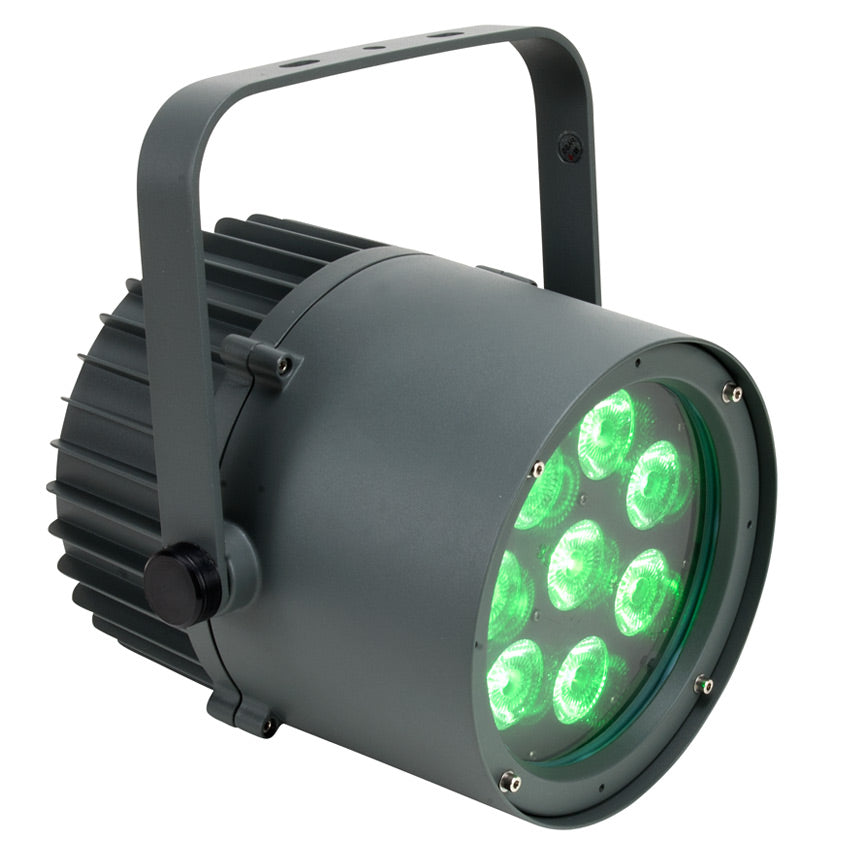

ELAR EXQUAD PAR HP
ELAR EXQUAD PAR HP
Discontinued
SKU# ELA980
The IP65 Rated ELAR EXQUAD PAR HP™ features (8) 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, (7) DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, integrated adjustable yoke, multiple unit linkable, 45W max power consumption, programmable IR remote (sold separately) and a multi-voltage universal auto switching power supply (100-240v).
Features
IP65 Rated
25° Beam Angle
Die-Cast Aluminum Housing / Tempered Glass
IR Remote Programmable
Flicker Free Operation for TV and FILM
Resources
Guides/ Manuals
- ELAR EXQUADPAR HP Cut Sheet
- ELAR EXQUADPAR HP Dimensional Diagram
- ELAR EXQUADPAR HP Photometric Chart
- ELAR EXQUADPAR HP User Manual
Related Categories
Specifications
SOURCE
8 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
1542 LUX (143 FC) @9.8 ft. (3m) 25° Full ON
EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
RGBW (Red, Green, Blue, White)
CONTROL / CONNECTIONS
7 DMX Channel Modes (1 / 2 / 3 / 4 / 6 / 7 / 8)

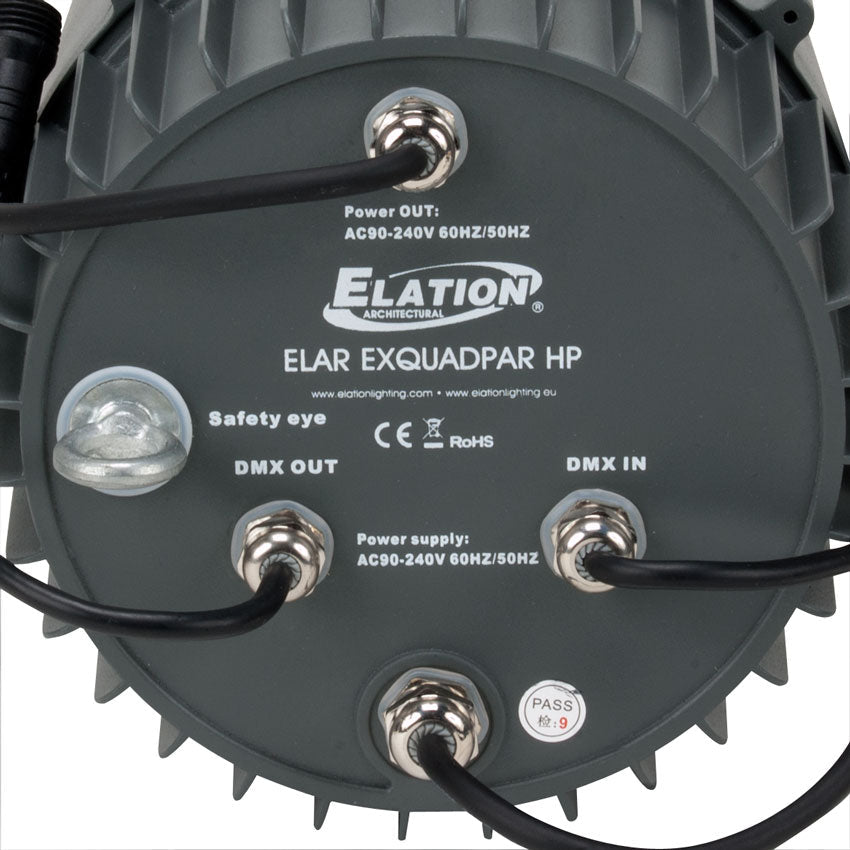

3pin IP DMX In/Out
4pin IP Power In/Out
Power Link Multiple Units - (12) Units Max
SIZE / WEIGHT
Length: 8.25” (205mm)
Width: 8.25” (205mm)
Vertical Height: 9.5” (235mm)
Weight: 11.0 lbs. (5.0kg)
ELECTRICAL
AC 100-240V - 50/60Hz
45W Max Power Consumption
INSTALLATION
Rigging: Integrated Adjustable Yoke
Working Position: Any (360°)
APPROVALS / RATINGS
CE | IP65
INCLUDED ITEMS
(1) 4pin Female IP to Edison Power Cable
(1) 3pin Male IP to 3pin Female DMX Cable
(1) 3pin Female IP to 3pin Male DMX Cable
(1) Bag of (2) DMX End Caps

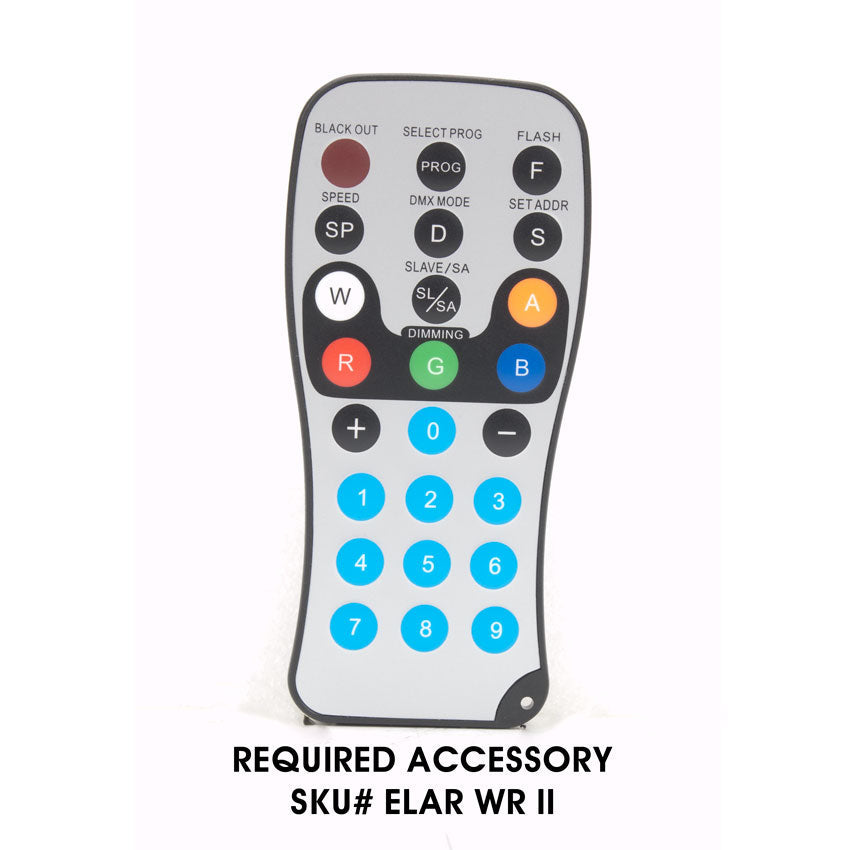

REQUIRED ACCESSORY:
ELAR WR II (click for more info)
OPTIONAL ACCESSORIES:
ELA958/3MPEC: 3m Power Ext/Link Cable
ELAR 3C-1M: ELAR 1m Extension Signal Cable
ELAR 3C-5M: ELAR 5m Extension Signal Cable
Specifications and documentation subject to change without notice.
