ELAR TRI BRICK

ELAR TRI BRICK

Discontinued
SKU# EAR504
Product Features • Tri Color LED IP 66 Brick • 12 x 3W Tri Color LED’s • Smooth Color Mixing Flicker Free • Tri Color Technology • 18° Beam Angle/35° Field Angle (25° Lens) • IP 66 Rugged Design Par Die Cast Aluminum Case • Power / Data Link up to 16 fixtures • 3 Pin DMX & 120v AC power cable adapters included • Built In Color Macros • Upgradable firmware via Elation “E-Loader” Data Pack • Electronic Switching Power Supply 100v~240v

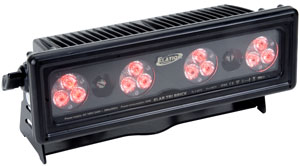

ELAR TRI BRICK Product Image

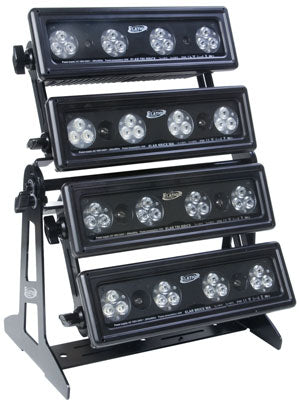

ELAR TRI BRICK Product Image

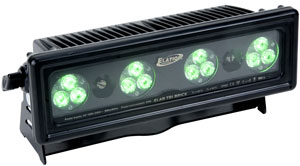

ELAR TRI BRICK Product Image

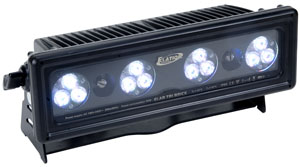

ELAR TRI BRICK Product Image

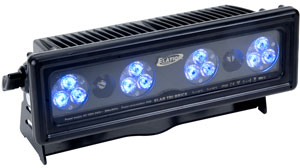

ELAR TRI BRICK Product Image
Gallery Features Specifications Resources Related Categories

Features

Resources

Guides/ Manuals

Related Categories

Specifications

 Technical Specifications

• DMX Channels: 5 DMX modes - 3/4/9/12/15 Channels DMX

• Control: USITT DMX-512

• Color: Tri color (RGB) LED technology, linear RGB Color Mixing, infinite color possibilities

• Strobe: Electronic strobe 0-18 flashes per second

• Dimmer: 0-100% Continuous Dimming

• Cooling: Conventional - no fans

• Cable Plug Type: Twist lock IP rated

• LED’s Source: 12 x 3W Tri Color LEDs

• Total Lumens: 5,020 (all @ 1m)

• Lux: 692 lux / 64 fc @ 10’

• LED Life: 100,000 hours

 Environmental Specifications

• Max Ambient Temperature: -20° +20°C

• IP Level: IP 66

 Electrical Specifications

• Ballast: Electronic Power supply

• Power Supply: 100-240V 50/60Hz

• Power Consumption: 120W maximum

• Dimensions: (LxWxH) 9.3” x 8.66” x 10.24” / 232 x 220 x 260mm

• Weight: 15.2 lbs. (6 Kgs)
