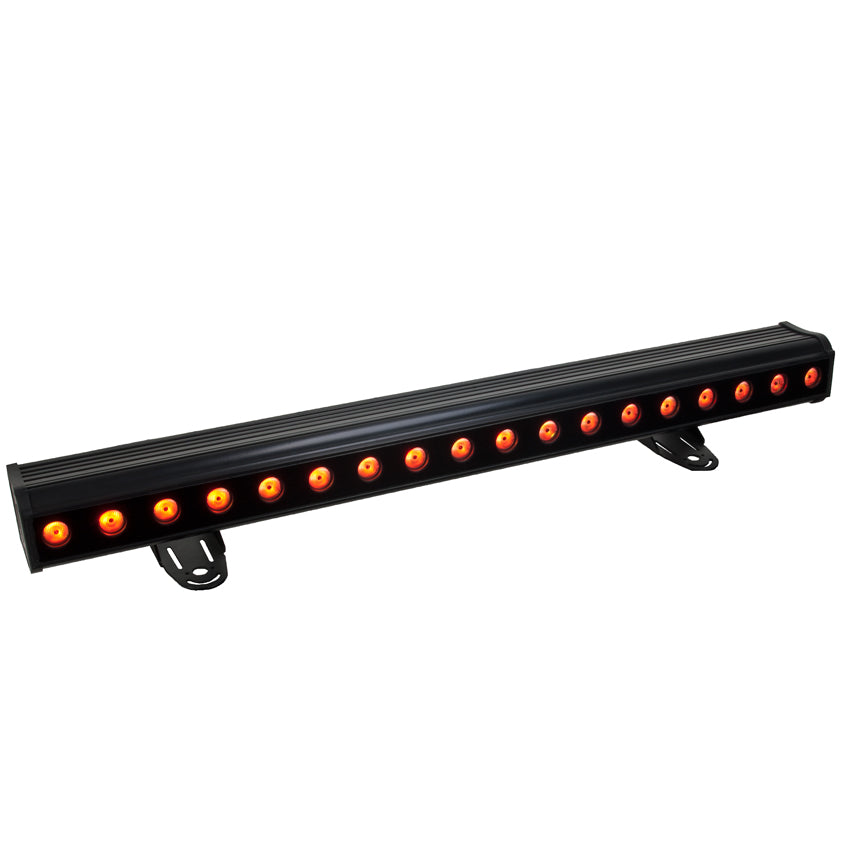

ELED QW Strip

SPECIFICATIONS

&• Total LEDs 18x 5W Quad LEDs 1 Meter Strip (Red, Blue Green and White LED’s)

&• Four Operating Modes: DMX Control, Program Control, Color Macro Control & Single Color Control

&• 9 DMX Channels: 1, 2, 4, 5, 7, 8, 36, 54 or 72

&• 68 built-in Color Macros

&• 3-button LED display on rear panel

&• Strobe & Pulse LED Effect

&• DMX-512 Protocol

&• 3 Pin and 5 Pin

&• Electronic Dimming: 0 - 100%

&• Daisy Chain Units together in DMX Mode

&• Voltage: 100V ~ 240V/47~63Hz

&• Safety hook on rear unit

&• Powercon in/out link

&• Power Consumption: 150W

&• Fuse: 3.15 Amp

&• Weight: 21 lbs./ 9.5 kgs.

&• Dimensions: 40.25&" (L) x 8.5&" (W) x 9&" (H) / 1019 x 210 x 226mm

&• cETLus Approved

OPTIONAL ACCESSORIES:

CLAMPS(click for more info)

PRO CABLES(click for more info)

DMX SOLUTIONS(click for more info)

Specifications and documentation subject to change without notice.
