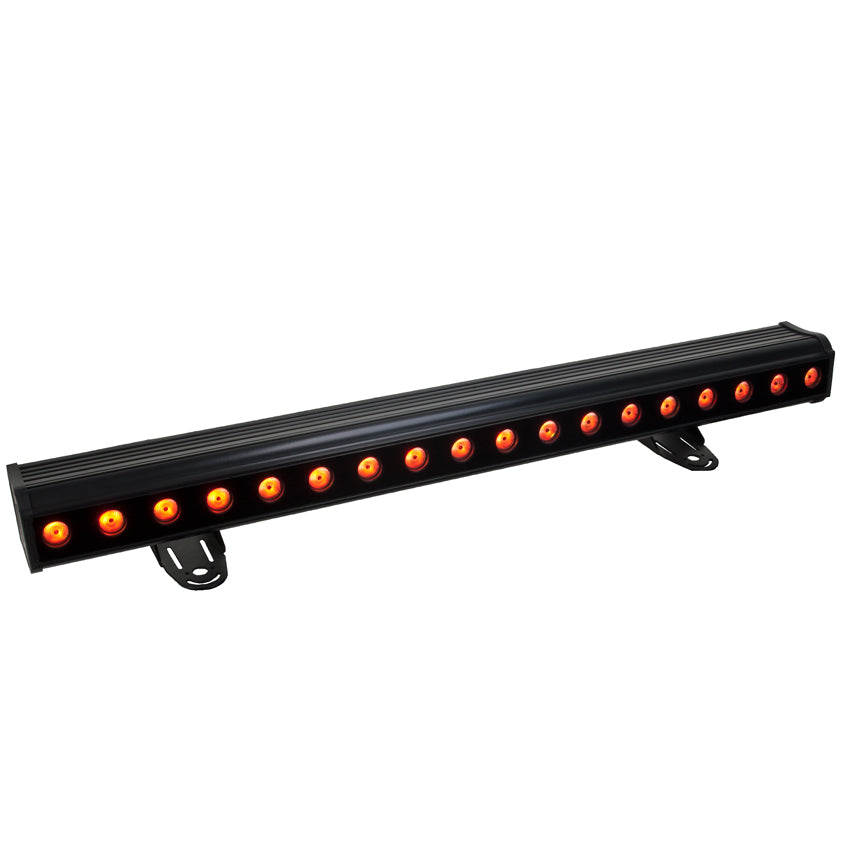

ELED QW STRIP

SPECIFICATIONS

• Total LEDs 18x 5W Quad LEDs 1 Meter Strip (Red, Blue Green and White LEDrsquo;s)

• Four Operating Modes: DMX Control, Program Control, Color Macro Control amp; Single Color Control

• 9 DMX Channels: 1, 2, 4, 5, 7, 8, 36, 54 or 72

• 68 built-in Color Macros

• 3-button LED display on rear panel

• Strobe amp; Pulse LED Effect

• DMX-512 Protocol

• 3 Pin and 5 Pin

• Electronic Dimming: 0 - 100%

• Daisy Chain Units together in DMX Mode

• Voltage: 100V ~ 240V/47~63Hz

• Safety hook on rear unit

• Powercon in/out link

• Power Consumption: 150W

• Fuse: 3.15 Amp

• Weight: 21 lbs./ 9.5 kgs.

• Dimensions: 40.25" (L) x 8.5" (W) x 9" (H) / 1019 x 210 x 226mm

• cETLus Approved

OPTIONAL ACCESSORIES:

CLAMPS(click for more info)

PRO CABLES(click for more info)

DMX SOLUTIONS(click for more info)

Specifications and documentation subject to change without notice.
