EN4
The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
EN4
Sale price$0.00
Related Products
EN4
The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
- RDM, Art-Net and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or PoE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum ½ rack housing

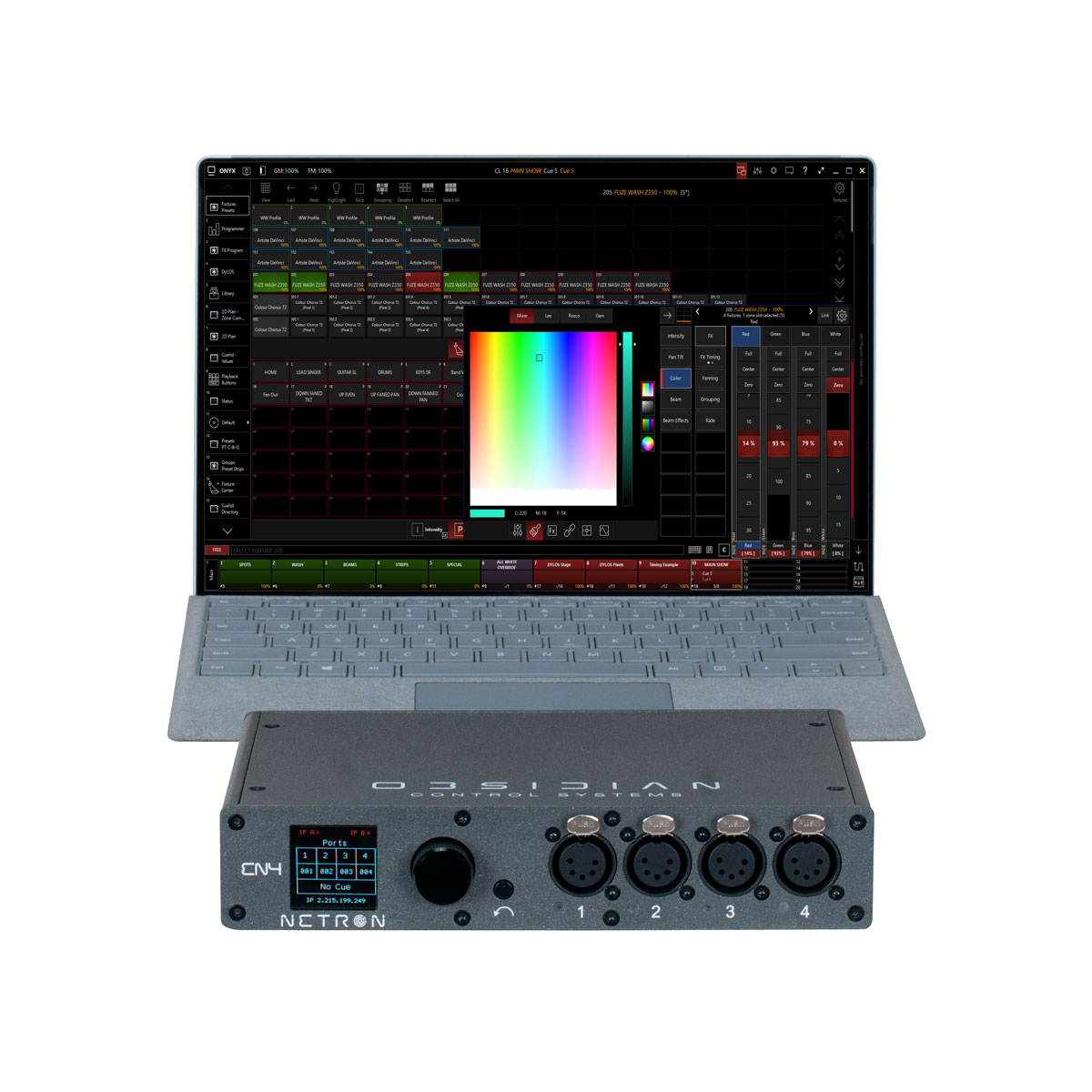

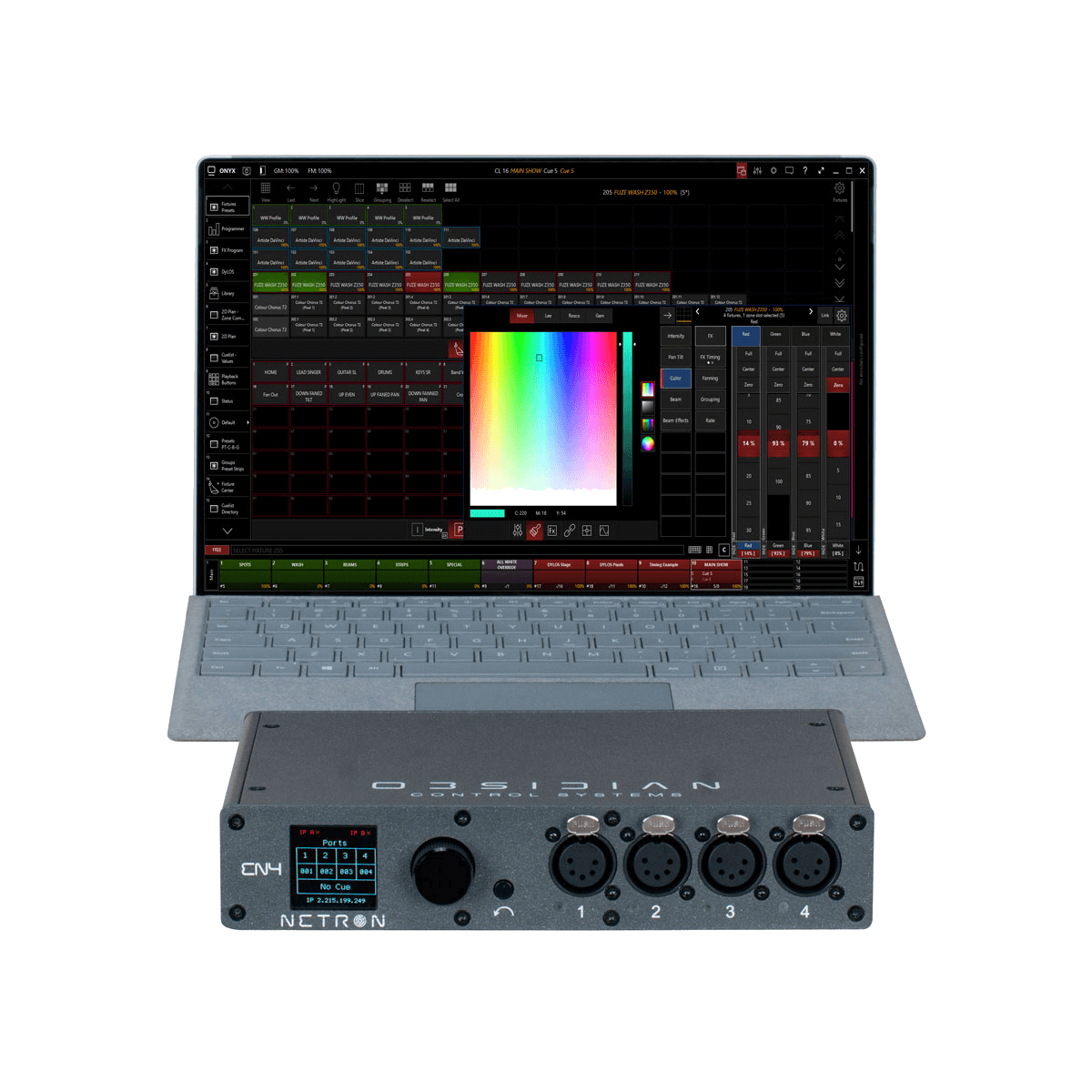

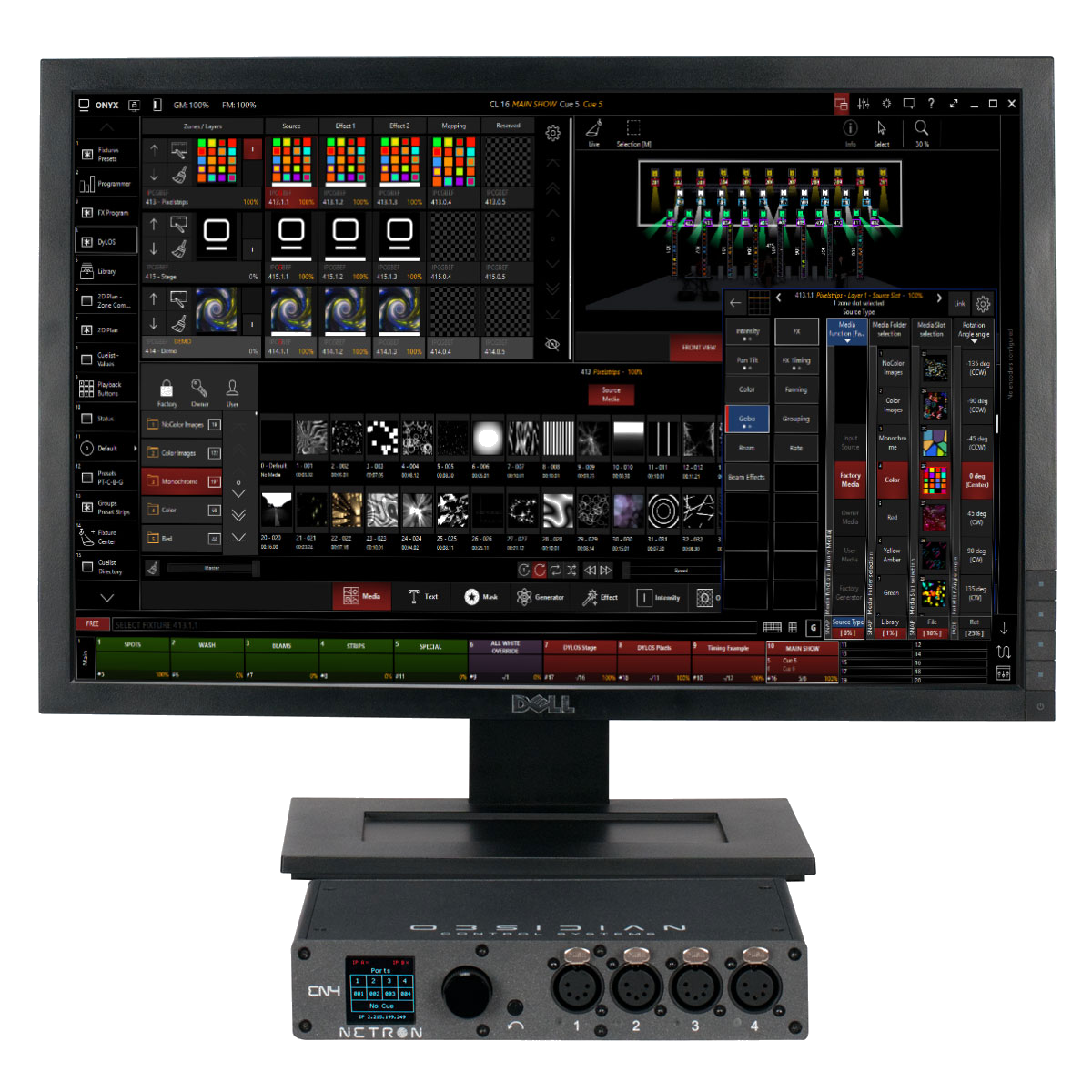

- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
Mounting
- Standalone

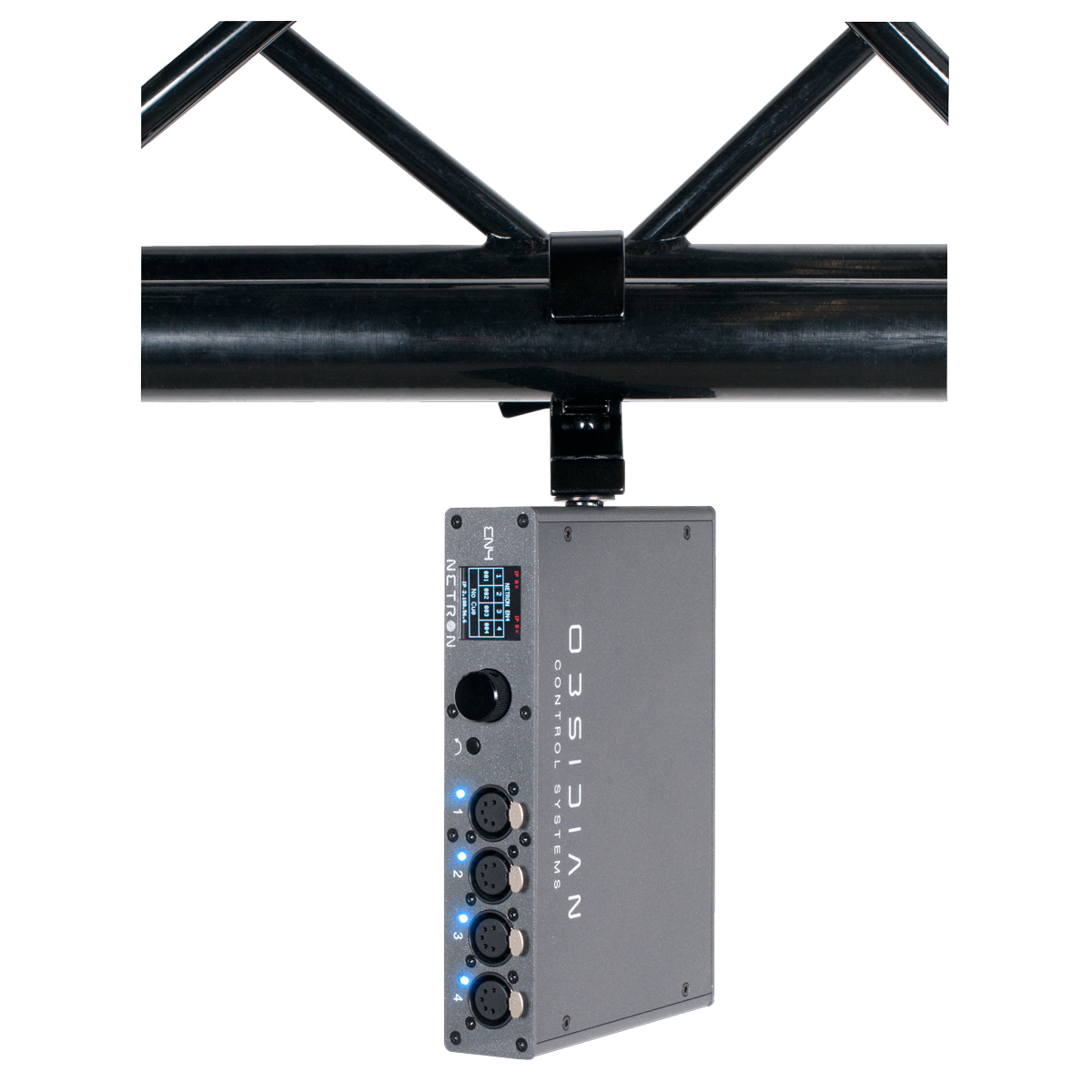

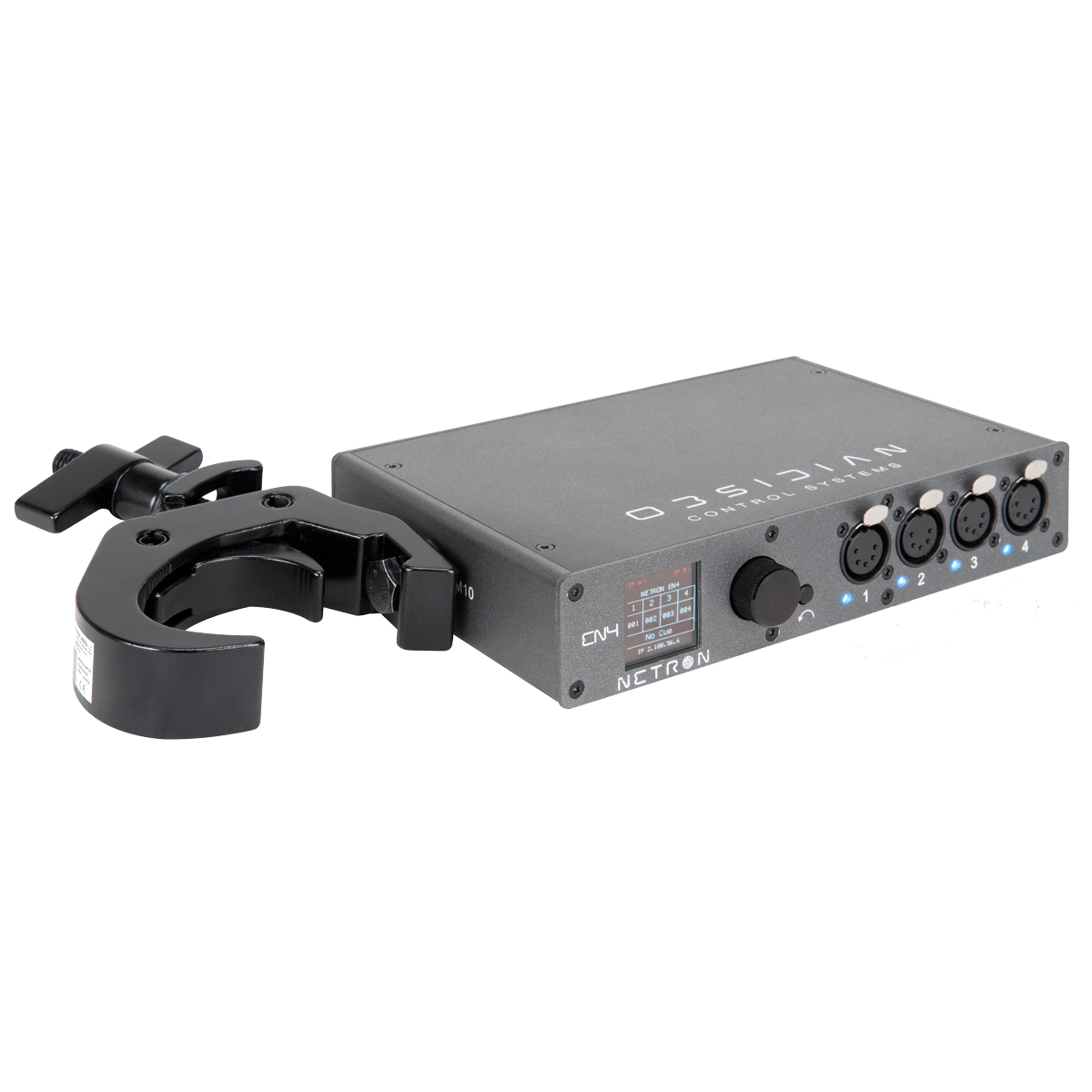

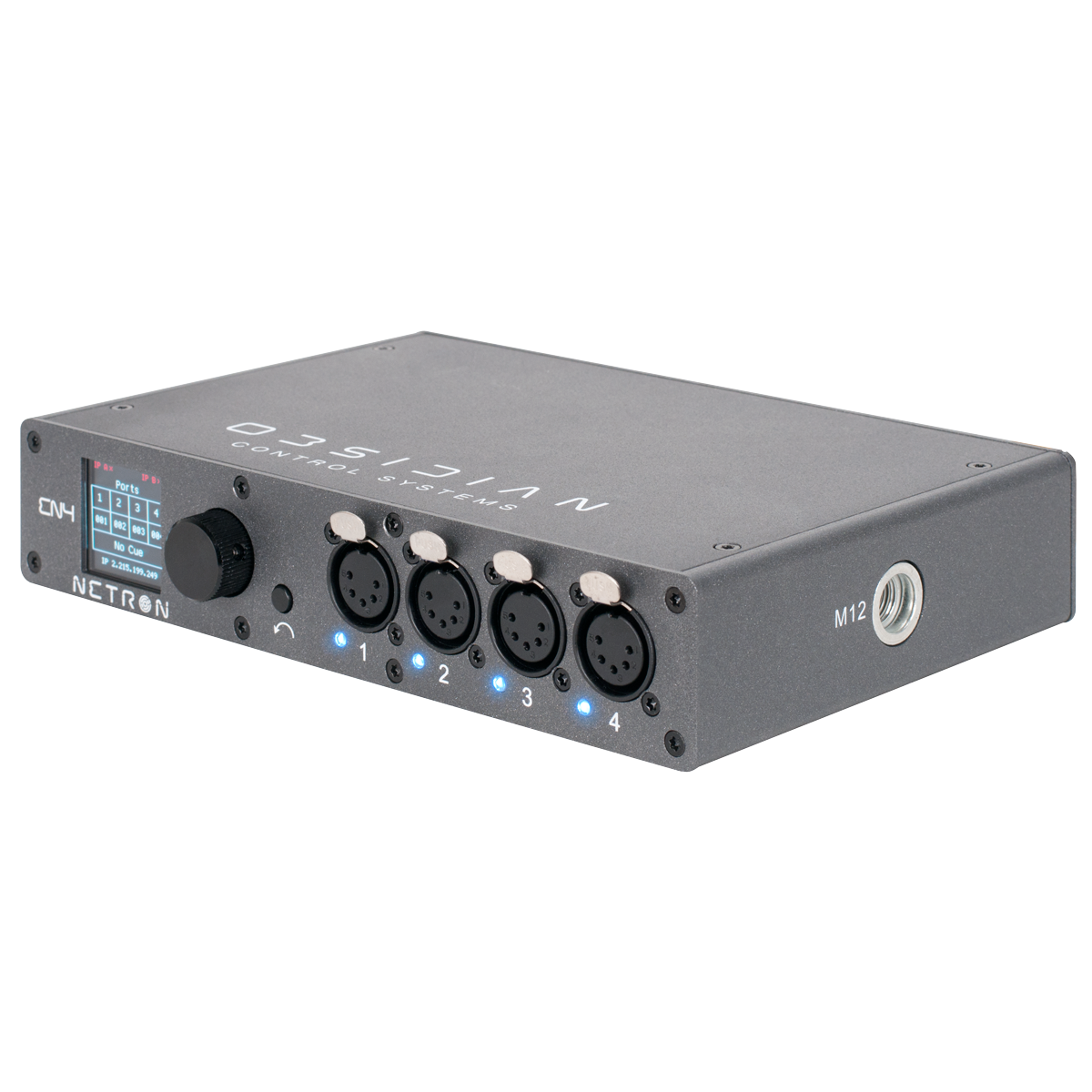

- Truss-mount (M10 or M12 mounting hole)

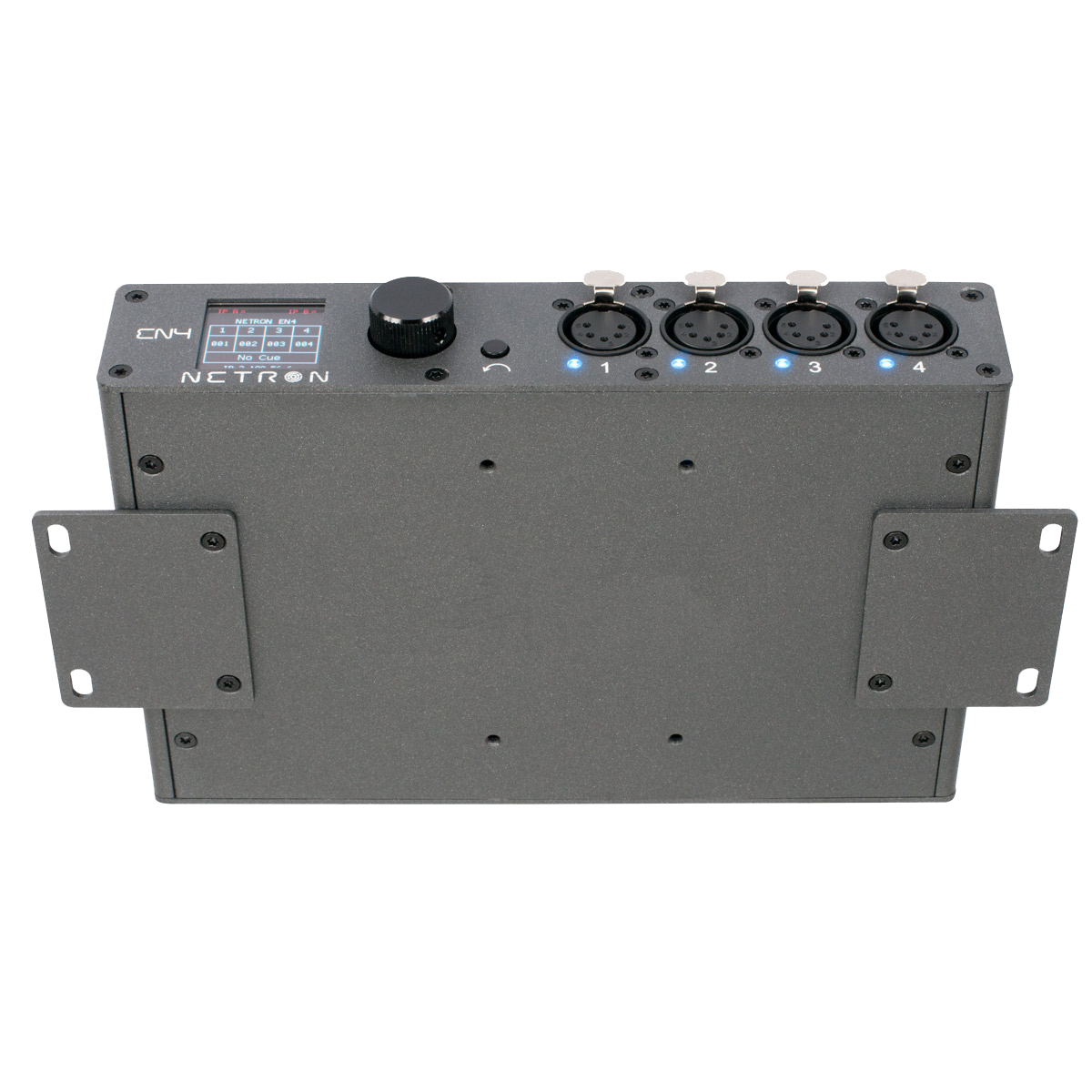

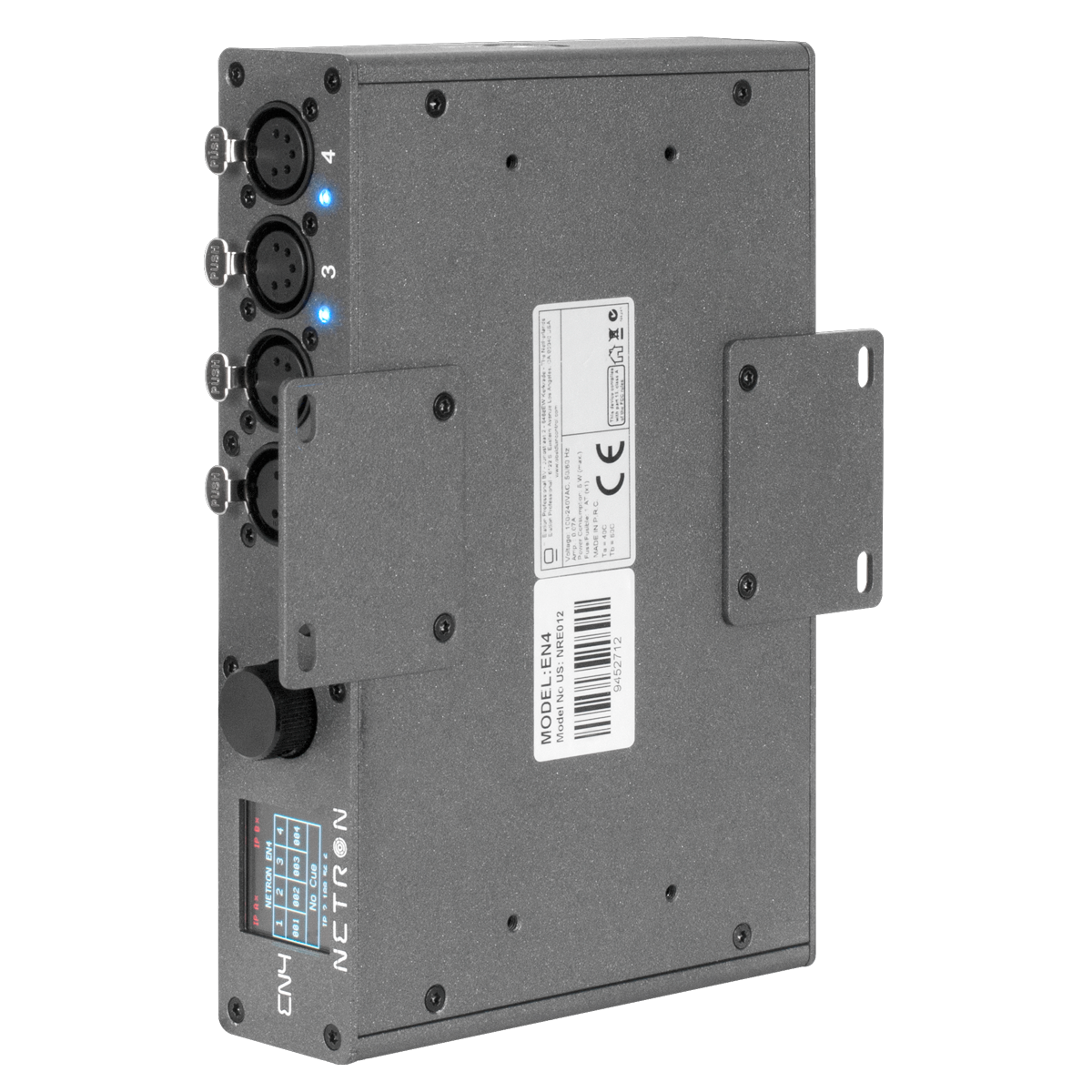

- Wall mount horizontal or vertical (included)

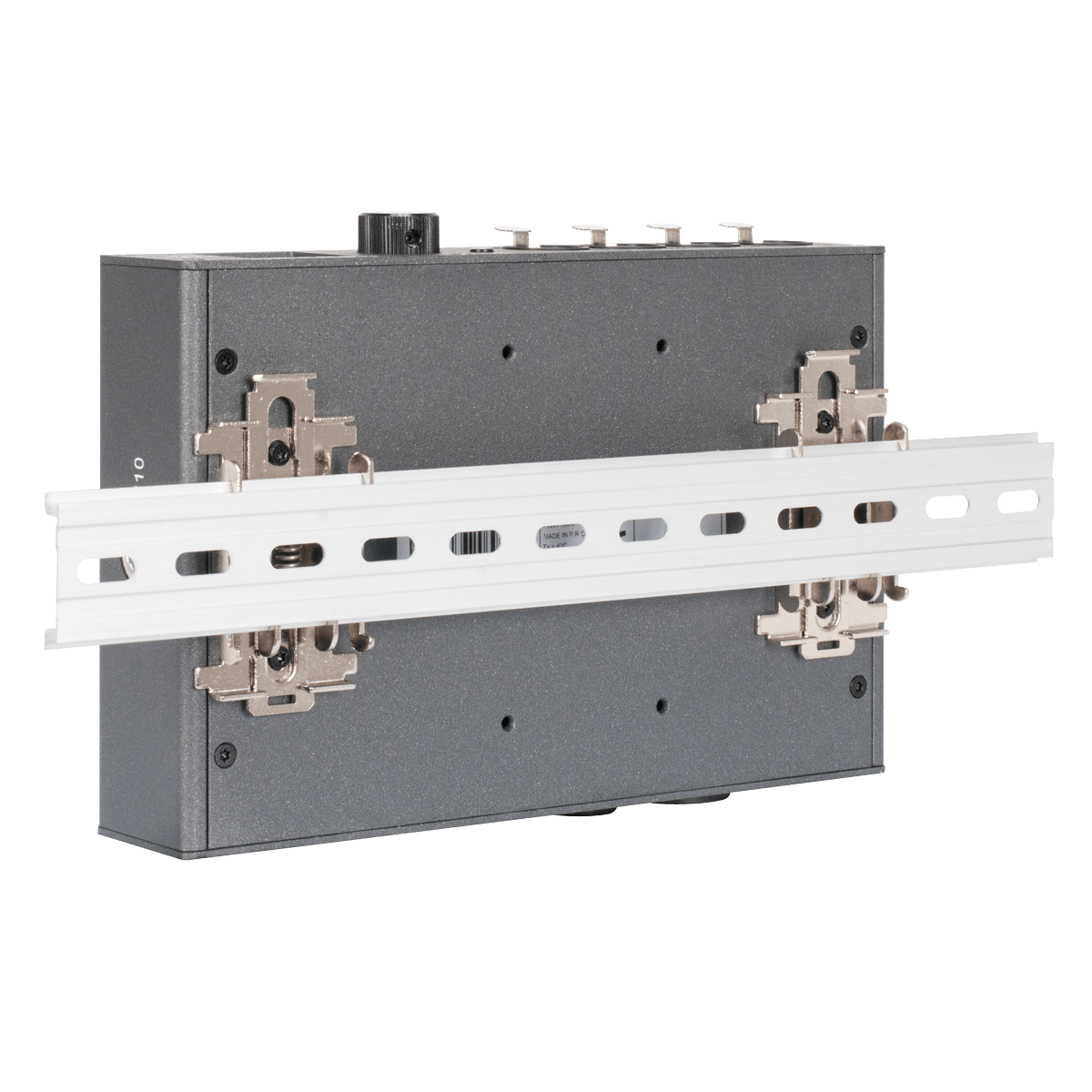

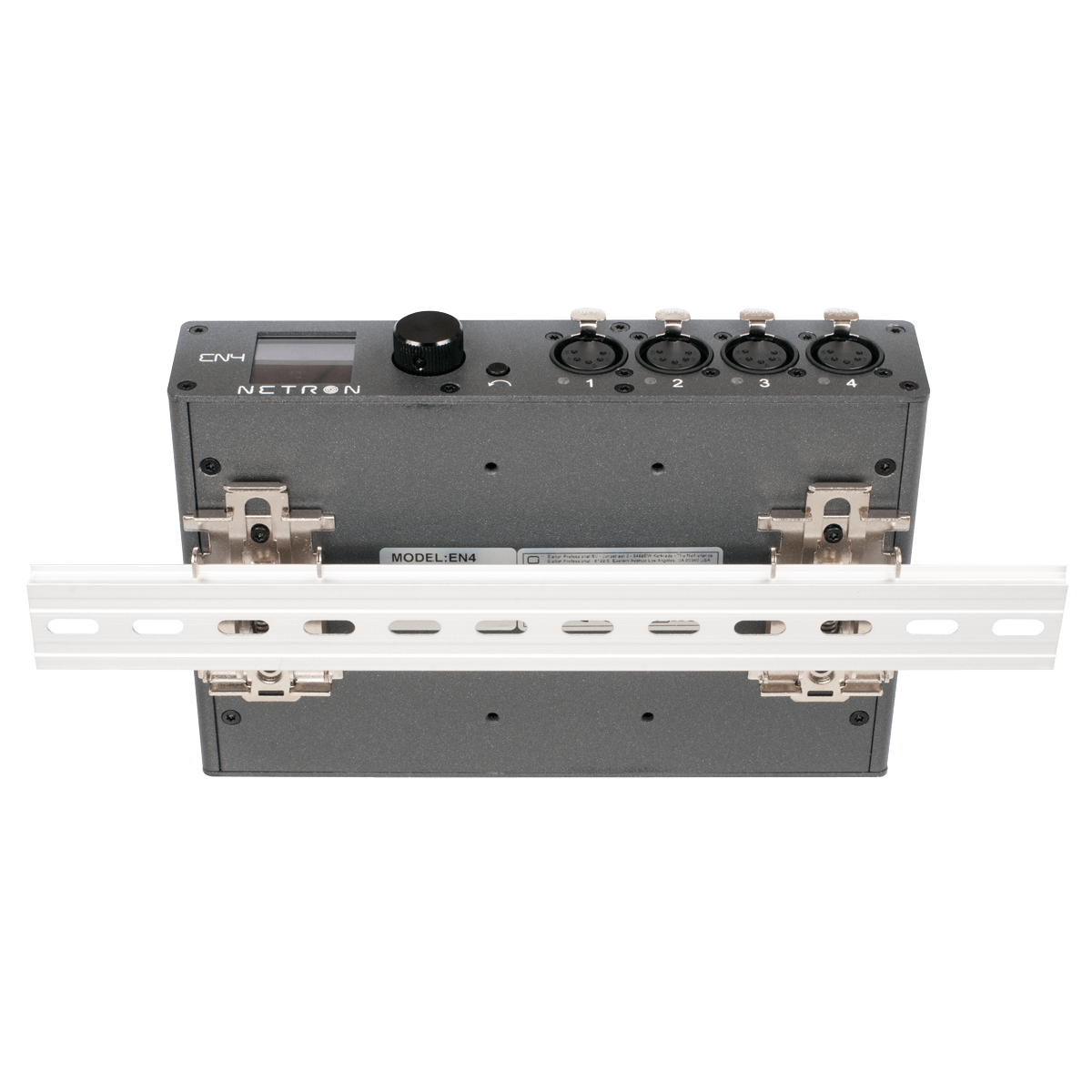

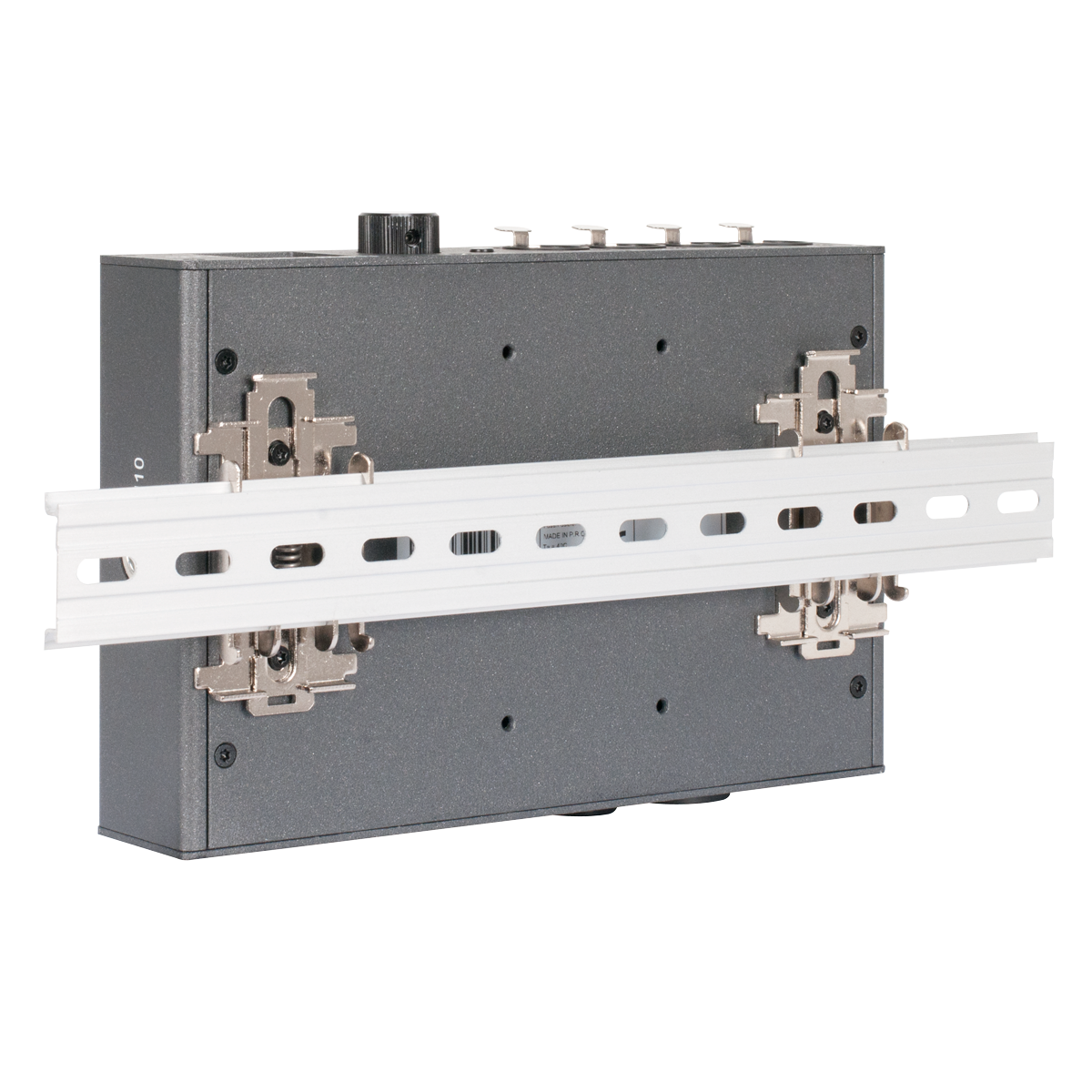

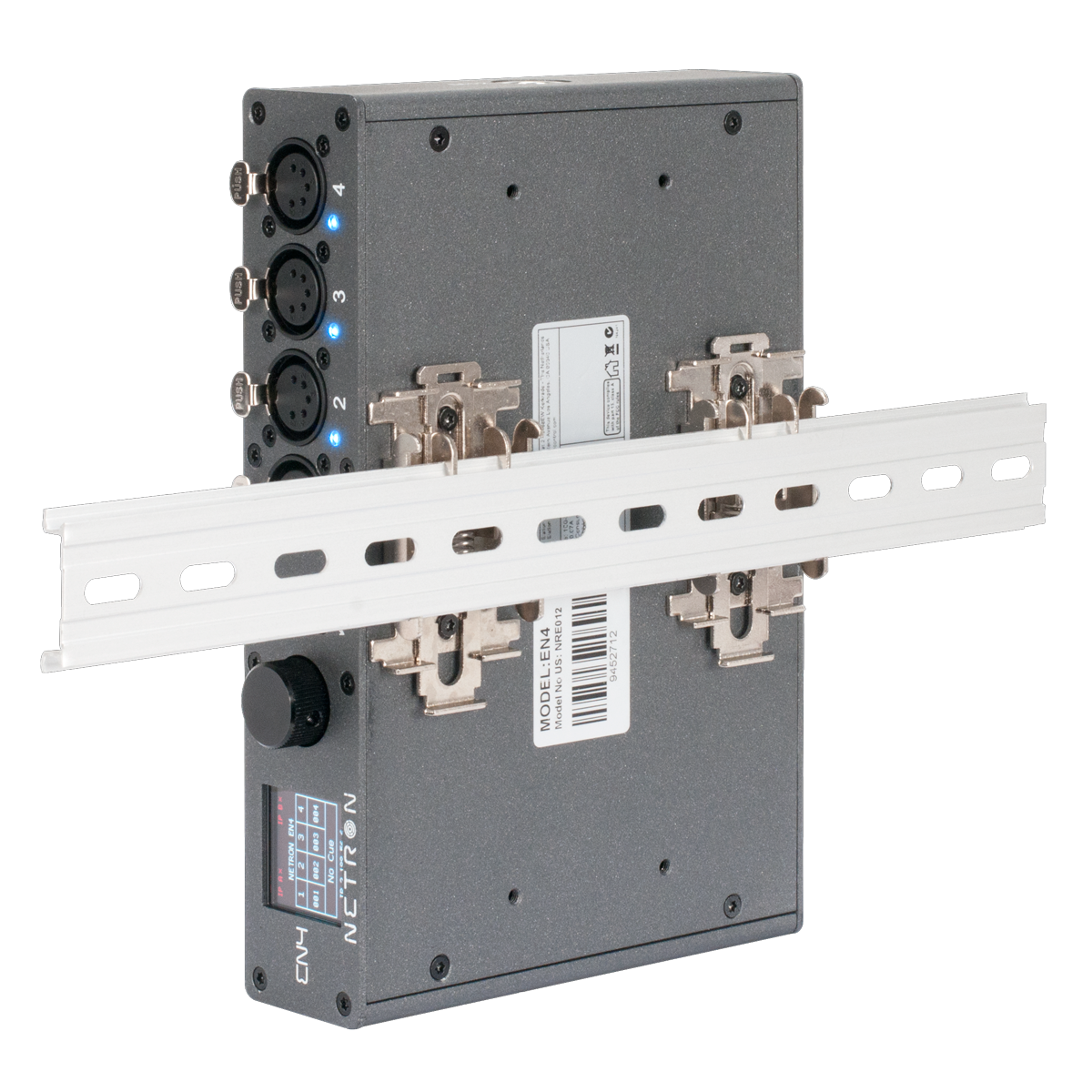

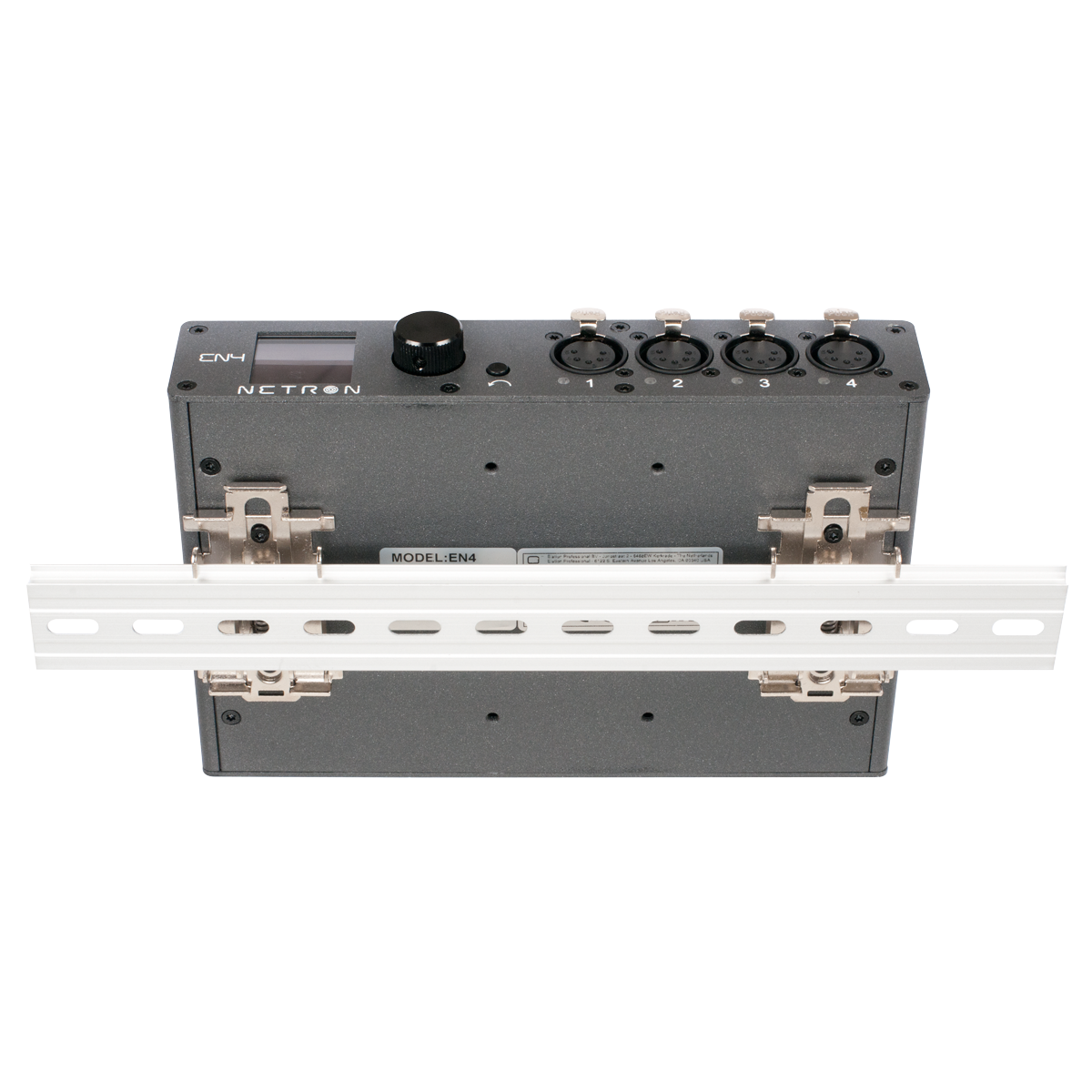

- DIN Rail horizontal or vertical (included)

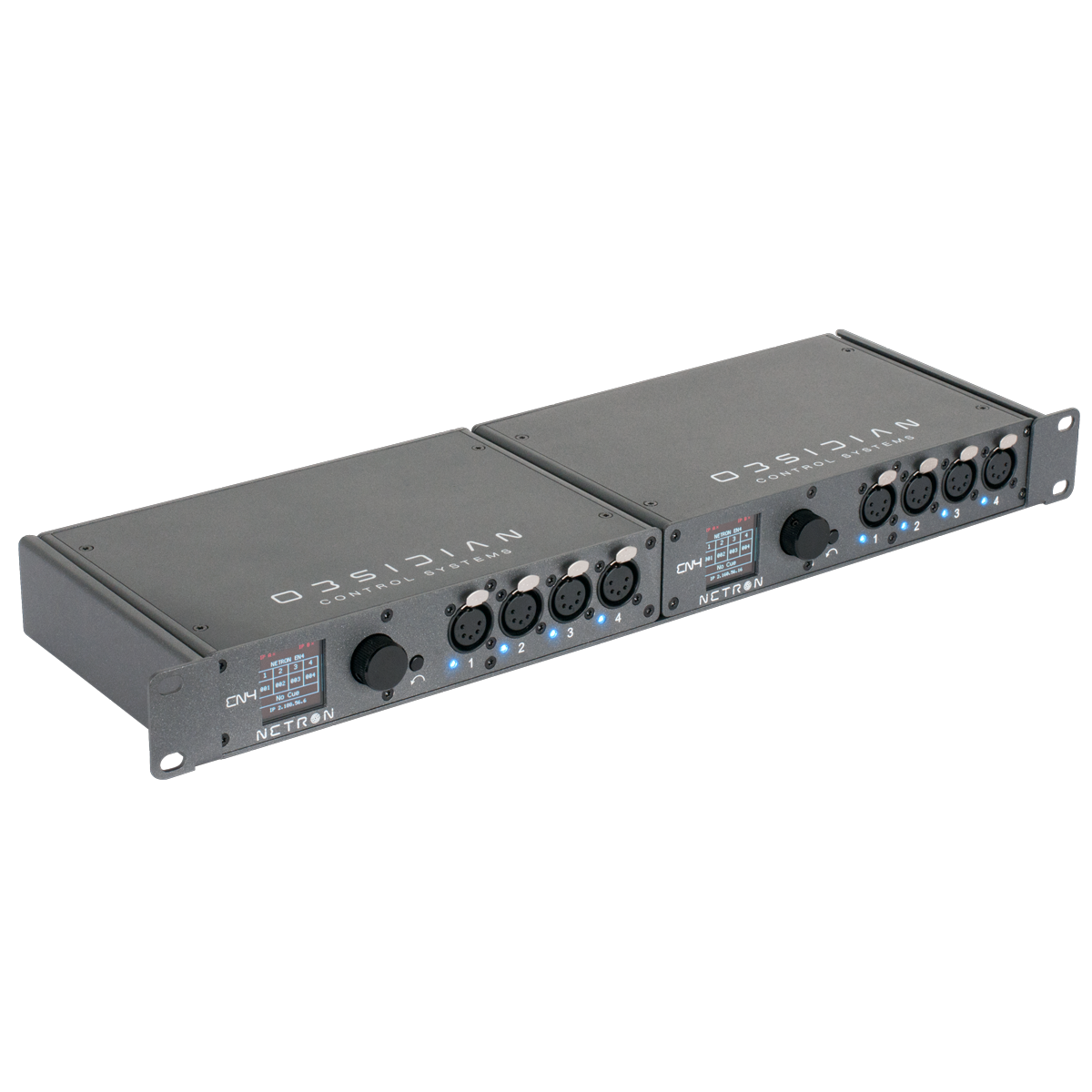

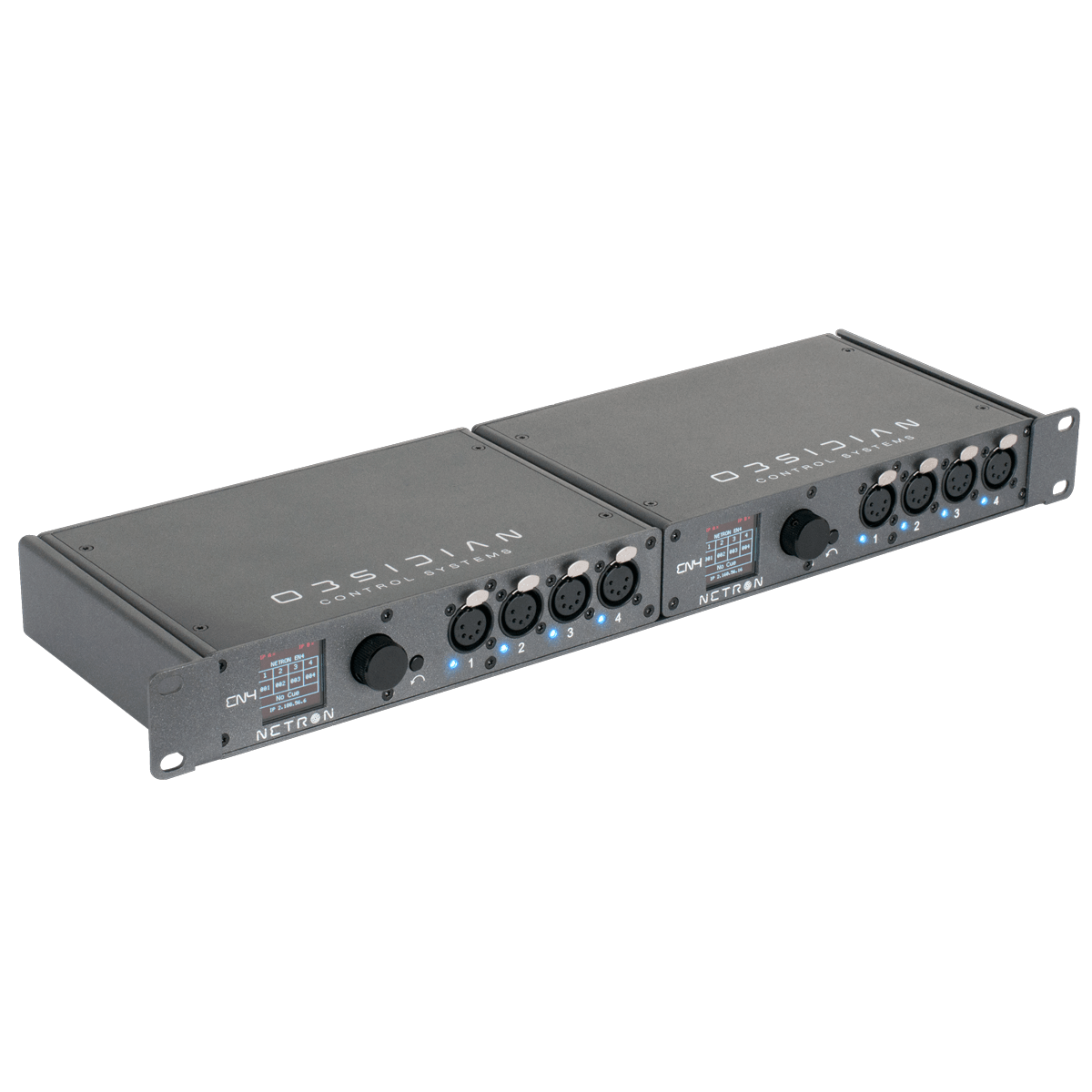

- Rack mount option (requires NET Shelf)
Connections

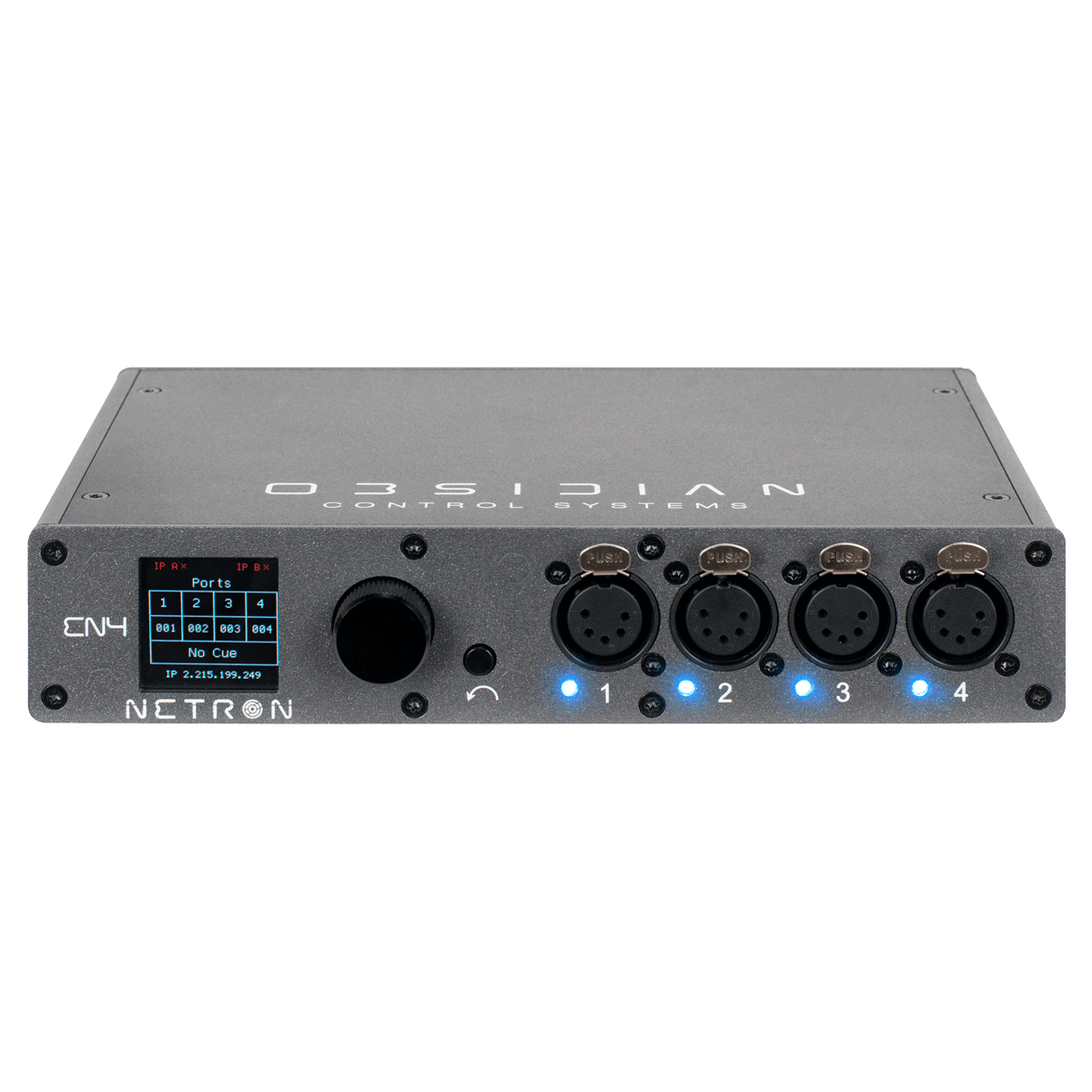

Front
- (4) 5pin XLR DMX/RDM ports
- Optical and galvanic isolation
- Bidirectional for DMX In and Output
- Full color OLED display
- Encoder w. Push to Select / Exit Button

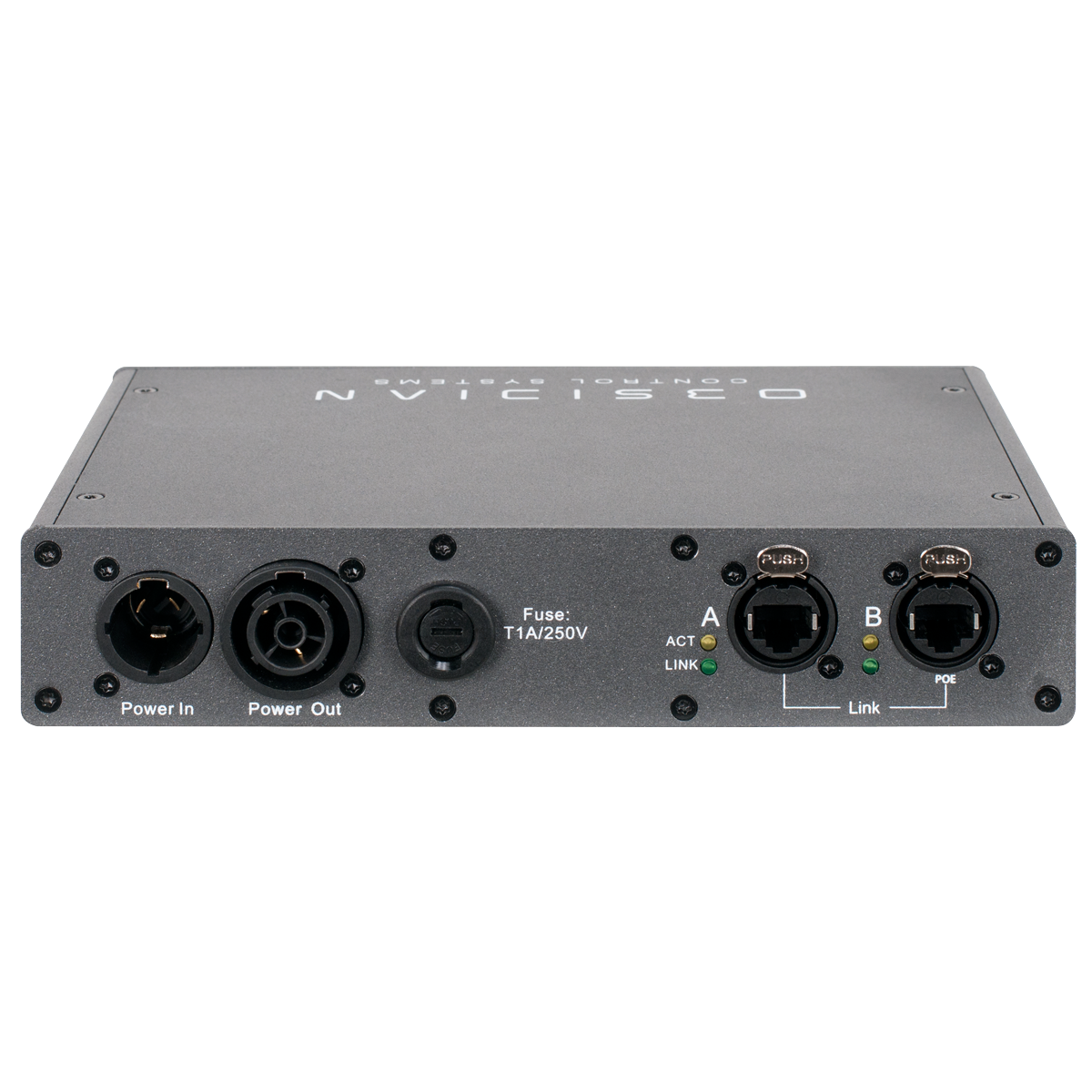

Back
- IP65 Locking Power In/Thru
- (2) Locking RJ45 Ethernet network (Low Latency Switch)
Protocols
Support
- sACN E1.31
- Art-Net
- DMX512-A E1.11 (In / Out)
- RDM E1.20
Ethernet Features
- Ethernet Port Speed 10/100/1000Mbps
- MDI / MDIX Port Sensing
- HTTP Remote Commands (Post, Get)
- HTML Web Remote
Specifications
Physical
- Length: 139 mm (5.5 in.)
- Width: 215 mm (8.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
Electrical
- AC 100-240V nominal, 50/60 Hz
- PoE 802.3af
- Power Consumption: 5W
Approvals / Ratings
- cETLus / CE / FCC / IP20
Ordering
Included Items
- 1.5m LIp65 ocking power cable (EU or US version)
- (2) Wall mount plates
- (2) DIN-Rail clamps
SKU
- US #: NRE012
- EU #: 1330000065
Downloads
Installation guide
Specification sheet
User manual
