EP4
EP4
- RDM, Art-Net and sACN support
- Factory and user presets for plug and play setups
- PoE or USB-C powered
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated compact aluminum housing
- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
- Standalone
- Truss-mount (M10 or M12 mounting hole)
- Wall-mount horizontal or vertical (included)

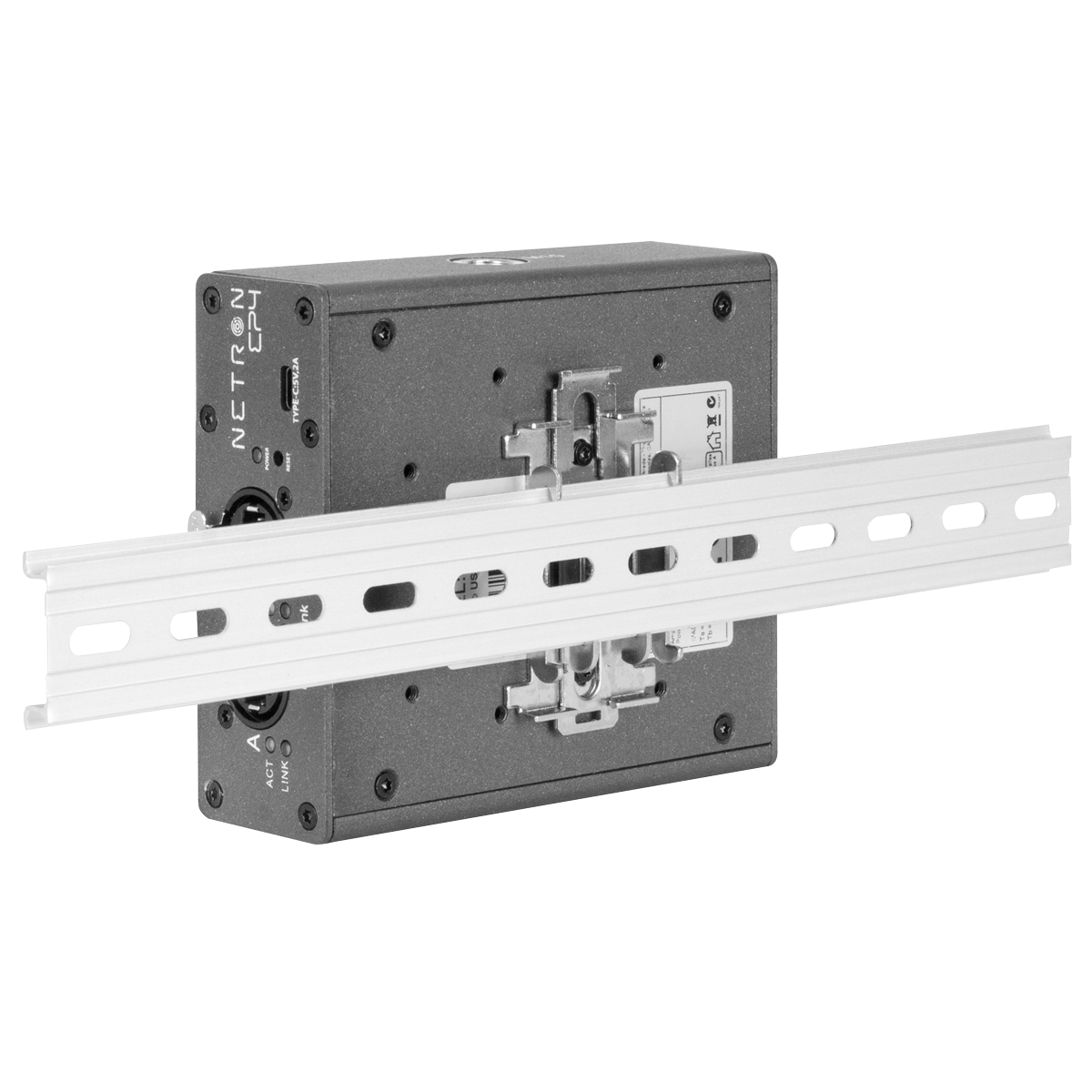

- DIN Rail horizontal or vertical (included)
- (4) 5pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output
- (2) Locking RJ45 Ethernet network connections (1x POE)
- USB-C power option (5V, 2A)
- Length: 133.5 mm (5.3 in.)
- Width: 118 mm (4.6 in.)
- Height: 42 mm (1.65 in.)
- Weight: 0.5 kg (1.1 lbs)
- USB-C 5V
- POE 802.3af
- Power Consumption: 3.8W
- CE / IP20
- Universal 5V/2A USB Power Adapter (UK, US, Europe, AUS connectors), 100-240V
- 1.5m Obsidian USB-C cable
- (2) Wallmount plates
- DIN-Rail clamp
- US #: NRE023
- EU #: 1330000064
Downloads
Installation guide
Specification sheet
User guide
EP4 Parts & Service
Our EP4 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your EP4. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
EP4 Parts & Service
