EN4
EN4 is a professional-grade lighting solution. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation. As a four Universe Node the EN4 is ideally suited for the powerful ONYX NOVA Edition . Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
EN4

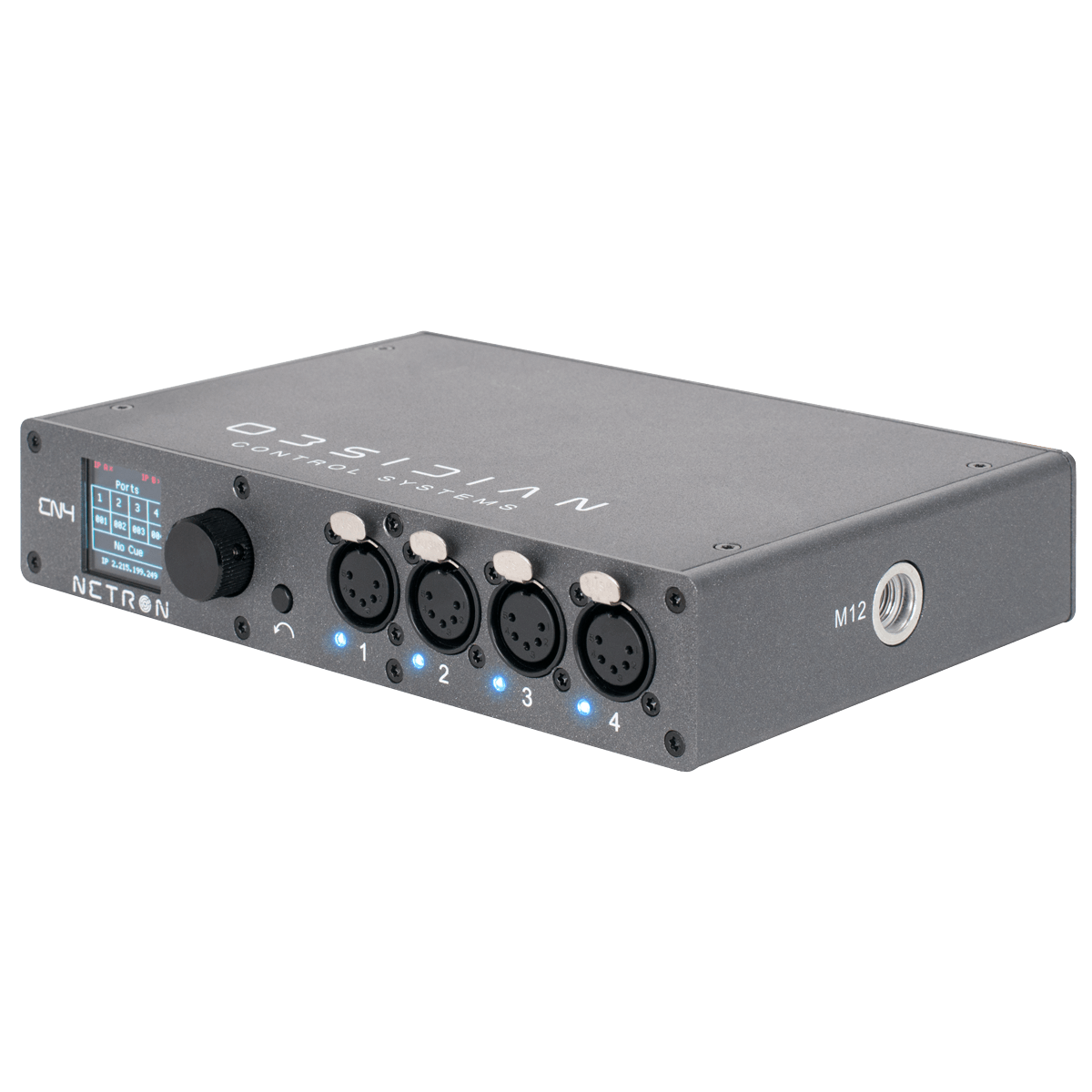

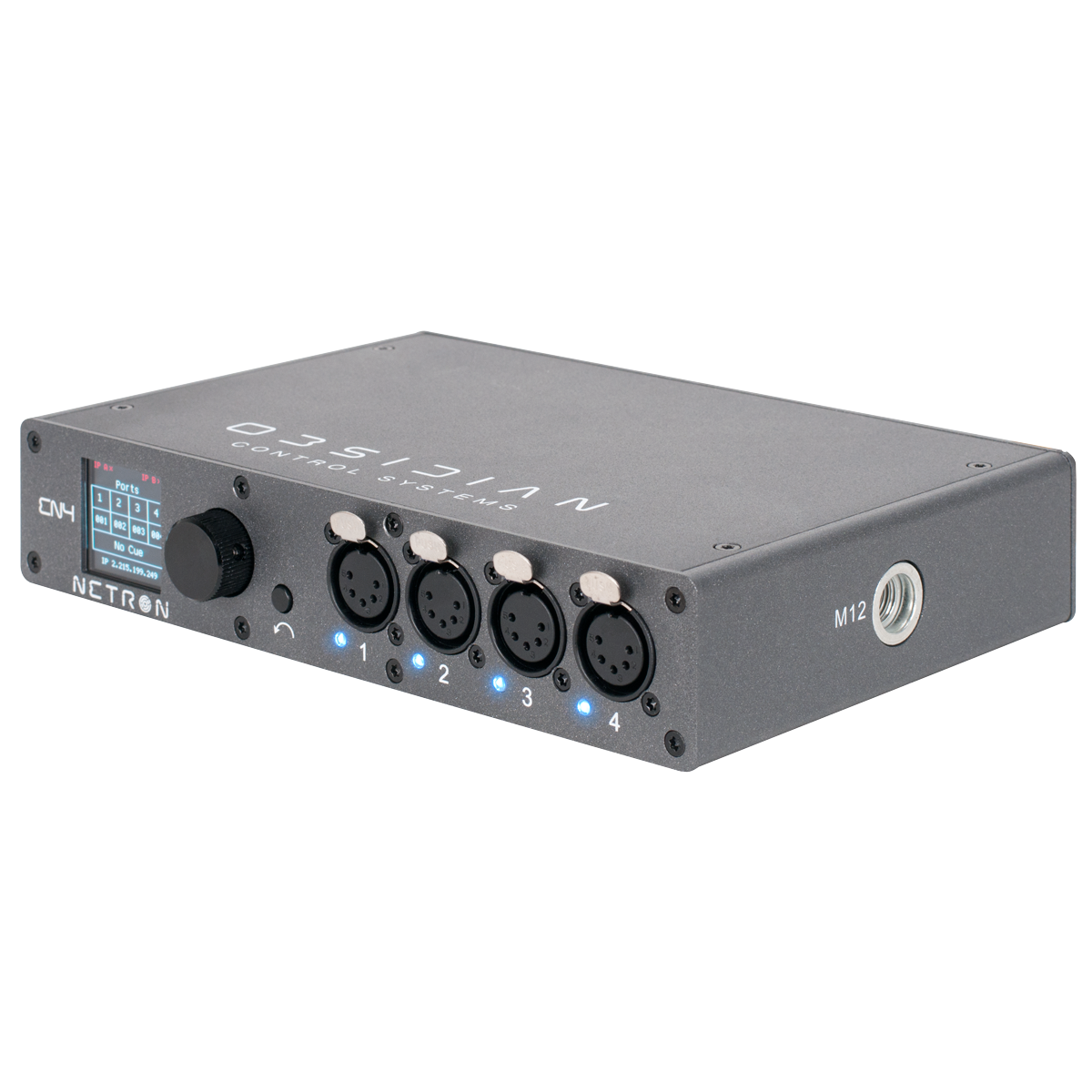

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
As a four Universe Node the EN4 is ideally suited for the powerful ONYX Free Edition.
- Key Features
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8" OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum ½ rack housing

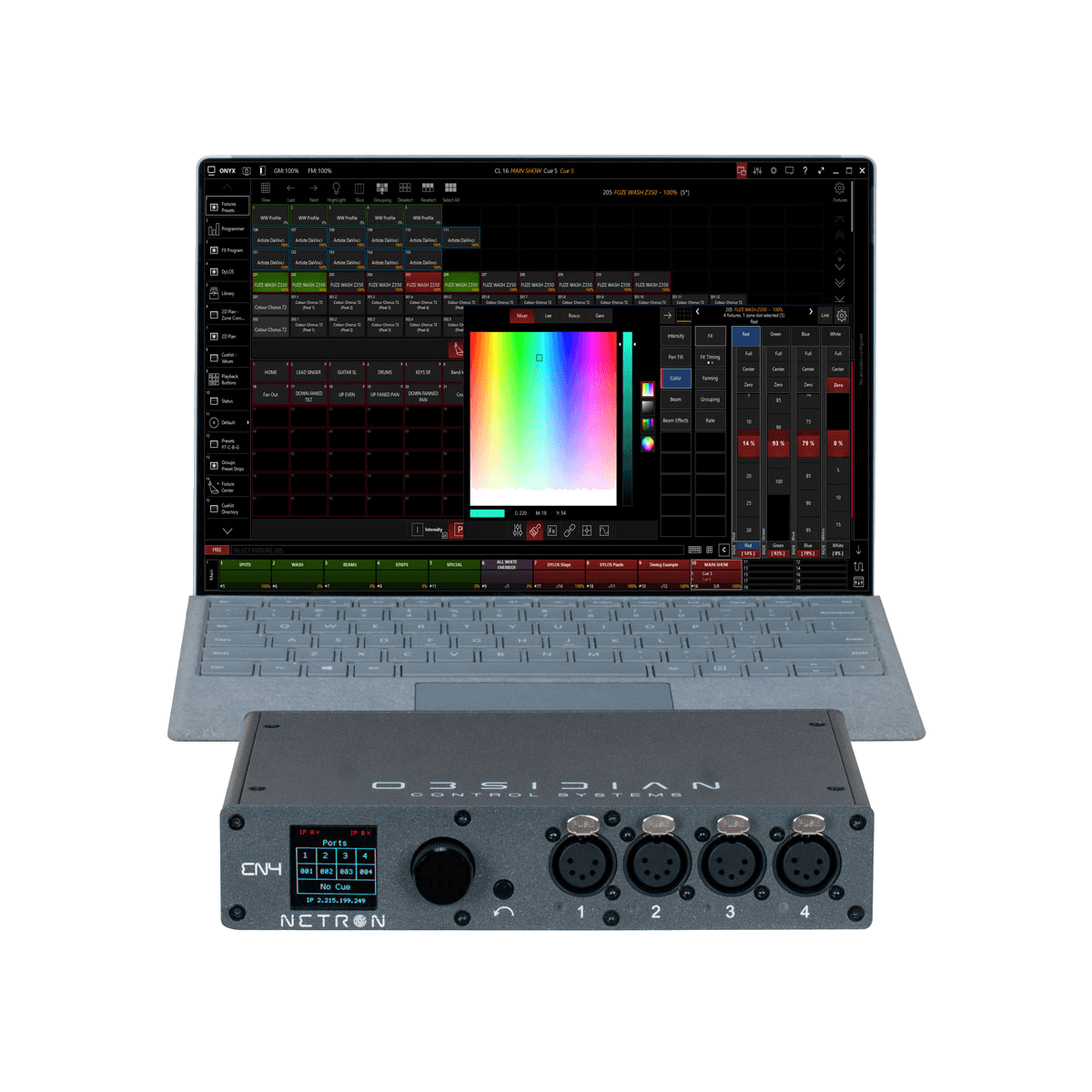

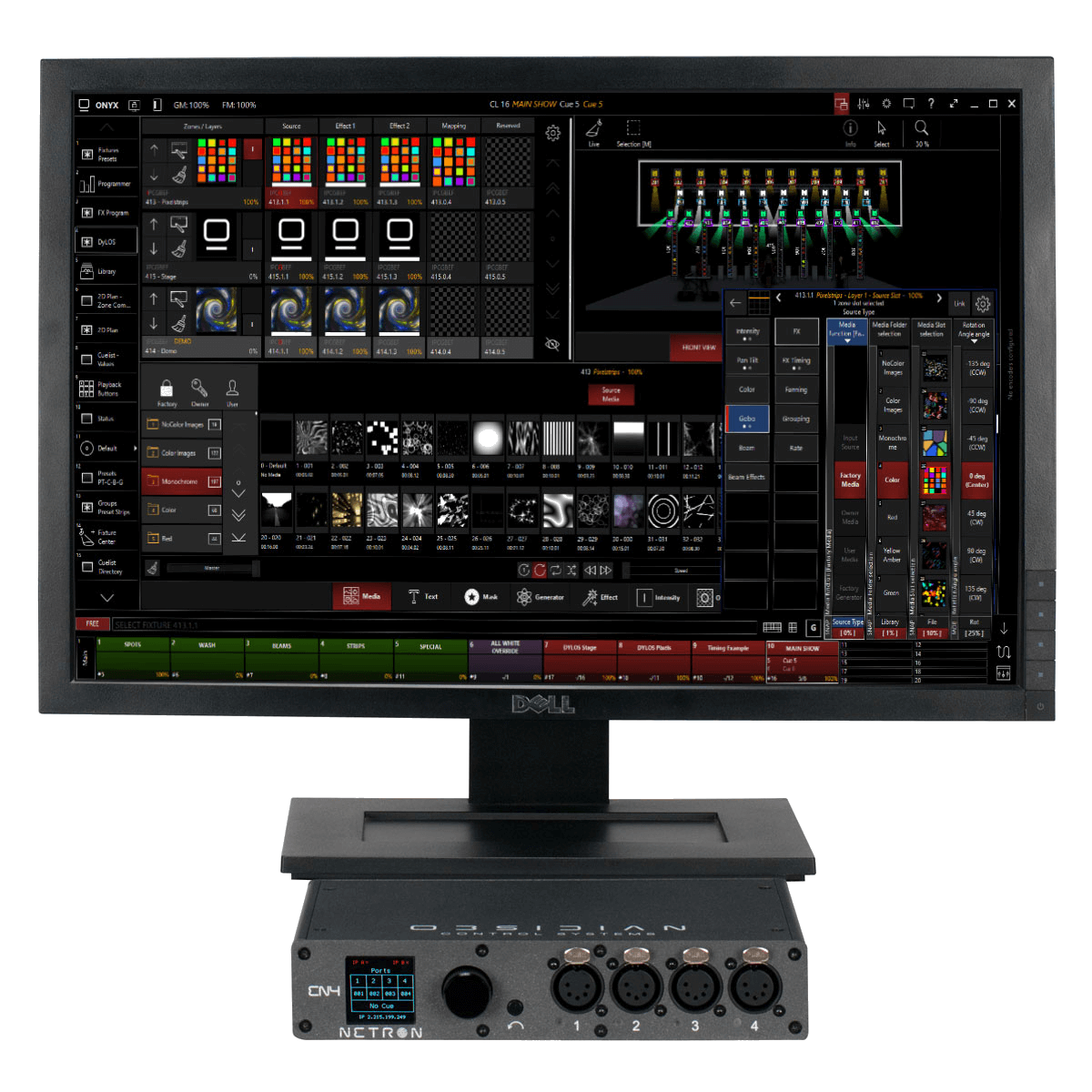

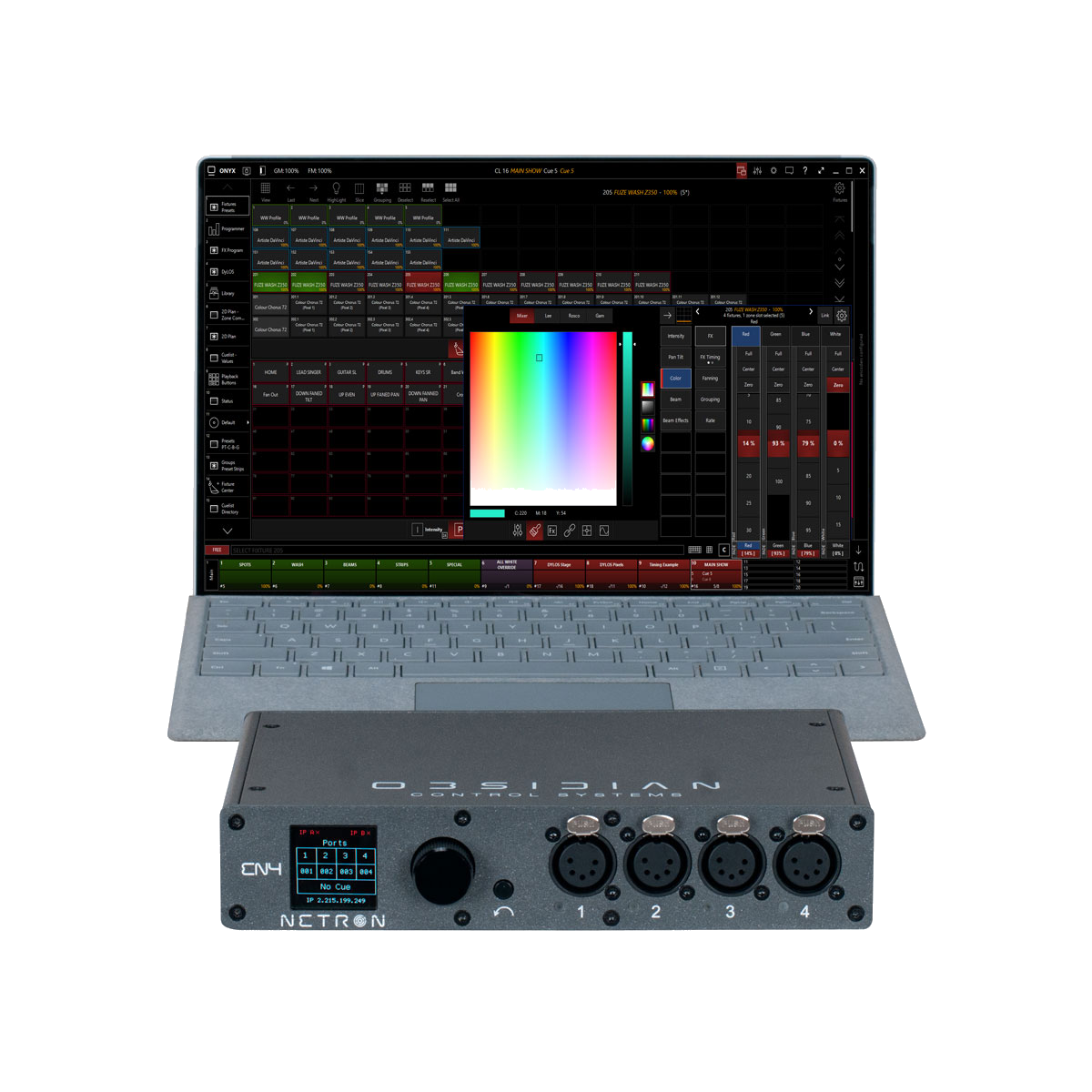

- Connect to ONYX PC for a full four Universe Solution
- For all technical details and documentation for NETRON devices please visit
- https://obsidiancontrol.com/netron
Specifications

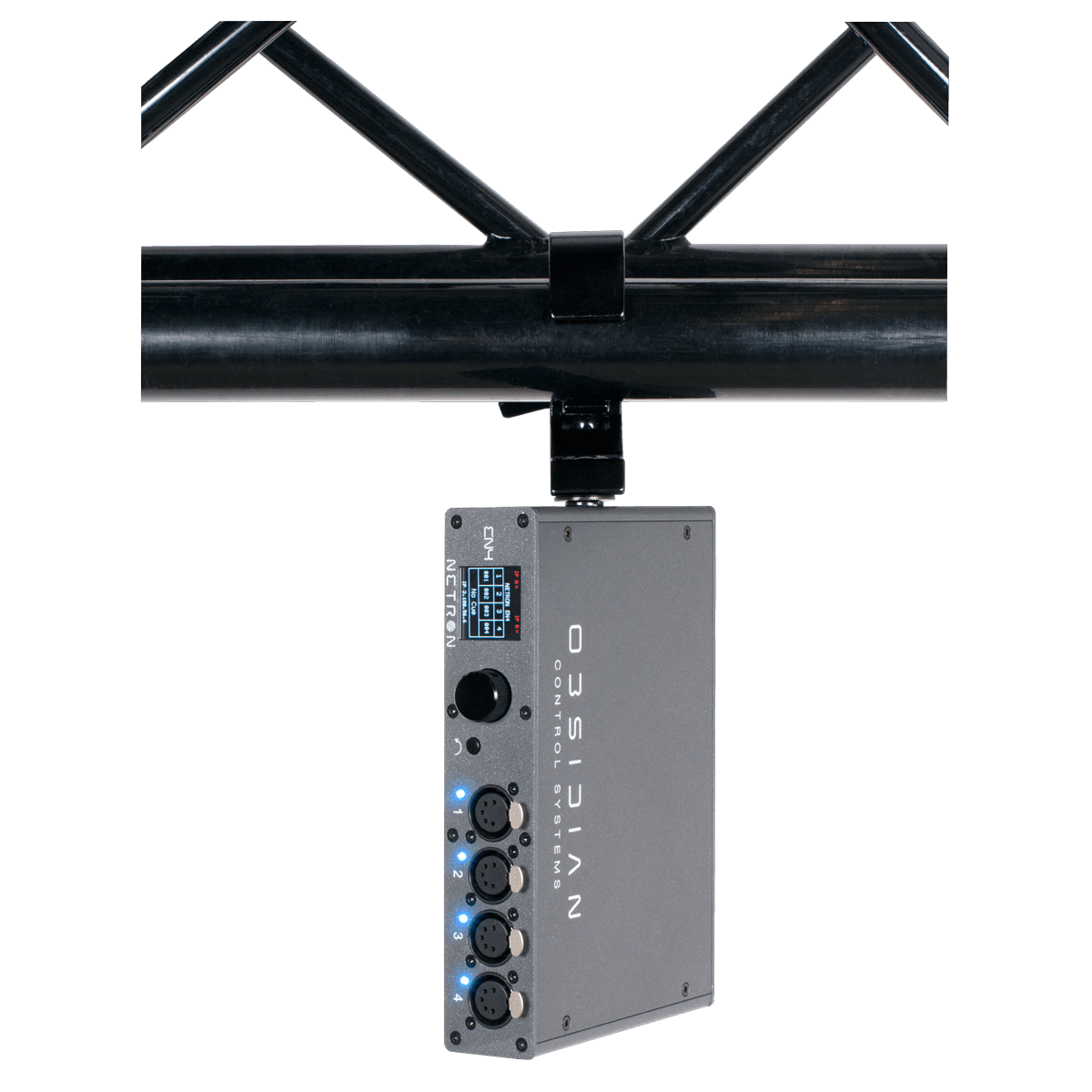

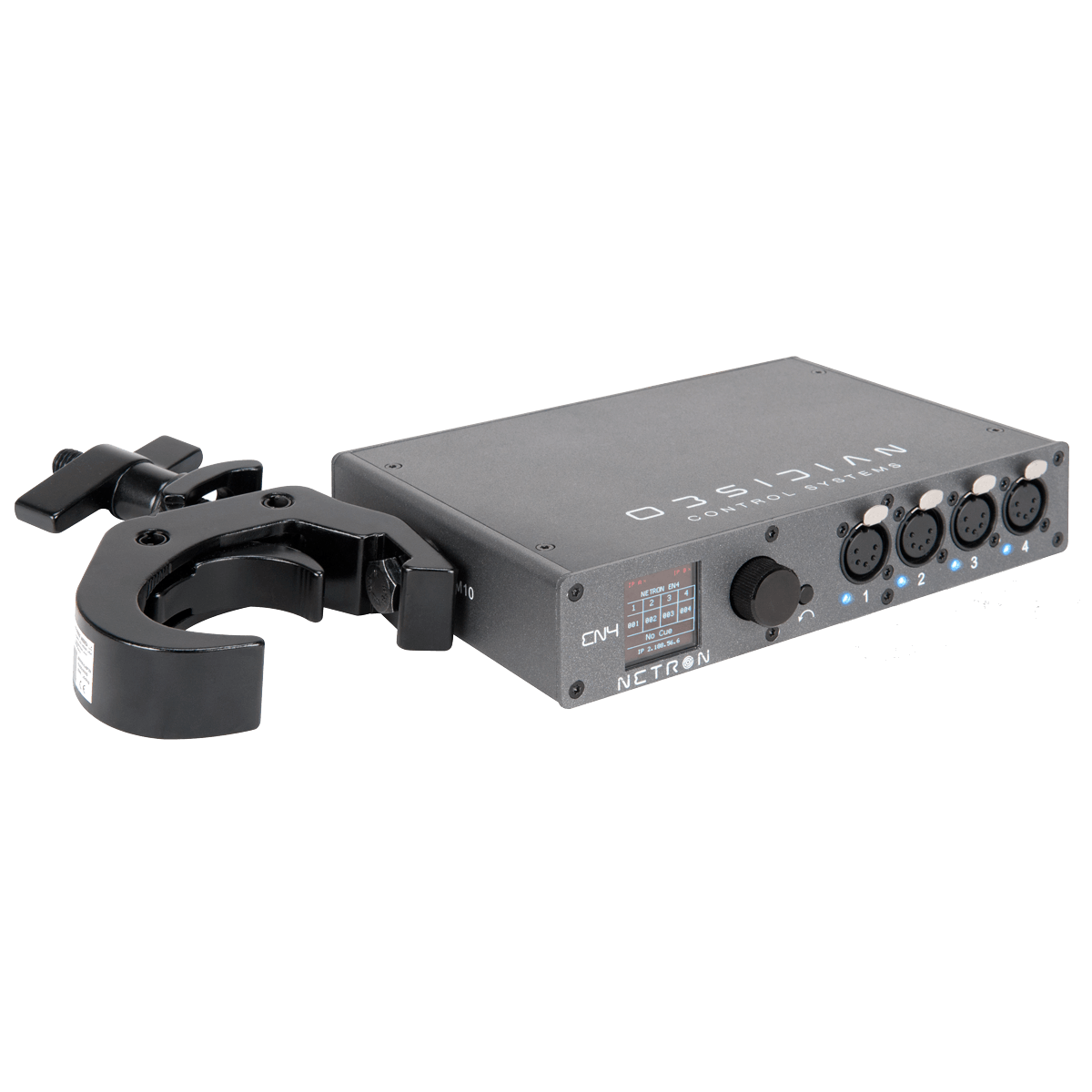

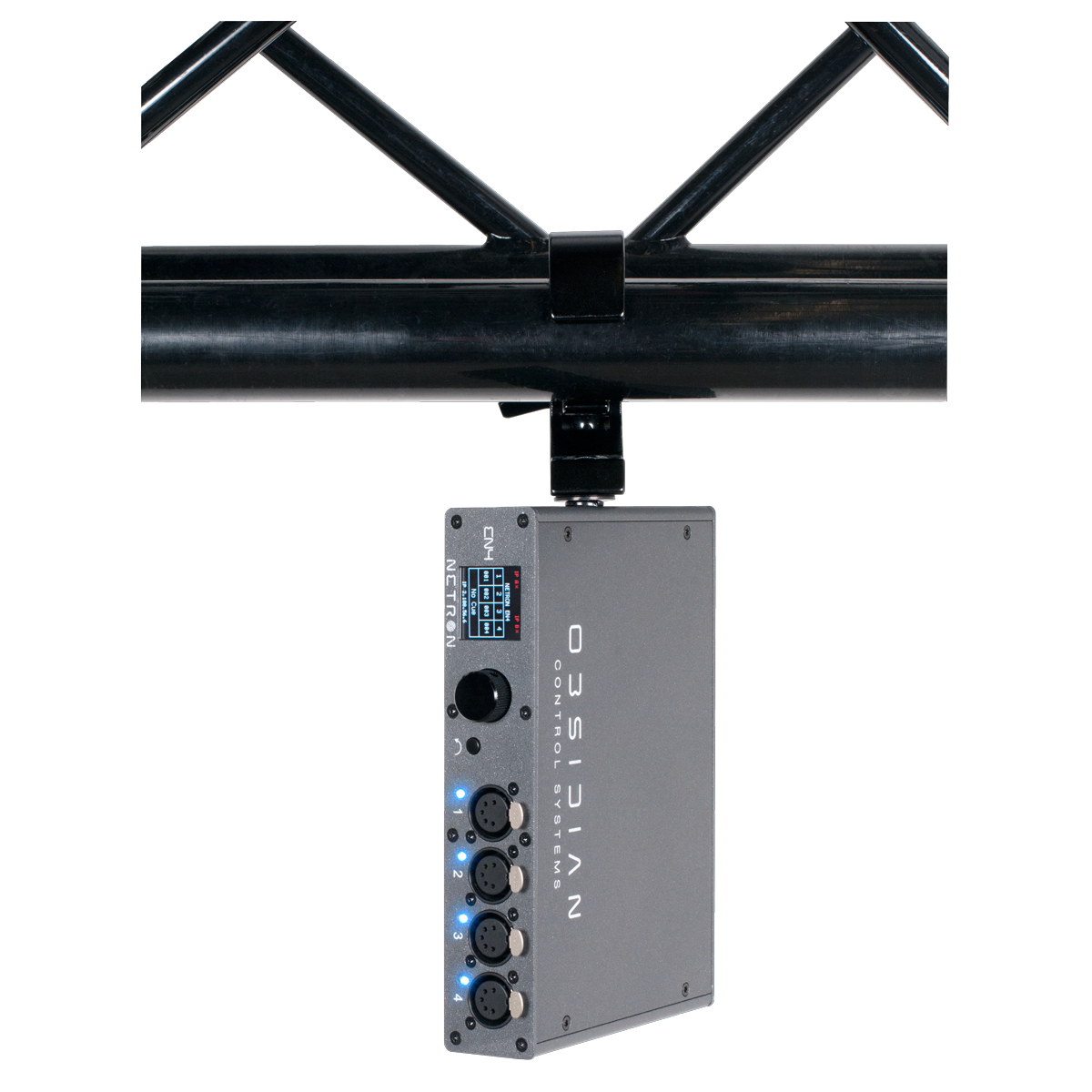

Truss-mount (M10 or M12 mounting hole)

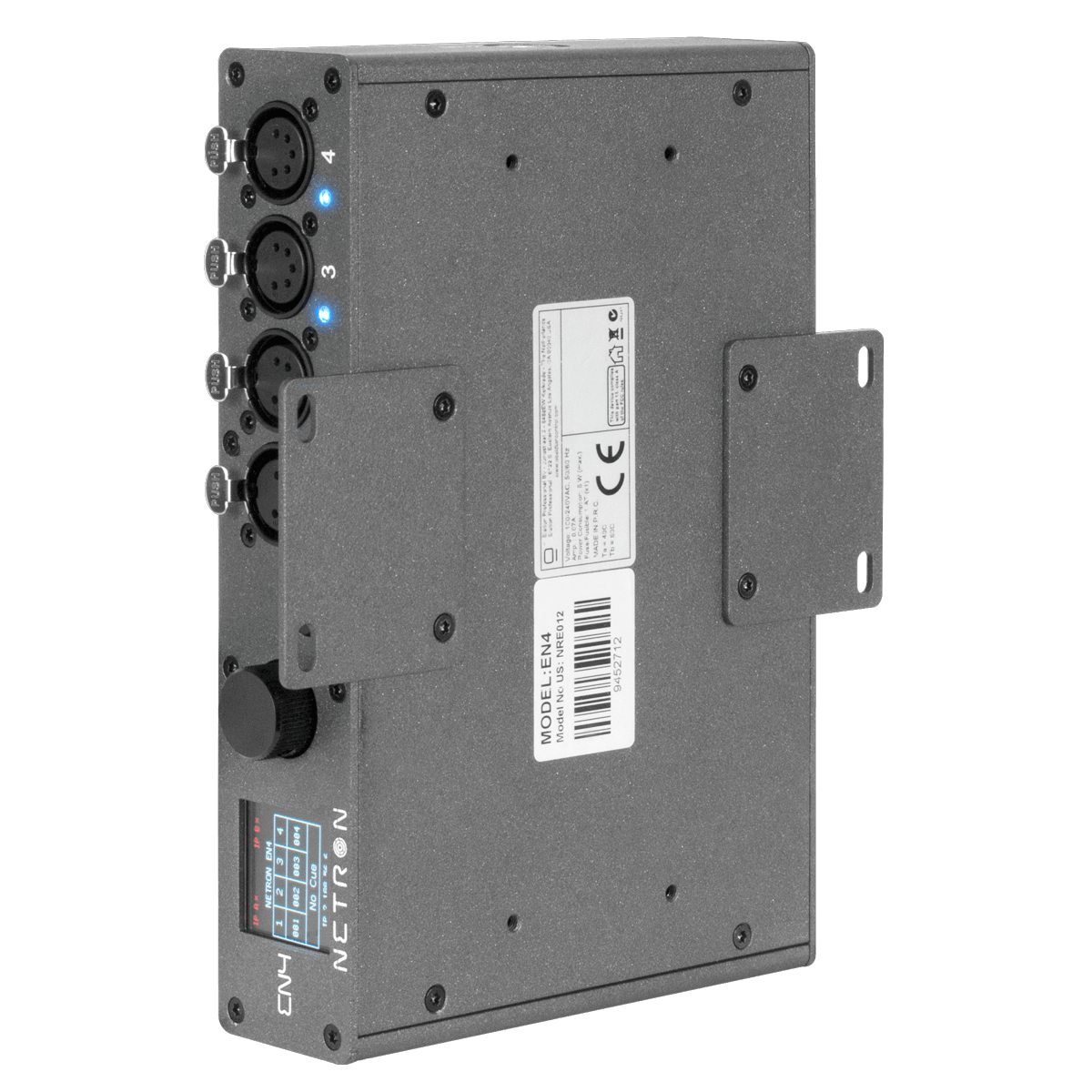

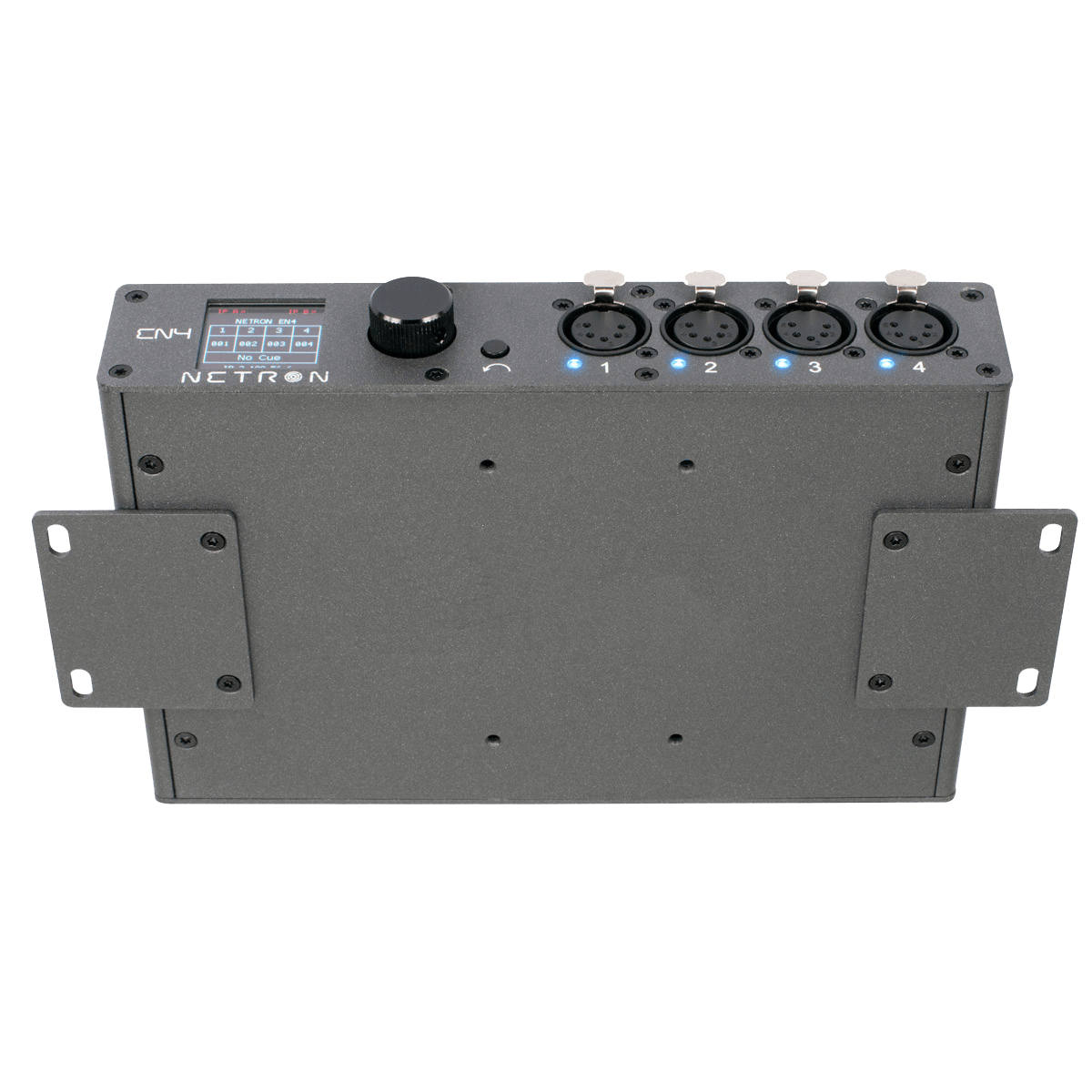

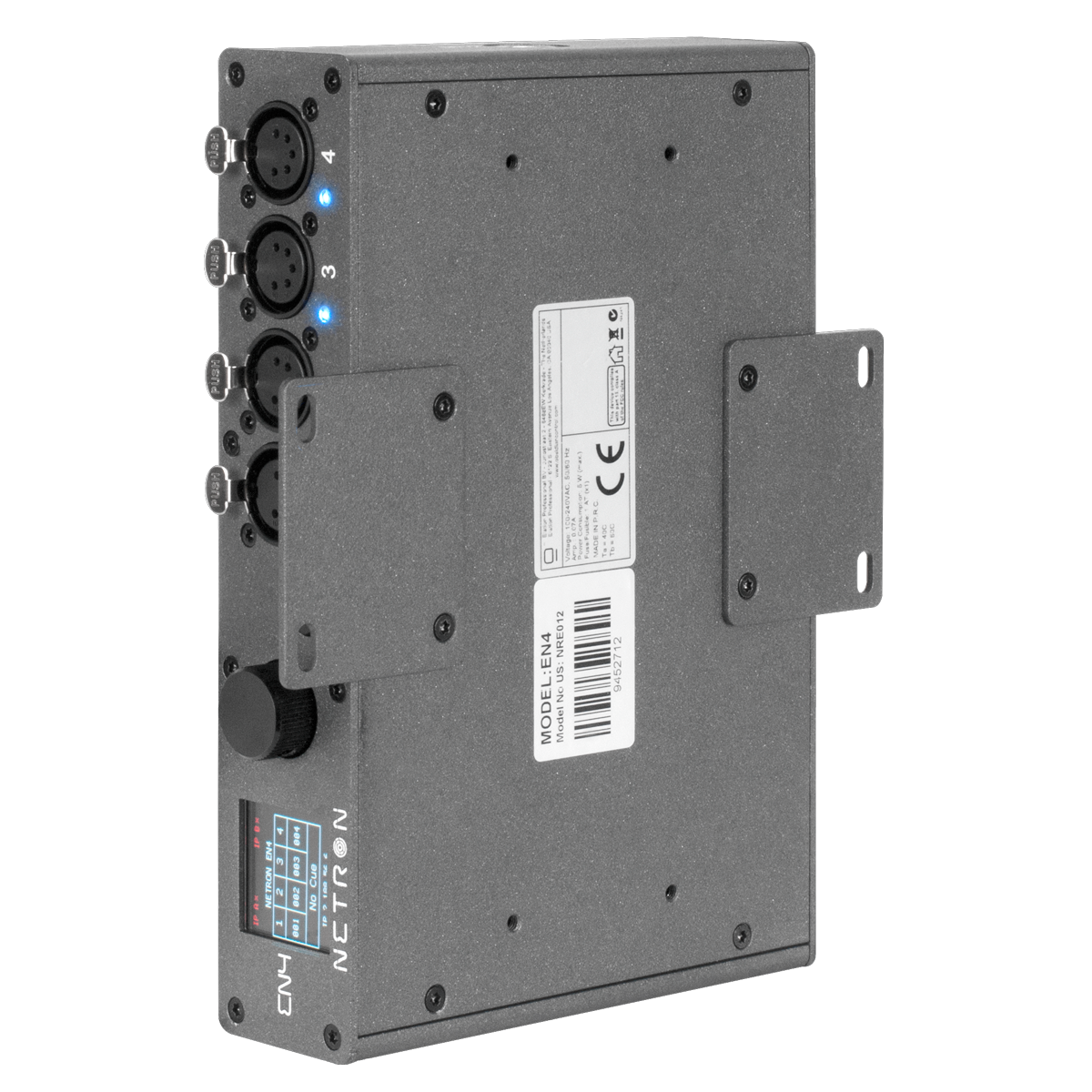

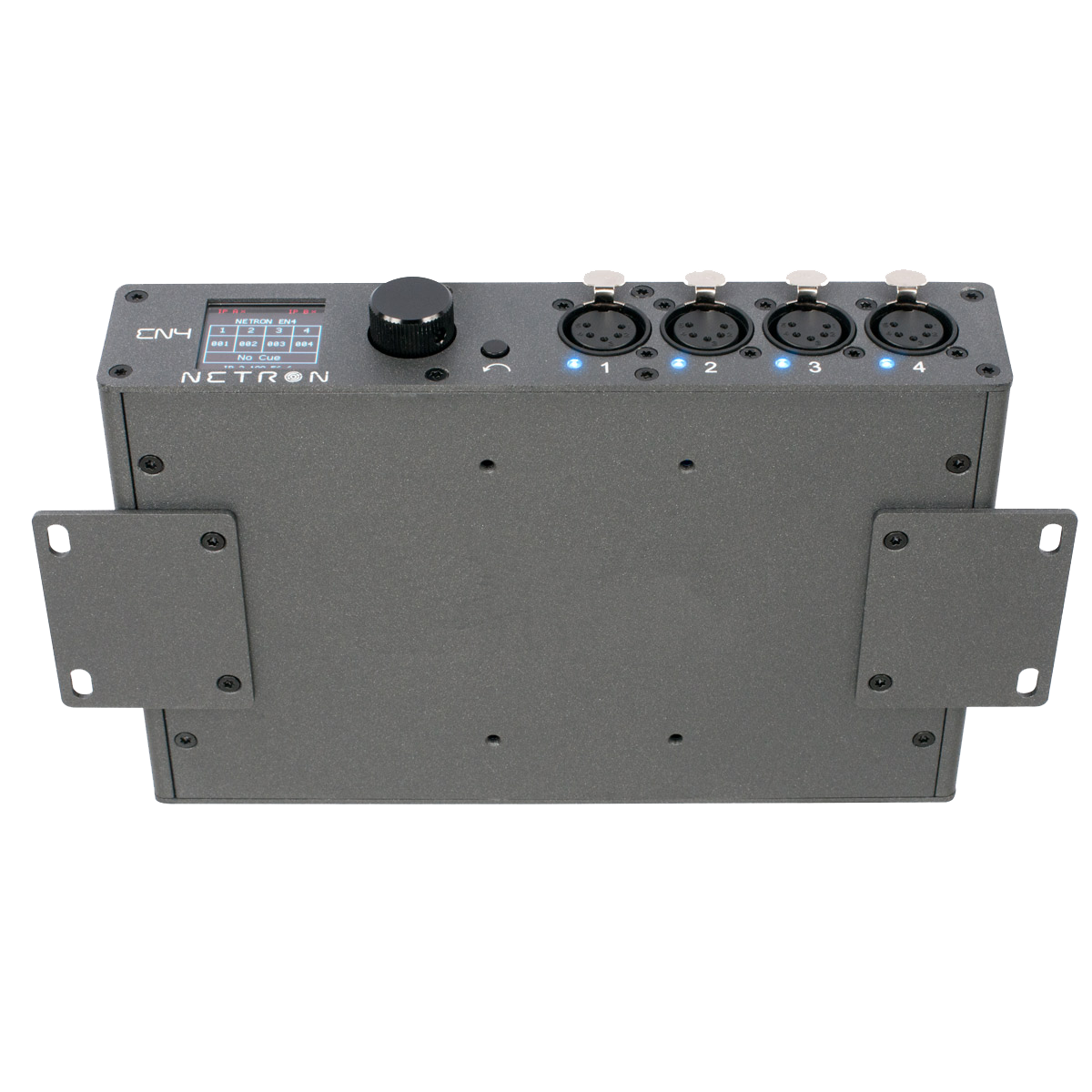

Wall-mount horizontal or vertical (included)

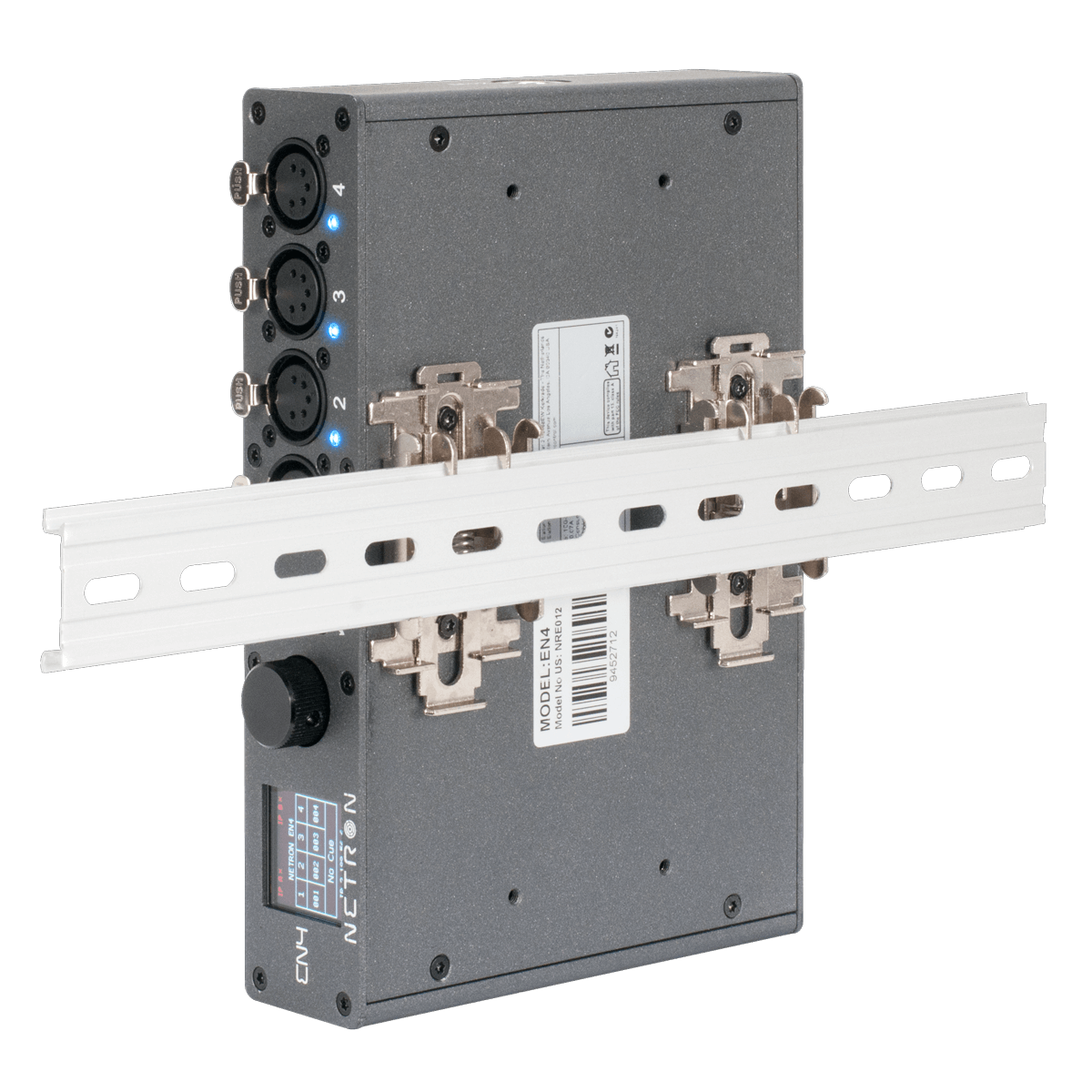

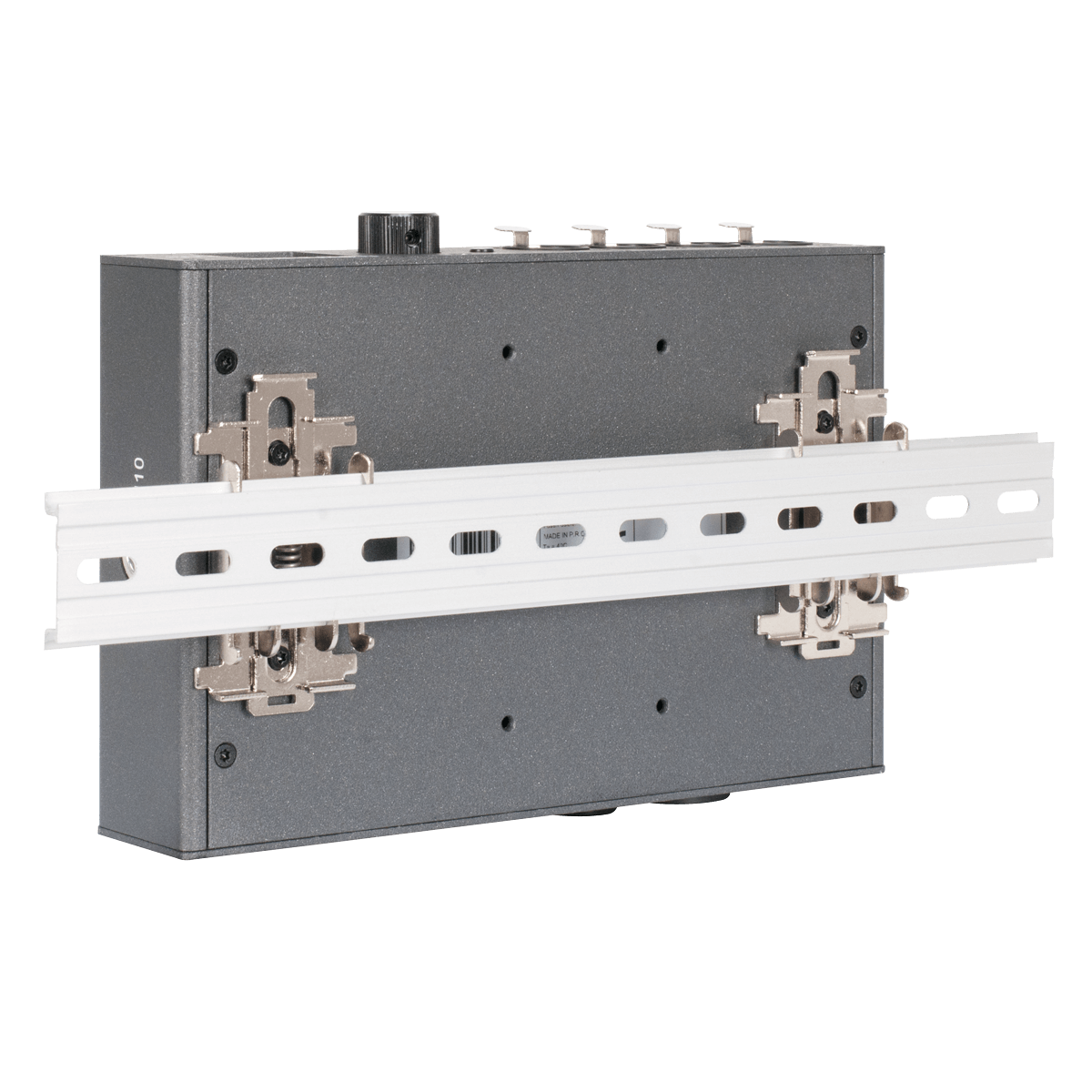

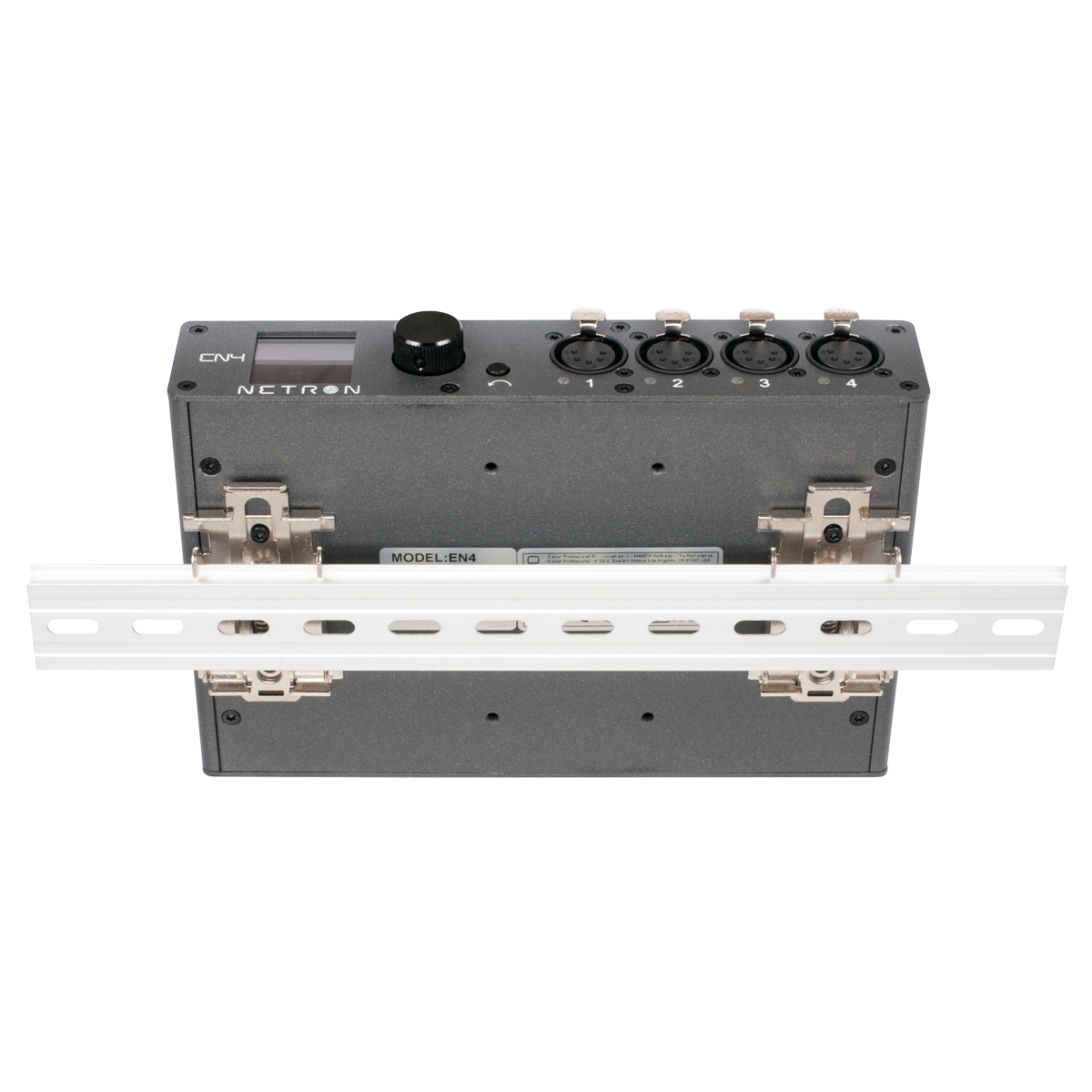

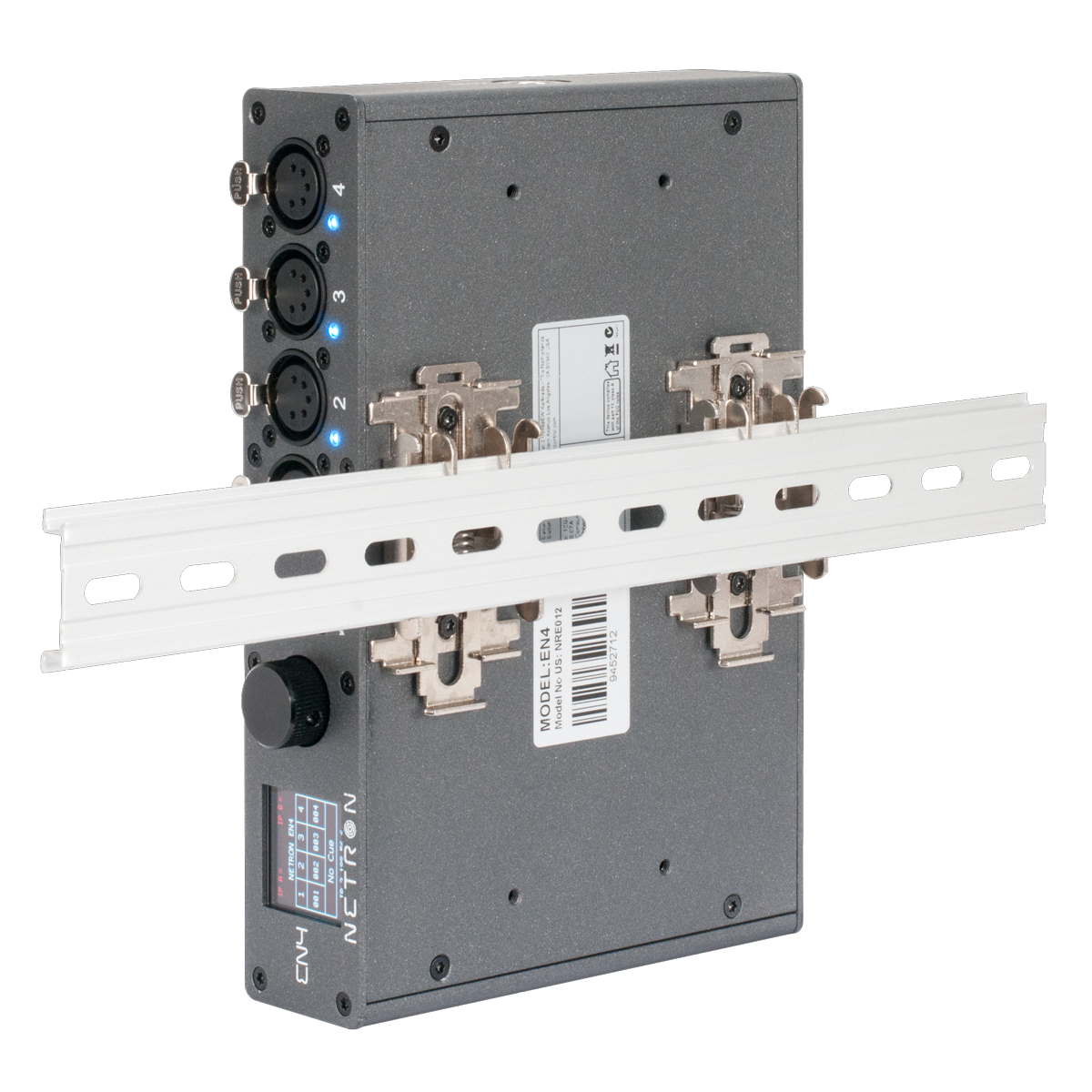

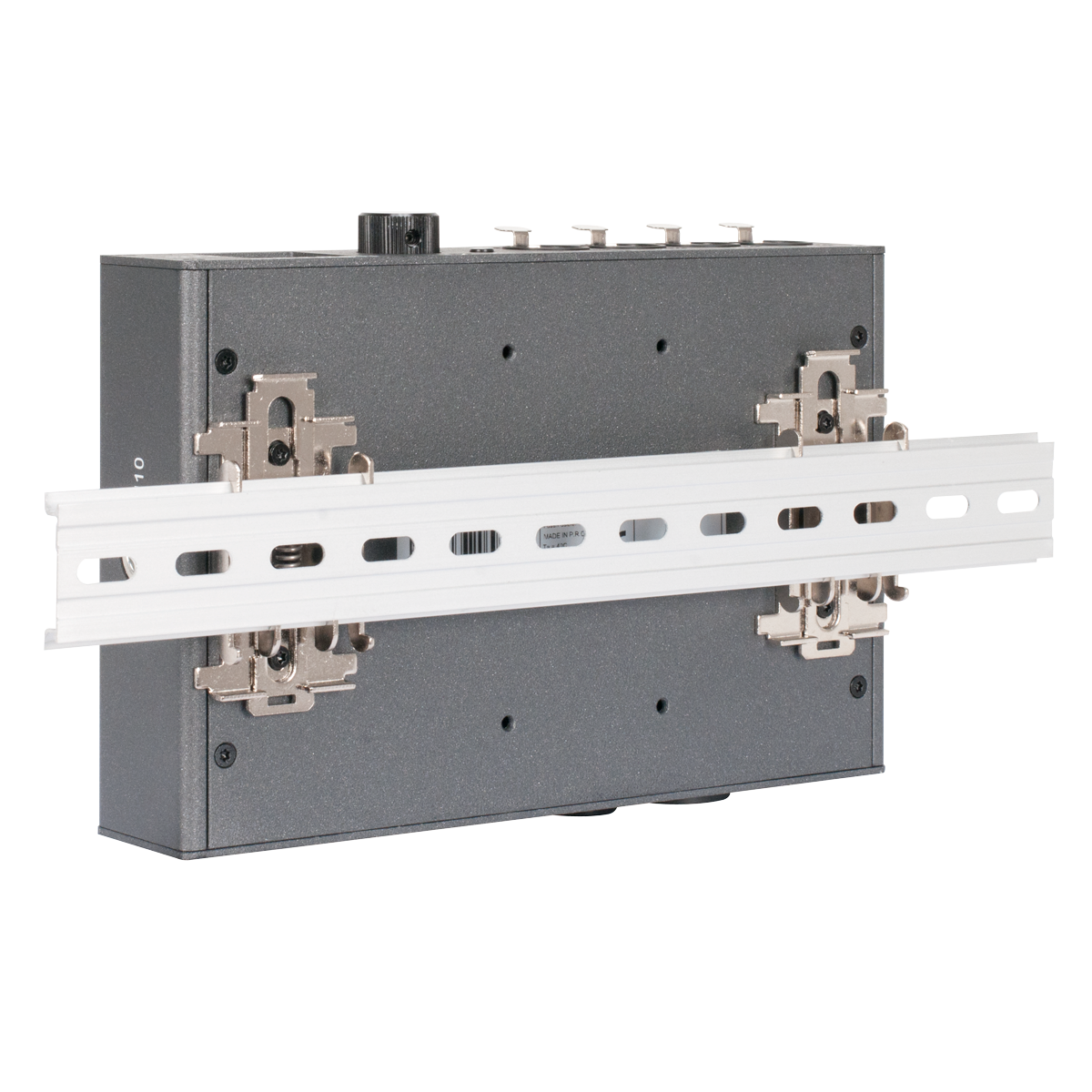

DIN Rail horizontal or vertical (included)

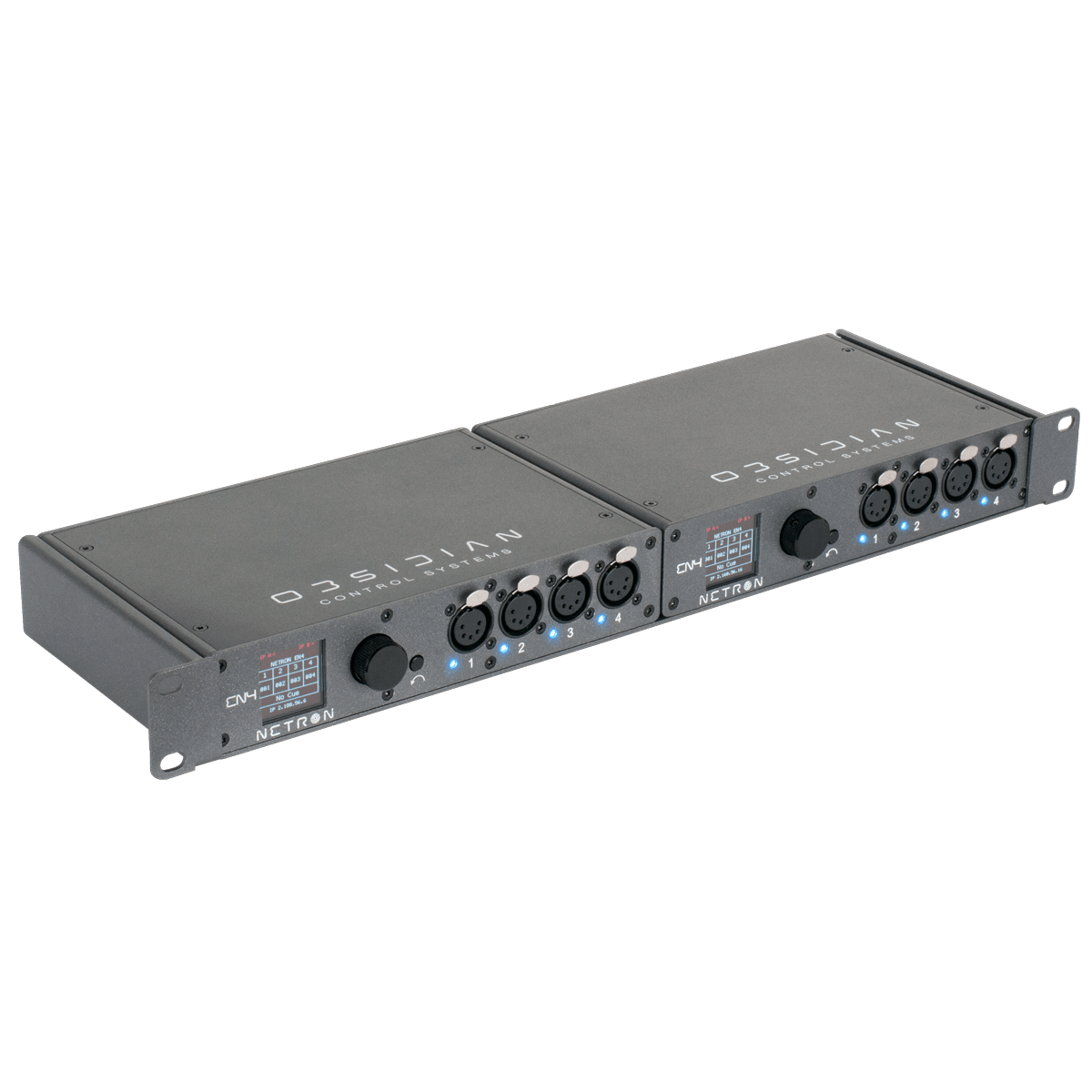

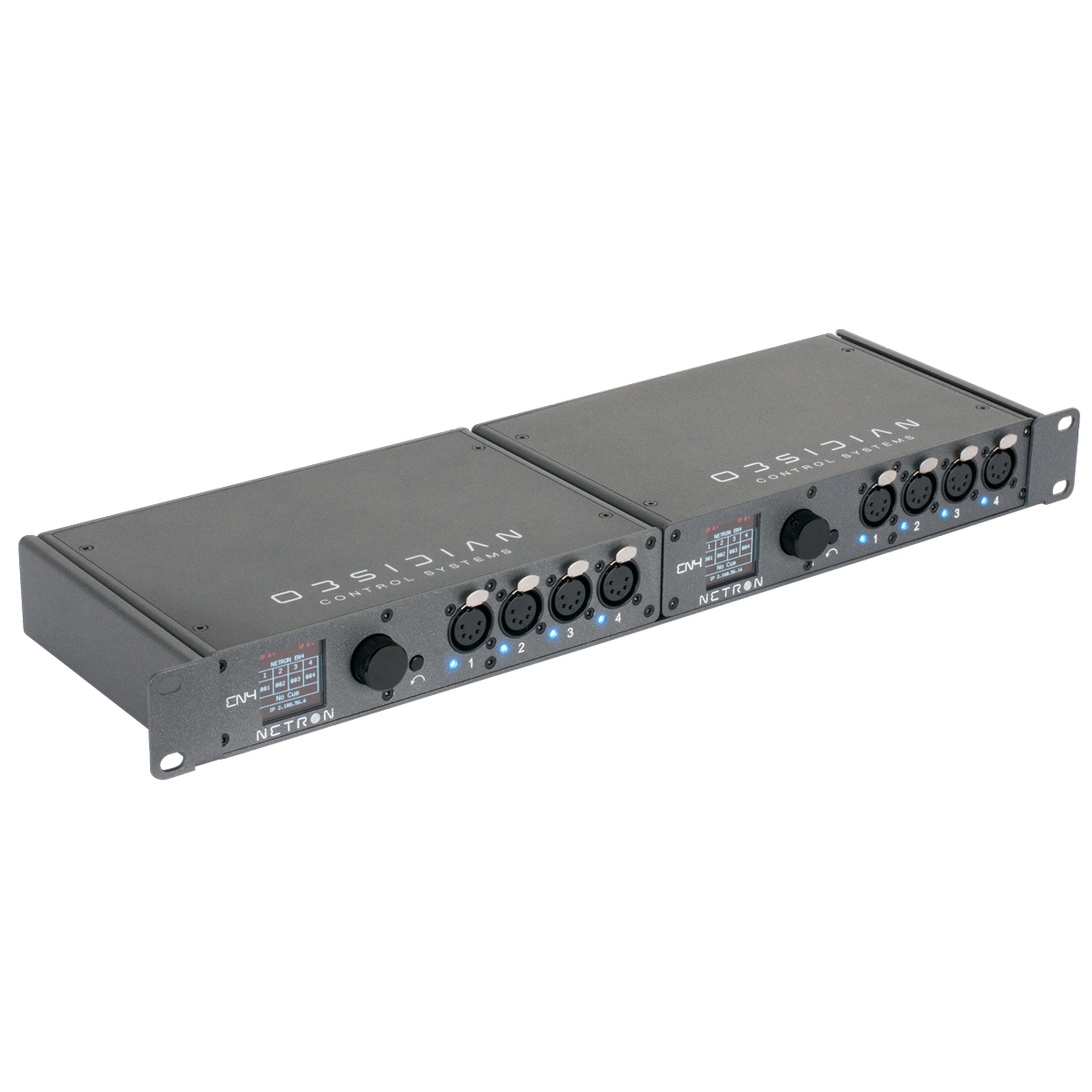

Rack-mount option (requires NET Shelf)
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

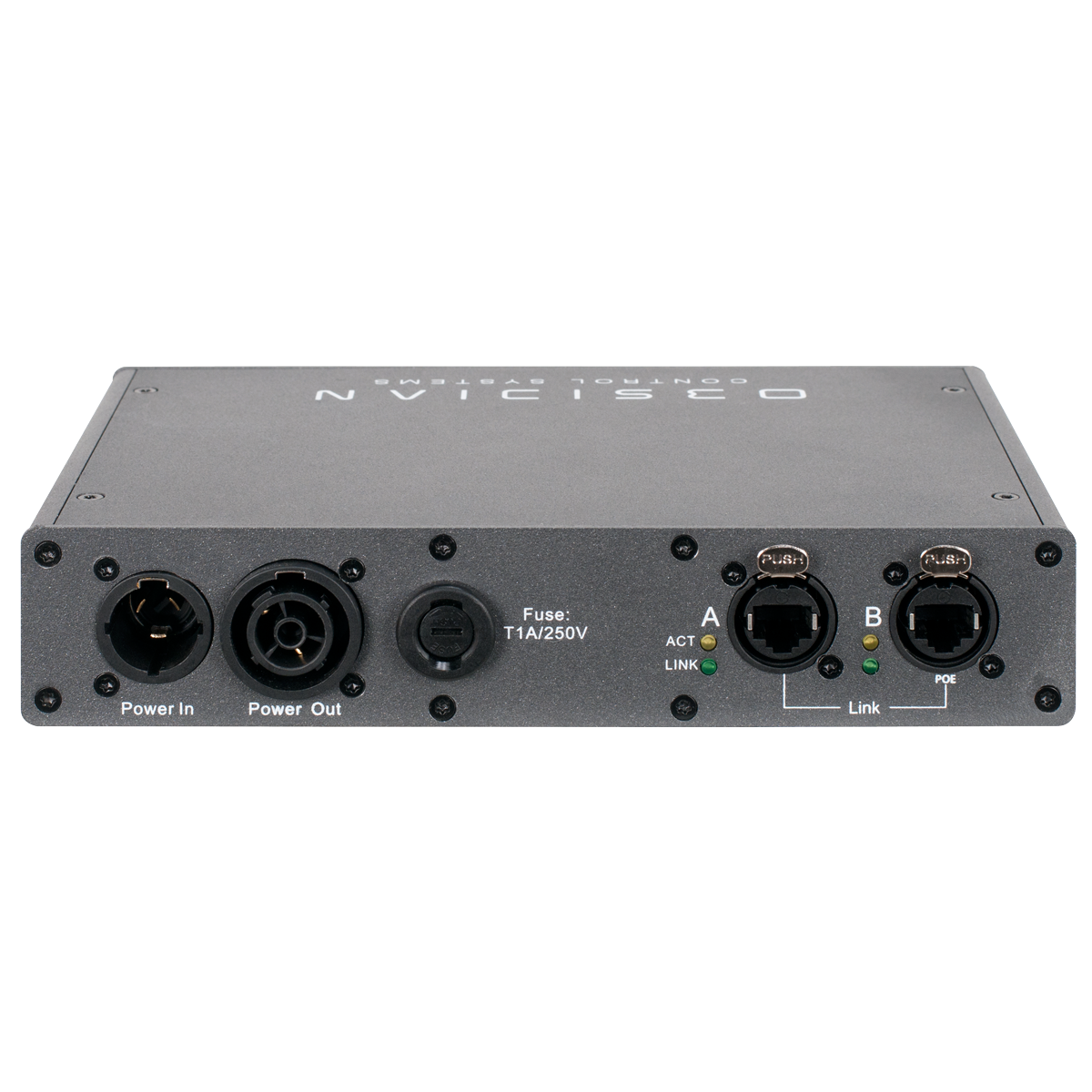

Locking Power In/Thru
(2) Locking RJ45 Ethernet network connections (1x POE)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
POE 802.3af
