EP4
EP4
The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.
Features
Key Features
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- POE or USB-C powered
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated compact aluminum housing

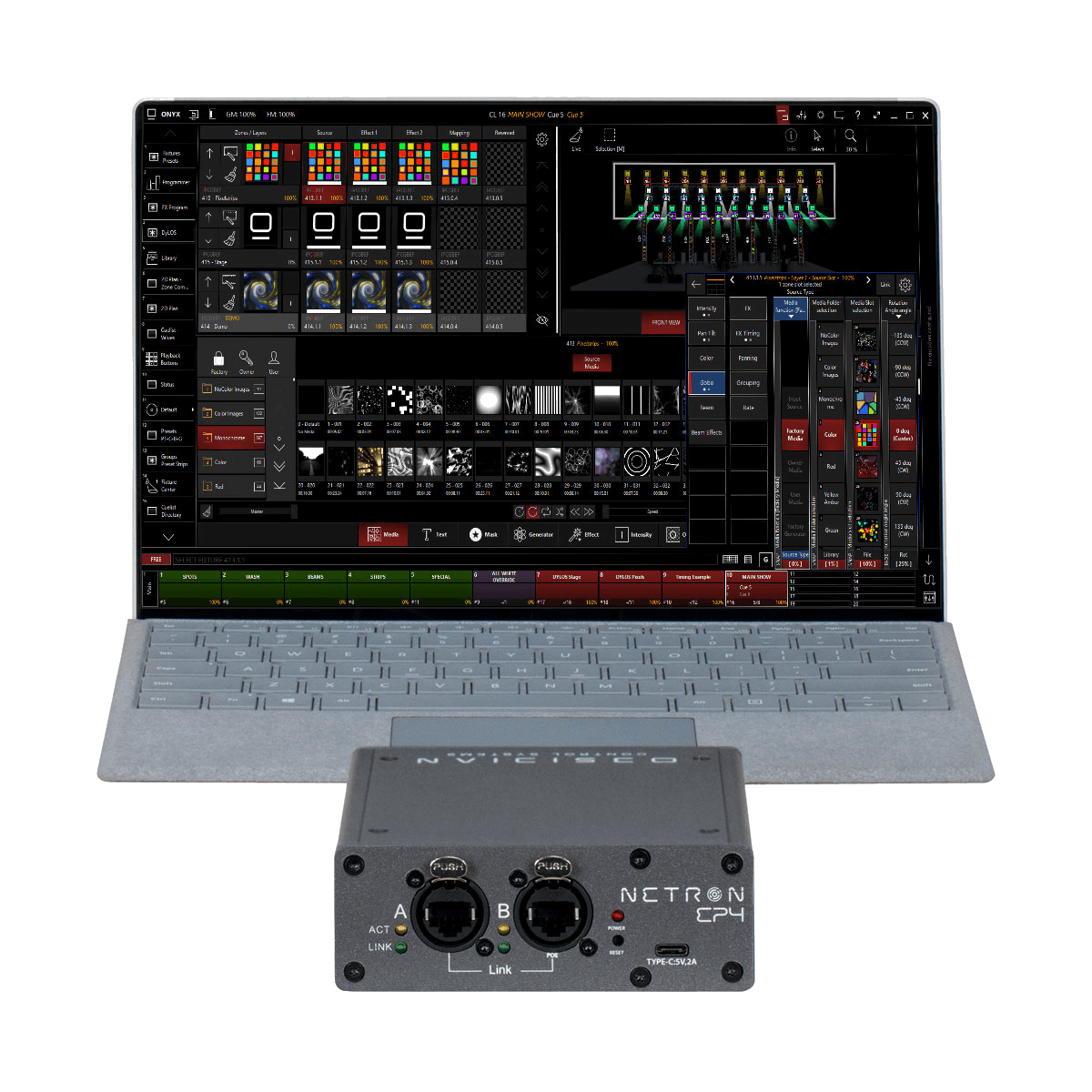

- Connect to ONYX PC for a full four Universe Solution
For all technical details and documentation for NETRON devices please visit
Related Categories
Specifications
Mounting
Standalone

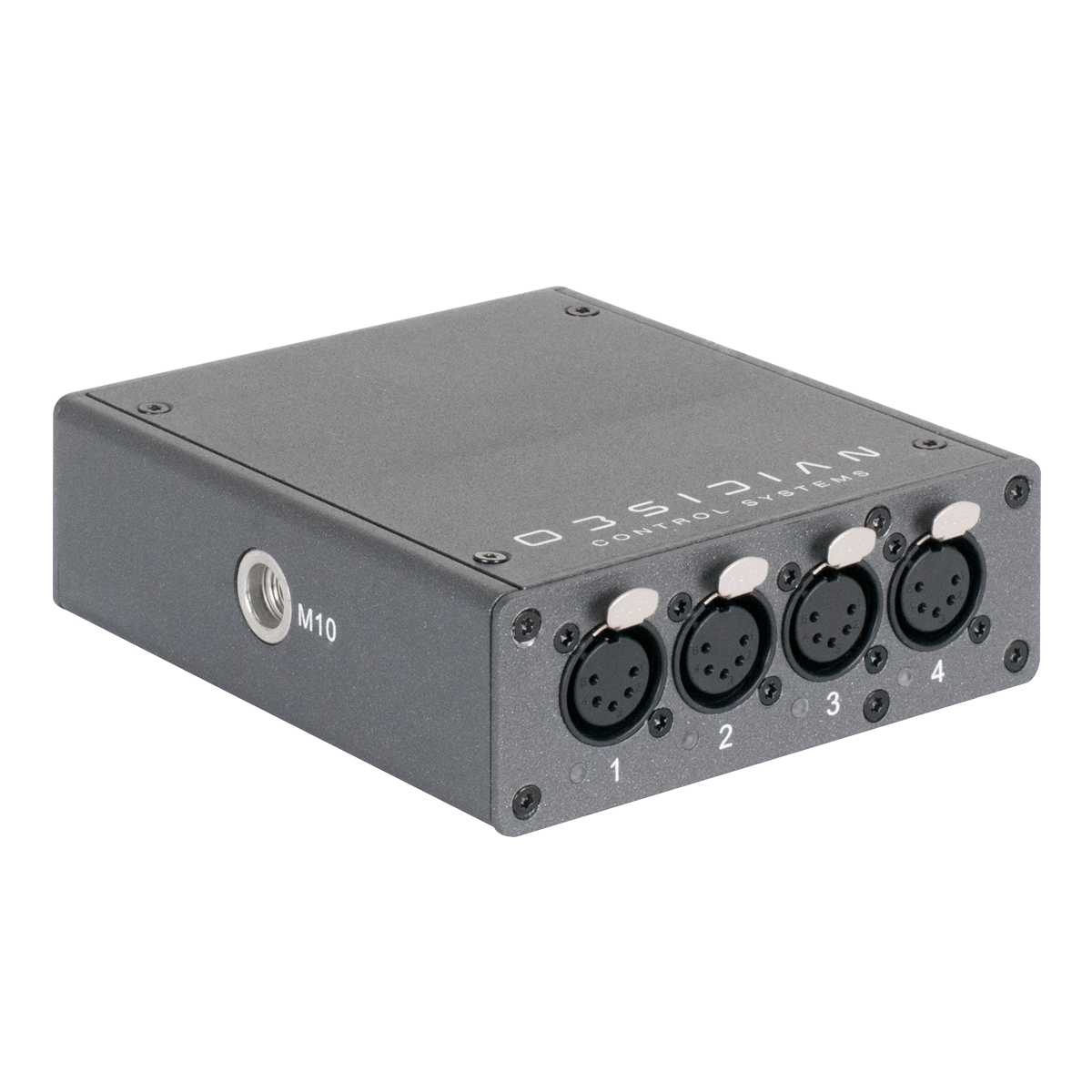

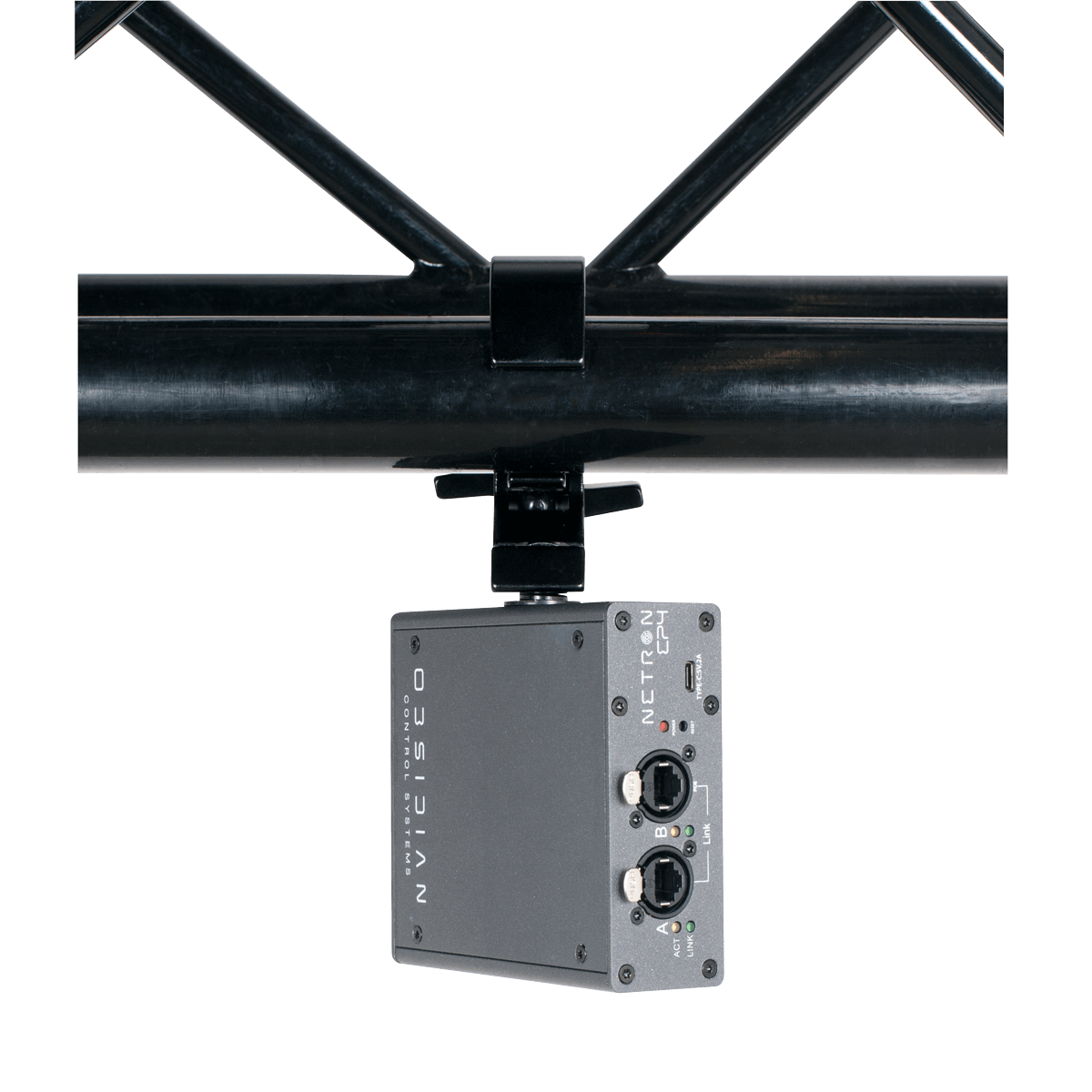

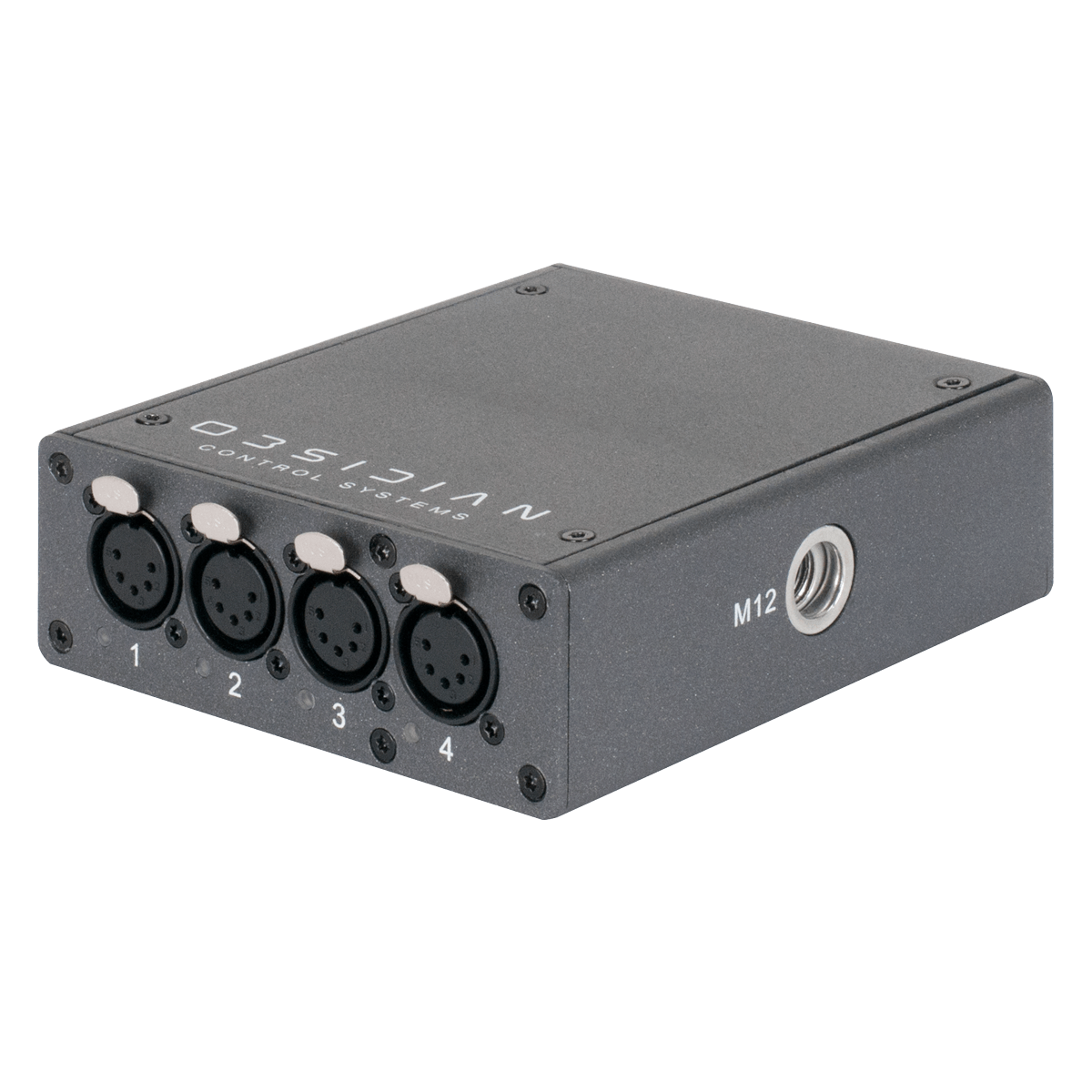

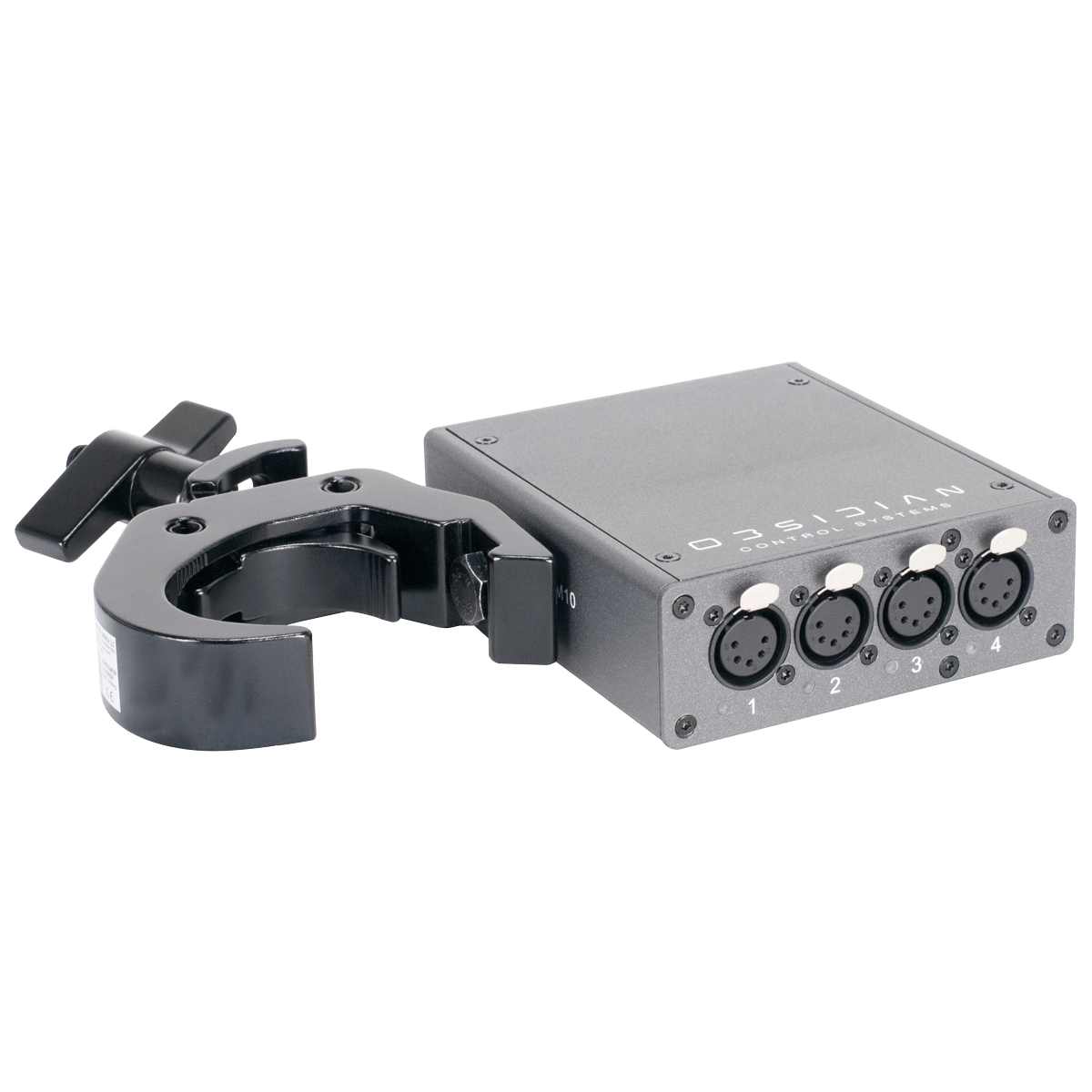

Truss-mount (M10 or M12 mounting hole)

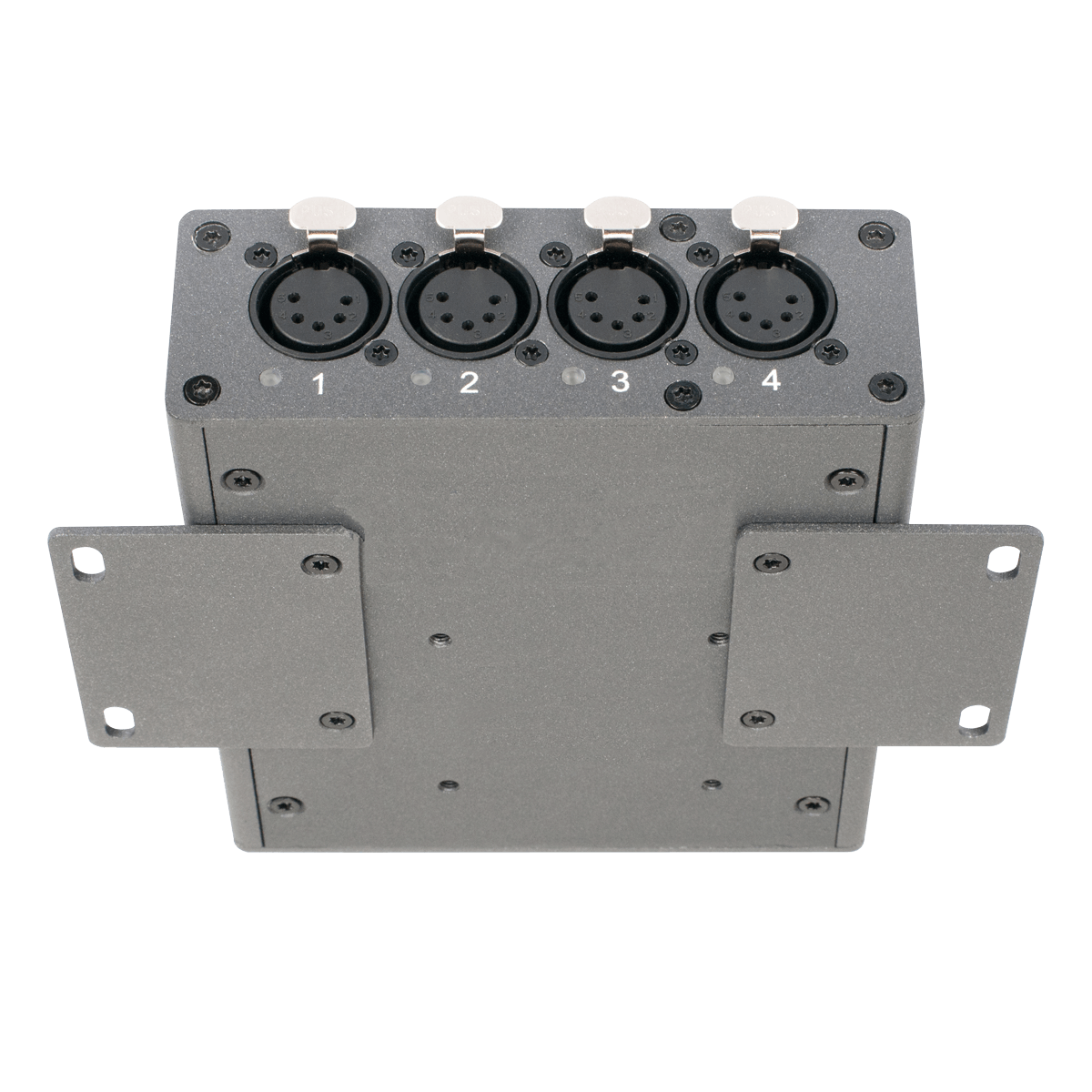

Wall-mount horizontal or vertical (included)

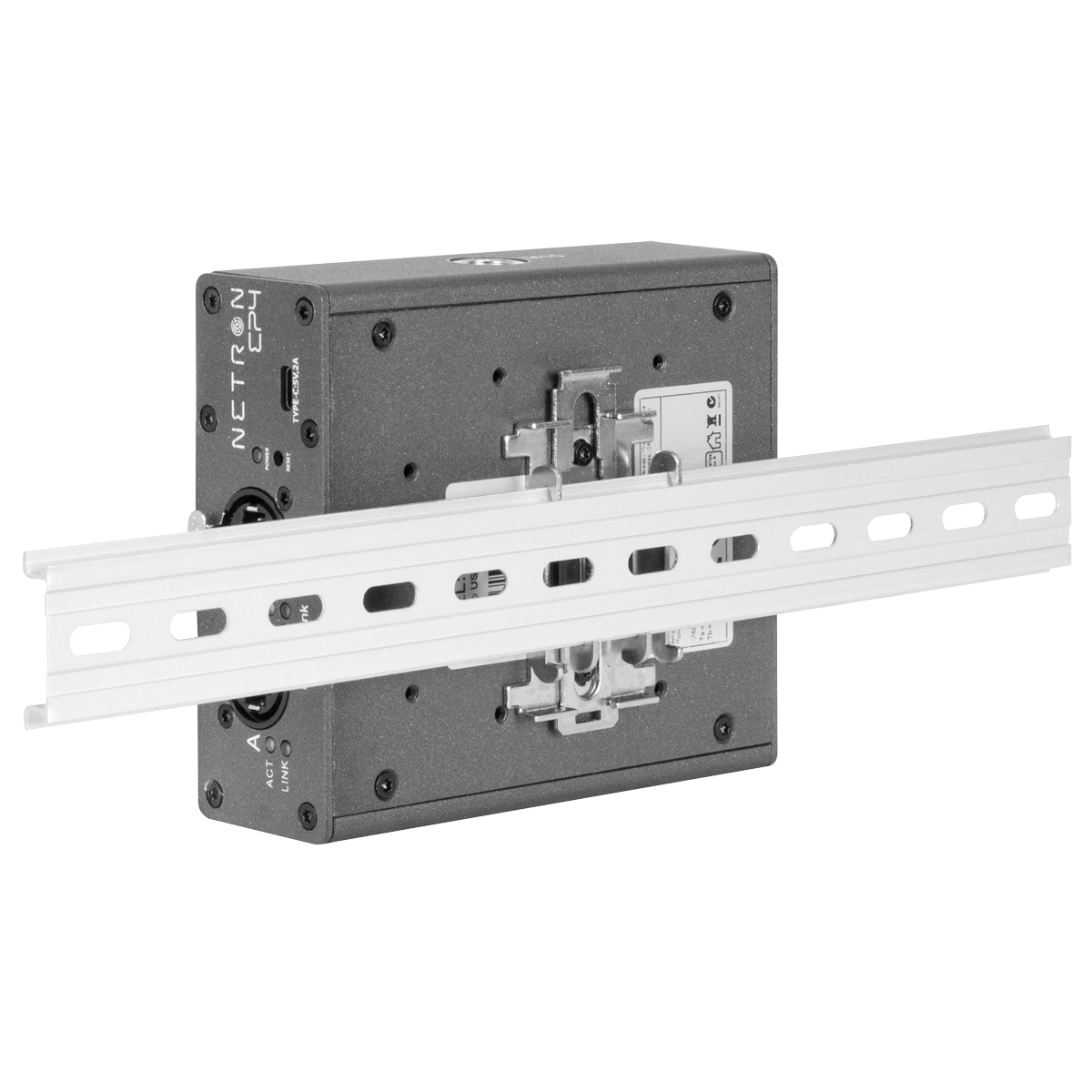

DIN Rail horizontal or vertical (included)
Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Connections

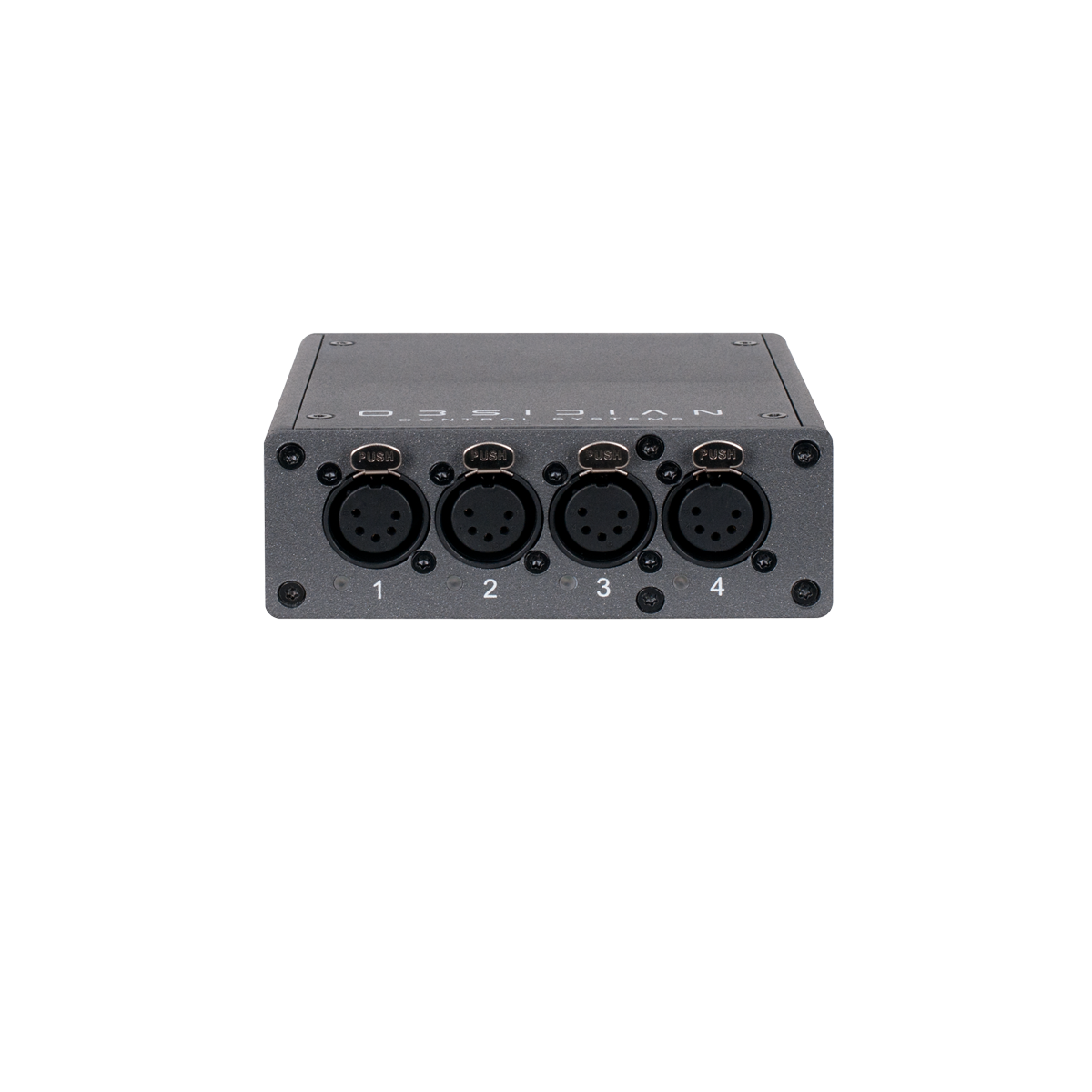

Front
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output

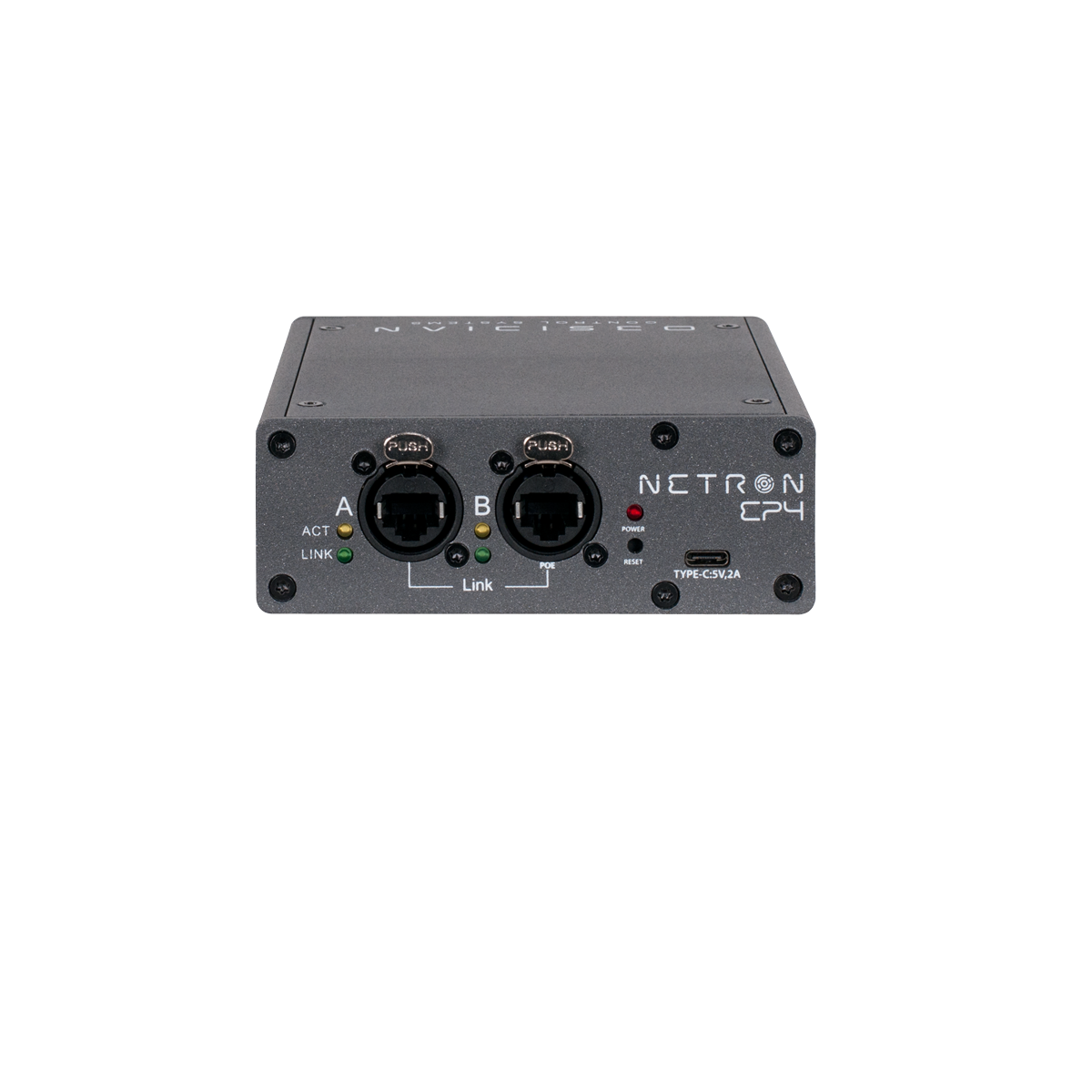

Back
(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)
(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)
Physical
Length: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)
Length: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)
Electrical
USB-C 5V
POE 802.3af
USB-C 5V
POE 802.3af
Power Consumption 3.8W
APPROVALS / RATINGS
CE | FCC | IP20
Specifications and documentation subject to change without notice.
