Event Bar
Event Bar
Discontinued
SKU# EVE598

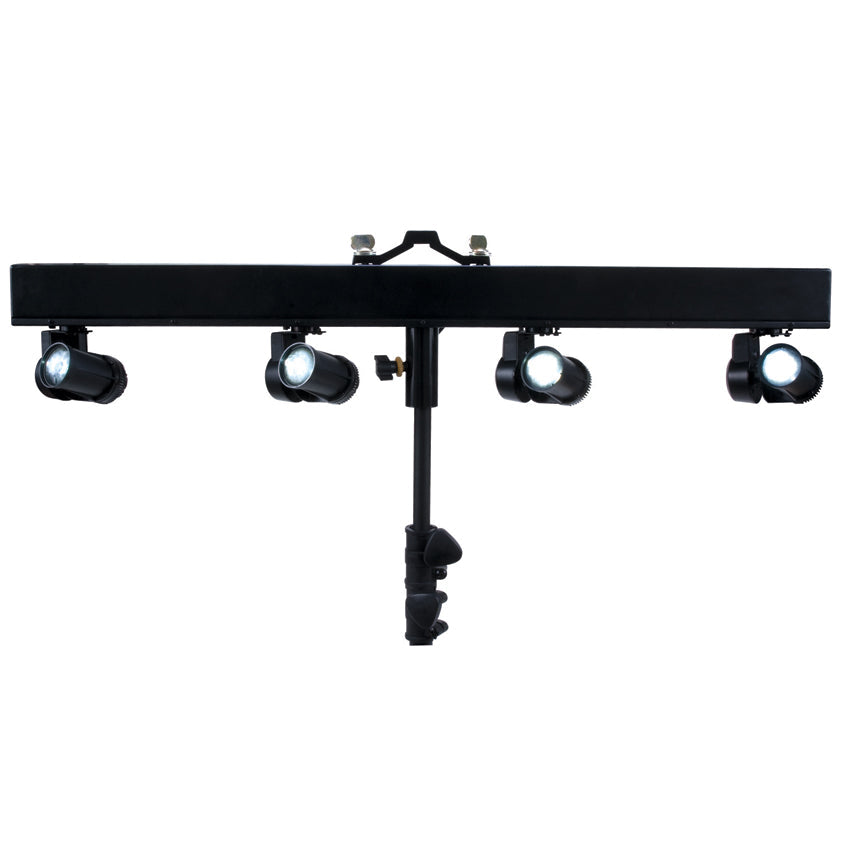

Features . LED Pinspot, 4 Head X-Y Bar . Full DMX Control . Full Dimming On Each Pinspot Head . Easy-To-Use Display For DMX or Internal Program Access
Specifications
Colors
. White LED
Shutter/Dimmer
. Strobe effect on each pinspot head
. Full dimming on each pinspot head
Light Source
. Lamp: 4 x 3W White LED pinspots
. Lamp Life: 50,000 hours
Optical System
. 12° beam angle
. Optional 6° beam angle included
Control
. 3 DMX modes: 12 channel, 14 channel, 25 channel
. LED display. 360° Pan / 270° Tilt
. Primary/Secondary, stand alone and music activated
. 8 total motors
. Flicker free
Operation Parameters
. Fan cooling
. Maximum Ambient Temperature: 40°C/104°F
. Truss Mount With Clamp or Mount on a Light Stand
Power Supply
. Power Supply: 100V~240V, 50/60Hz
. Power Consumption 54W
Connectors
. 3-pin XLR connectors
. 4 piece daisy chain power connect
Dimensions and Weight
. Dimensions: 39” x 3” x 8” / 1000 x 80 x 202 mm
. Weight: 16.8 lbs. / 7.6 kgs
Approvals
. ETL approved
. White LED
Shutter/Dimmer
. Strobe effect on each pinspot head
. Full dimming on each pinspot head
Light Source
. Lamp: 4 x 3W White LED pinspots
. Lamp Life: 50,000 hours
Optical System
. 12° beam angle
. Optional 6° beam angle included
Control
. 3 DMX modes: 12 channel, 14 channel, 25 channel
. LED display. 360° Pan / 270° Tilt
. Primary/Secondary, stand alone and music activated
. 8 total motors
. Flicker free
Operation Parameters
. Fan cooling
. Maximum Ambient Temperature: 40°C/104°F
. Truss Mount With Clamp or Mount on a Light Stand
Power Supply
. Power Supply: 100V~240V, 50/60Hz
. Power Consumption 54W
Connectors
. 3-pin XLR connectors
. 4 piece daisy chain power connect
Dimensions and Weight
. Dimensions: 39” x 3” x 8” / 1000 x 80 x 202 mm
. Weight: 16.8 lbs. / 7.6 kgs
Approvals
. ETL approved
