EVHD3
EVHD3 is a professional-grade lighting solution. It’s light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. The EVHD3™ is ideal for any broadcast installations. Easy To Install 100% Serviceable From Front or Backsides Broadcast Quality 3840Hz EMC Certification Convex or Concave Design Capable MOM - Memory-on-Module (Saved#160;Pixel By Pixel Calibration).
EVHD3

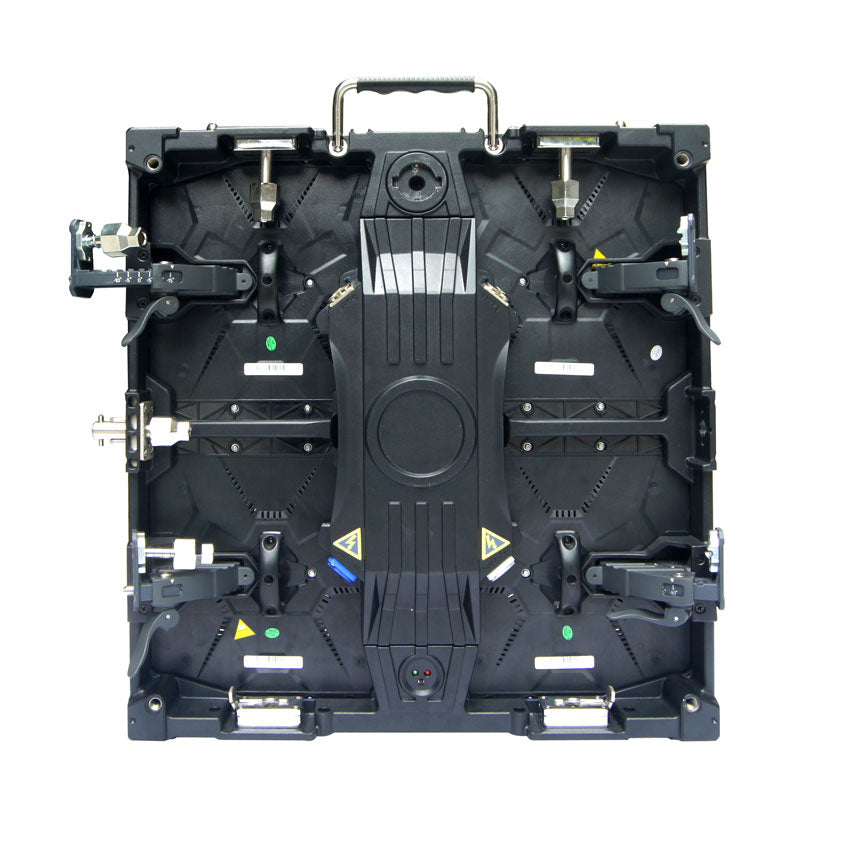

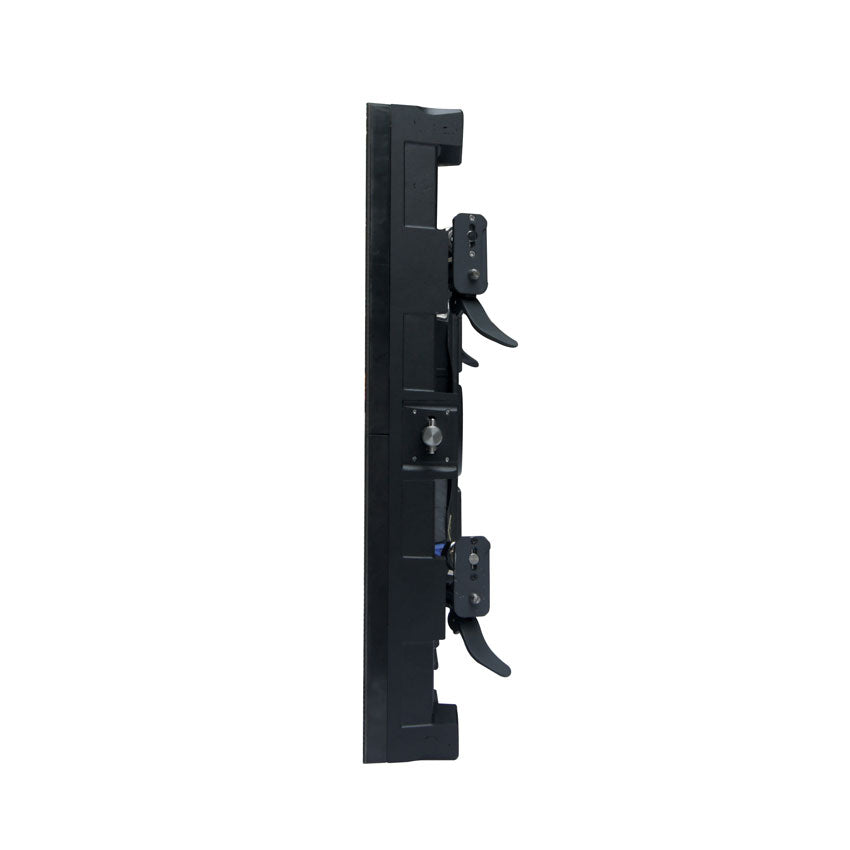

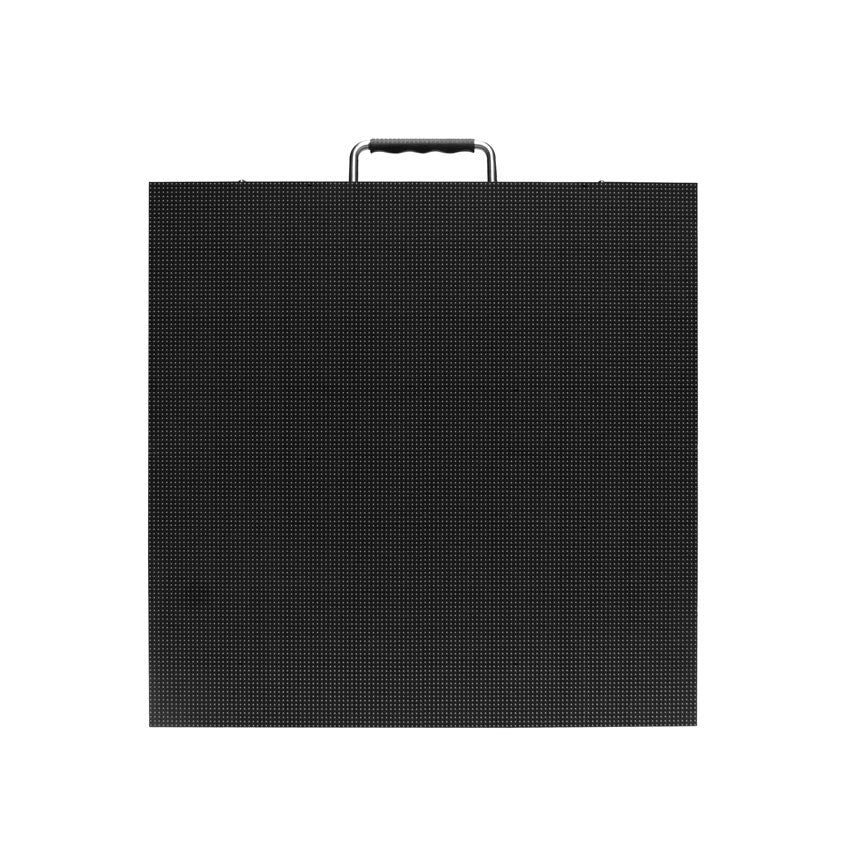

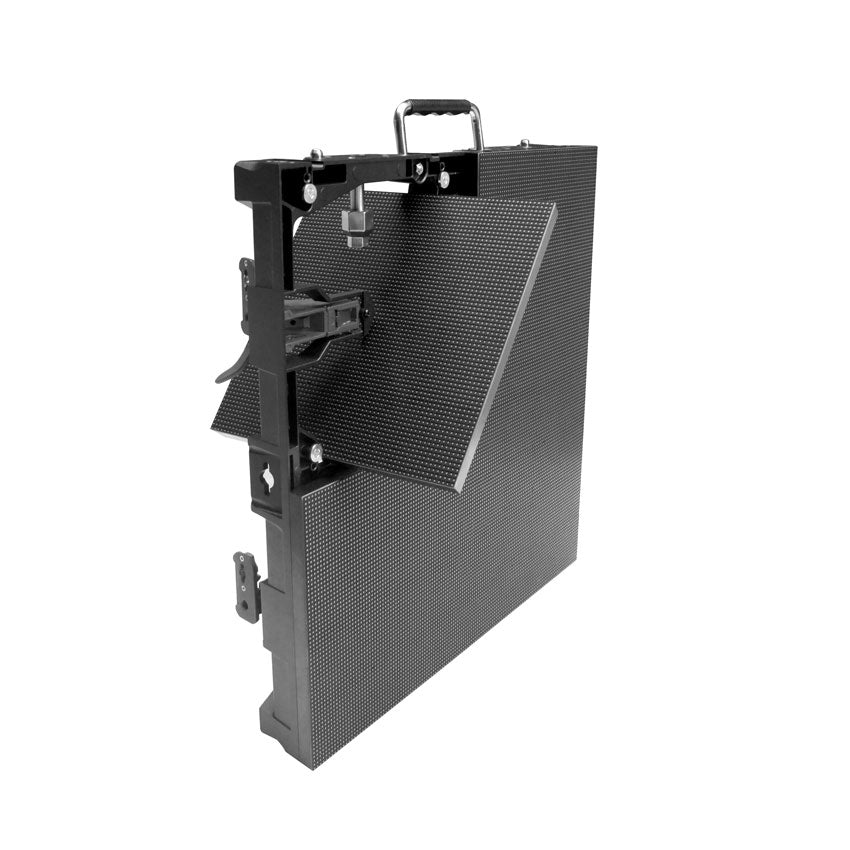

The EVHD3™ is a 3.9mm pixel pitch black face LED display. It's light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. Features include a seamless bezel-free design, no fan metal cooling structure, pixel by pixel calibration for optimized color rendering, uniformity and brightness, an ultra-wide viewing angle, and lockable curve adjustments for smooth convex or concave designs providing easy solutions for creative high-resolution video designs. The EVHD3™ is ideal for any broadcast installations.
- Easy To Install
- 100% Serviceable From Front or Backsides
- Broadcast Quality 3840Hz
- EMC Certification
- Convex or Concave Design Capable
- MOM - Memory-on-Module (Saved Pixel By Pixel Calibration)
Specifications
Physical Density: 65,536 (dots/m2)
LED Type: SMD Chip
LED Size: SMD 2121
Module Size: 250 x 250mm
Module Resolution: 64 x 64 pixels
Drive Mode: Constant Current Drive
Horizontal and Vertical View angle: H:140° | V:120°
Scan Way: 1/16
Cabinet Size: 500 x 500mm
Cabinet Resolution: 128 x 128 pixels
Cabinet Weight: ≥18.7 lbs. (≥8.5 kg)
Cabinet Material: Die Cast Aluminum Alloy
Brightness: 1200 (cd/m2) (after calibration)
Gray Scale: 14bit
Refresh Rate: Variable Up To 3840Hz
Input Voltage: AC110V-220V, 50/60Hz
Cabinet Max Power Consumption: 135W
Cabinet Average Max Power Consumption: 50W
Protection Level: IP20
Environment: Indoors | -20° - 40° C | 10-90% RH
Life Span: ≥50,000 Hours
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES
EVH120 - EVHD Series Rear Support Bracket (Install Version)
EVH254 - EVHD Series Single Panel Rigging Bar
EVH270 - EVHD Series Rear Support Bracket
EVH286 - EVHD Series 8 Panel Transport Case
EVH302 - EVHD Series Rigging Bar Support Feet (Convert RB to Stacking Bar)
EVH484 - EVHD Series Ground Stack Clamp
EPV813 - 25 ft. (7.62m) powerCON Cable
PLC2 - 2 ft. (0.6m) powerCON Link Cable
CAT100 - 100 ft. (30m) CAT6 ETHER-CON Cable
CAT002 - 2 ft. (0.6m) CAT6 ETHER-CON Cable
CAT113 - 3 ft. (0.9m) CAT6 ETHER-CON Cable
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
- EVHD Series Panel 2D CAD
- EVHD Series Panel 3D CAD
- EVHD Series Rear Support Bracket 2D CAD
- EVHD Series Rigging Bar 2D CAD
- EVHD Series Rigging Bar 3D CAD
- EVHD Series Rear Support Bracket 3D CAD
Dimensional drawings
- EVHD Series Panel Dimensional Drawings
- EVHD Series Rear Support Bracket Dimensional Drawings
- EVHD Series Rigging Bar Dimensional Drawings
Specification sheet
Vectorworks symbol
