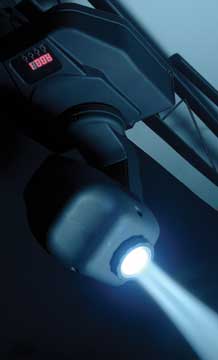

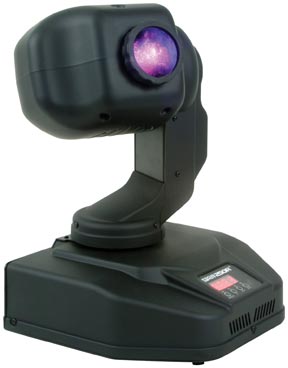

Focus Spot 250R

Features

Resources

User Manual

Related Categories

Specifications

Colors
 . 8 Dichroic Colors + White
 . Continuous Color Scroll

 Gobos
 . One gobo wheels
 . 6 interchangeable, indexable, rotating gobos + spot;
 . 3 metal gobos, 2 dichroic glass gobos, 1 textured glass gobo
 . Gobo Size 27mm (outside dimensions) / 24mm (inside dimensions)
 . Gobo shake effect
 . Continuous gobo scroll

 Shutter/Dimmer
 . Variable speed strobe pulse effect
 . Mechanical Dimmer 0-100%
 . Mechanical high speed shutter

 Light Source
 . 4,800 Lux / 446 fc @ 16 feet / 5 meters
 . Lamp life: 3,000hr 8,500°k, 250W
 . Lamp: Philips MSD250/2

 Optical System
 . 18° beam angle
 . Motor driven focus from near to far remote focus via DMX
 . Dichroic Glass Reflector
 . High luminous-efficiency axial reflector and double - condenser lens system cold dichroic reflector
 . Anti-reflection coated lenses

 Movement
 . Maximum pan movement 580° in 3.5s / 16 bit
 . Maximum tilt movement 265° in 2.0 s / 16 bit
 . Fine Pan & Tilt (16 bit resolution)
 . Automatic pan/tilt correction

 Control
 . 11 DMX channels
 . 4 Digit Digital LED Display
 . USITT DMX-512 (16-bit resolution)
 . RDMX - Remote DMX Addressing
 . Pre-programmed movements via DMX
 . Self Test & Stand Alone settings

 Operation Parameters
 . Rigging: 2 x 1/4 turn fastener brackets, 1 x safety cable hole

 Power Supply
 . Magnetic ballast
 . Voltage: 115/208/230/240V AC, 50/60 Hz
 . Power consumption: 500W
 . Fuse: 8A

 Connectors
 . 3 pin XLR serial input/output

 Dimensions and Weight
 . Dimensions (L x W x H): 13” x 13” x 22” / 320 x 338 x 559mm (Head up)
 . Weight: 35lbs / 7.3kg
