FUZE PENDANT Compact

FUZE PENDANT Compact

144W Full Spectrum RGBWL LED Compact House Light Pendant Fixture
SKU# FUZ292
Specifications Sheet DMX Traits

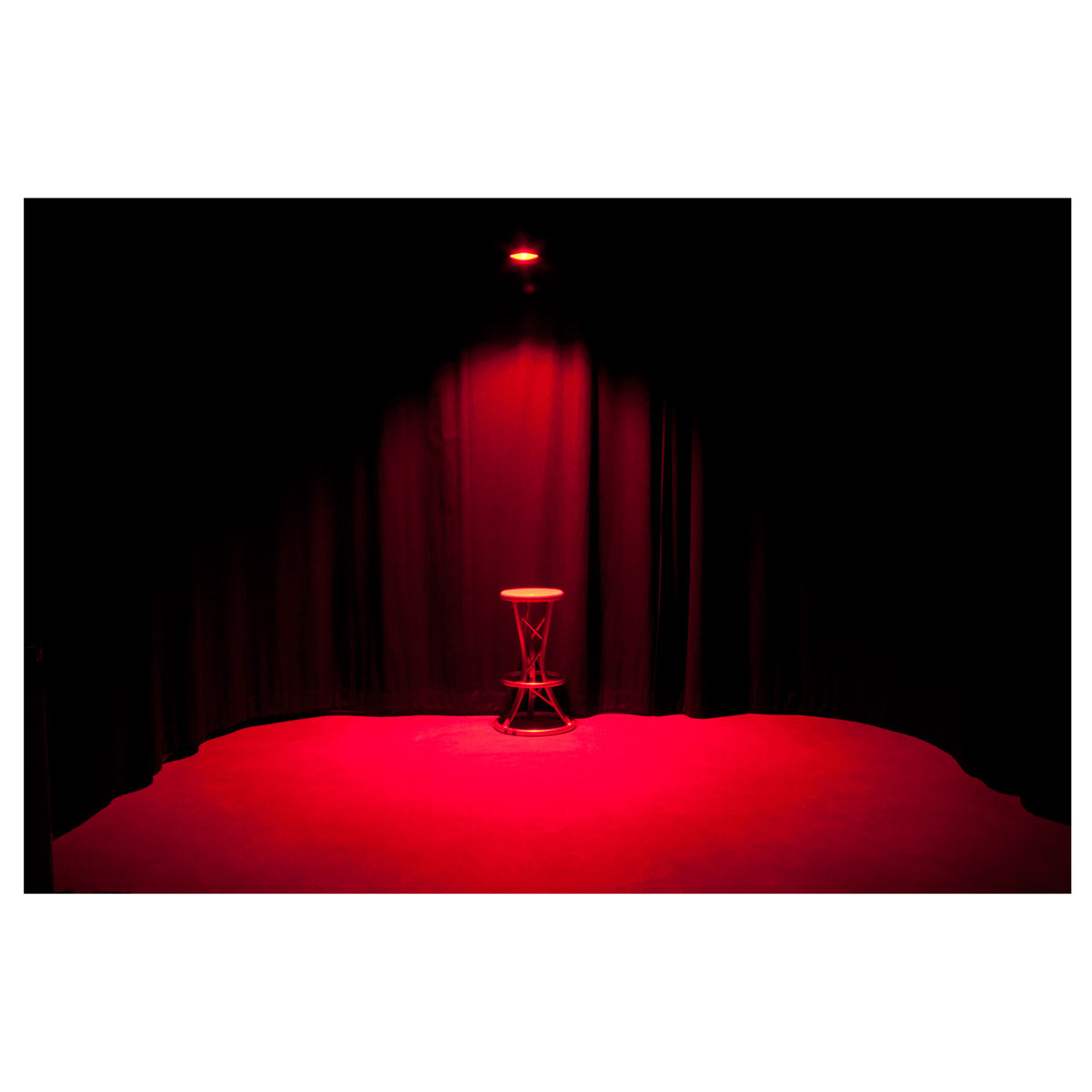

The FUZE PENDANT Compact™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 7,200 lumens, the FUZE PENDANT Compact is ideal for a variety of ceiling height applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.
Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40°, 50 or 100° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.

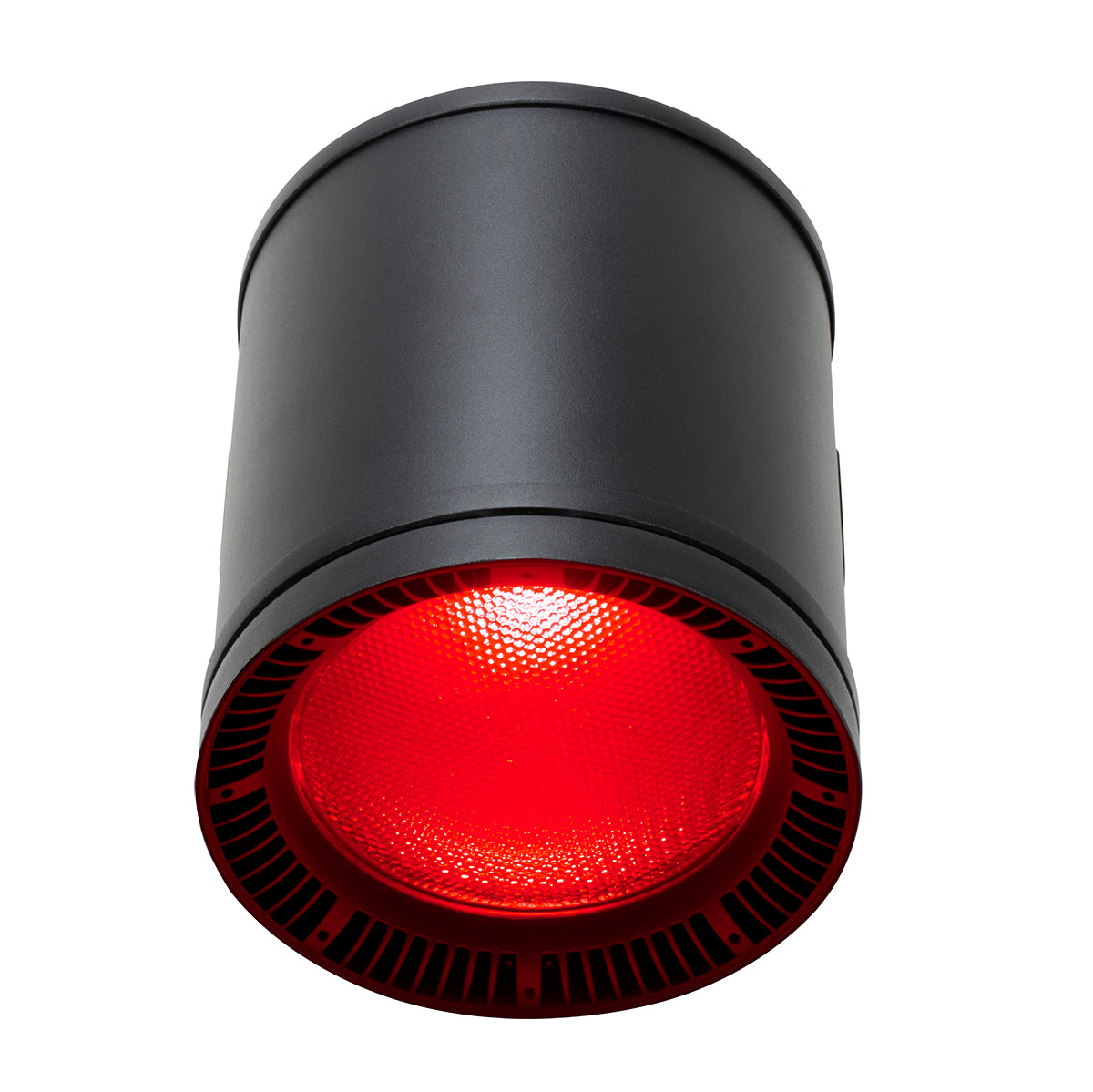

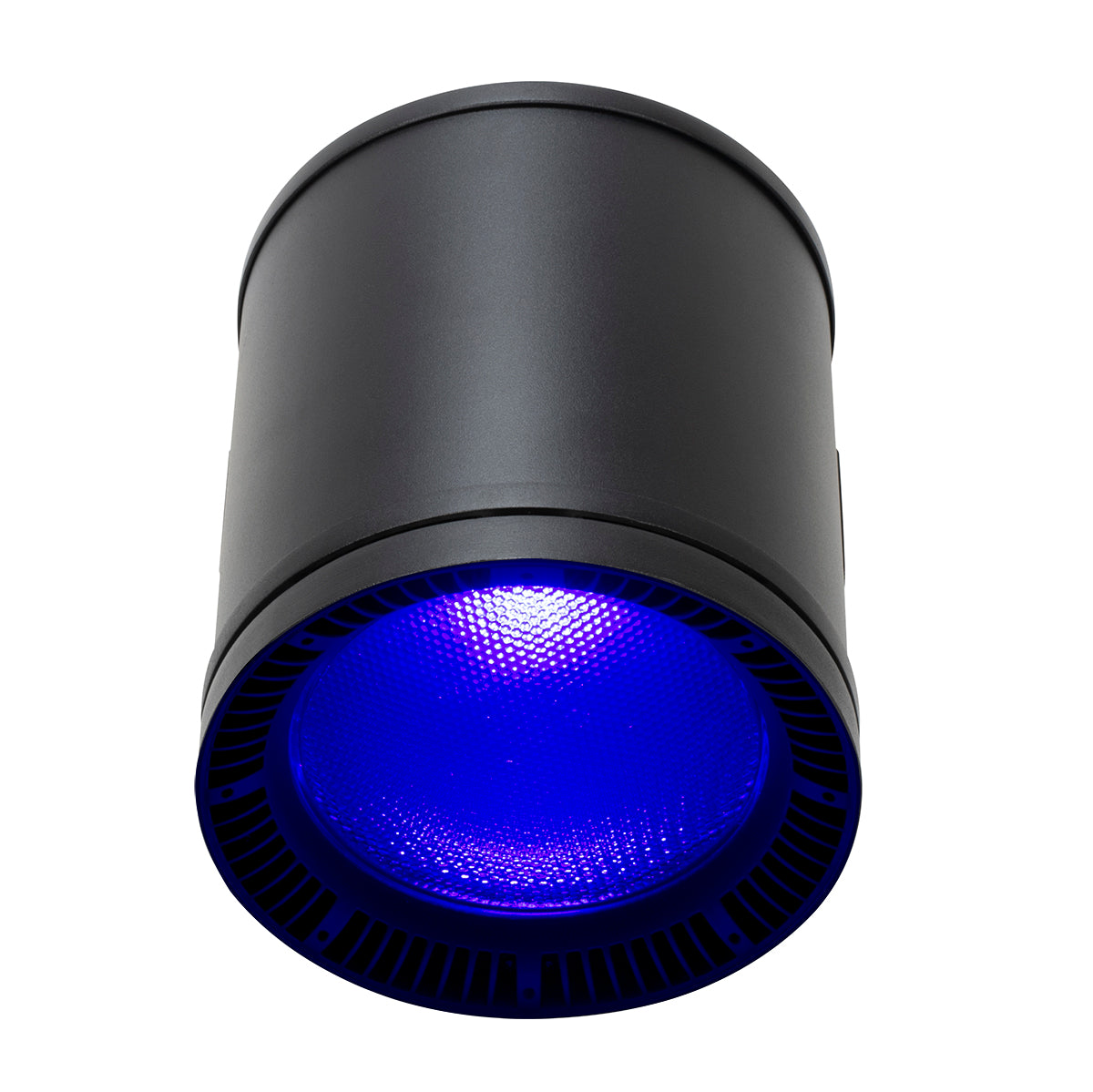

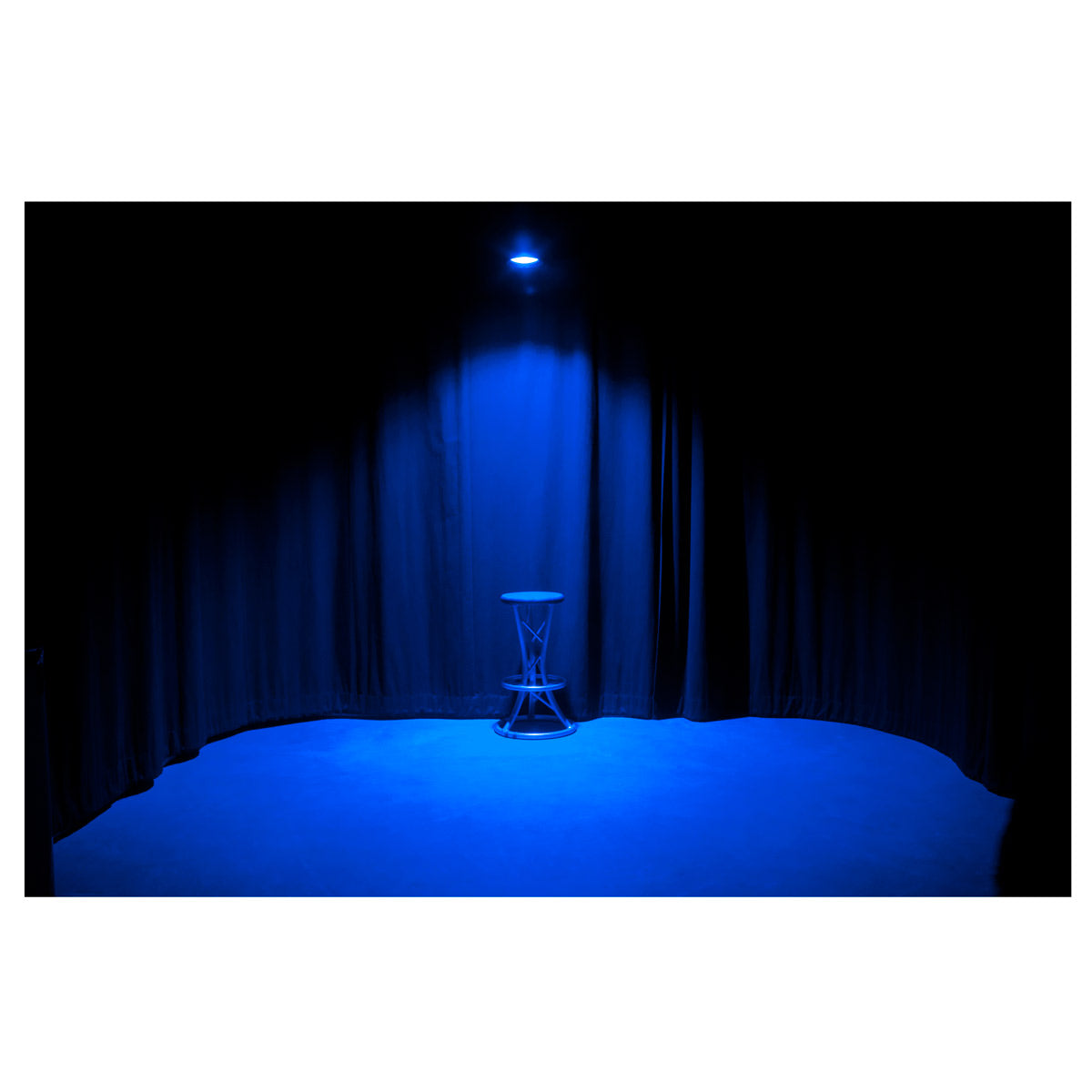

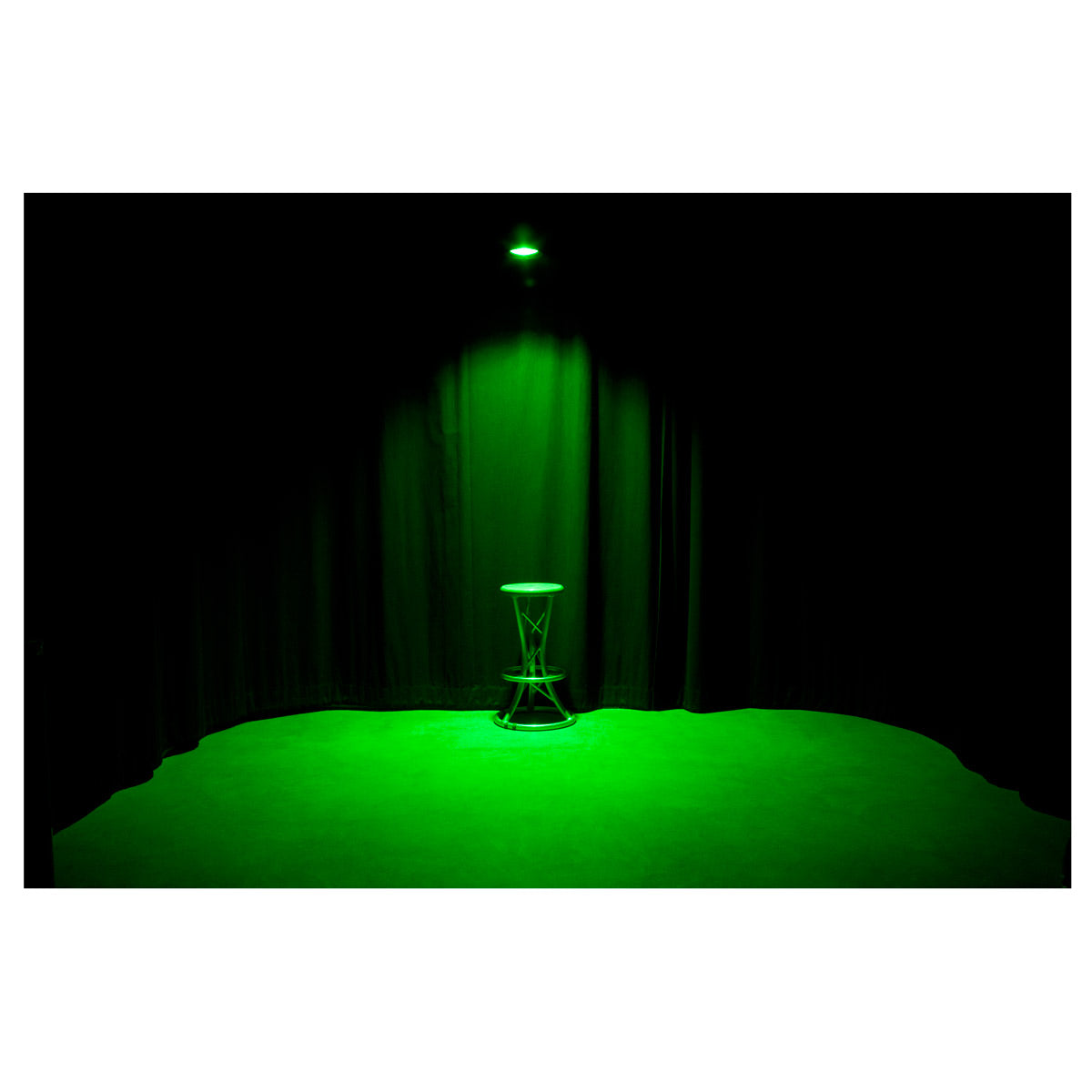

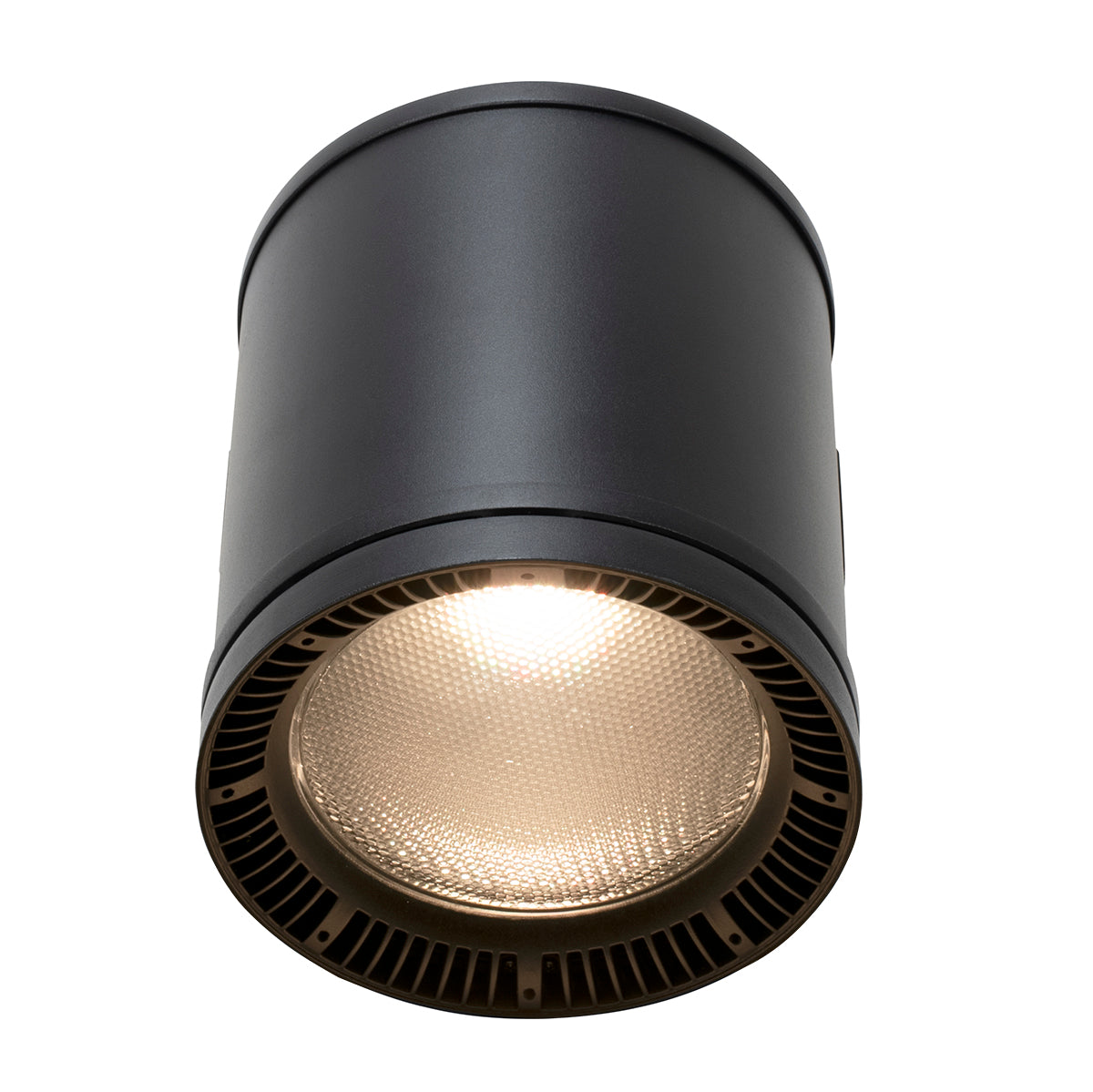

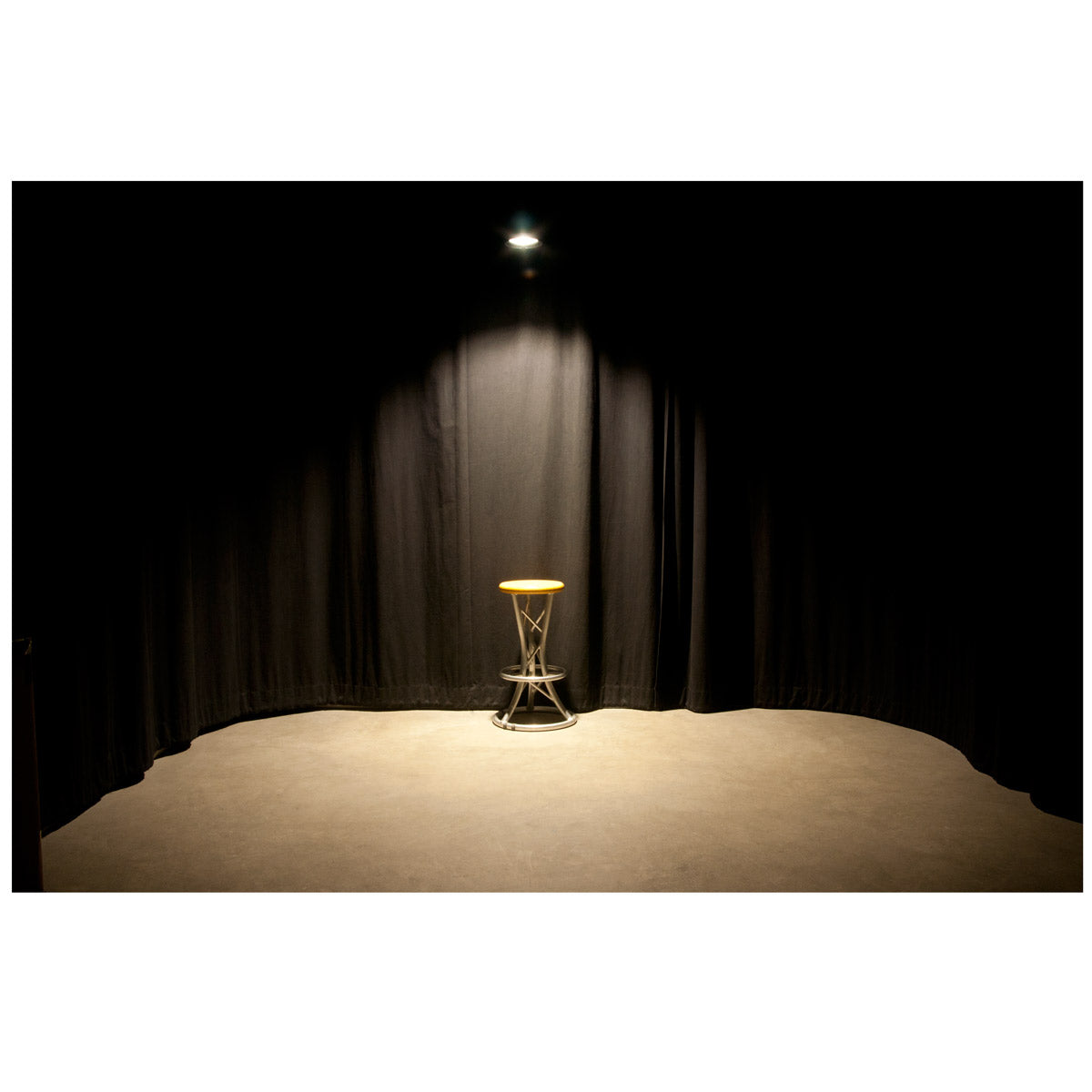

FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
FUZE PENDANT Compact Product Image
Gallery Features Specifications Resources Related Products Related News Related Categories

Features

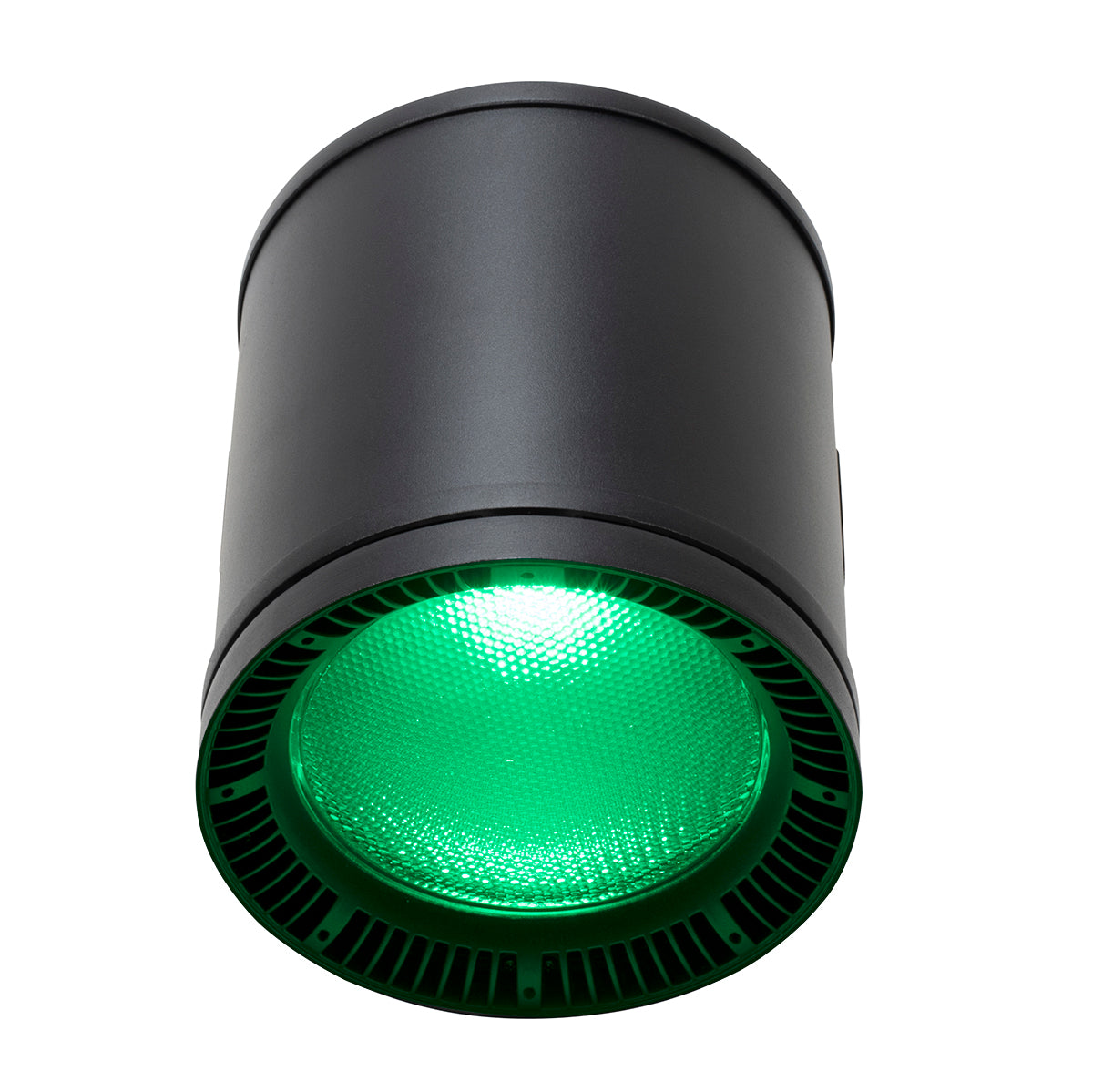

Full Spectrum 144W 5in1 LED Array
2400 - 8500K Color Temperature
CRI 90 @ 3,200K
7,200 Total Lumen Fixture Output
45° Lens Included
Optional 25°, 40°, 50° and 100° Lenses Available
Compact Fanless Design
DMX, RDM, 0-10V and E-FLY Wireless Support
48V Emergency Battery Input
Bare Wire Block Terminal Connections (connectors included)

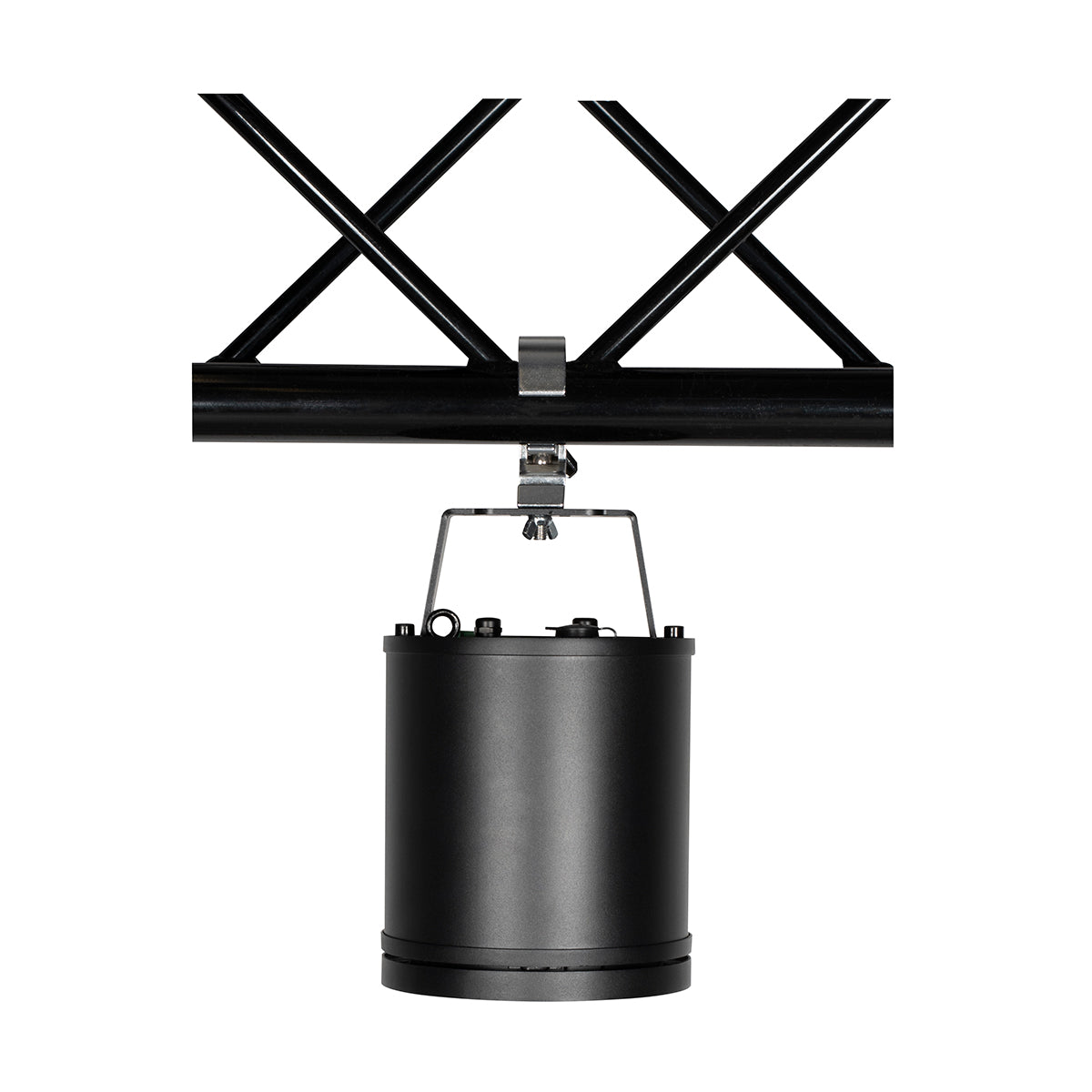

Pendant Bracket (included)
Optional Yoke or Recessed Ceiling Mount Kits Available
Optional Half and Full Snoot Kits Available

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

DMX/ RDM Traits

Drawings

CAD File

CAD File

Related Categories

Specifications

SOURCE

144W 5-in-1 RGBWL (Red, Green, Blue, White, Lime LED Array

50,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

7,200 Total Lumen Fixture Output

CRI 90 @ 3,200K

45° Lens Included


EFFECTS

Variable CCT 2400K - 8500K

Virtual Color Swatch Book

Dimmer, RGB, RGBWL and HSI Control Options

Variable 16-bit Dimming Curves

High Speed Electronic Shutter and Strobe

DMX and Menu adjustable LED Refresh Rate Frequency

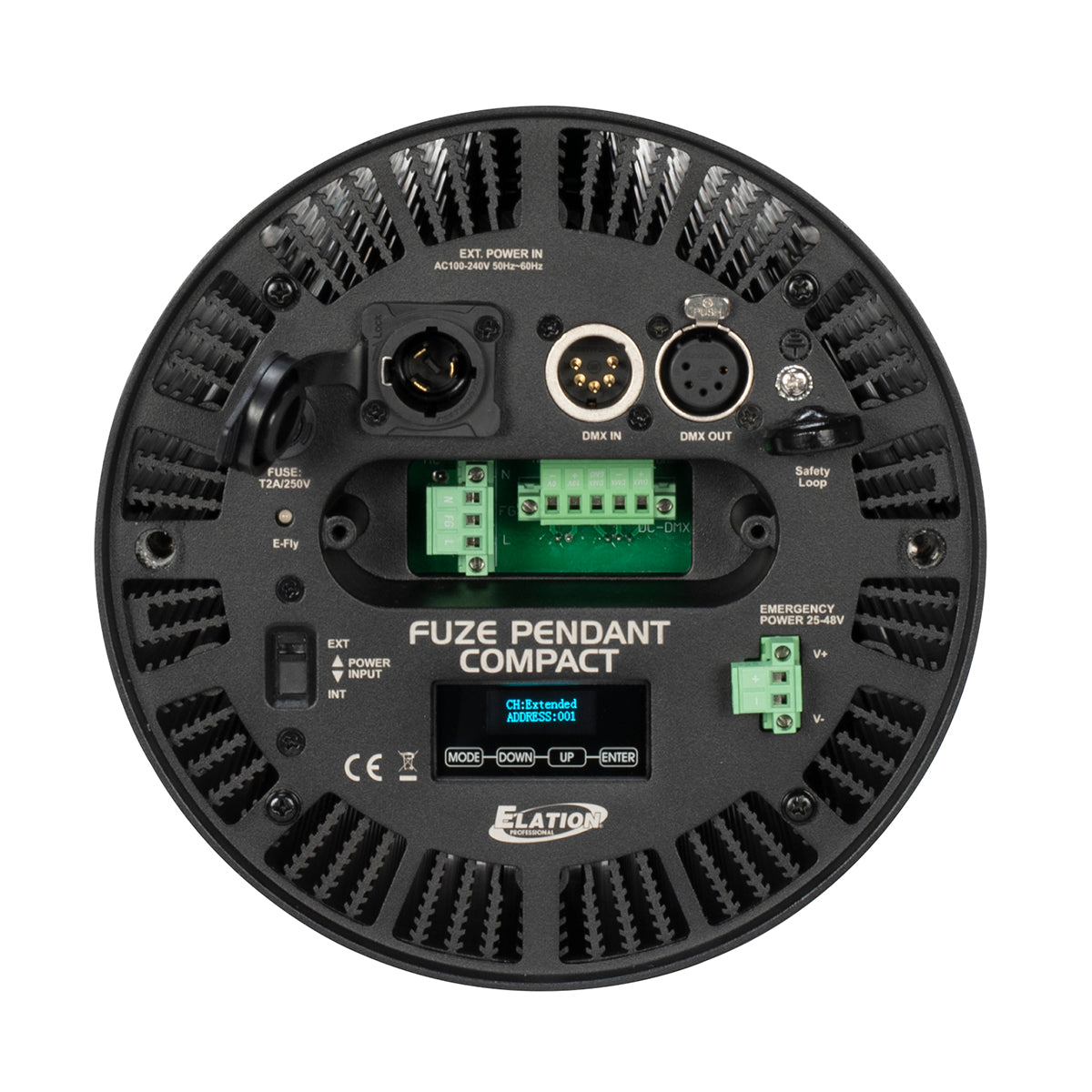

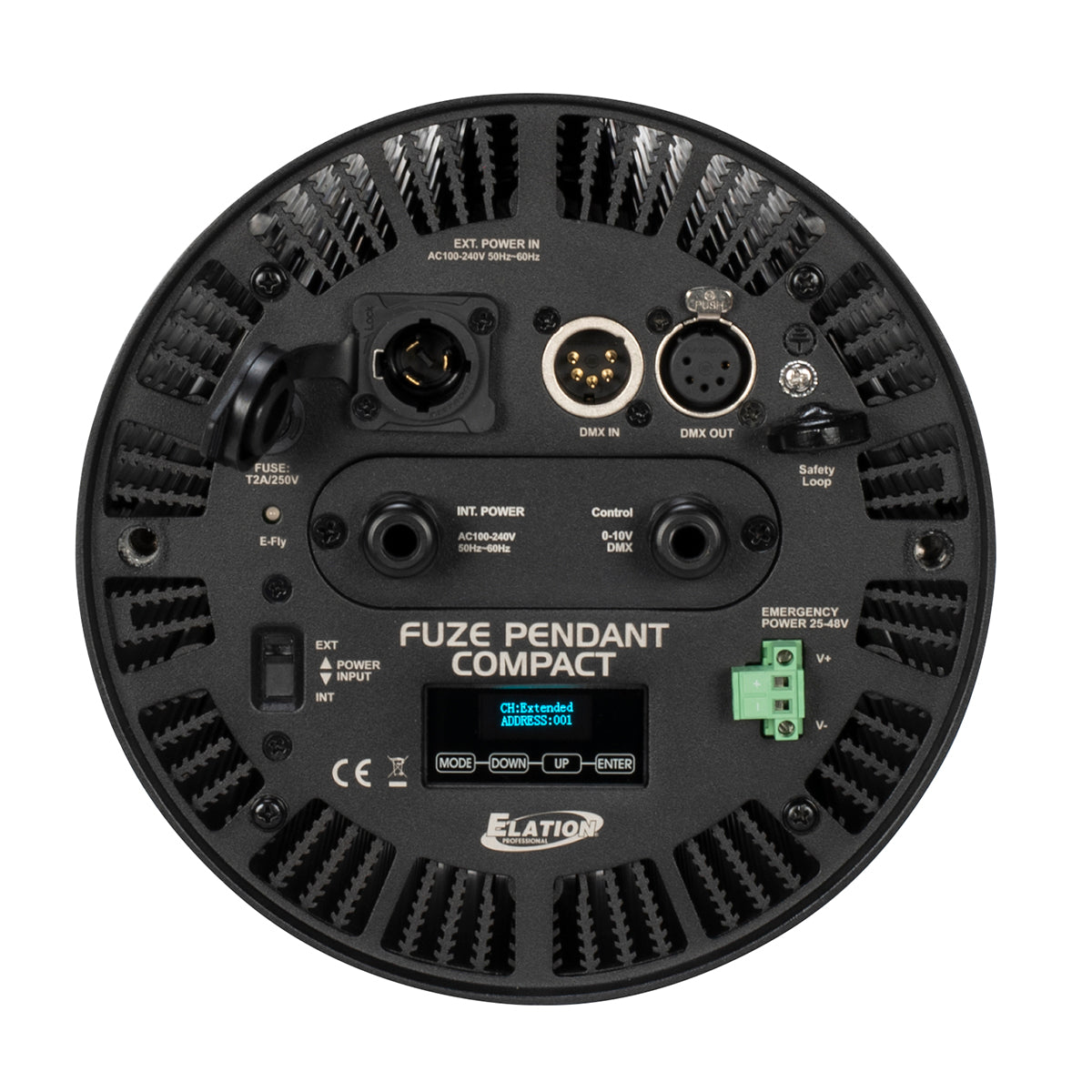

CONTROL / CONNECTIONS

8 DMX Channel Modes

Standalone and Primary/Secondary Modes

RDM (Remote Device Management)

0-10V Dimming (Current-Sink)

E-FLY™ Internal Extended Range Wireless DMX Transceiver

4 Button Control Panel and OLED Menu Display

Locking 5pin XLR Connector In/Out

Locking IP65 Power Connector In

3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm2)

5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)

2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)

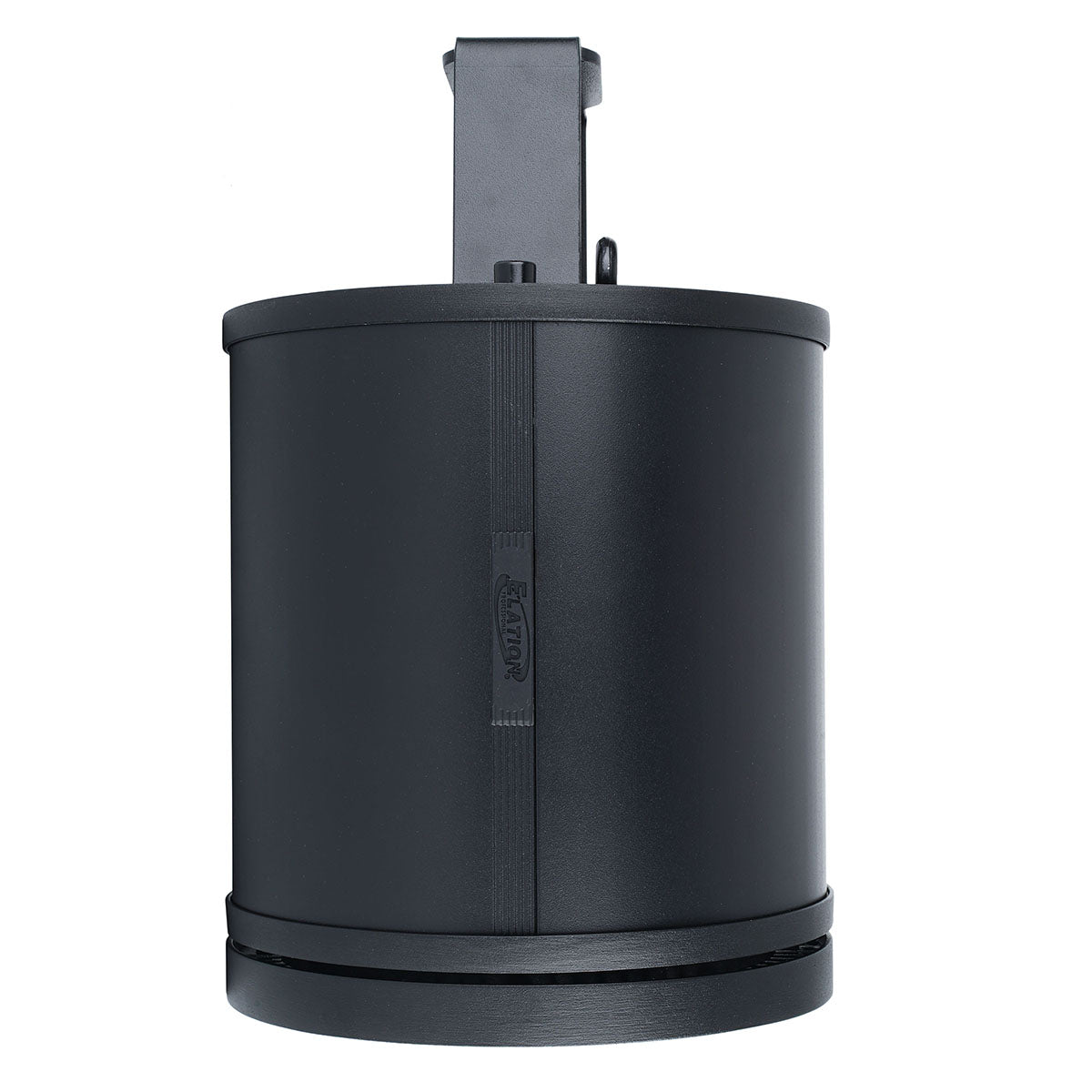

SIZE / WEIGHT

Length: 7.8” (197mm)

Width: 7.7” (196mm)

Height: 11.7” (298mm)

Weight: 11.6 lbs. (5.3 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

Max Power Consumption 145W

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus  | IP20 | FCC


OPTIONAL ACCESSORIES:

FPL25- 25° Lens

FPL40- 40° Lens

FPL50- 50° Lens

FPL100- 100º Lens

FPCMK- Ceiling Mount Kit

FPYMK- Yoke Mount Kit

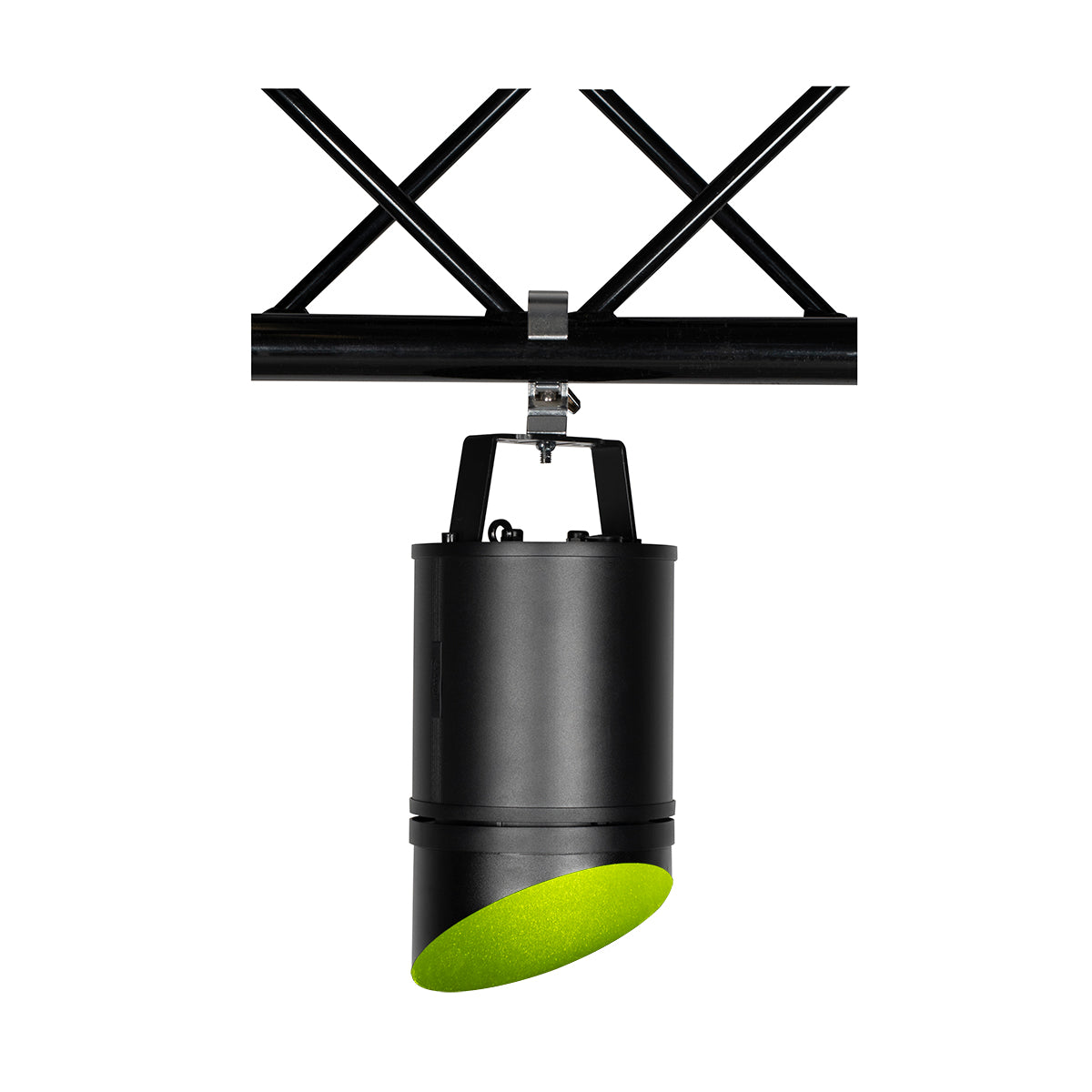

FPHS- Half Snoot

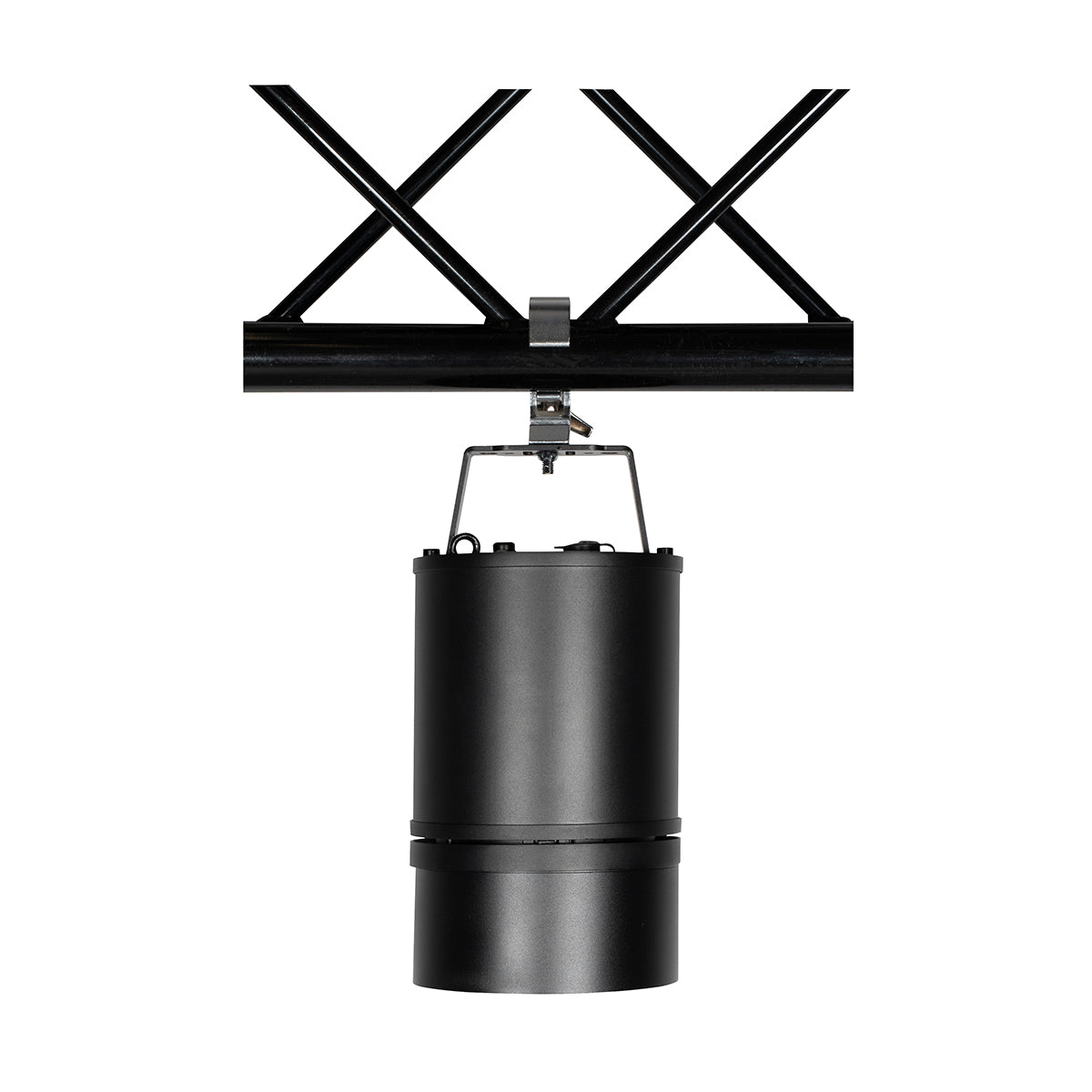

FPFS- Full Snoot



Specifications and documentation subject to change without notice.
