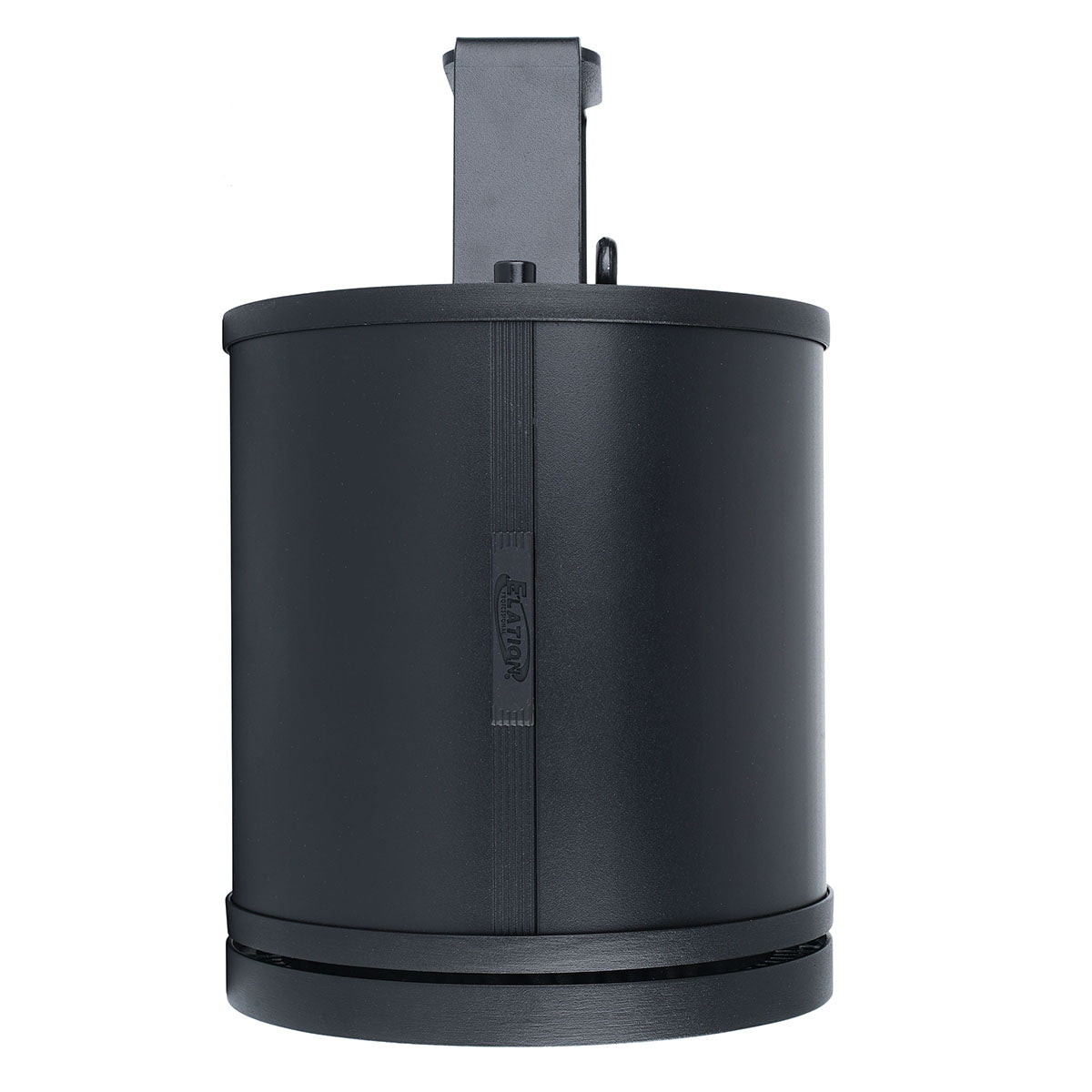

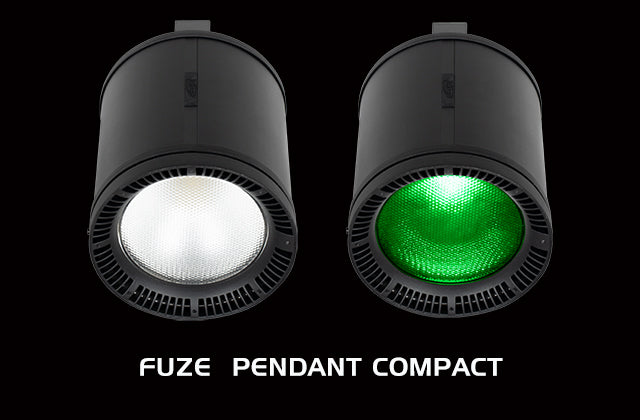

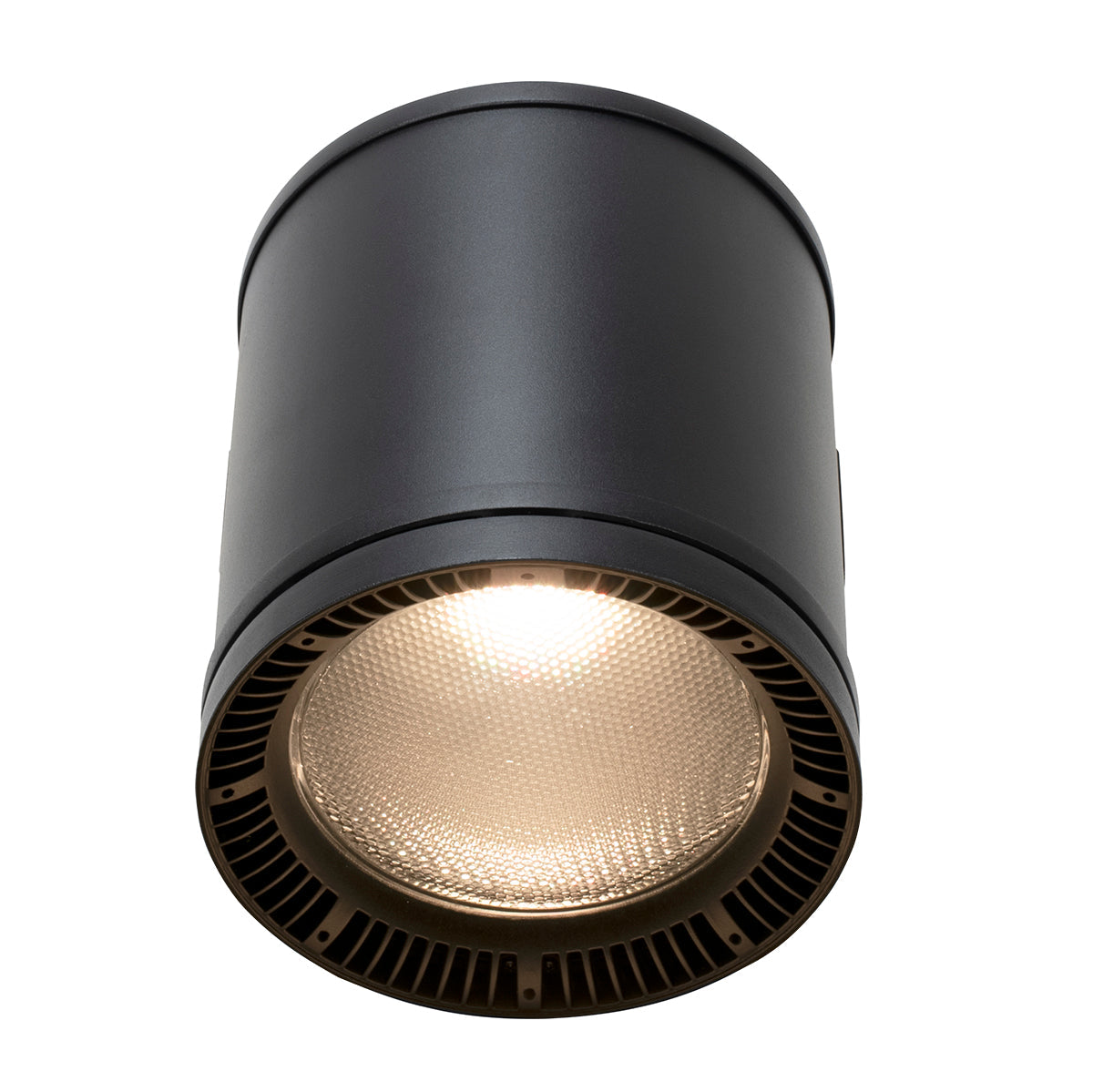

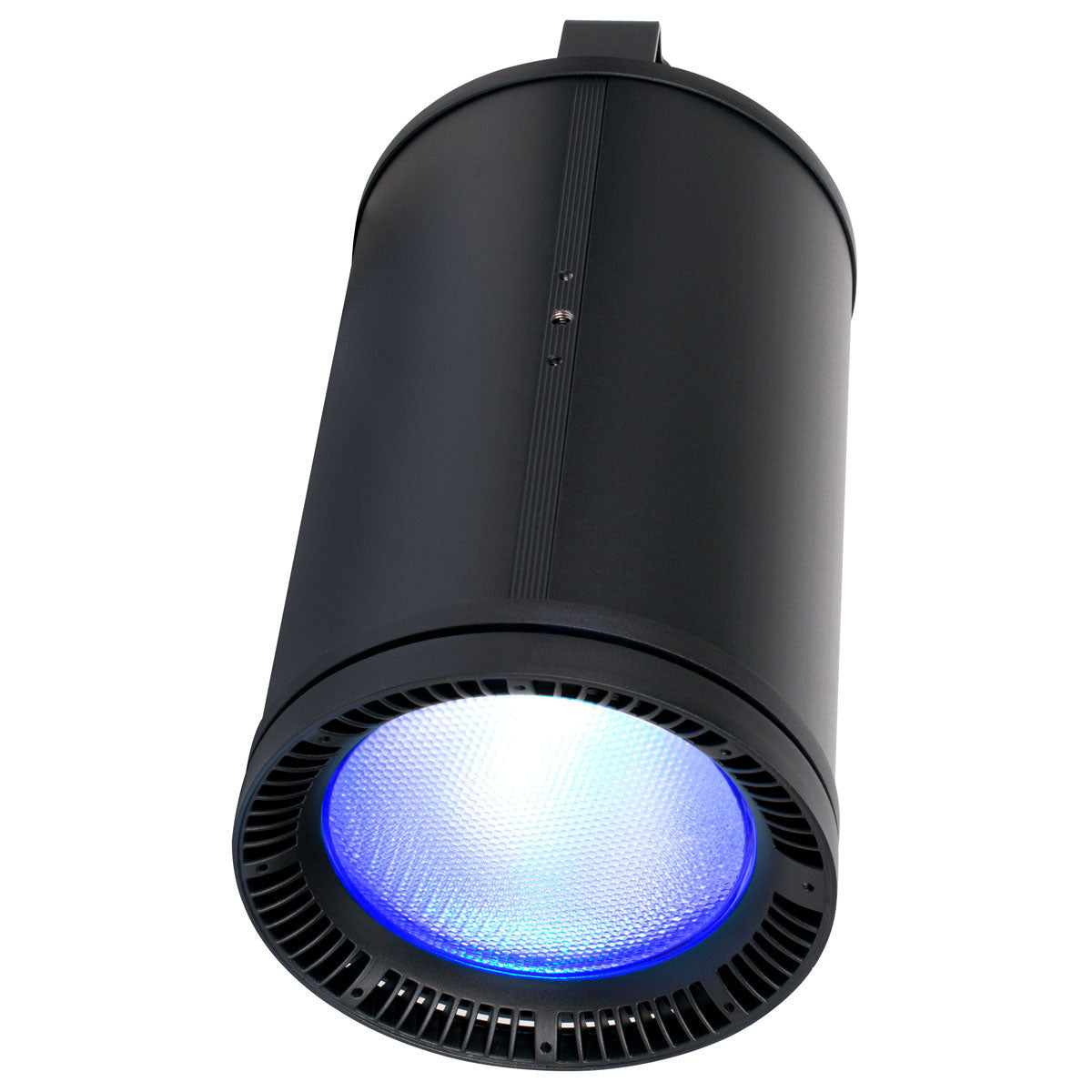

FUZE PENDANT COMPACT

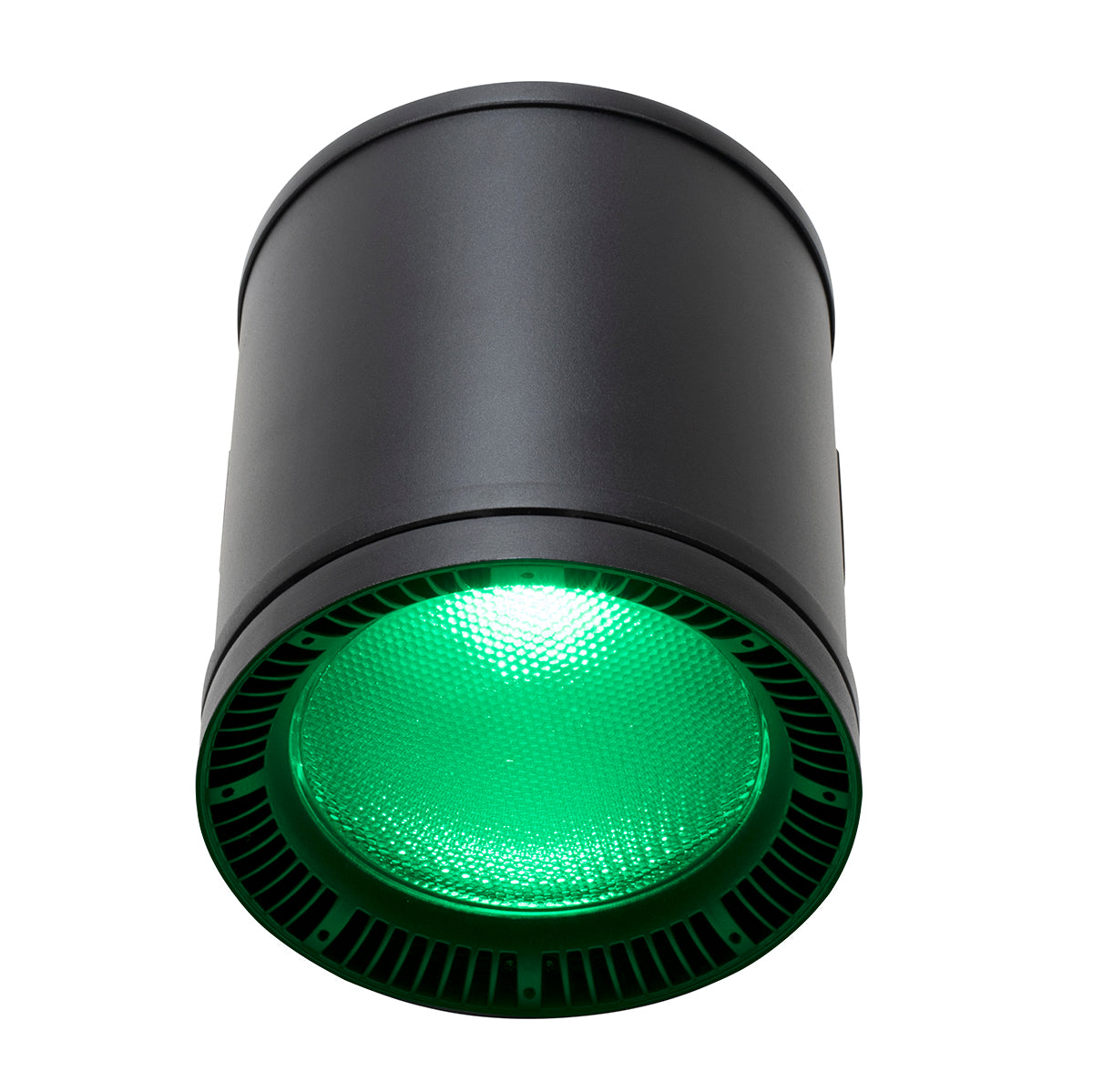

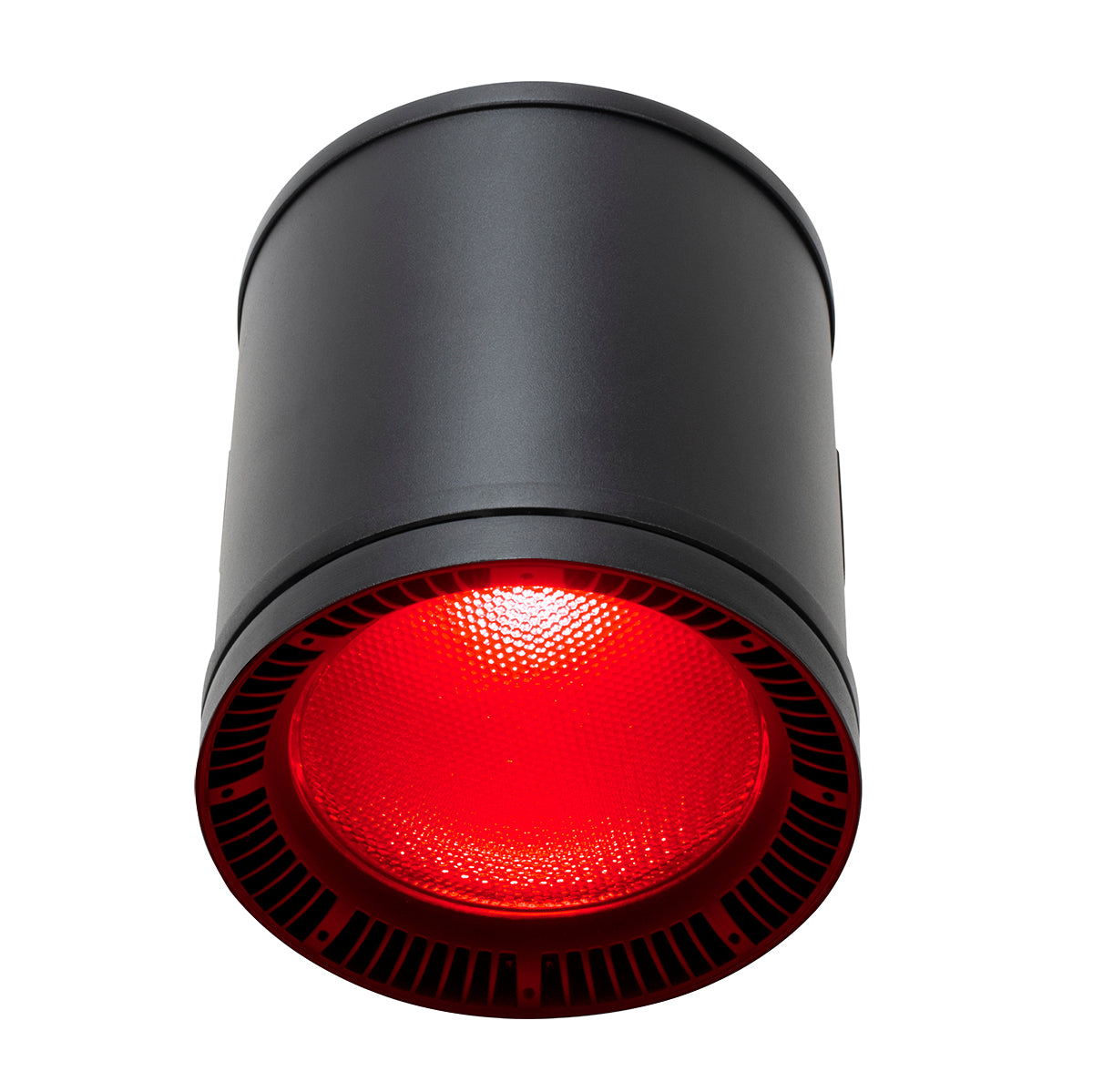

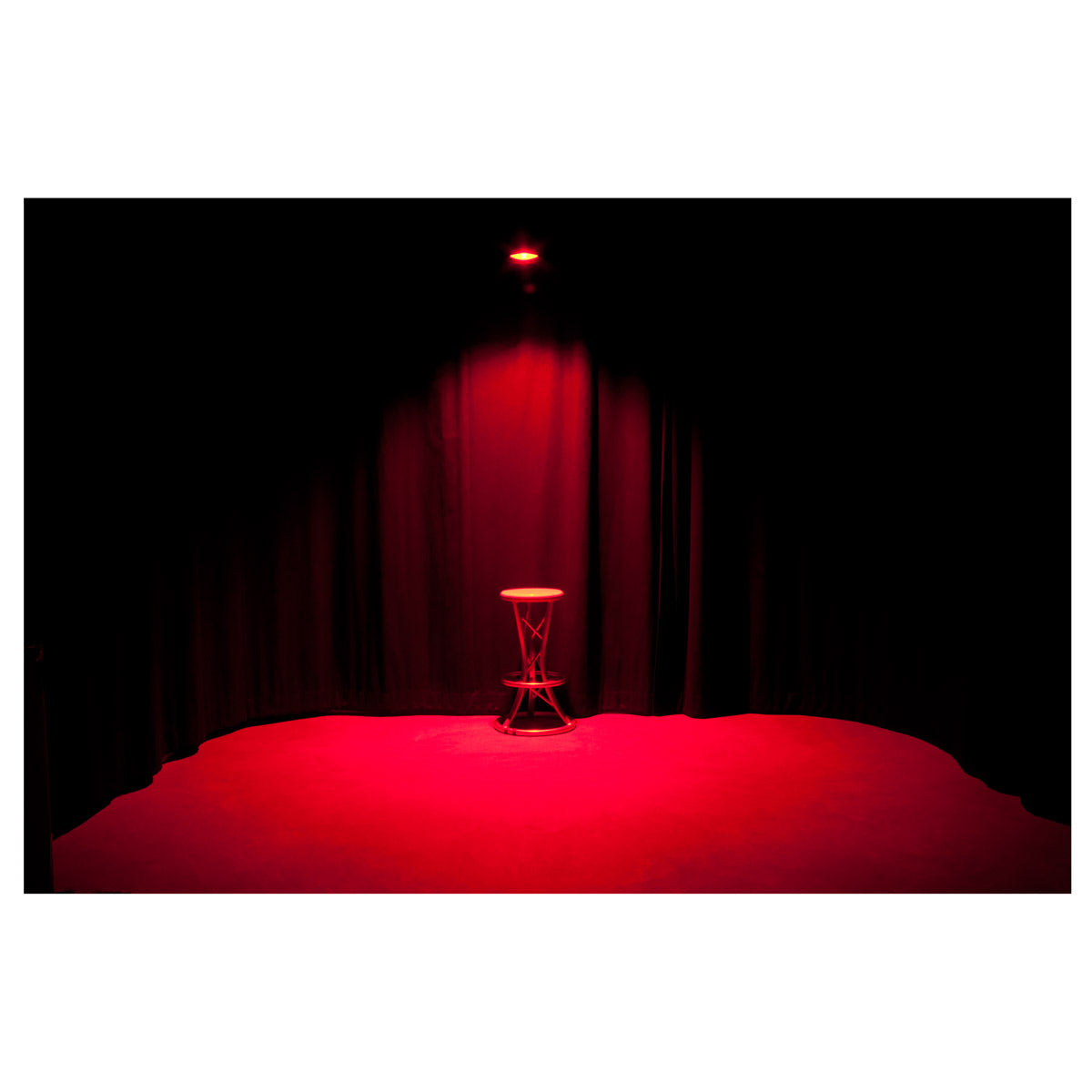

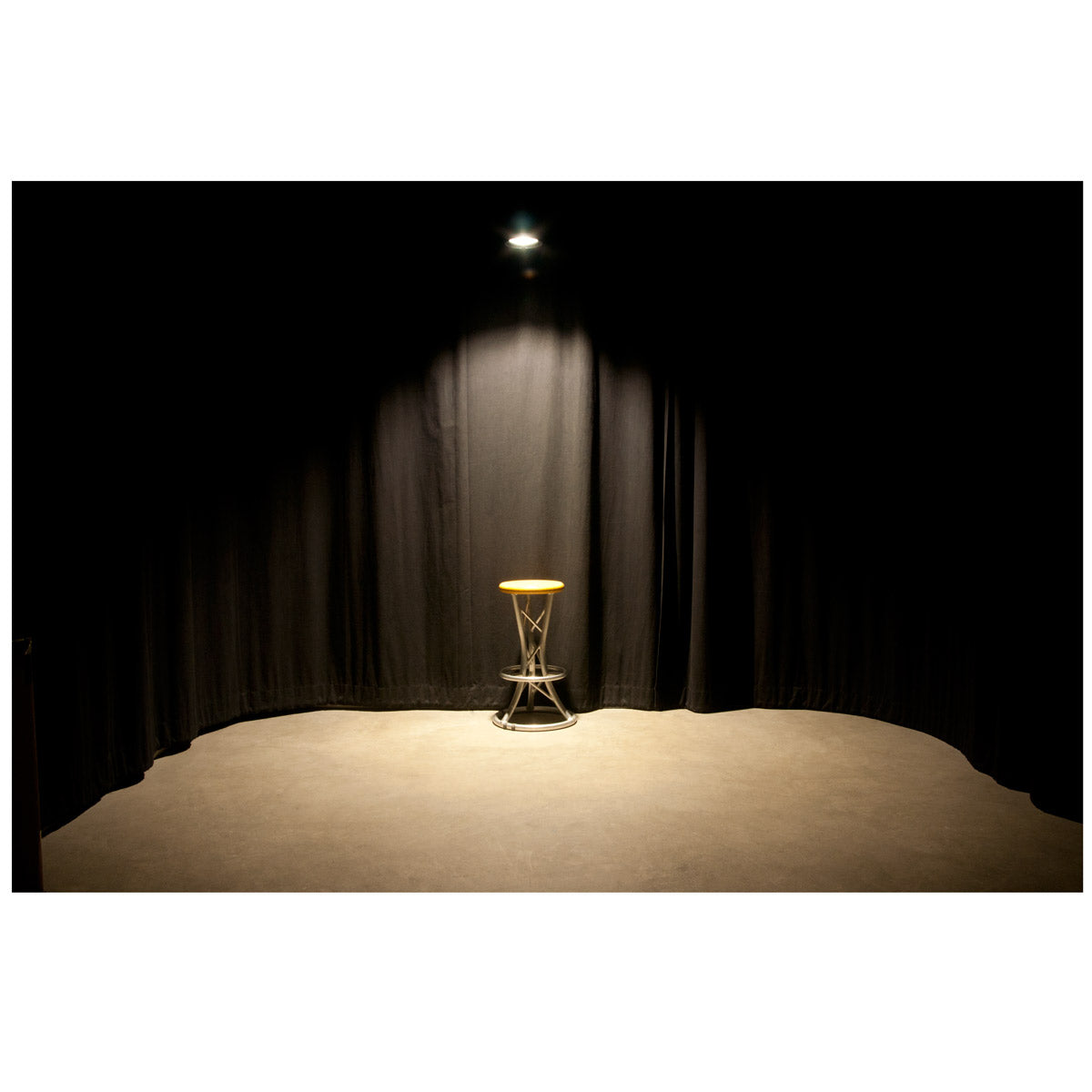

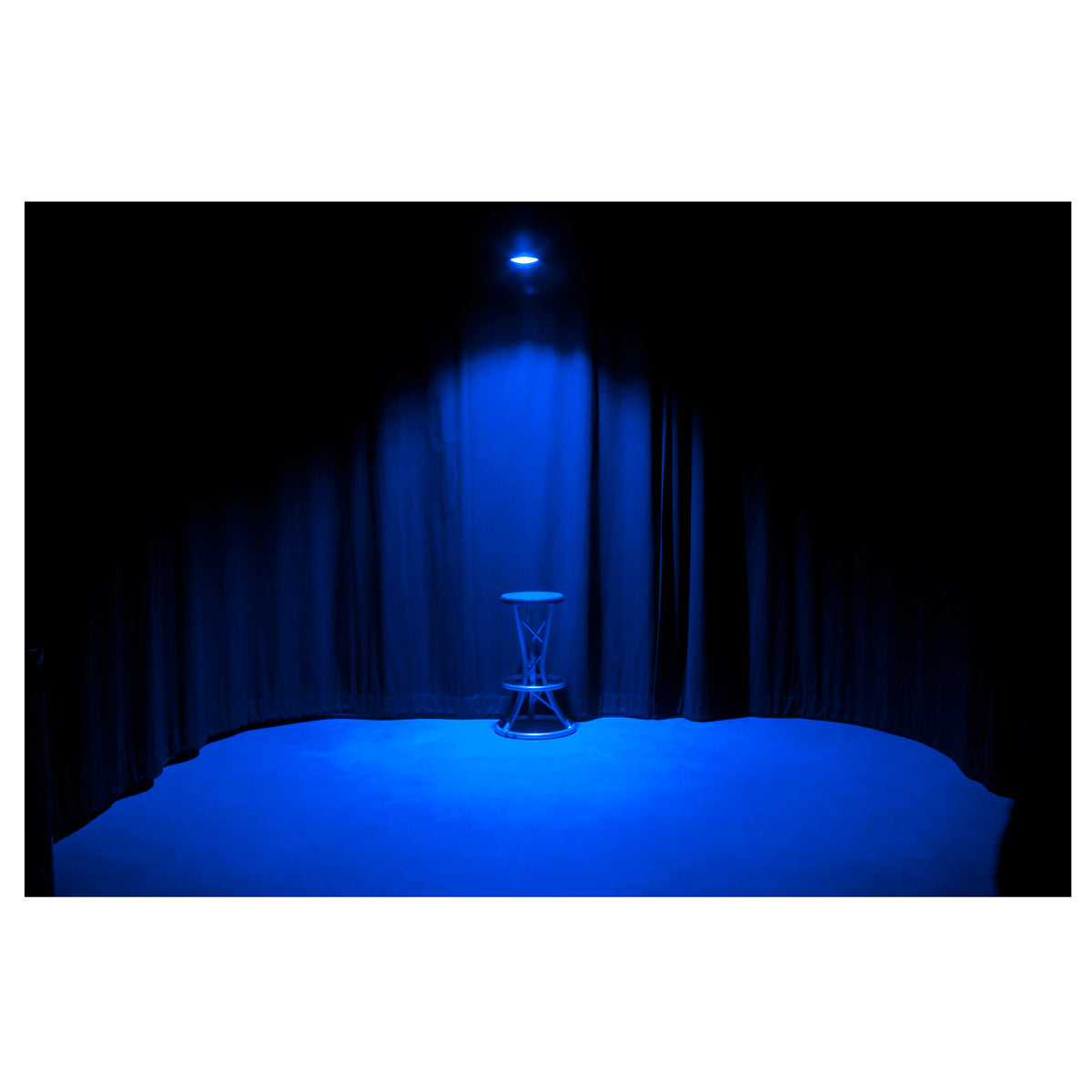

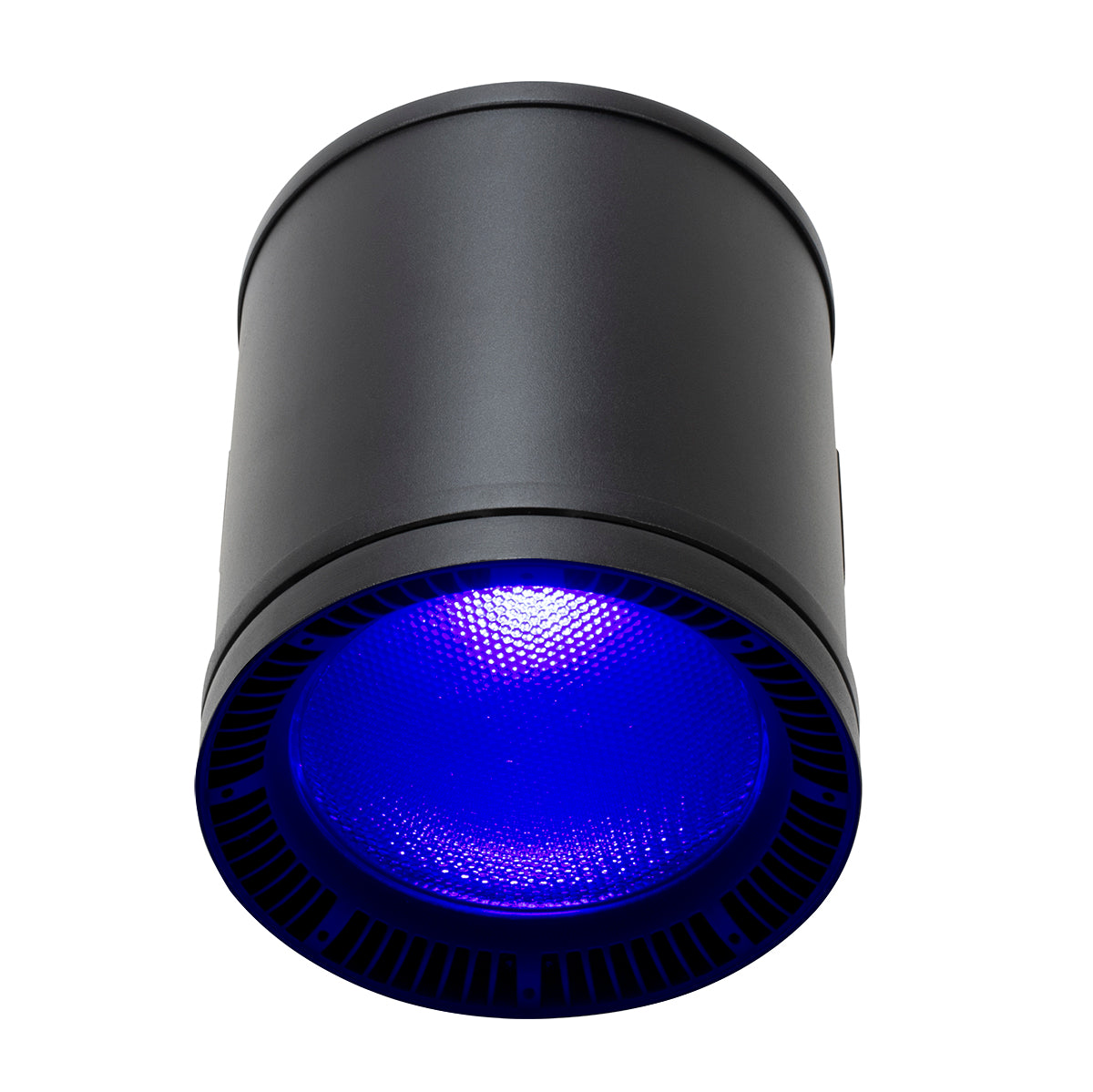

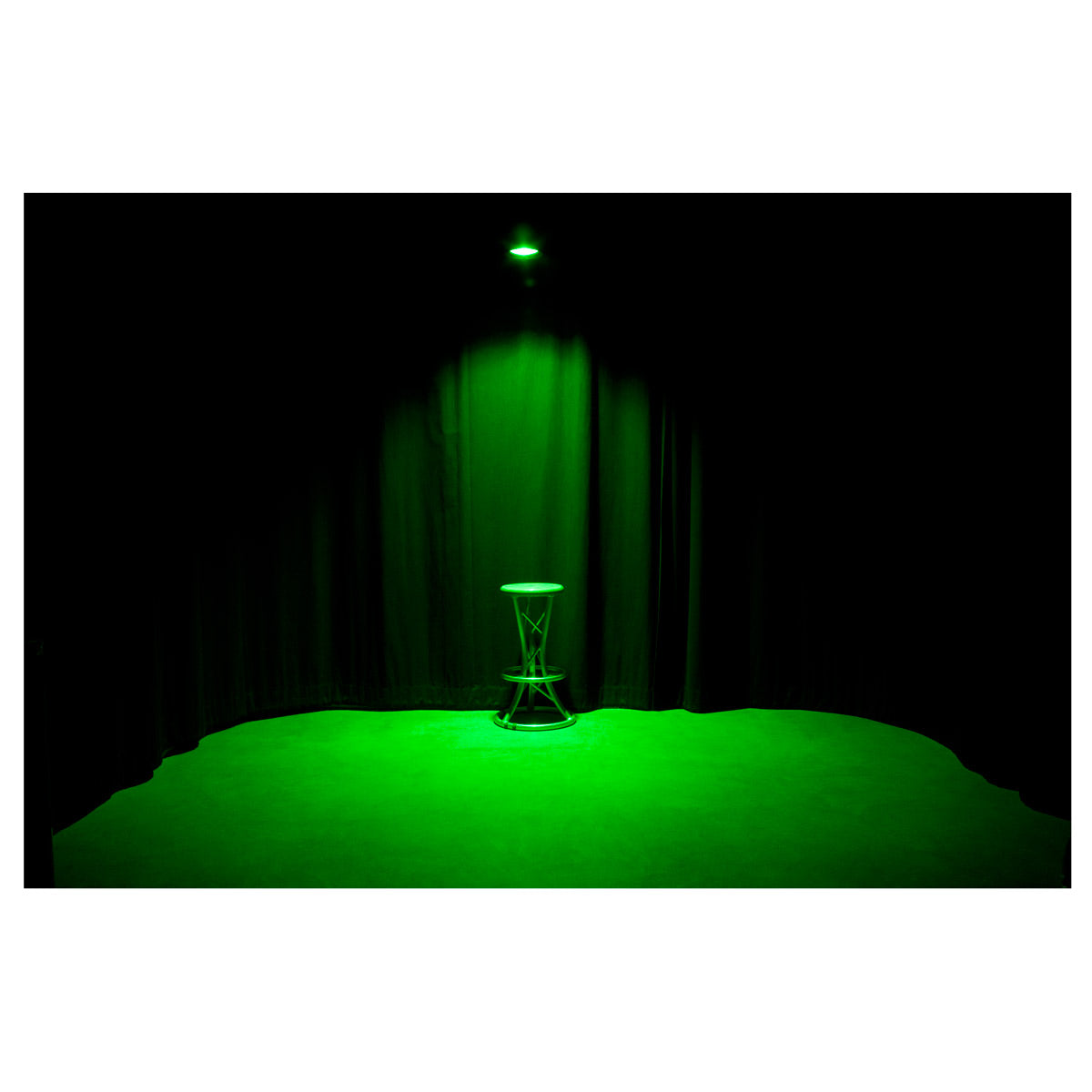

The FUZE PENDANT Compact™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 7,200 lumens, the FUZE PENDANT Compact is ideal for a variety of ceiling height applications.

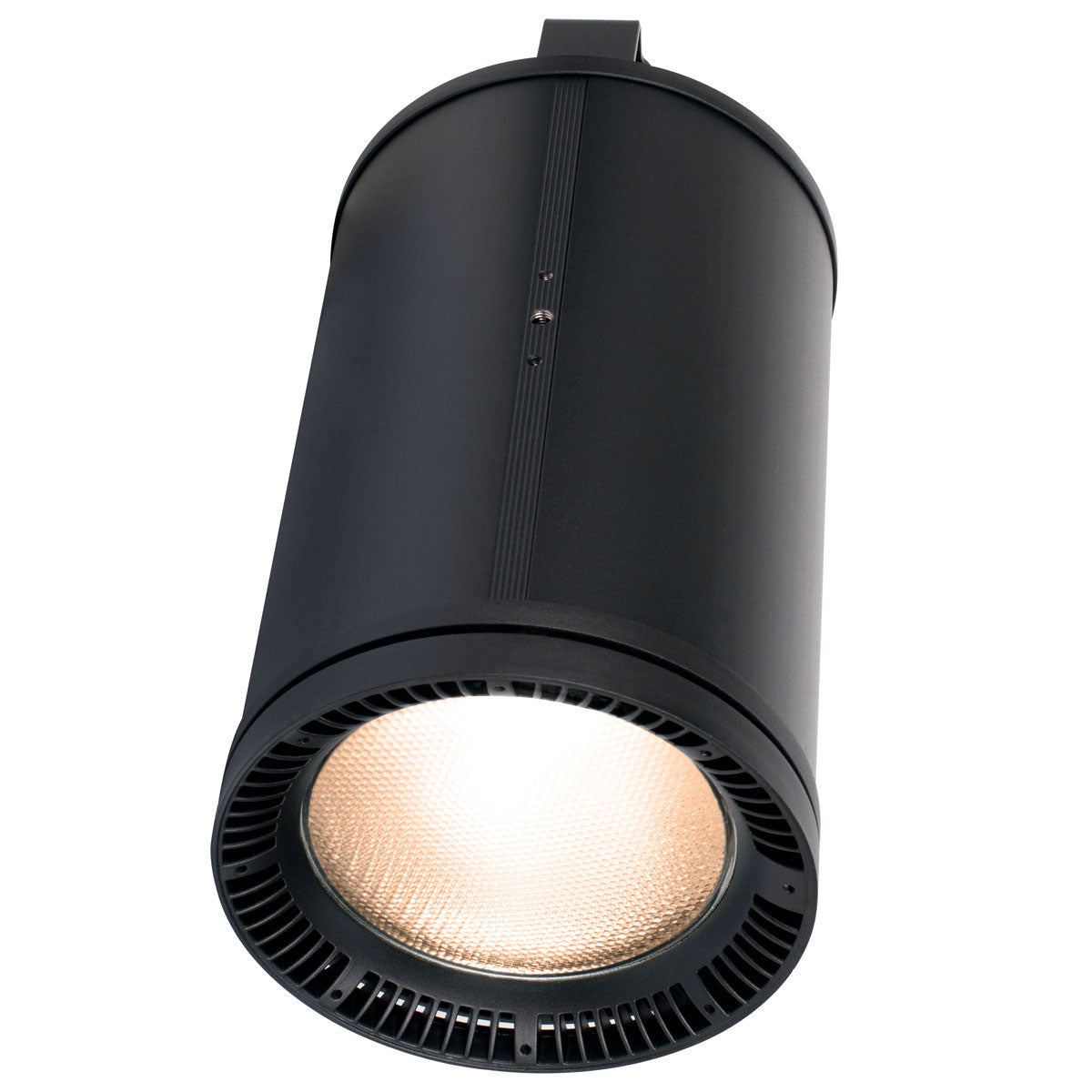

Related Products
FUZE PENDANT COMPACT
Specifications
SOURCE
144W 5-in-1 RGBWL (Red, Green, Blue, White, Lime LED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,200 Total Lumen Fixture Output
CRI 90 @ 3,200K
45° Lens Included
EFFECTS
Variable CCT 2400K - 8500K
Virtual Color Swatch Book
Dimmer, RGB, RGBWL and HSI Control Options
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX and Menu adjustable LED Refresh Rate Frequency

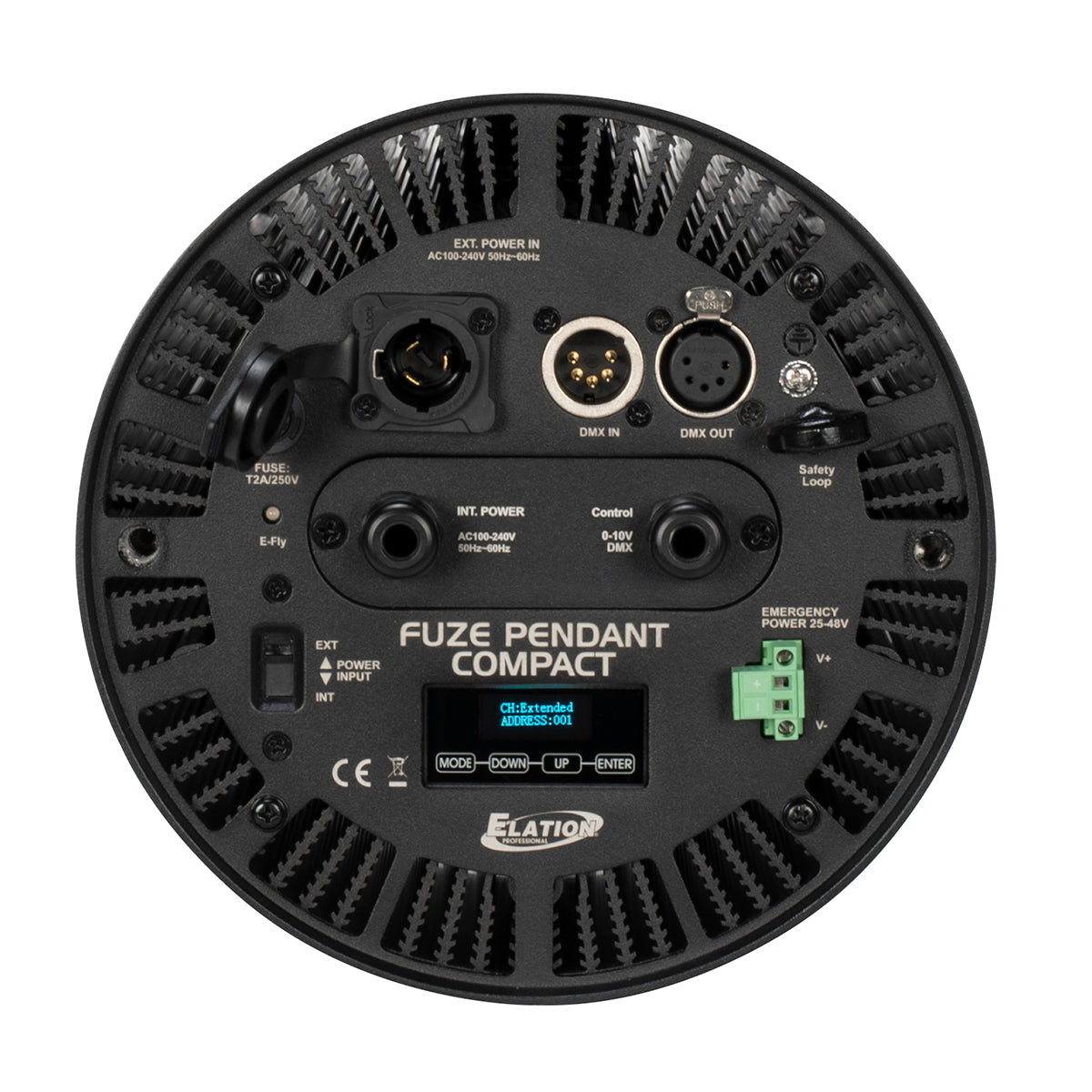

CONTROL / CONNECTIONS
8 DMX Channel Modes
Standalone and Primary/Secondary Modes
RDM (Remote Device Management)
0-10V Dimming (Current-Sink)
E-FLY™ Internal Extended Range Wireless DMX Transceiver
4 Button Control Panel and OLED Menu Display
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In

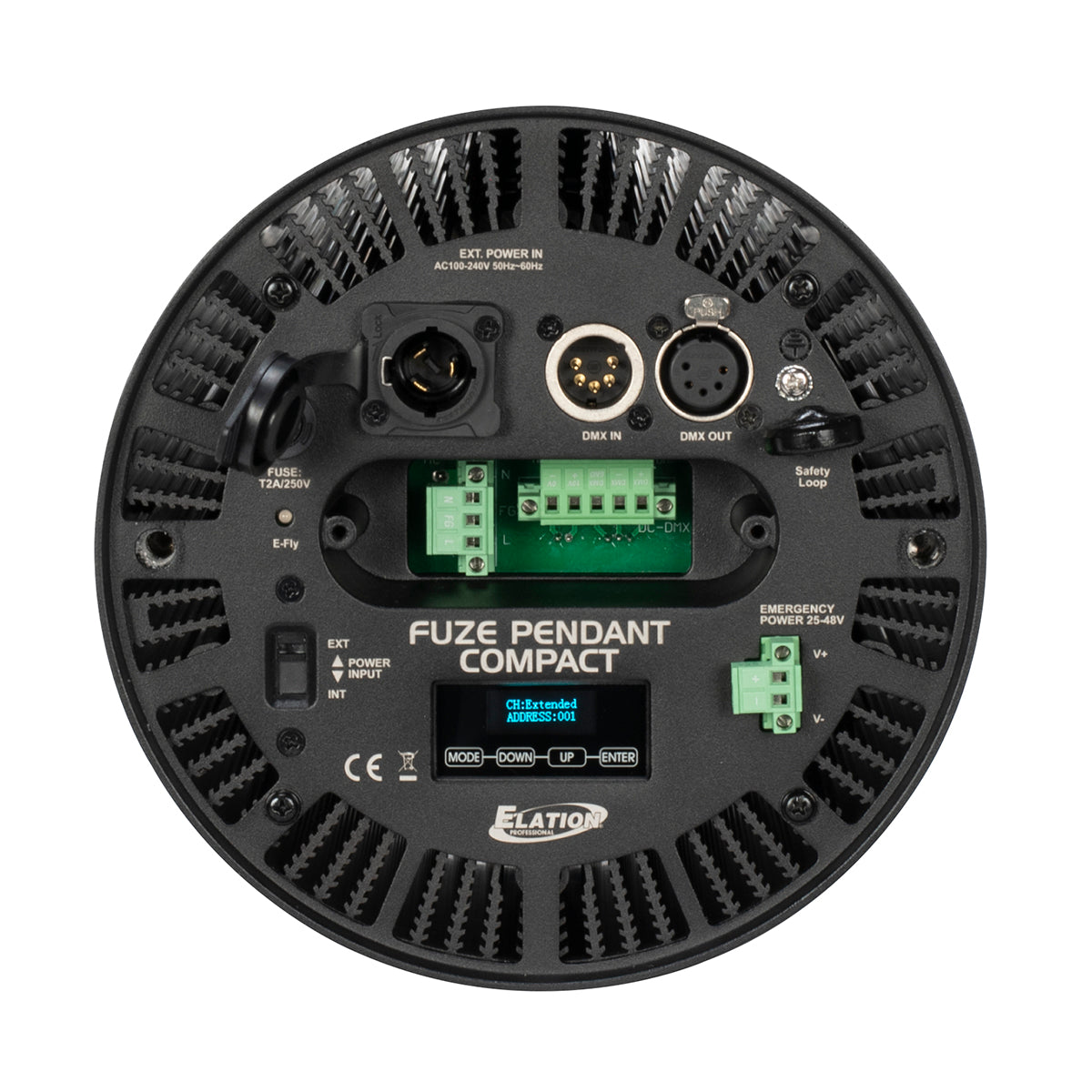

3pin Wire Terminal Block (12-24 AWG (4.0 - 0.25 mm2)
5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)
2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)
SIZE / WEIGHT
Length: 7.8” (197mm)
Width: 7.7” (196mm)
Height: 11.7” (298mm)
Weight: 11.6 lbs. (5.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 145W
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20 | FCC
OPTIONAL ACCESSORIES:
FPL25- 25° Lens
FPL40- 40° Lens
FPL50- 50° Lens
FPL85- 85° Lens
FPL100- 100º Lens
FPCMK- Ceiling Mount Kit

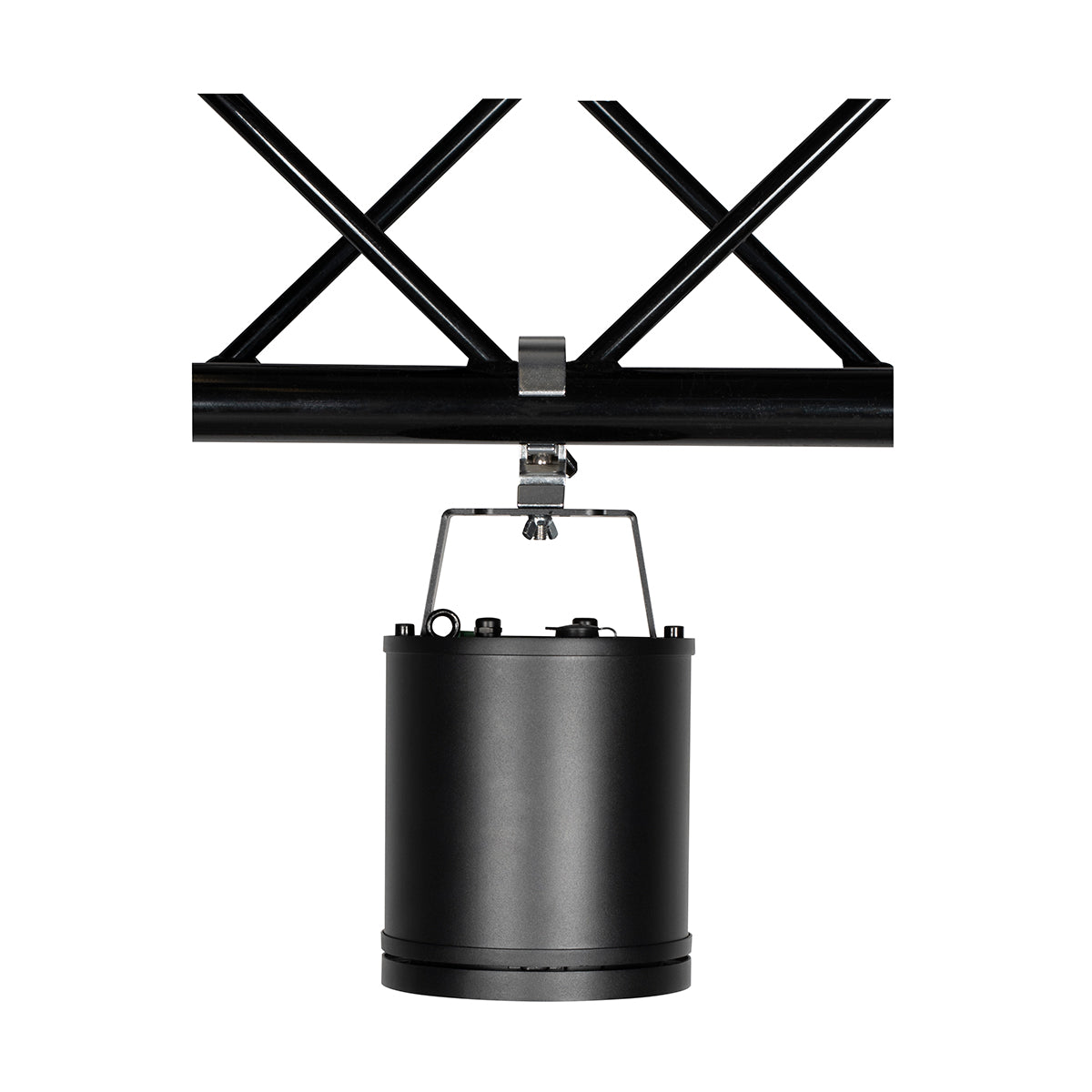

FPYMK- Yoke Mount Kit

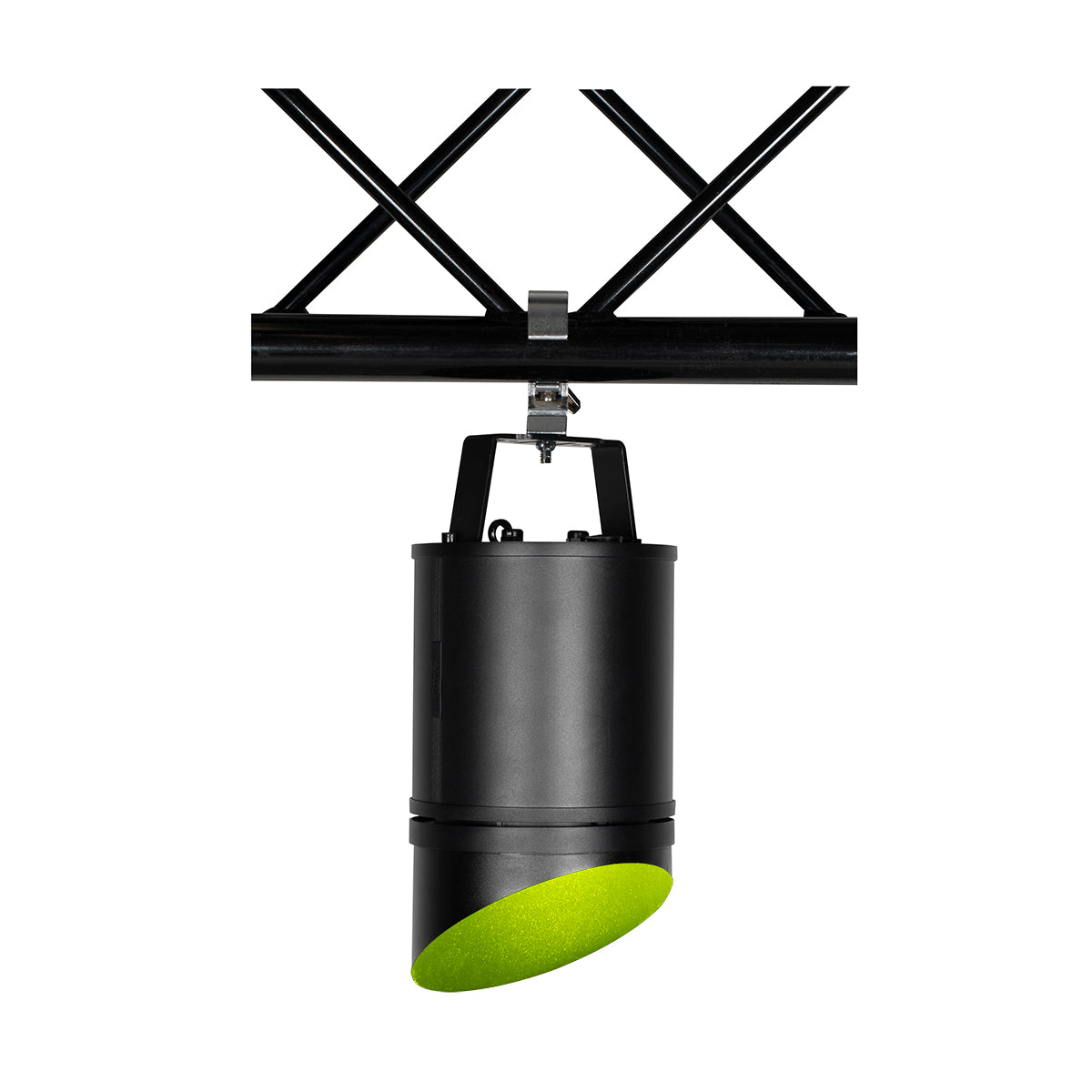

FPHS- Half Snoot

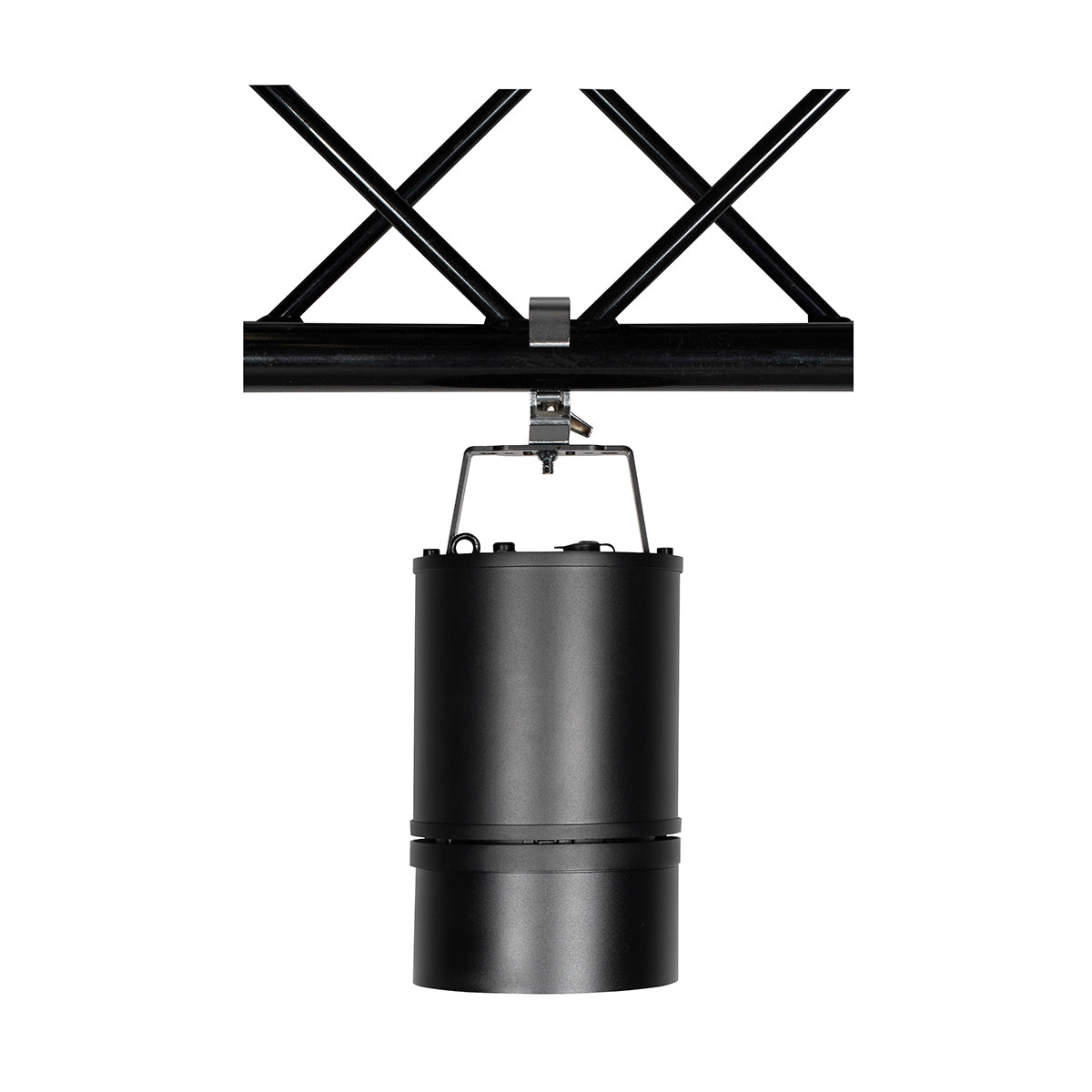

FPFS- Full Snoot
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
- Fuze Pendant Compact - 2D CAD Drawing
- Fuze Pendant Compact - 2D CAD Drawing - Full Snoot
- Fuze Pendant Compact - 2D CAD Drawing - Half Snoot
- Fuze Pendant Compact - 3D Cad
- Fuze Pendant Compact - 3D Cad (Full Snoot)
- Fuze Pendant Compact - 3D Cad (Half Snoot)
Dimensional drawings
- Fuze Pendant Compact - Dimensional Drawing
- Fuze Pendant Compact - Dimensional Drawing - Full Snoot
- Fuze Pendant Compact - Dimensional Drawing - Half Snoot
Dmx traits
Ies files
Photometrics
- Fuze Pendant Compact - Photometric Test Report
- Fuze Pendant Compact Photometric Test Report 85 Degrees
Specification sheet
User manual
