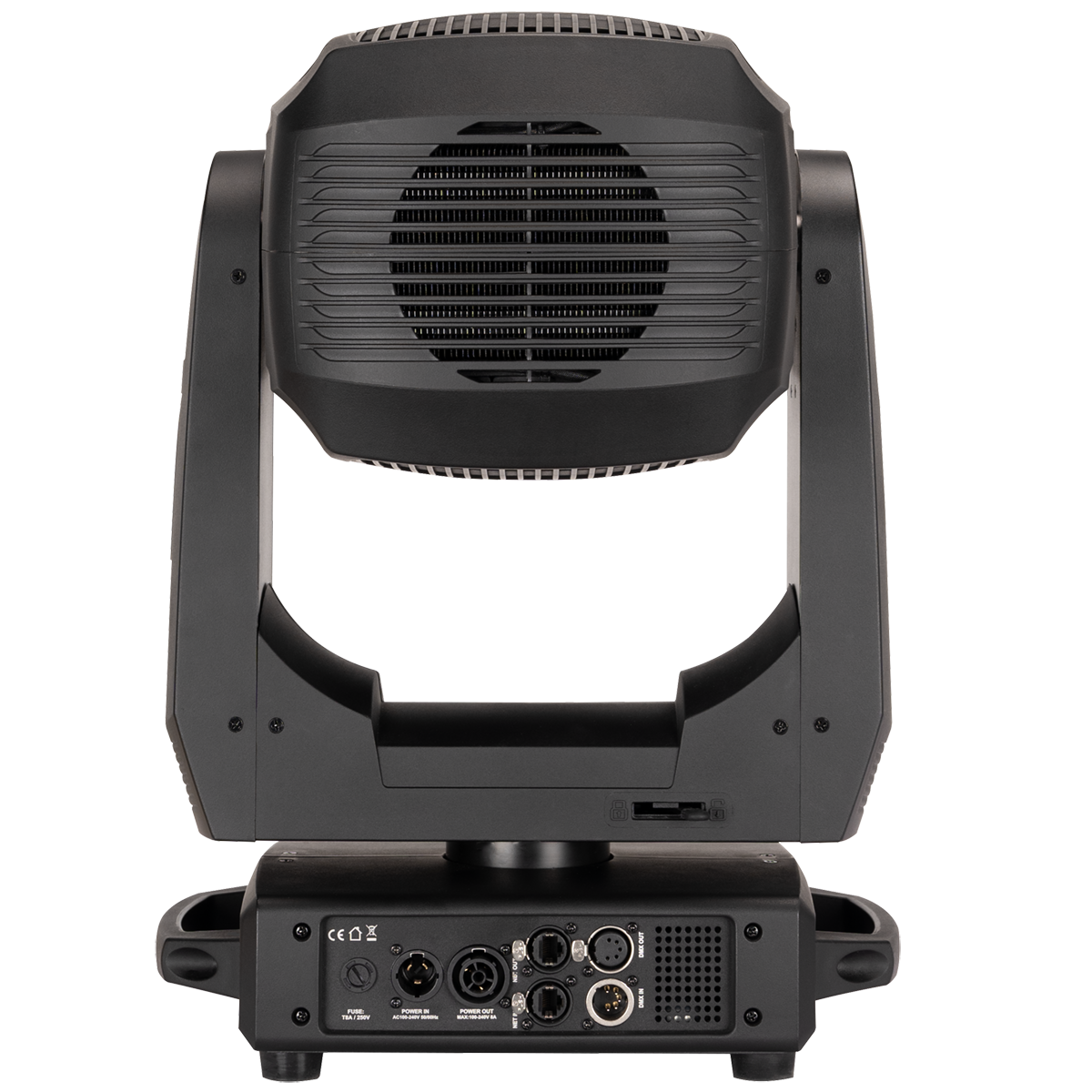

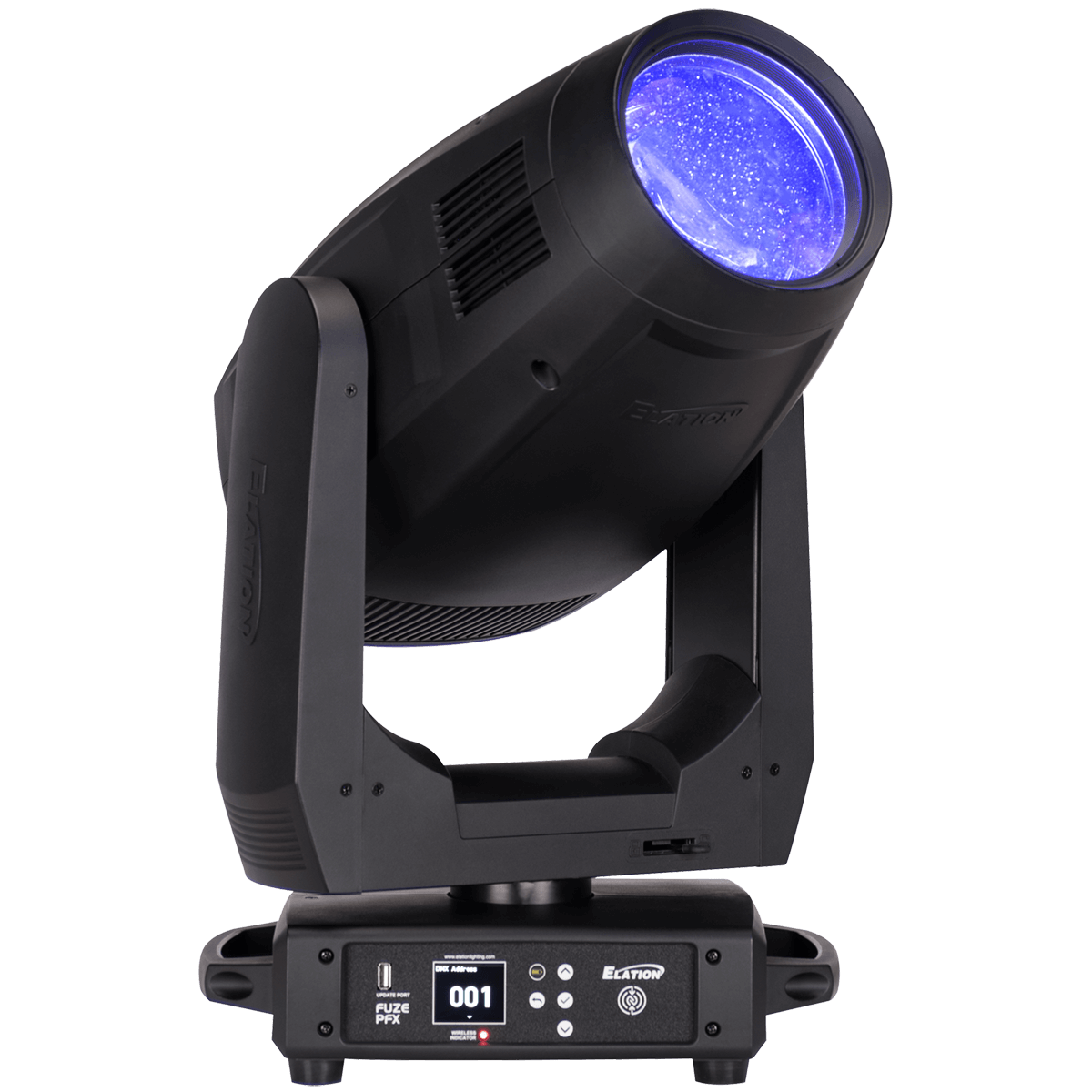

FUZE PFX

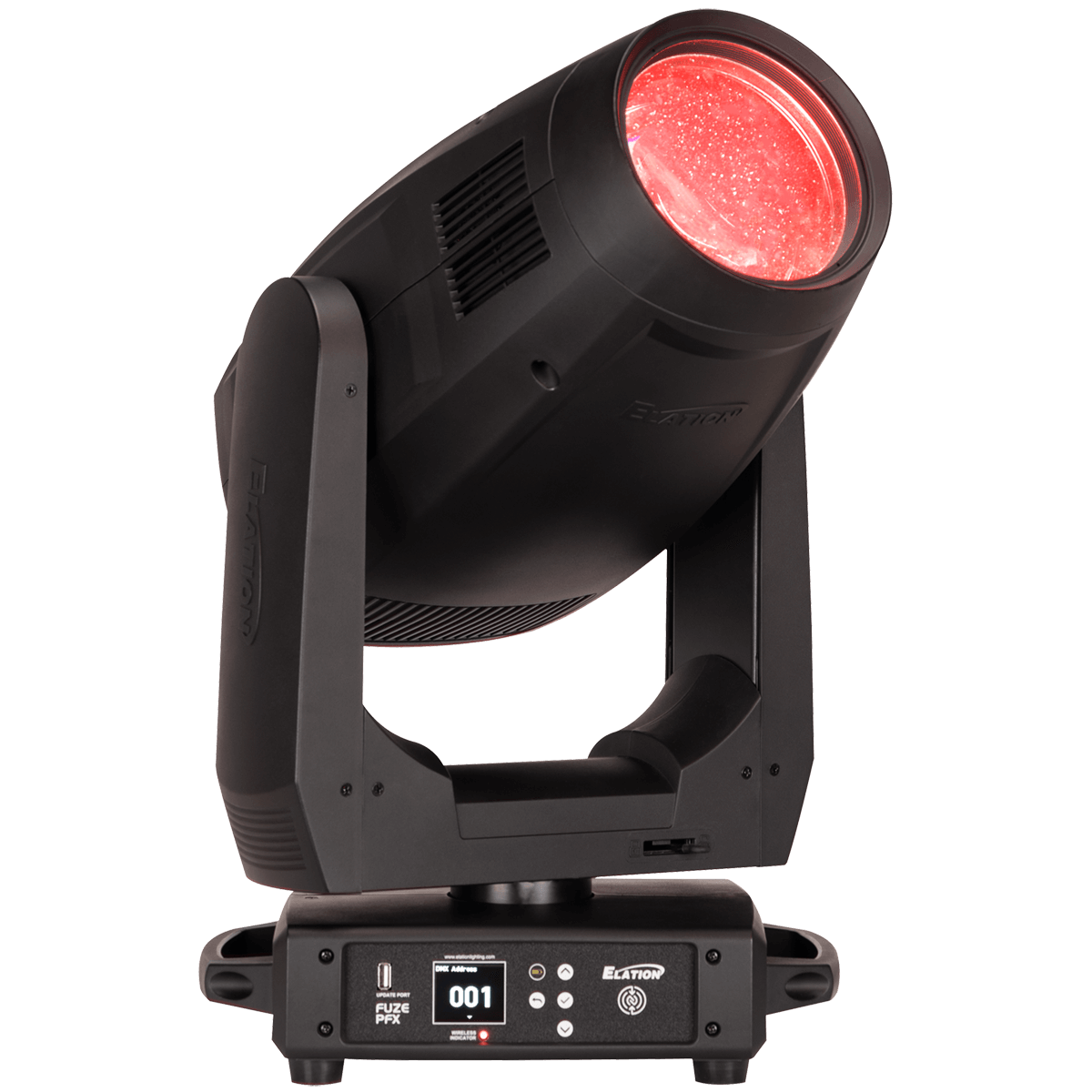

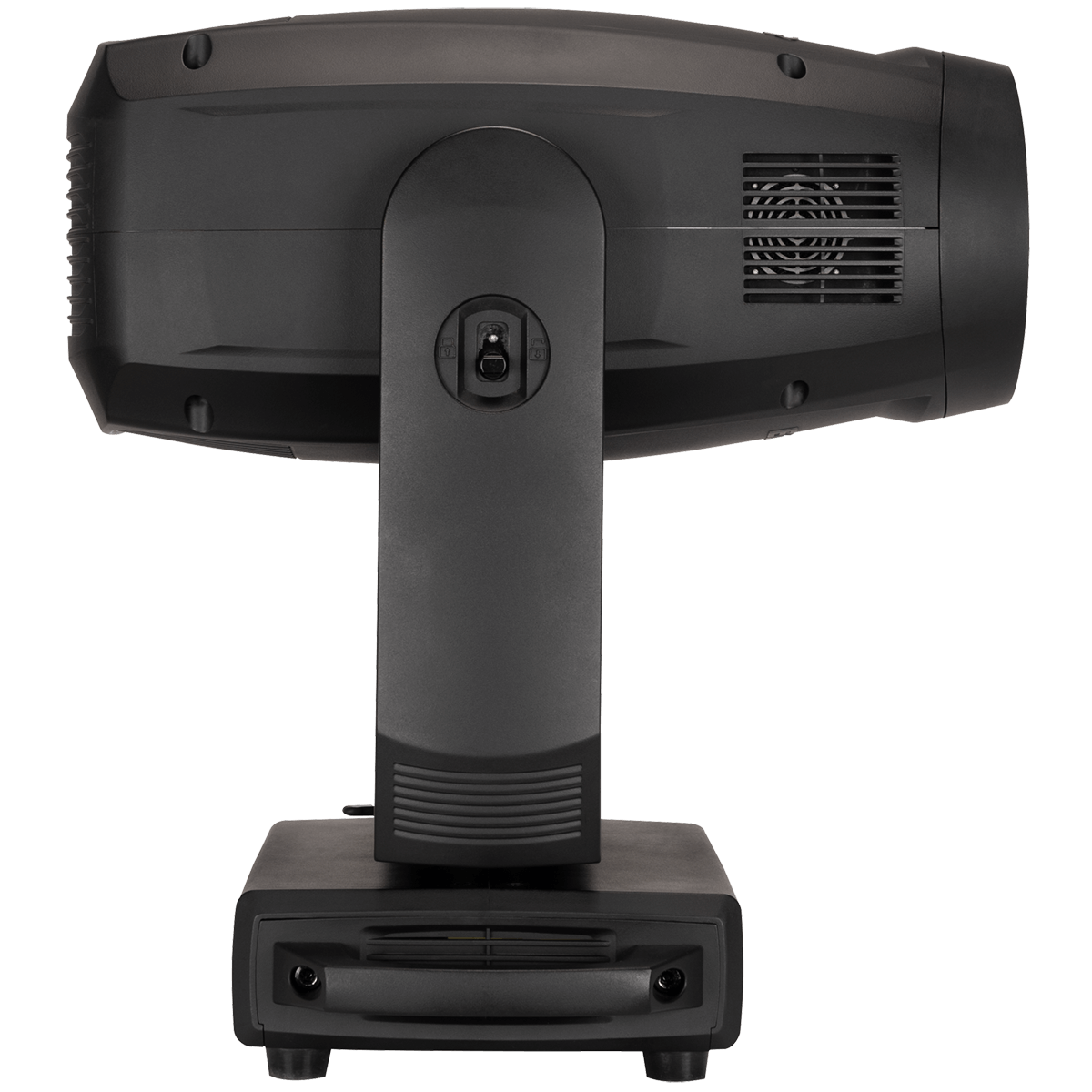

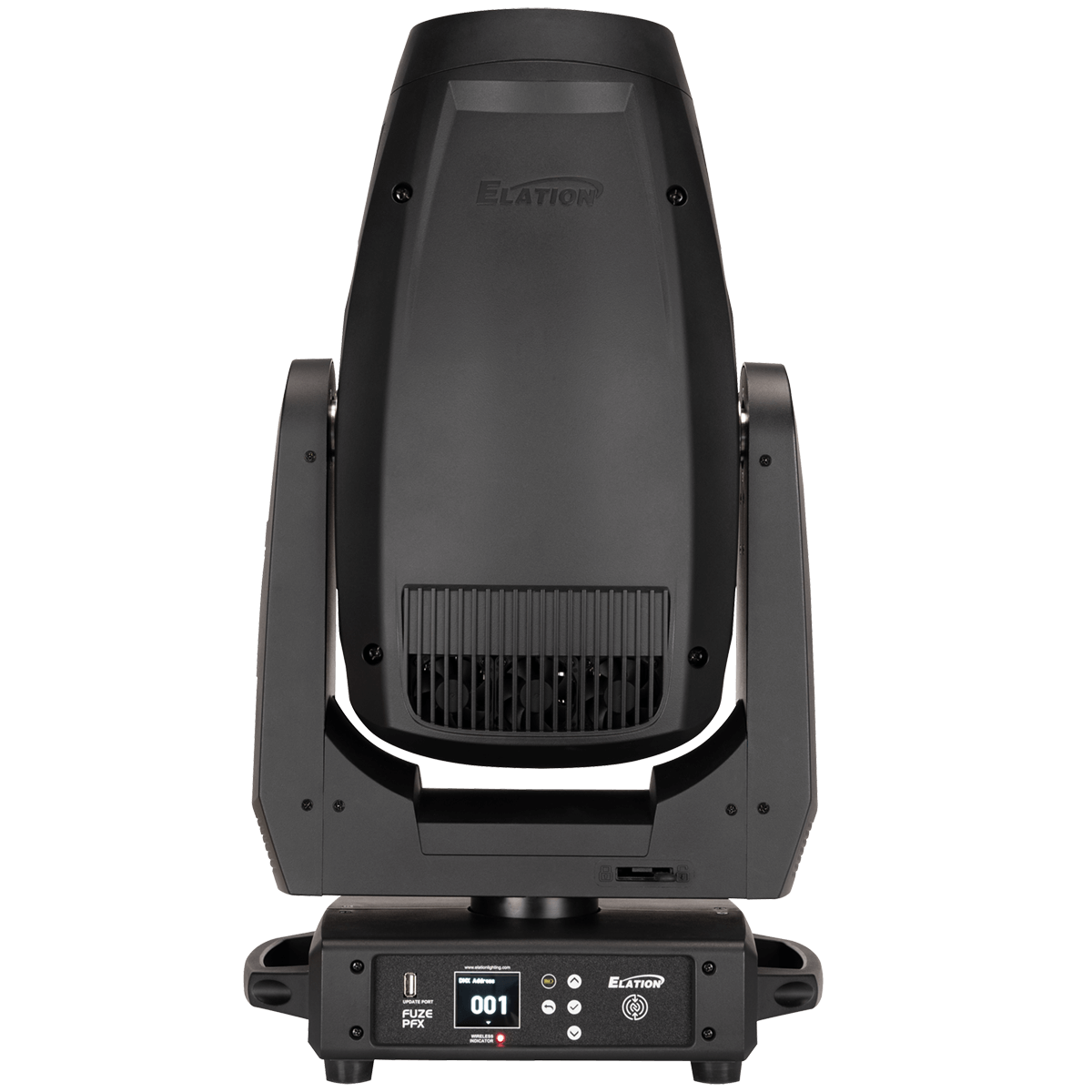

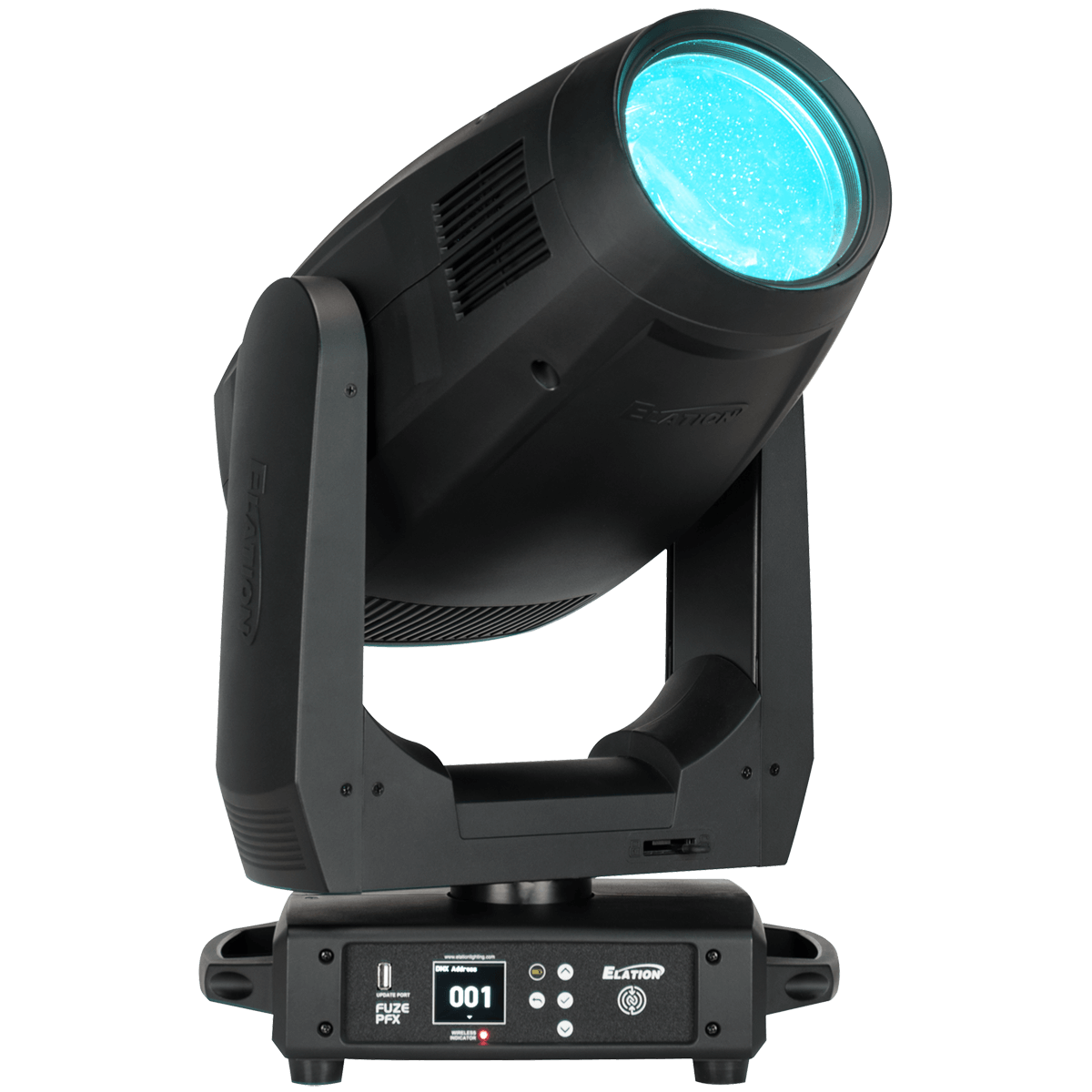

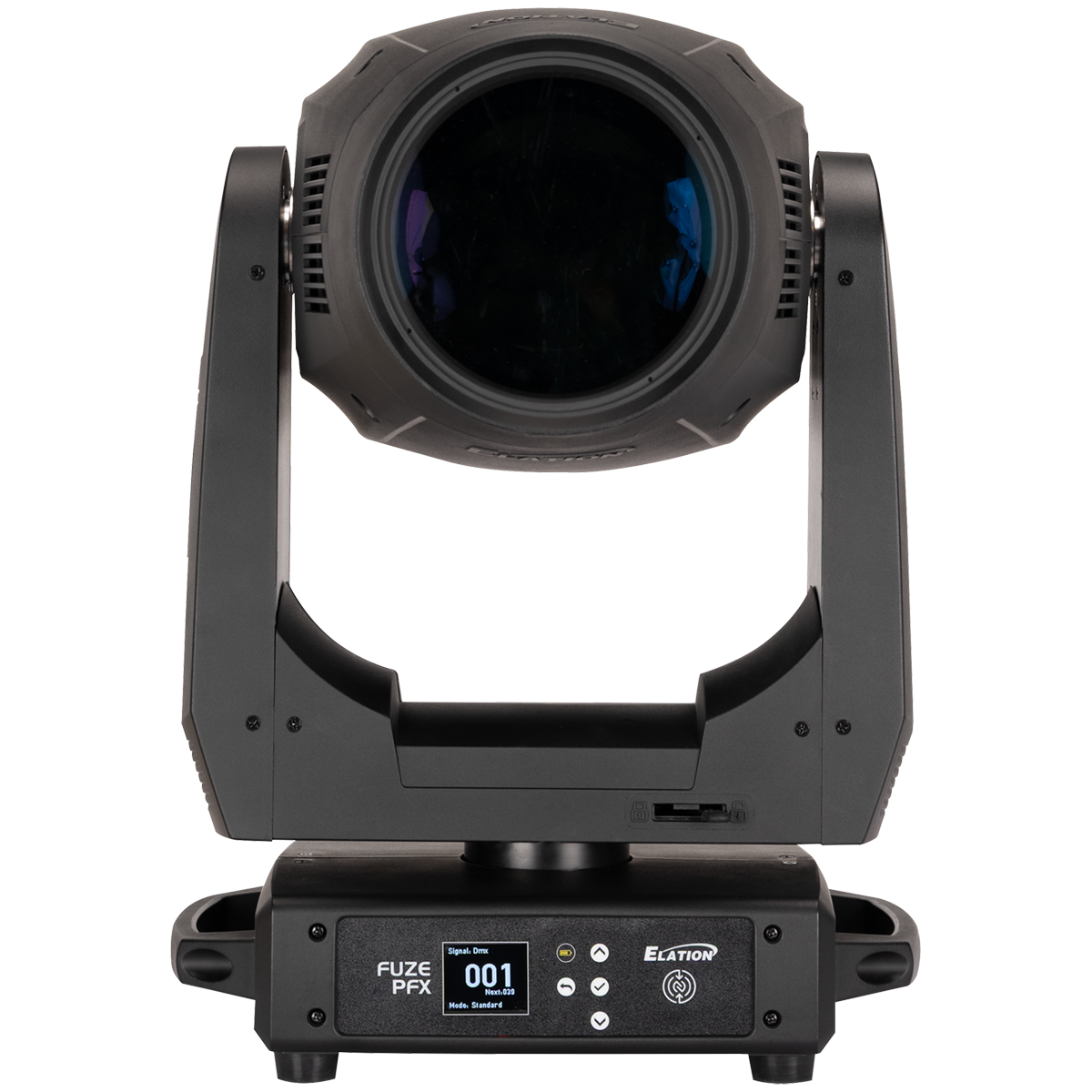

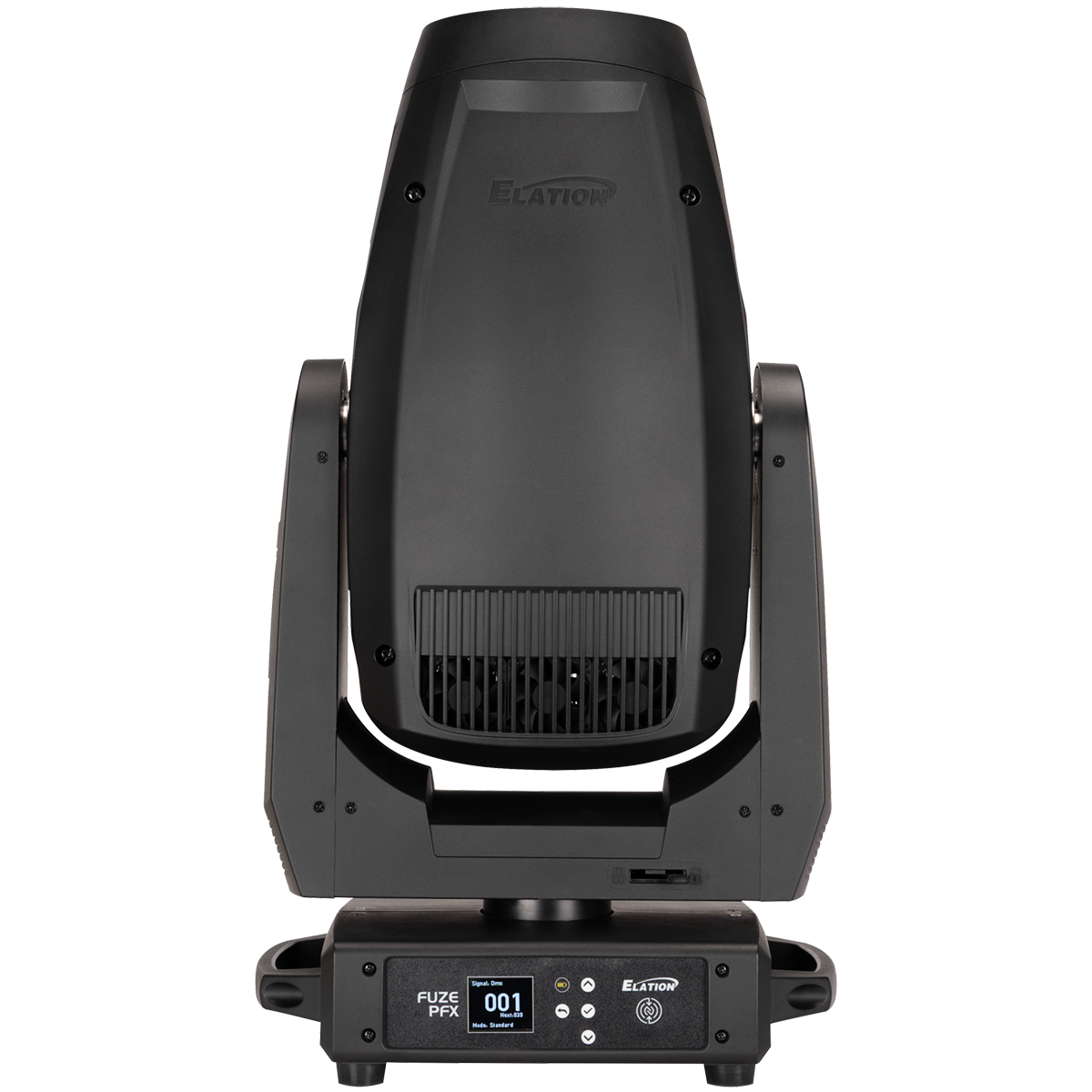

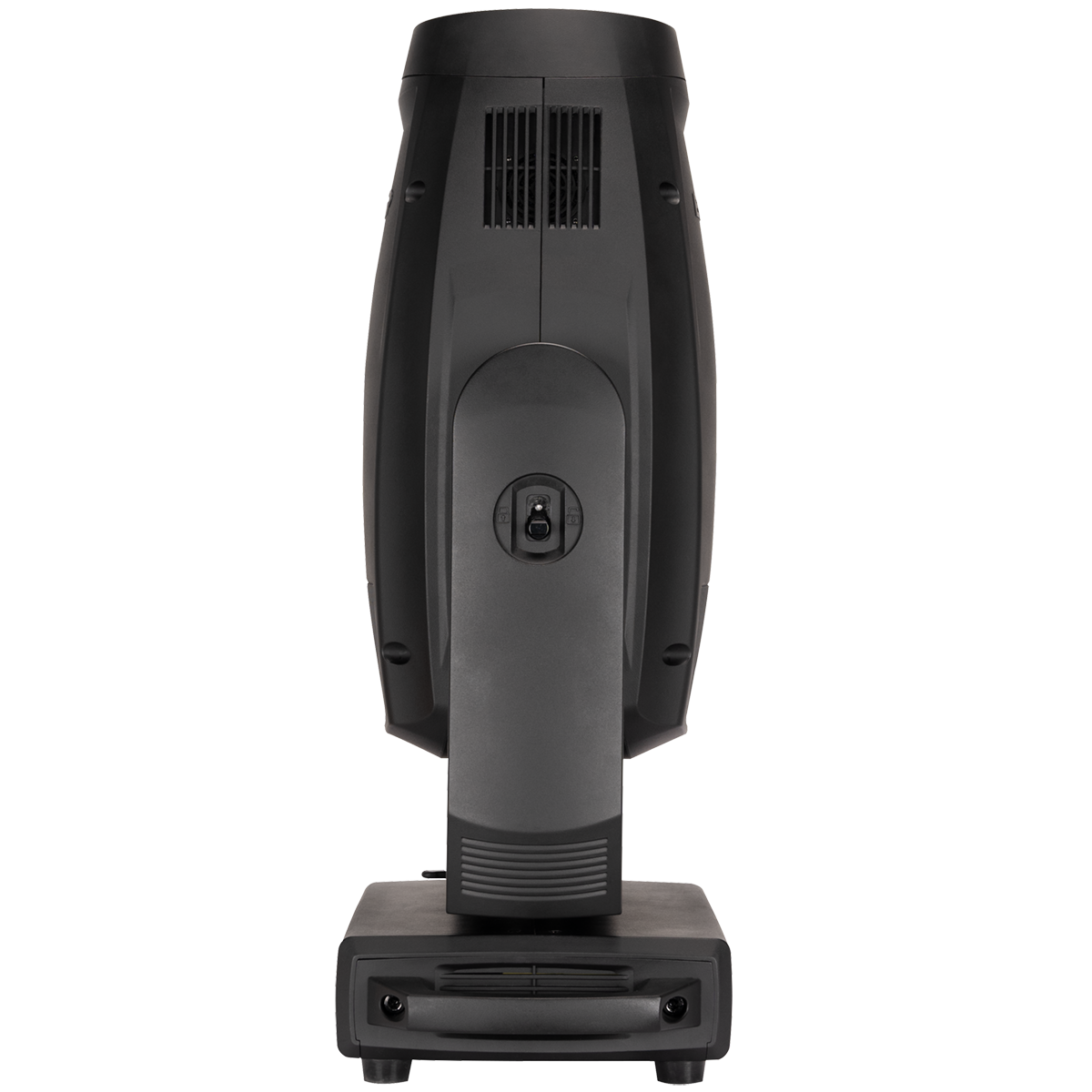

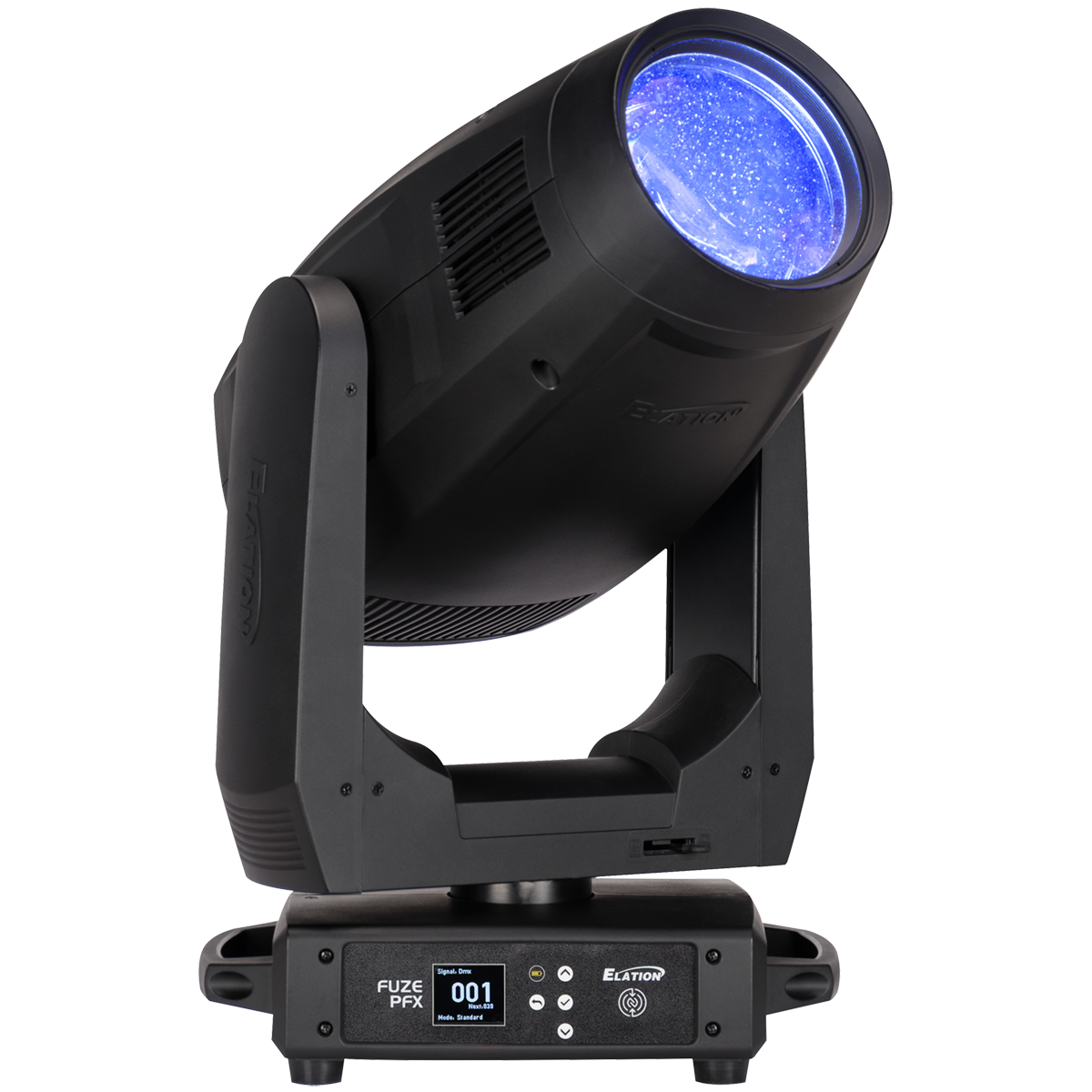

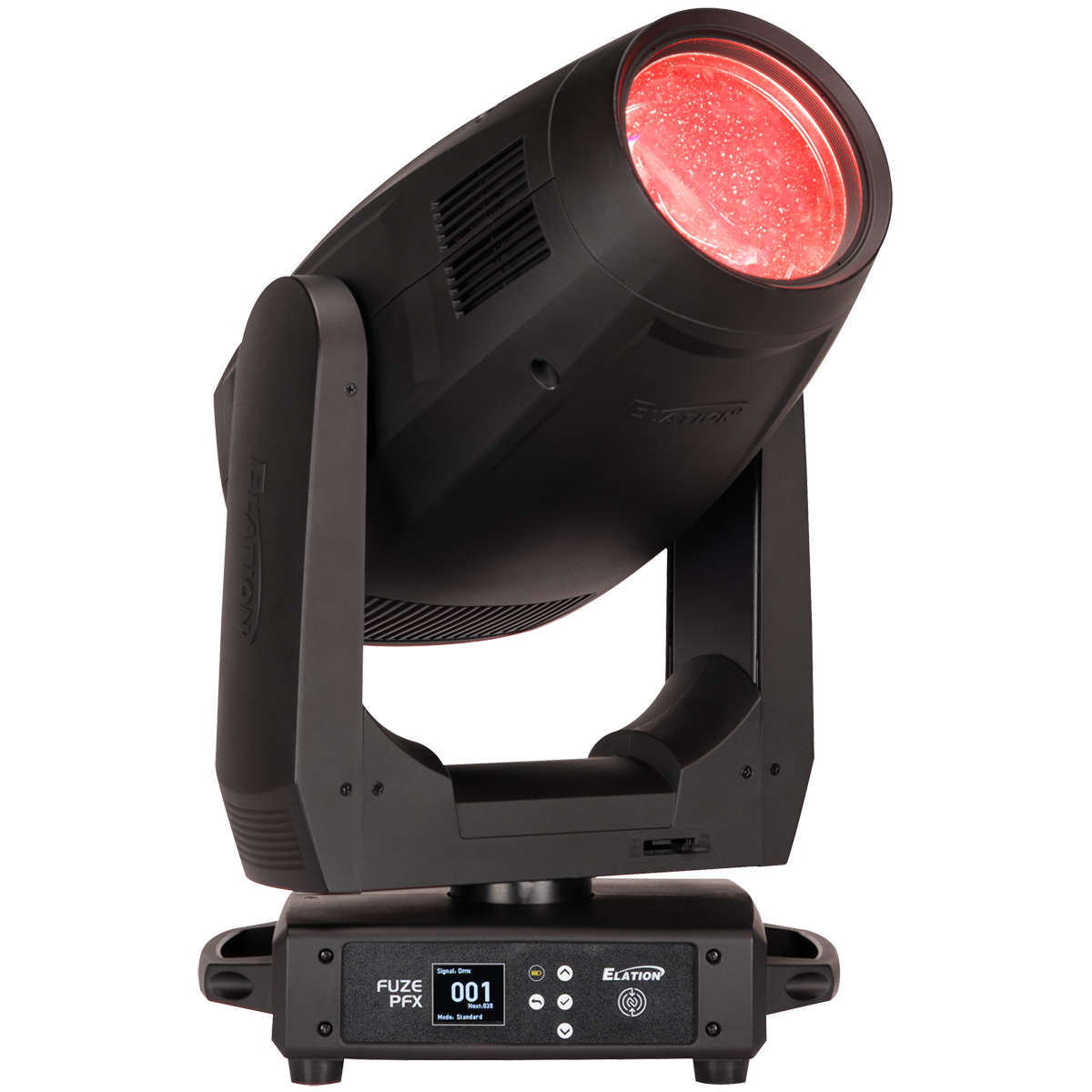

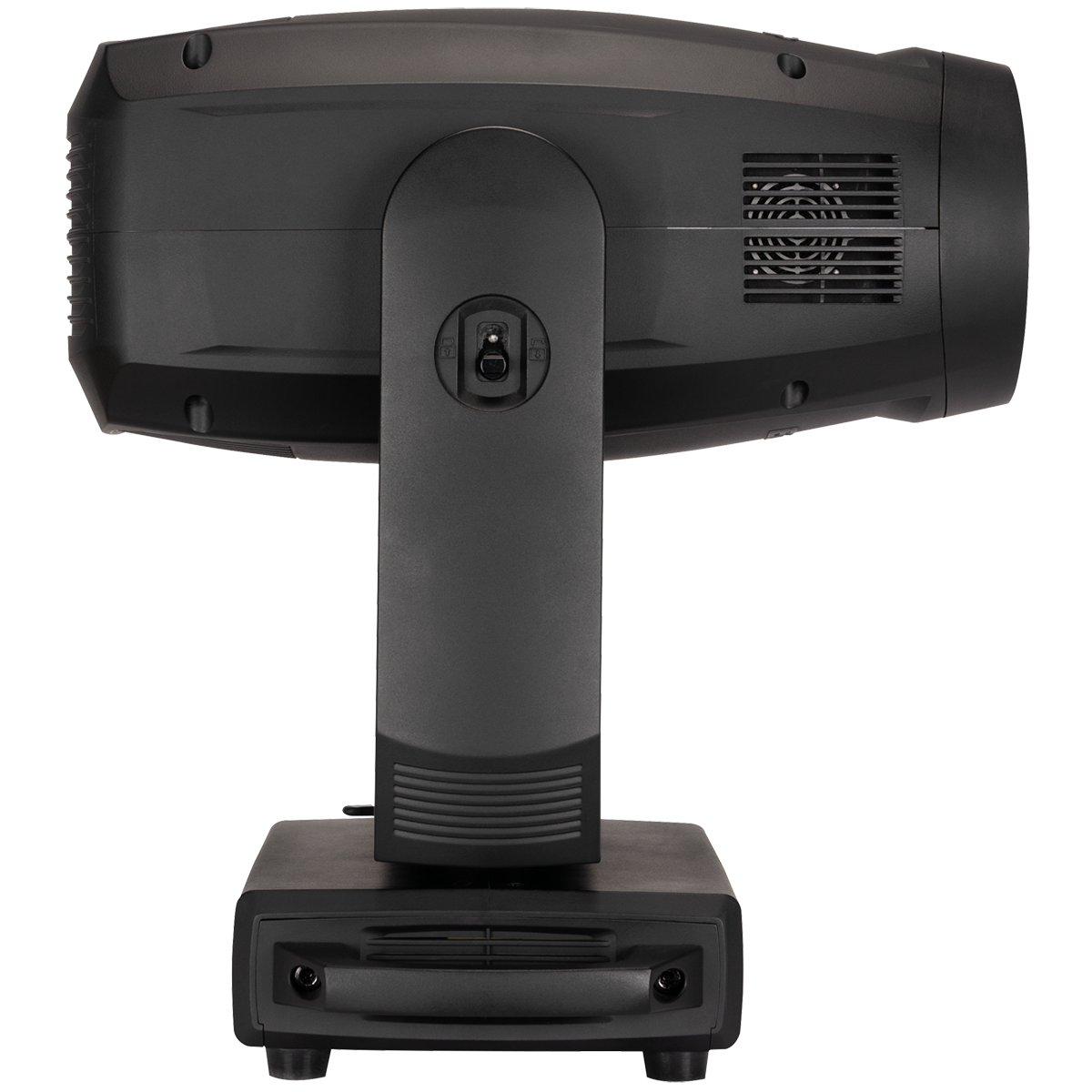

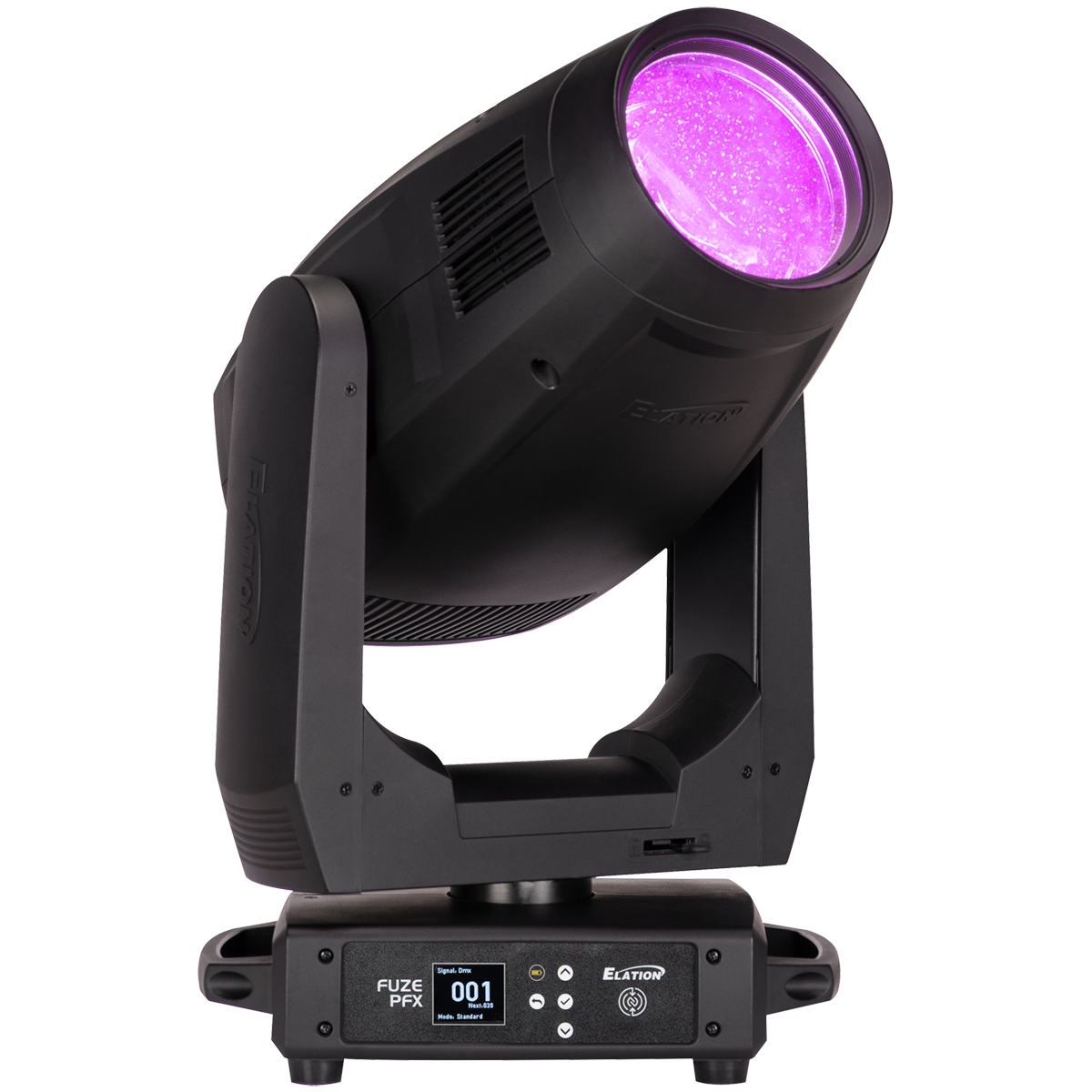

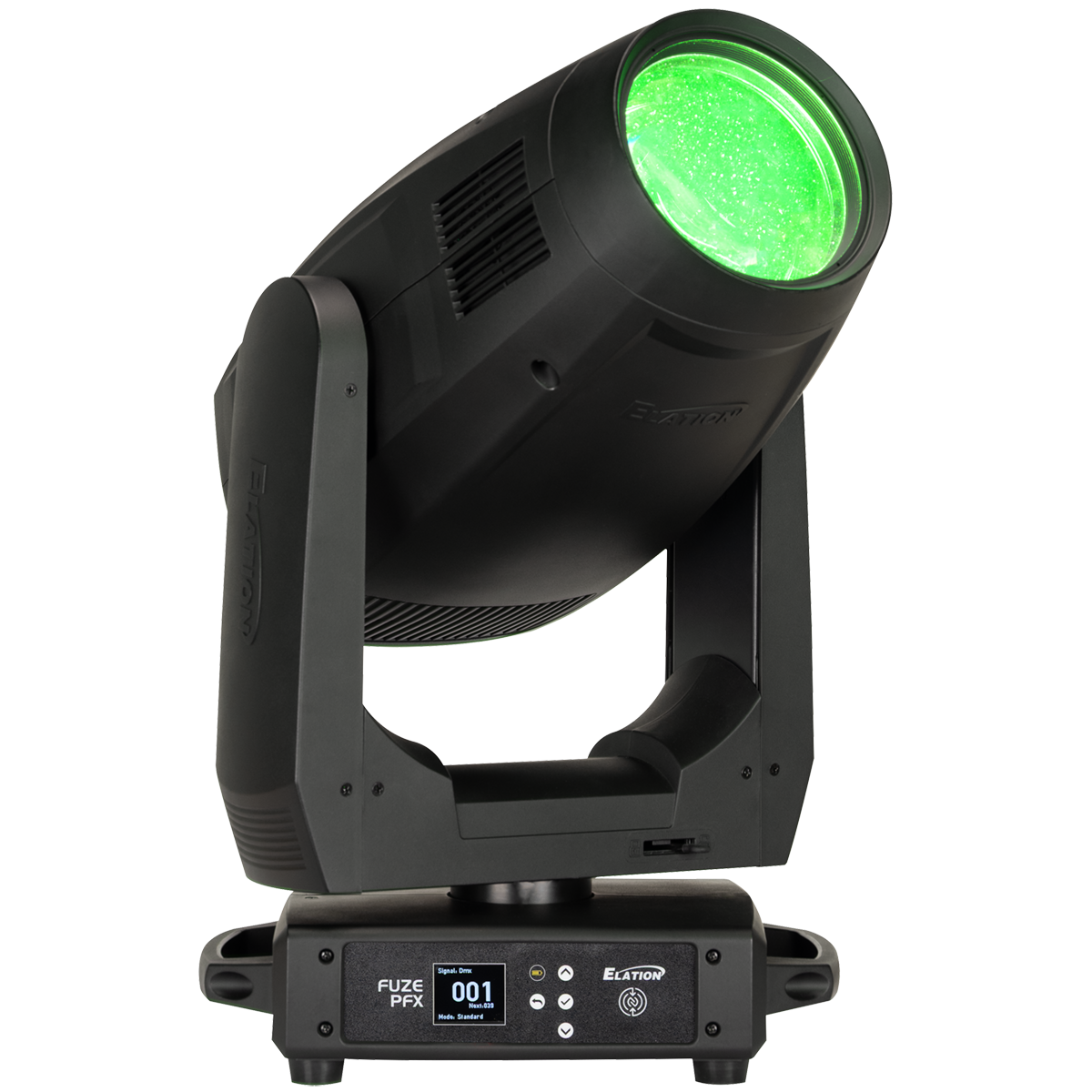

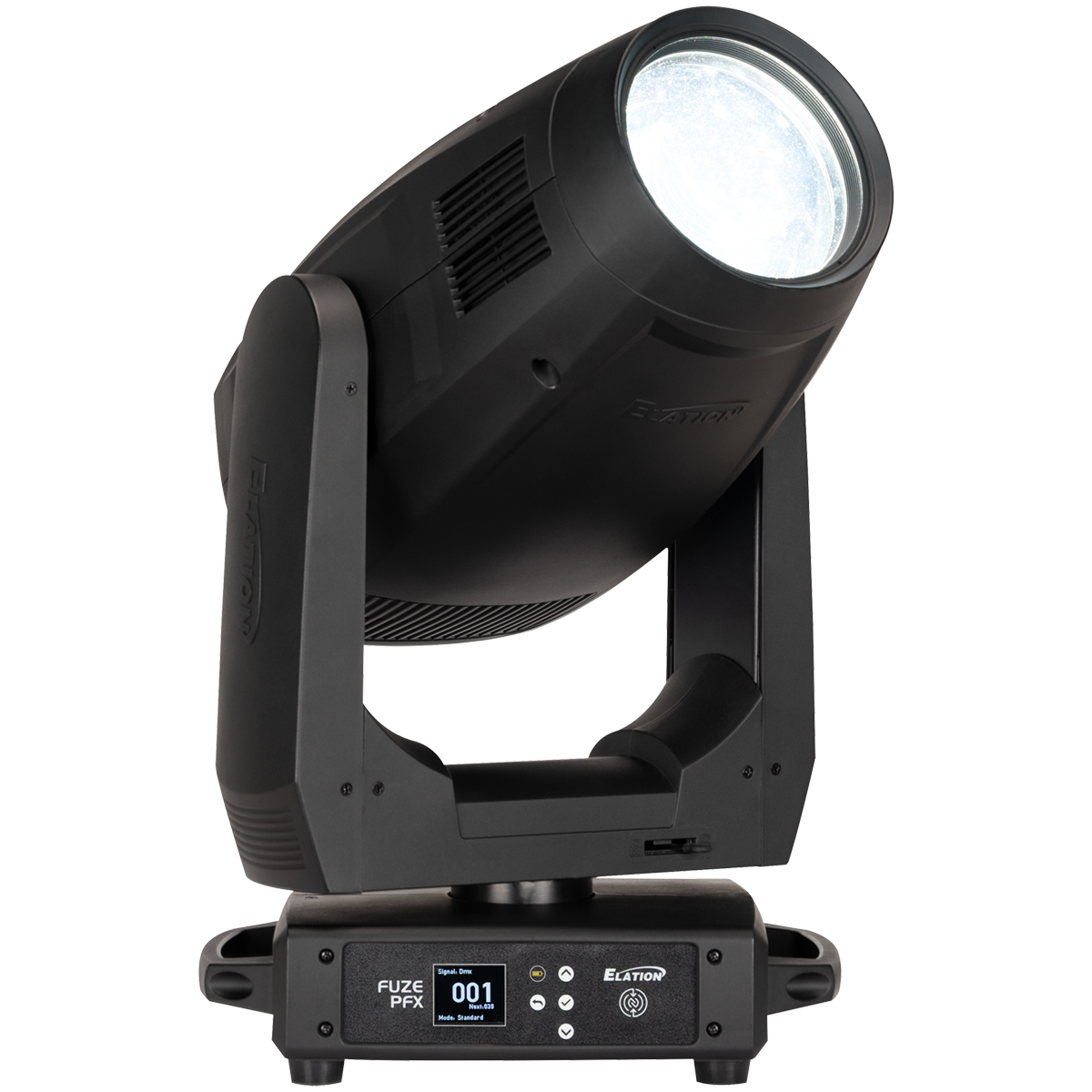

The FUZE PFX™ is a unique LED Framing FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The PFX is capable of projecting tight beams, precise framing and wide washes using a highly efficient optical design while providing over 15000 lumens of output from its 400W white LED engine.
FUZE PFX
Specifications
SOURCE
400W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
15000 Total Lumen Output
CRI 72 (Filter CRI 80, CRI 90)
Zoom Range 3° - 53°
Beam Angle
Field Angle
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/- 60° Framing Index
2 Variable Frost Filters (Light and Wash)
Dual Independent Prisms (6 Facet linear & 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
Pan Angle: 540°
Tilt Angle: 270°
COLOR
CMY Color Mixing
Linear CTO Color Correction
7 Dichroic Colors including UV Filter
High CRI Filter 80+90
GOBOS
7 Rotating / Indexing Interchangeable Glass Gobos
11 Static Metal Gobos
CONTROL / CONNECTIONS
DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
RDM (Remote Device Management)
Aria x2 Wireless Device Management
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

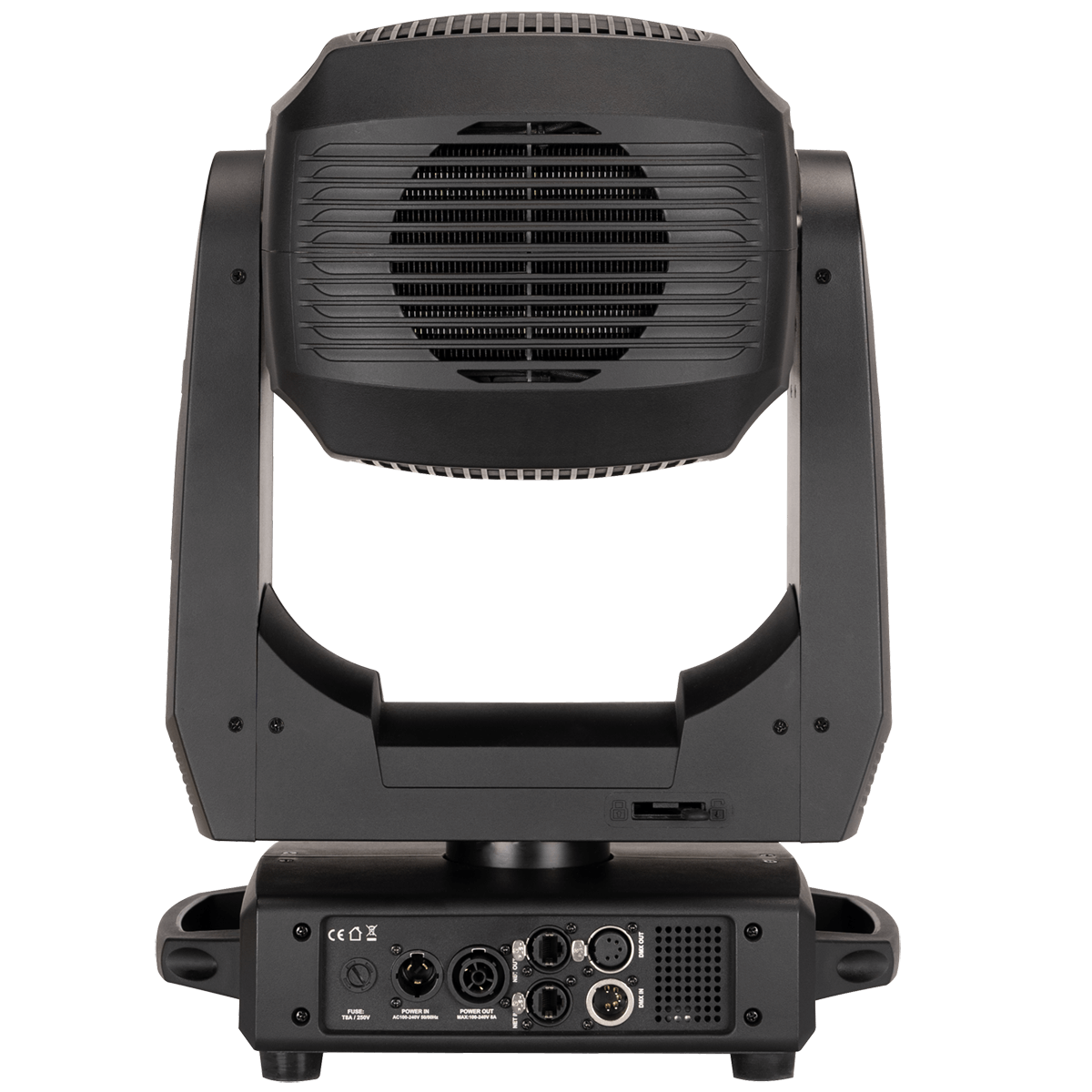

Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 14.3” (362mm)
Width: 9.2" (233mm)
Vertical Height: 25.14" (637mm)
Weight: 50 lbs. (22.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
600W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2047
APPROVALS / RATINGS
CE | cETLus | FCC | UKCA | IP20
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Specification sheet
User manual
FUZE PFX Parts & Service
Our FUZE PFX Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your FUZE PFX. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

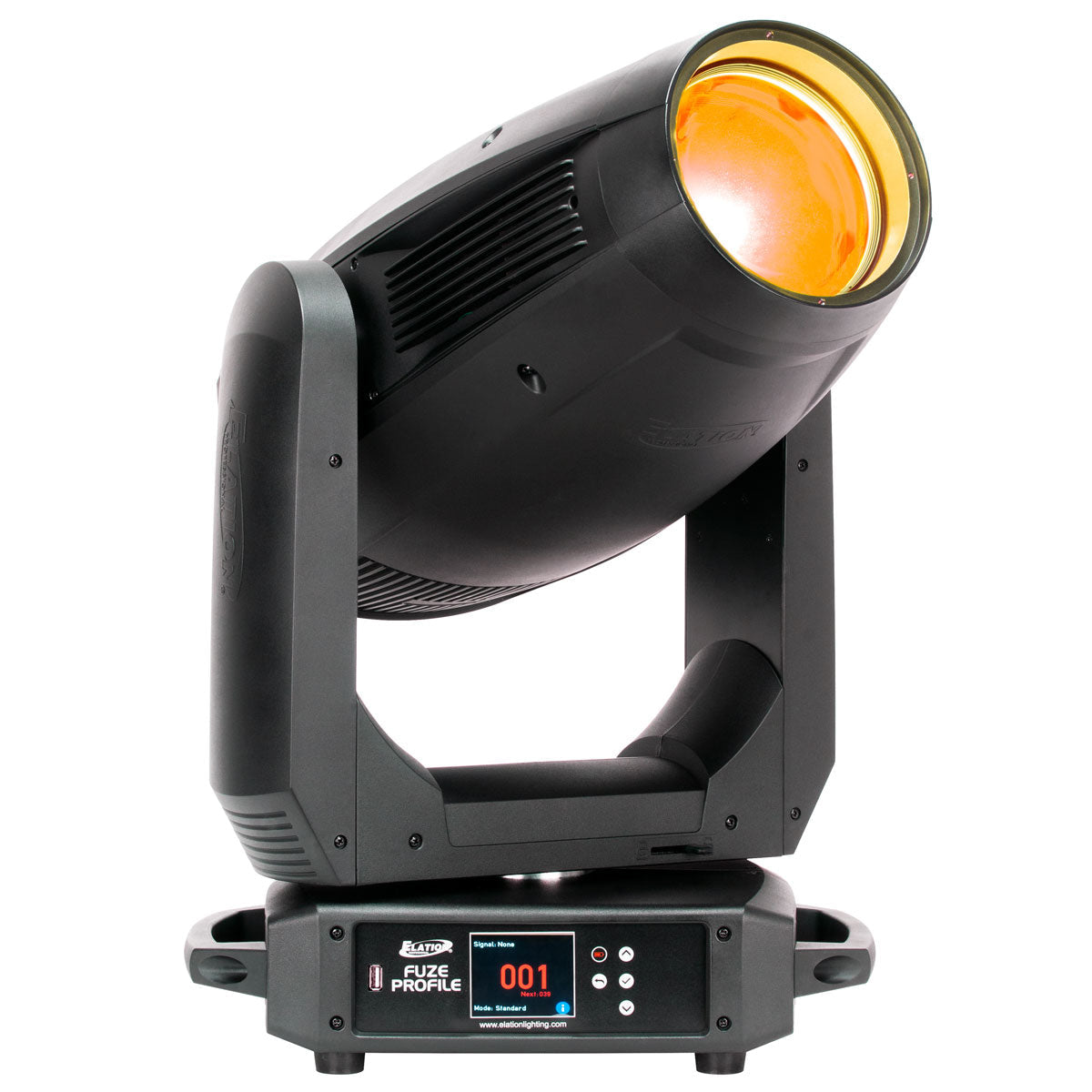

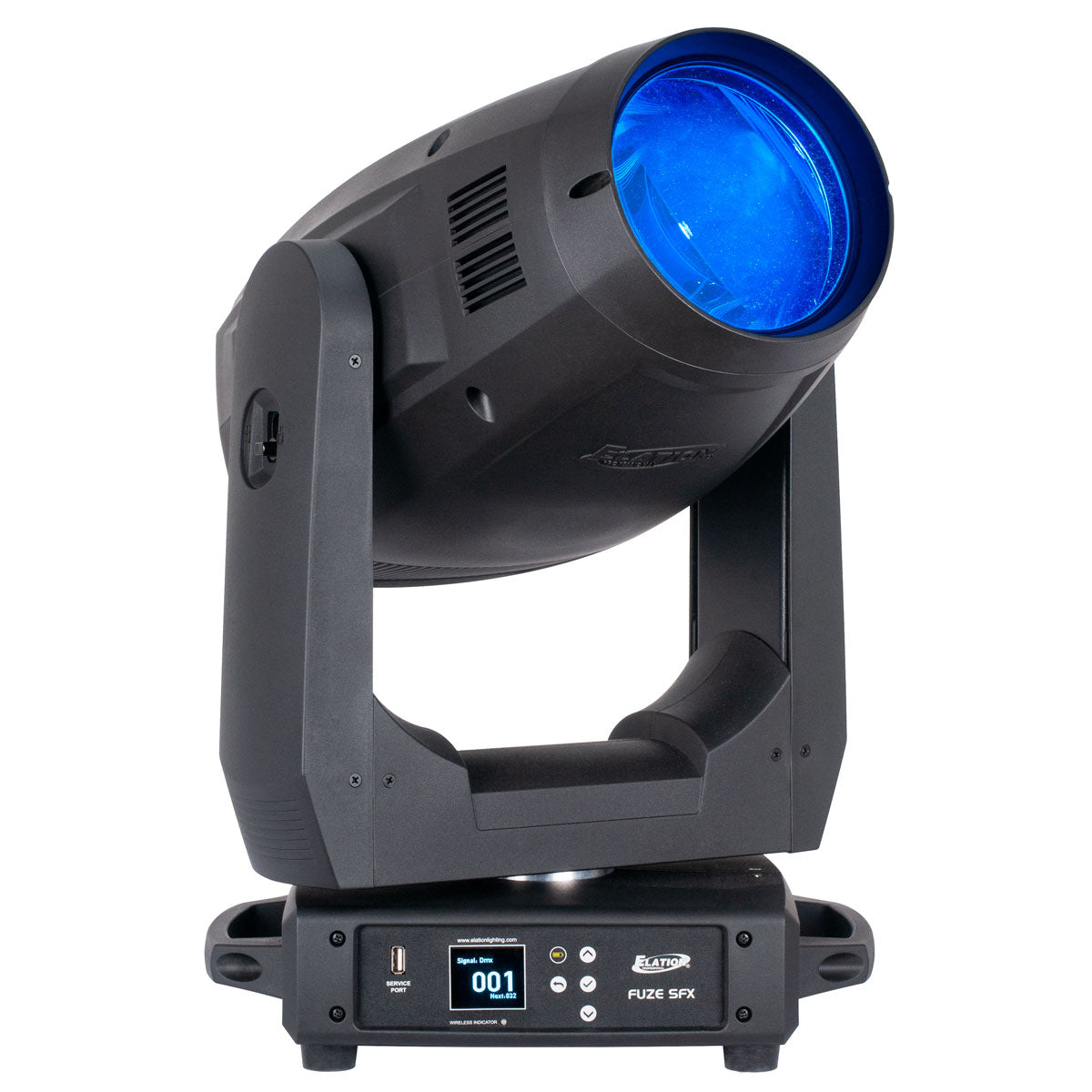

FUZE PFX Parts & ServiceHow do they compare?
Find the option that is right for you and your production.
15000
10100
12135
400W
305W
300W
3° - 53°
7° - 42°
4.5° - 38°
7.5° - 39.9°
4.6° - 38.2°
20
20
20
50.0 lbs
55.1 lbs
45.9 lbs
600W
540W
432W
14.3 x 9.2 x 25.14
16 x 10.1 x 27.4
14.3 x 9.2 x 23.4
