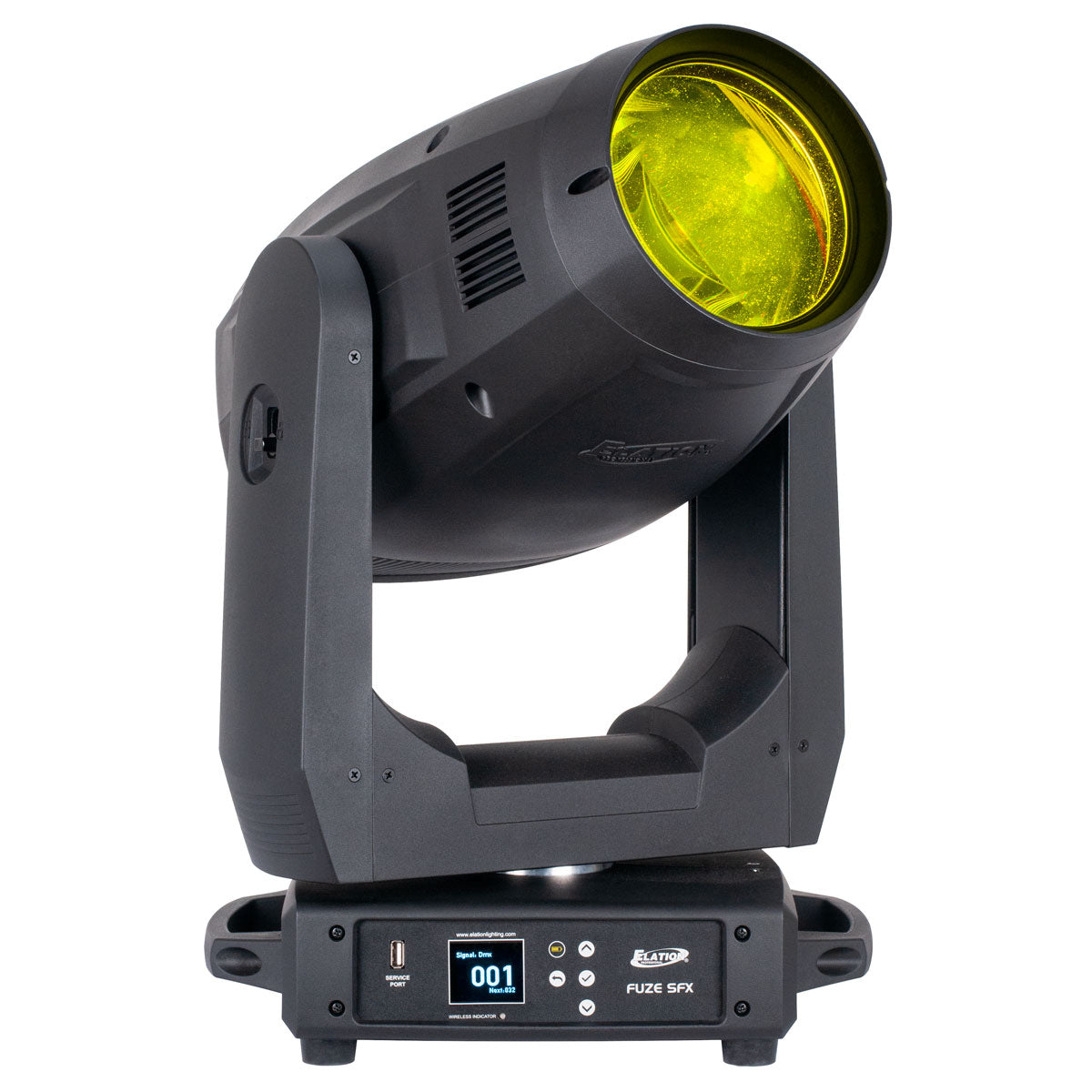

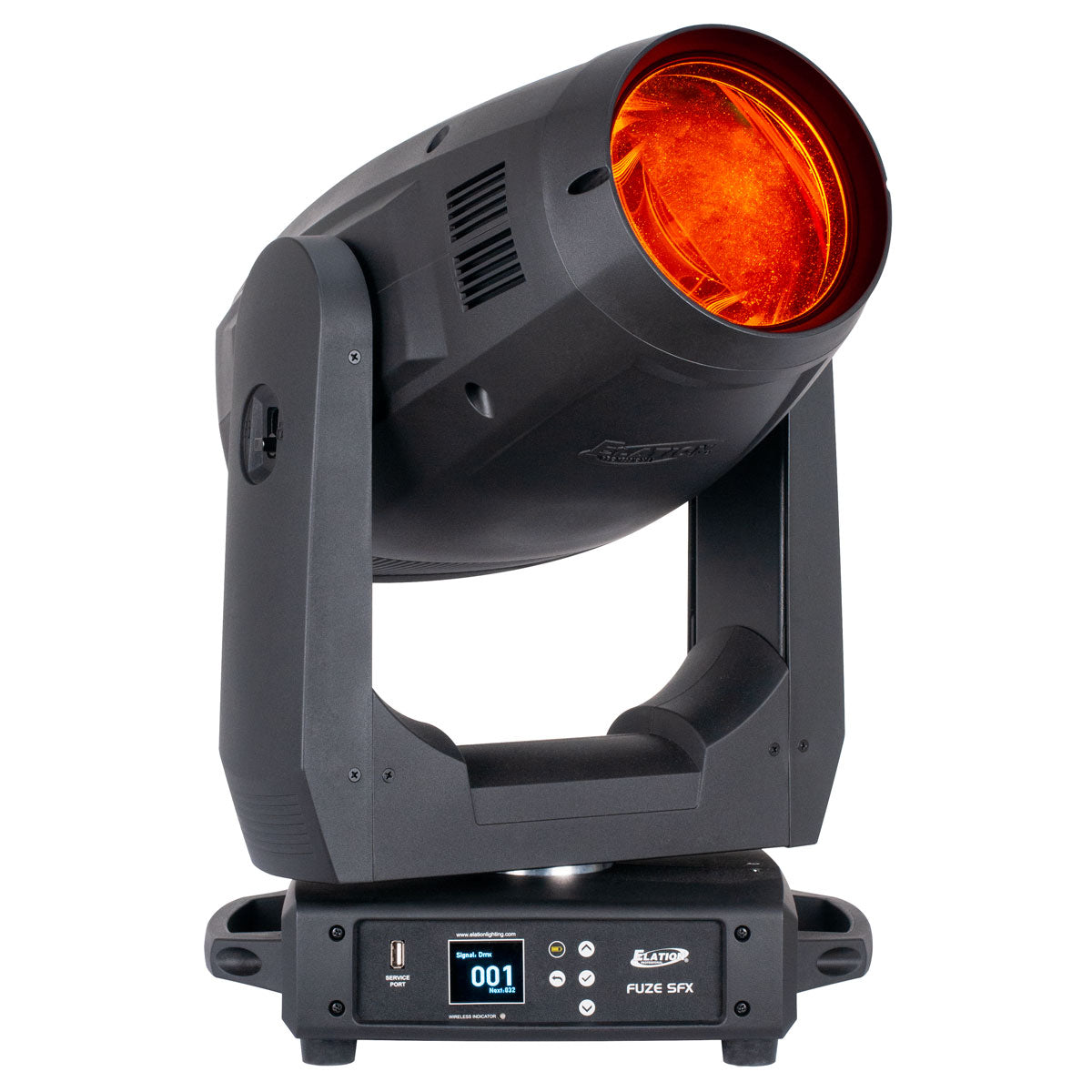

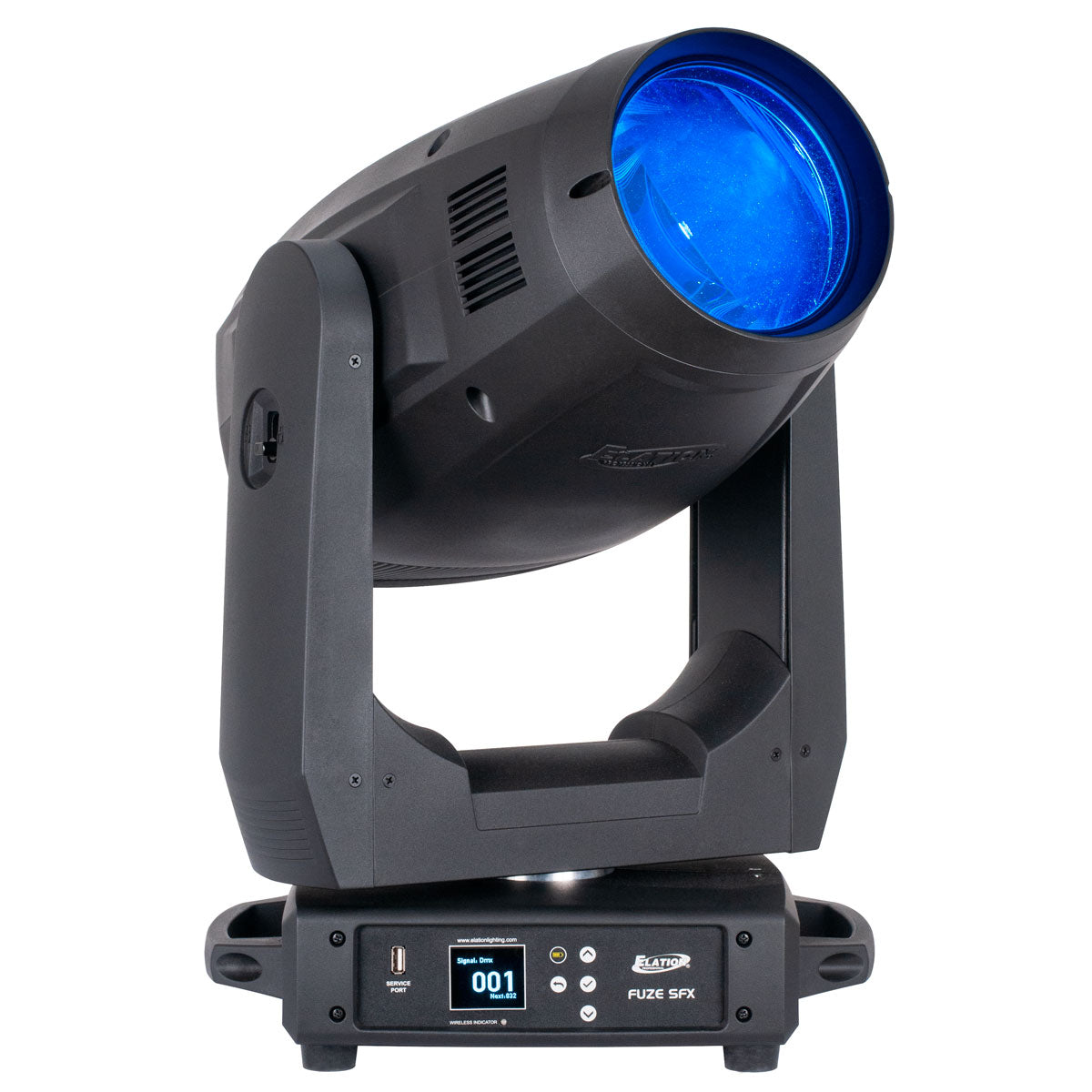

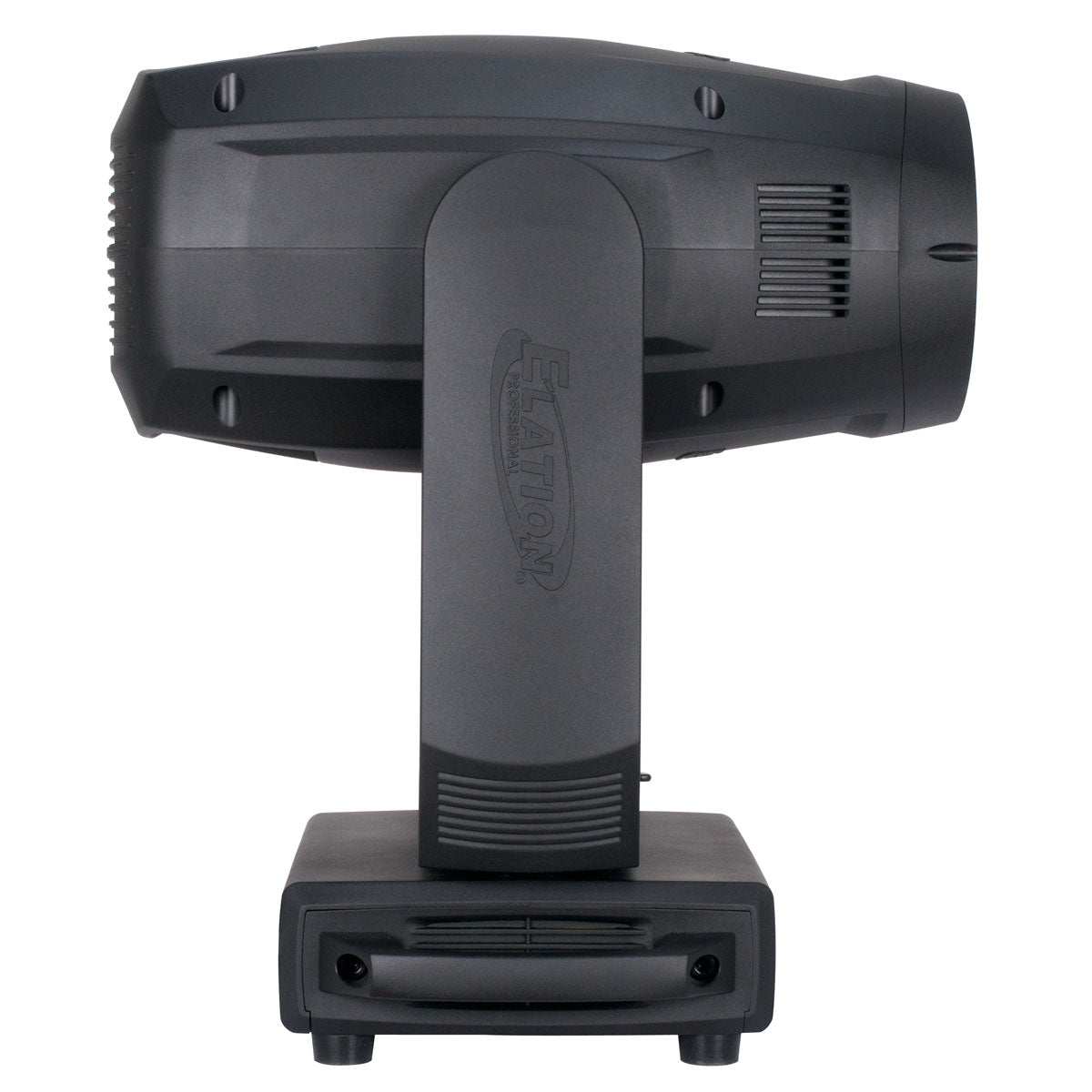

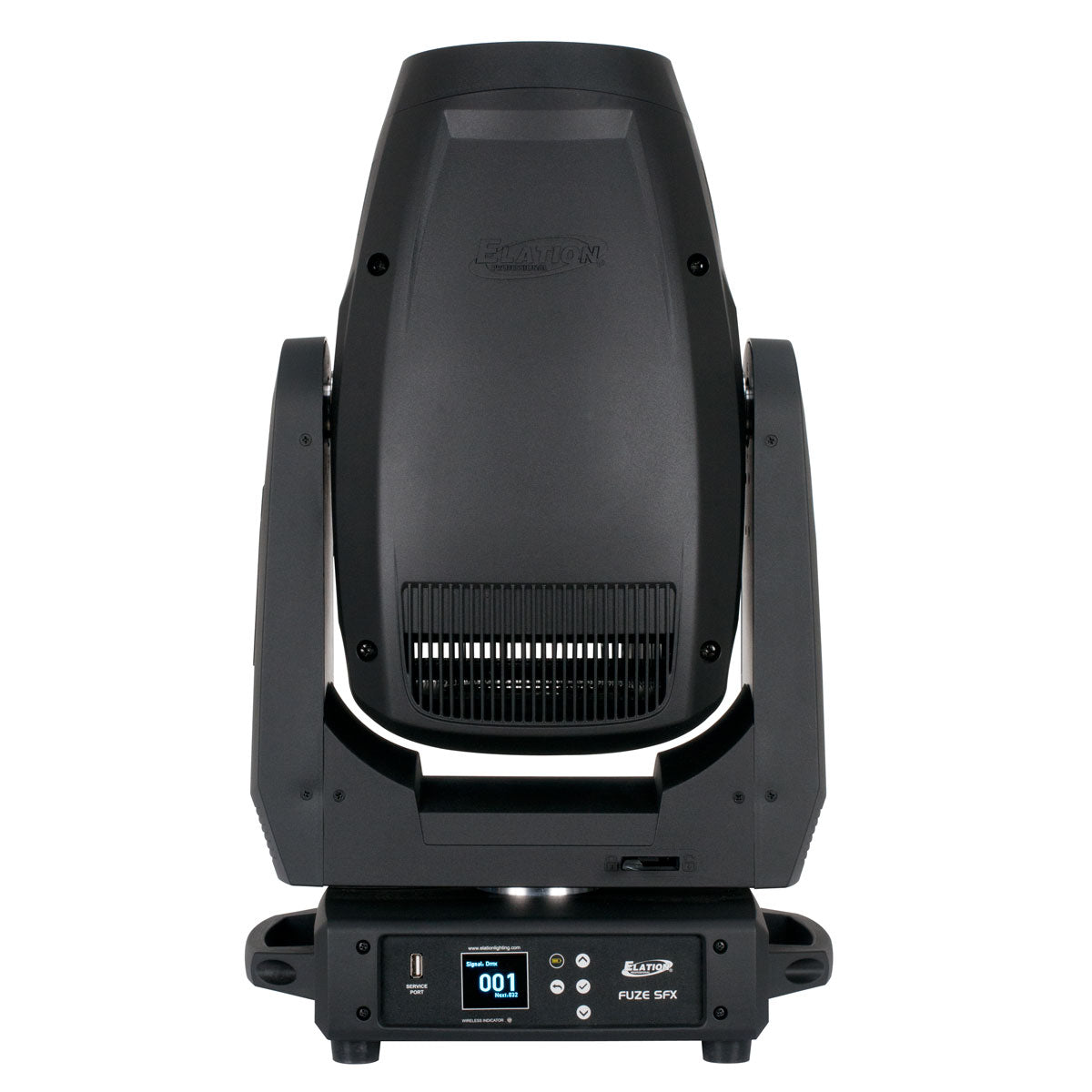

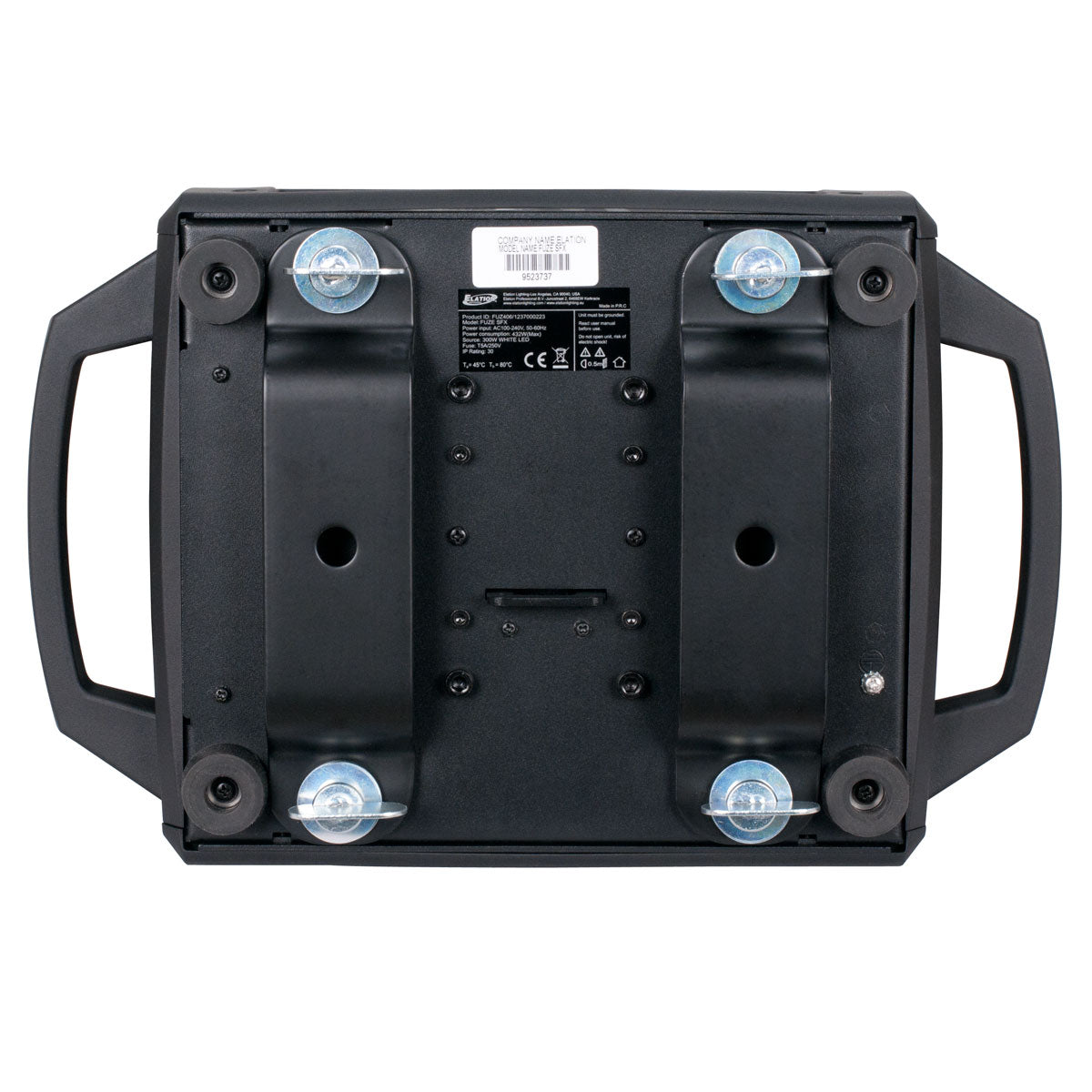

FUZE SFX
300W LED Spot/FX Fixture with CMY
FUZE SFX is a professional-grade lighting solution. The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel.
Related Products
FUZE SFX
The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.
Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.
A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.
- 300W LED 6,600K White LED Engine
- 12,135 Total Lumen Fixture Output
- Spot and Effects Fixture
- Zoom Range from 4.5° to 38°
- Variable CMY and 7-Position Color Wheel
- High CRI and CTO Filter
- 8 Rotating and 10 Fixed Gobos
- Dual Independent Prisms for Layering
- Motorized Iris
- Variable Wash Frost Filter
Specifications
SOURCE
300W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,135 Total Lumen Output
CRI 68+
Zoom Range 4.5° - 38°
Beam Angle 4.6° - 38.2°
Field Angle 5.6° - 42.2°
EFFECTS
Motorized Zoom
Remote Focus
Variable Frost Filter
Dual Independent Prisms (6 Facet linear 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°
COLOR
CMY Variable Color Mix
7 Position Color Wheel
High CRI Filter, CRI 84
CTO Filter, 3200K, CRI 77
GOBOS
2 Gobo Wheels
Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
Wheel #2 with 10 Static Gobos
CONTROL / CONNECTIONS
31 DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

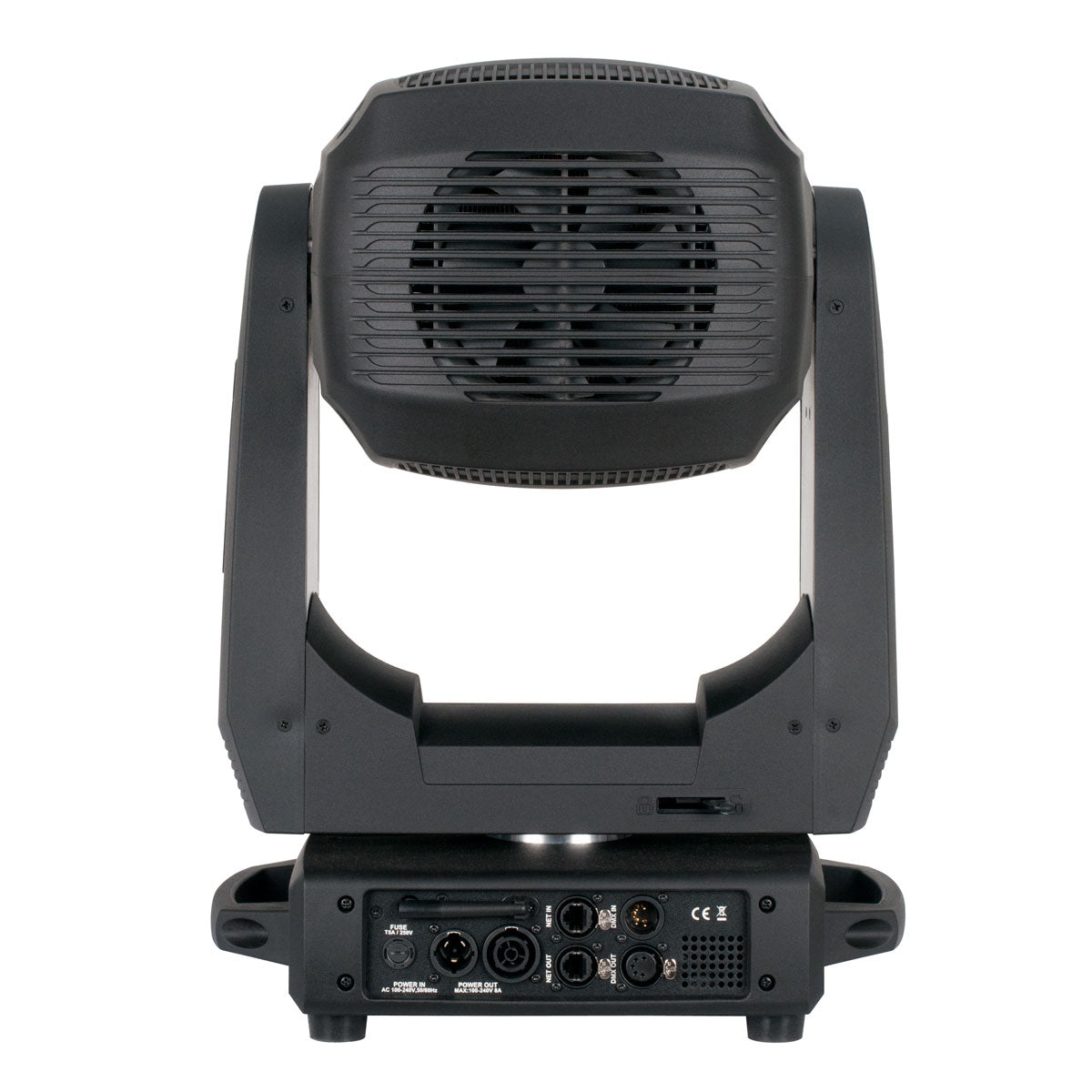

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.3” (362mm)
Width: 9.2" (233mm)
Vertical Height: 23.4" (595mm)
Weight: 45.9 lbs. (20.8kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
432W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 1473.12
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.0.16
Click HERE for software updates
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
Generic

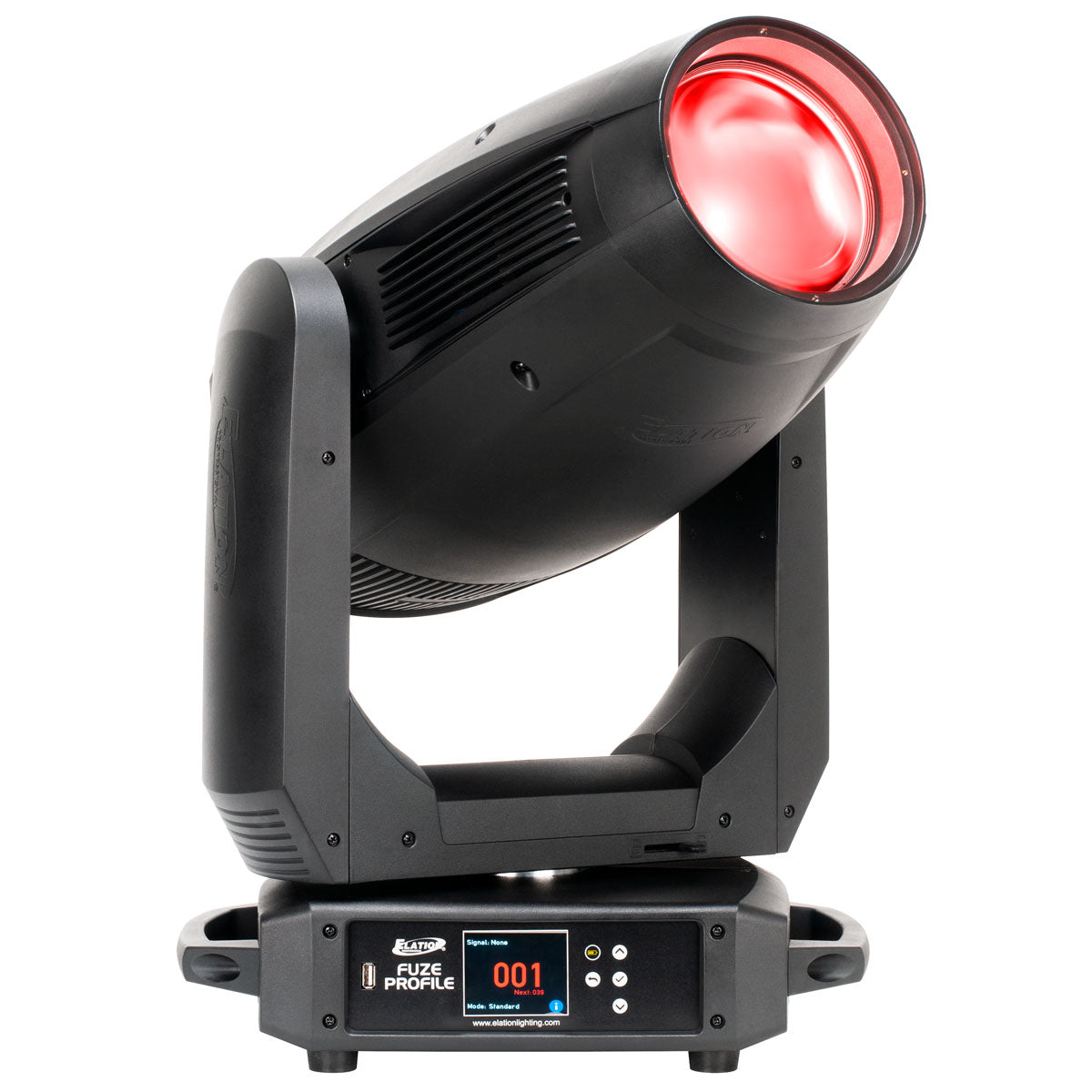

How do they compare?
Find the option that is right for you and your production.
12135
10100
15000
300W
305W
400W
4.5° - 38°
7° - 42°
3° - 53°
4.6° - 38.2°
7.5° - 39.9°
20
20
20
45.9 lbs
55.1 lbs
50.0 lbs
432W
540W
600W
14.3 x 9.2 x 23.4
16 x 10.1 x 27.4
14.3 x 9.2 x 25.14

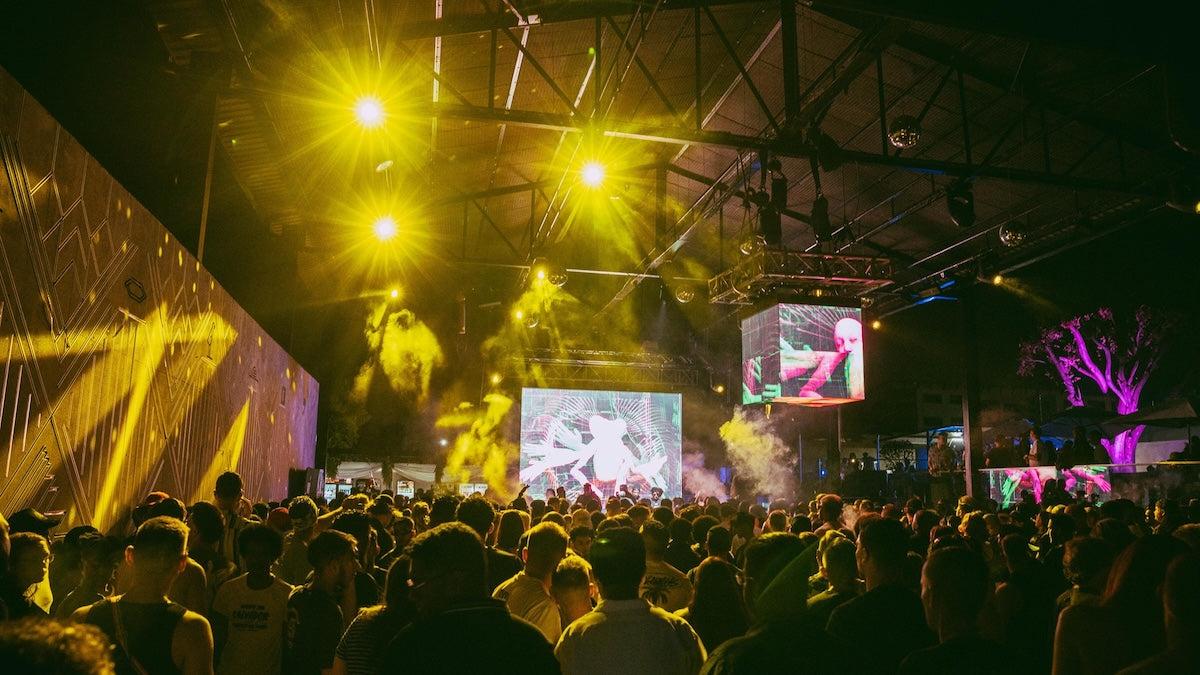

Iconic Truth Nightclub In Johannesburg Reopens With Elation PULSE And FUZE

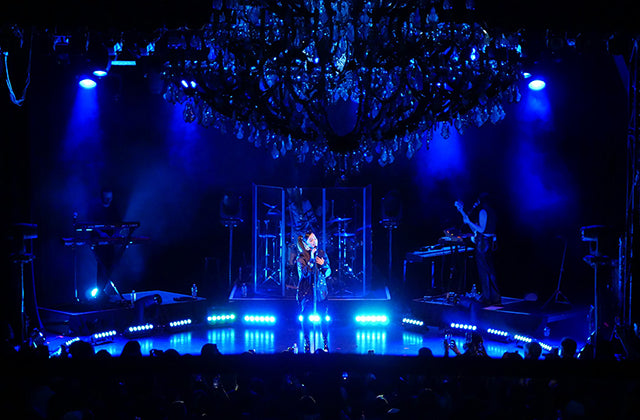

Red Rover Entertainment delivers all-round, adaptable Elation rig for Faouzia tour
