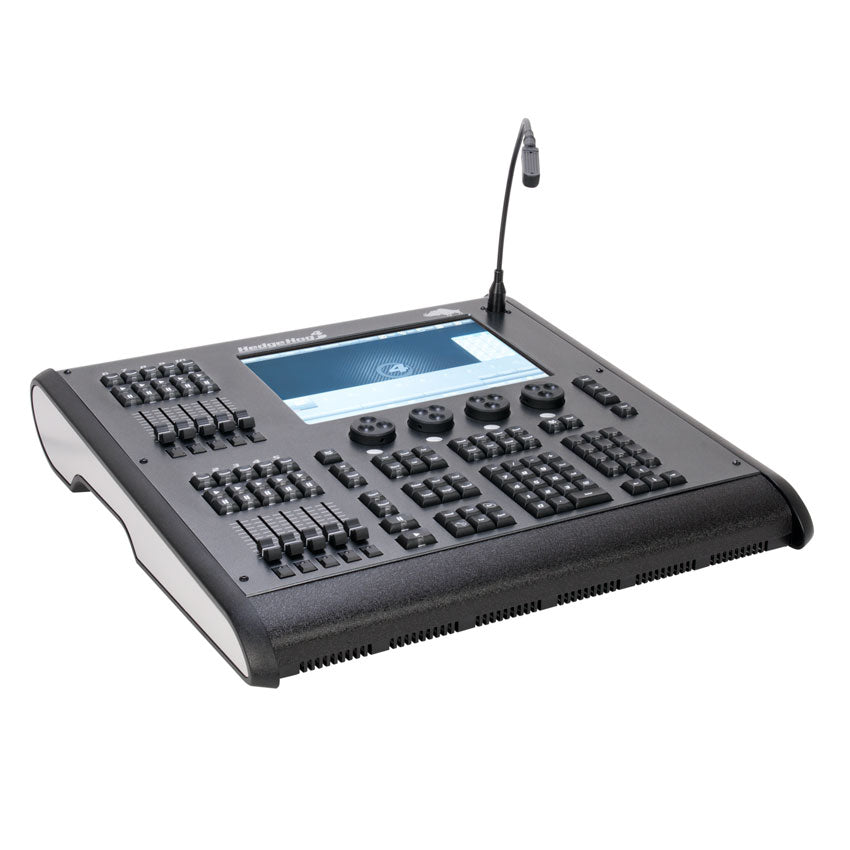

Hedge Hog 4N

Features

 Robust Hog 4 Operating Software
 Use Any Hog 4 Show File in HedgeHog4N
 (i.e. Hog 4, Full Boar 4, Road Hog 4, Nano Hog 4, HedgeHog 4)
 Unlimited Number of Simultaneous Crossfades
 (2) Fixed Universes of DMX 512 or Up to (4) Universes of DMX 512 over ArtNet or sACN (eNode4™)
 Linux Operating System Compatible
 Internal Solid State Hard Disk Drive
 Supports Peripherial Hardware

Resources

User Manual

Specifications

 CONTROL / CONNECTIONS
 (4) Encoders for an Extended Wheel Set
 (1) Internal 12-inch Wide Touch Screen
 (12) User Keys and (10) Playback Faders

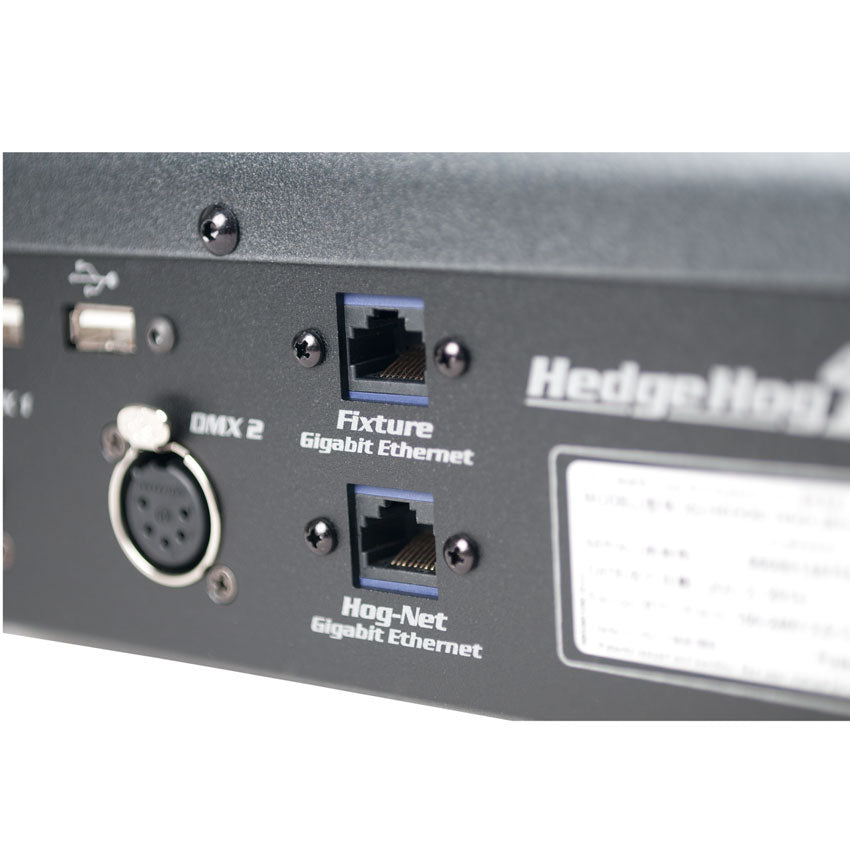

 (1) Fixture-Net Gigabit Ethernet Connector
 (1) Hog-Net Gigabit Ethernet Connector
 (2) USB Ports for WholeHog Wings and other Accessories
 5pin DMX/MIDI Input and Output
 MIDI Show Control and MIDI Time Code via Optional External Widget

 SIZE / WEIGHT
 Length: 20.74” (526.8mm)
 Width: 21.83” (554.37mm)
 Vertical Height: 3.97” (100.78mm)
 Weight: 17 lbs. (7.7kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 300W Max Power Consumption

 APPROVALS
 CE | cETLus

 INSTALLATION
 Any Flat Surface

 INCLUDED ITEMS
 (1) 5 ft (1.5m) IEC Power Cable
 (1) LED Desklight (3pin XLR)
 (2) USB Thumb Drives (Storage & Recovery)
 (1) Dust Cover

 HOG 4 2.0 SOFTWARE FEATURES
 Cross Platform and Forward Only Compatible
 Use Hog 3 Show Files


 CLICK HERE TO REQUEST A FIXTURE LIBRARY

 https://www.highend.com/hes-support/common-forms/fixture-libs


 Requests may take up to 14 days to complete




 Specifications and documentation subject to change without notice.
