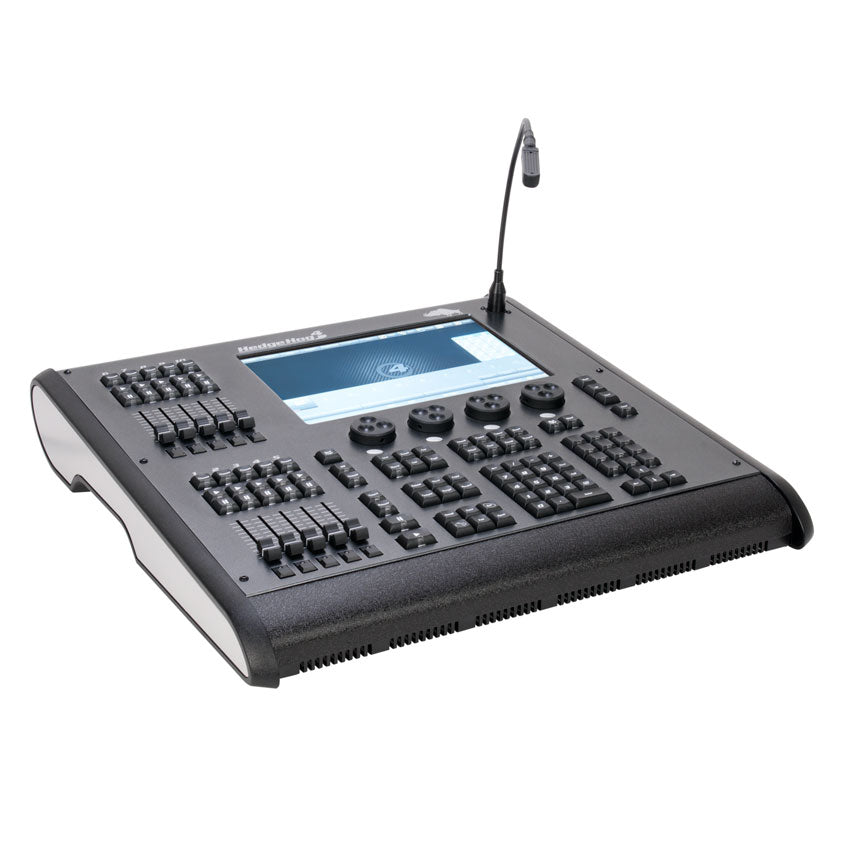

Hedge Hog 4N
Discontinued
Hedge Hog 4N is a professional-grade lighting solution. HedgeHog 4N™ comes with ArtNet and CITP capabilities and is designed for small to mid level shows. Whether being used in a school theatre, nightclub, corporate event, medium scale rental job or church, its the perfect console. HedgeHog 4N™ will, in addition to the above, make a perfect remote focus and dimmer city console, with its ability to network with the bigger hogs in the fleet!
Hedge Hog 4N
Sale price$0.00
Hedge Hog 4N
The Hog range just got broader. HedgeHog 4 Network™ is the littlest of the range and still packs quite a punch running the same software as all the other Hogs. HedgeHog 4N™ comes with ArtNet and CITP capabilities and is designed for small to mid level shows. It’s compact, lightweight and easy to take on a plane!
Running on Linux, it’s fast, stable and ready to Hog. Whether being used in a school theatre, nightclub, corporate event, medium scale rental job or church, its the perfect console. Retaining the same programming layout as it’s larger brother, the Road Hog 4™, as well as being able to load showfiles from any of the range (and vice versa) means that this compact console is extremely flexible and easy to use.
HedgeHog 4N™ will, in addition to the above, make a perfect remote focus and dimmer city console, with its ability to network with the bigger hogs in the fleet!
Robust Hog 4 Operating Software
Use Any Hog 4 Show File in HedgeHog4N
(i.e. Hog 4, Full Boar 4, Road Hog 4, Nano Hog 4, HedgeHog 4)
Unlimited Number of Simultaneous Crossfades
(2) Fixed Universes of DMX 512 or Up to (4) Universes of DMX 512 over ArtNet or sACN (eNode4™)
Linux Operating System Compatible
Internal Solid State Hard Disk Drive
Supports Peripherial Hardware
Running on Linux, it’s fast, stable and ready to Hog. Whether being used in a school theatre, nightclub, corporate event, medium scale rental job or church, its the perfect console. Retaining the same programming layout as it’s larger brother, the Road Hog 4™, as well as being able to load showfiles from any of the range (and vice versa) means that this compact console is extremely flexible and easy to use.
HedgeHog 4N™ will, in addition to the above, make a perfect remote focus and dimmer city console, with its ability to network with the bigger hogs in the fleet!
Robust Hog 4 Operating Software
Use Any Hog 4 Show File in HedgeHog4N
(i.e. Hog 4, Full Boar 4, Road Hog 4, Nano Hog 4, HedgeHog 4)
Unlimited Number of Simultaneous Crossfades
(2) Fixed Universes of DMX 512 or Up to (4) Universes of DMX 512 over ArtNet or sACN (eNode4™)
Linux Operating System Compatible
Internal Solid State Hard Disk Drive
Supports Peripherial Hardware
Specifications

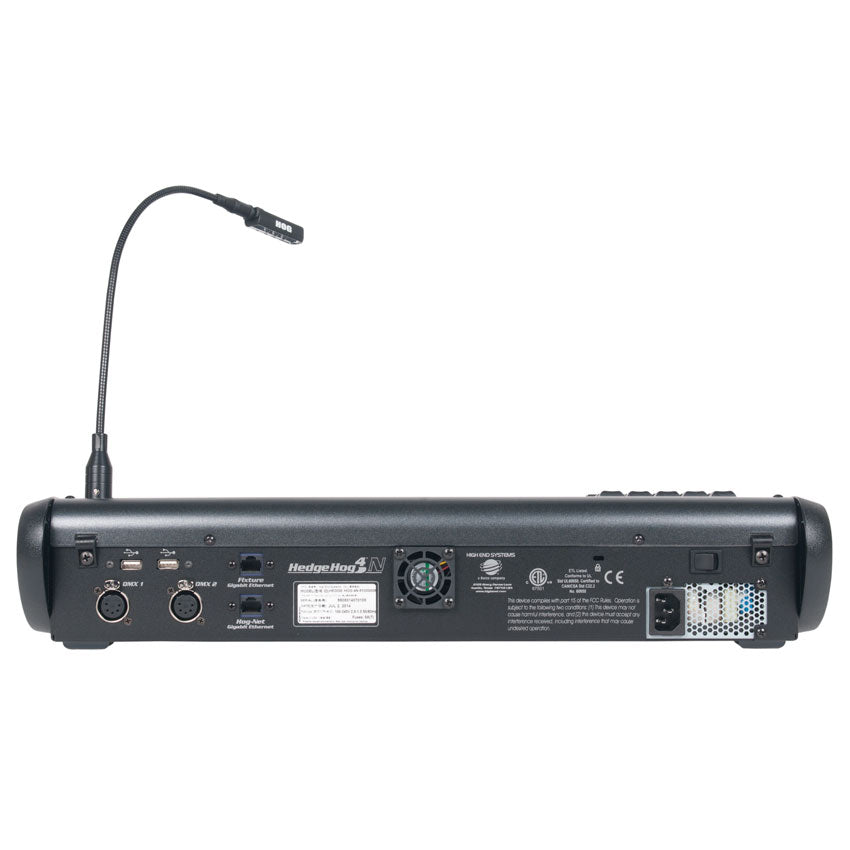

CONTROL / CONNECTIONS
(4) Encoders for an Extended Wheel Set
(1) Internal 12-inch Wide Touch Screen
(12) User Keys and (10) Playback Faders

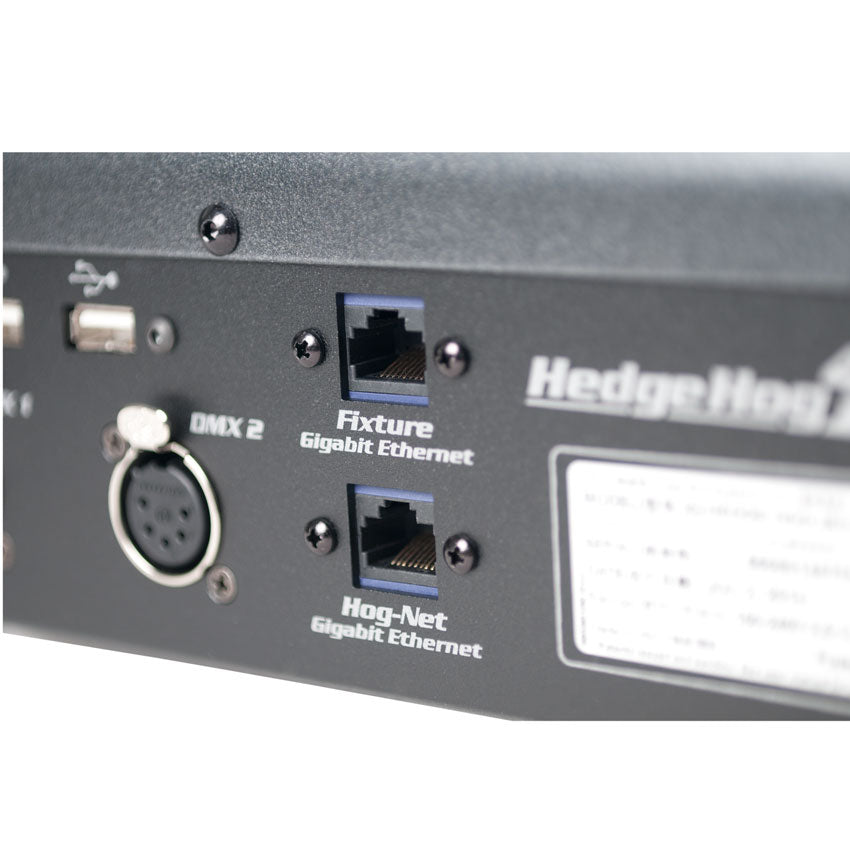

(1) Fixture-Net Gigabit Ethernet Connector
(1) Hog-Net Gigabit Ethernet Connector
(2) USB Ports for WholeHog Wings and other Accessories
5pin DMX/MIDI Input and Output
MIDI Show Control and MIDI Time Code via Optional External Widget
SIZE / WEIGHT
Length: 20.74&" (526.8mm)
Width: 21.83&" (554.37mm)
Vertical Height: 3.97&" (100.78mm)
Weight: 17 lbs. (7.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
APPROVALS
CE | cETLus
INSTALLATION
Any Flat Surface
INCLUDED ITEMS
(1) 5 ft (1.5m) IEC Power Cable
(1) LED Desklight (3pin XLR)
(2) USB Thumb Drives (Storage & Recovery)
(1) Dust Cover
HOG 4 2.0 SOFTWARE FEATURES
Cross Platform and Forward Only Compatible
Use Hog 3 Show Files
CLICK HERE TO REQUEST A FIXTURE LIBRARY
https://www.highend.com/hes-support/common-forms/fixture-libs
Requests may take up to 14 days to complete
Specifications and documentation subject to change without notice.
