KL CORE IP

Name: KL CORE IP
Brand: Elation
SKU: KLC102
Availability: InStock

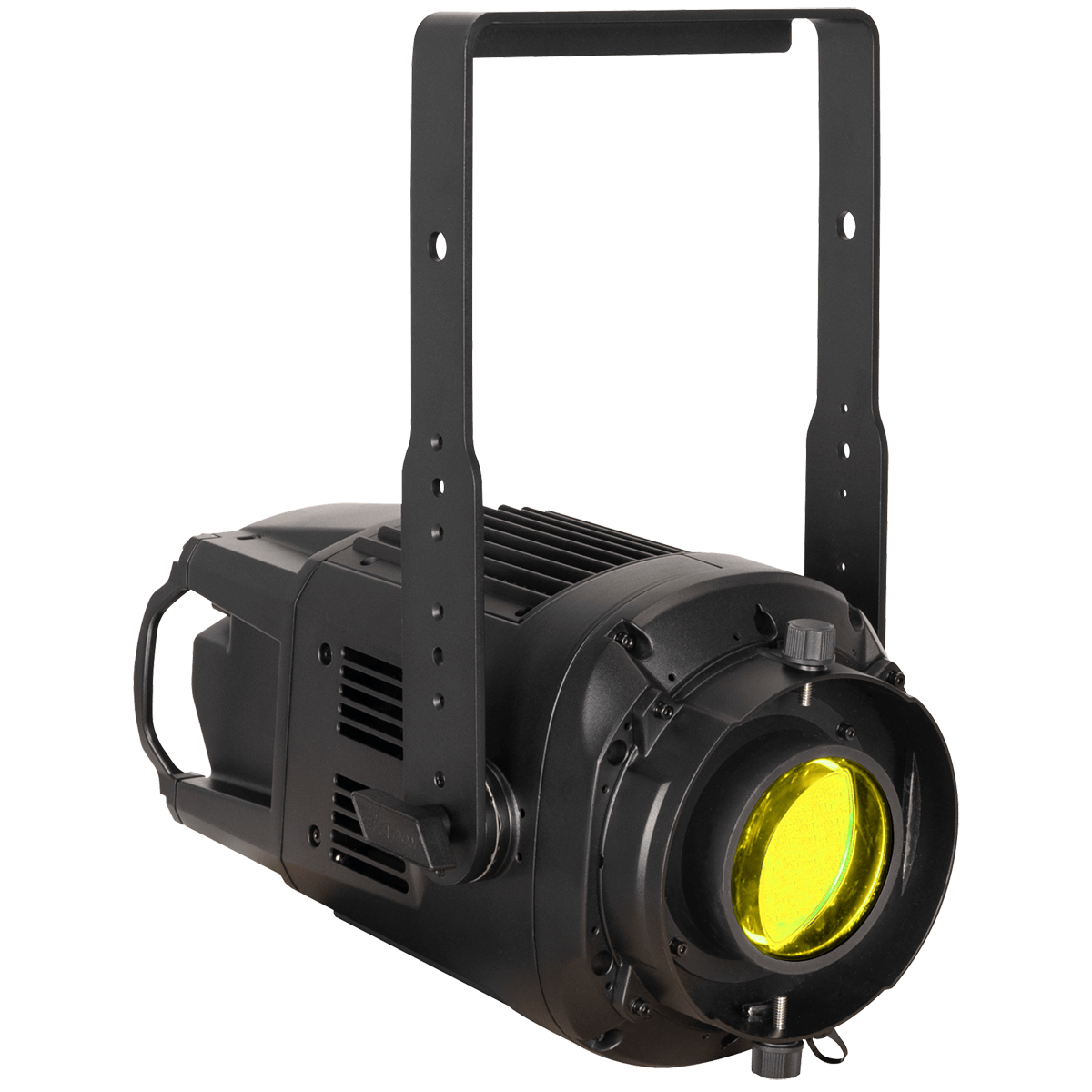

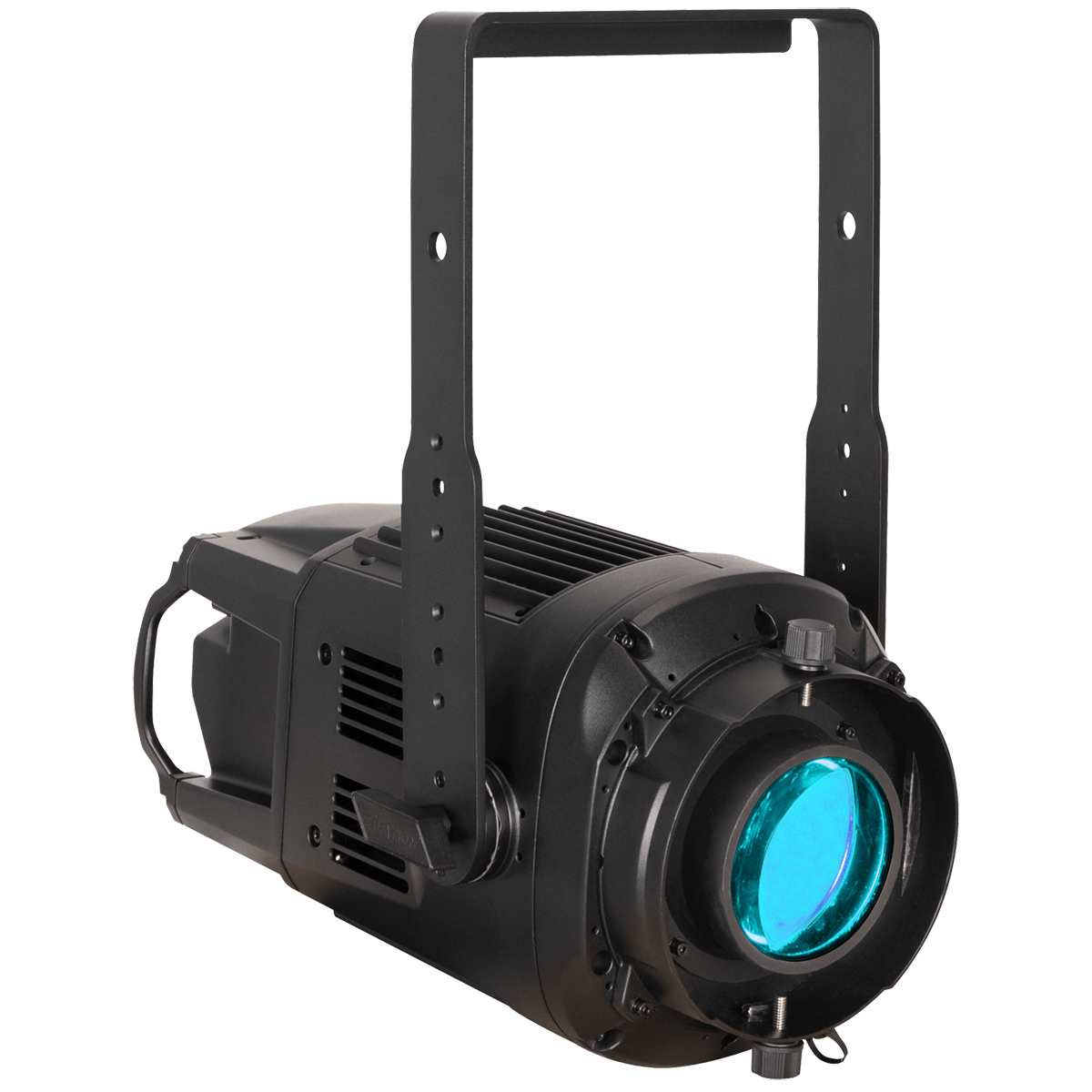

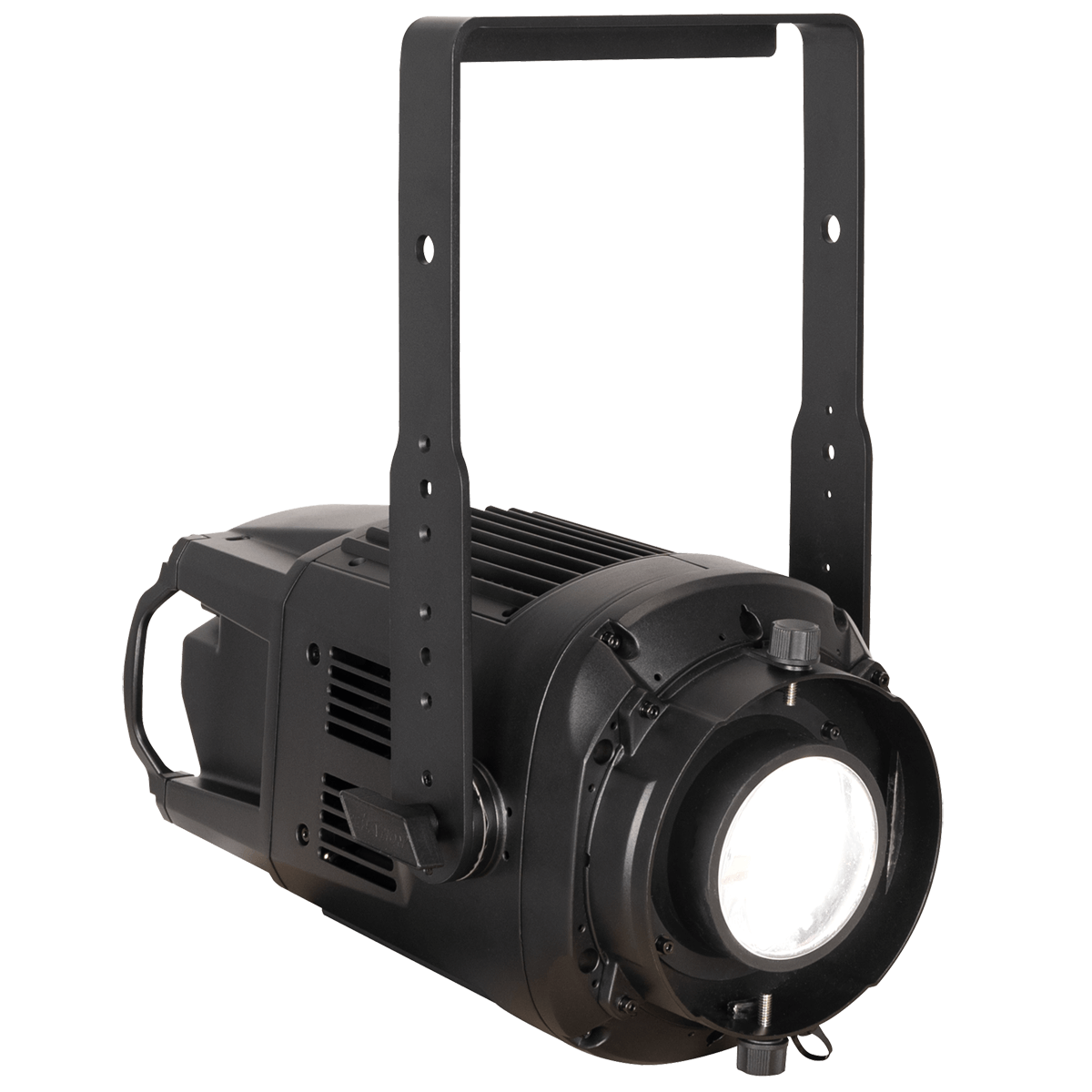

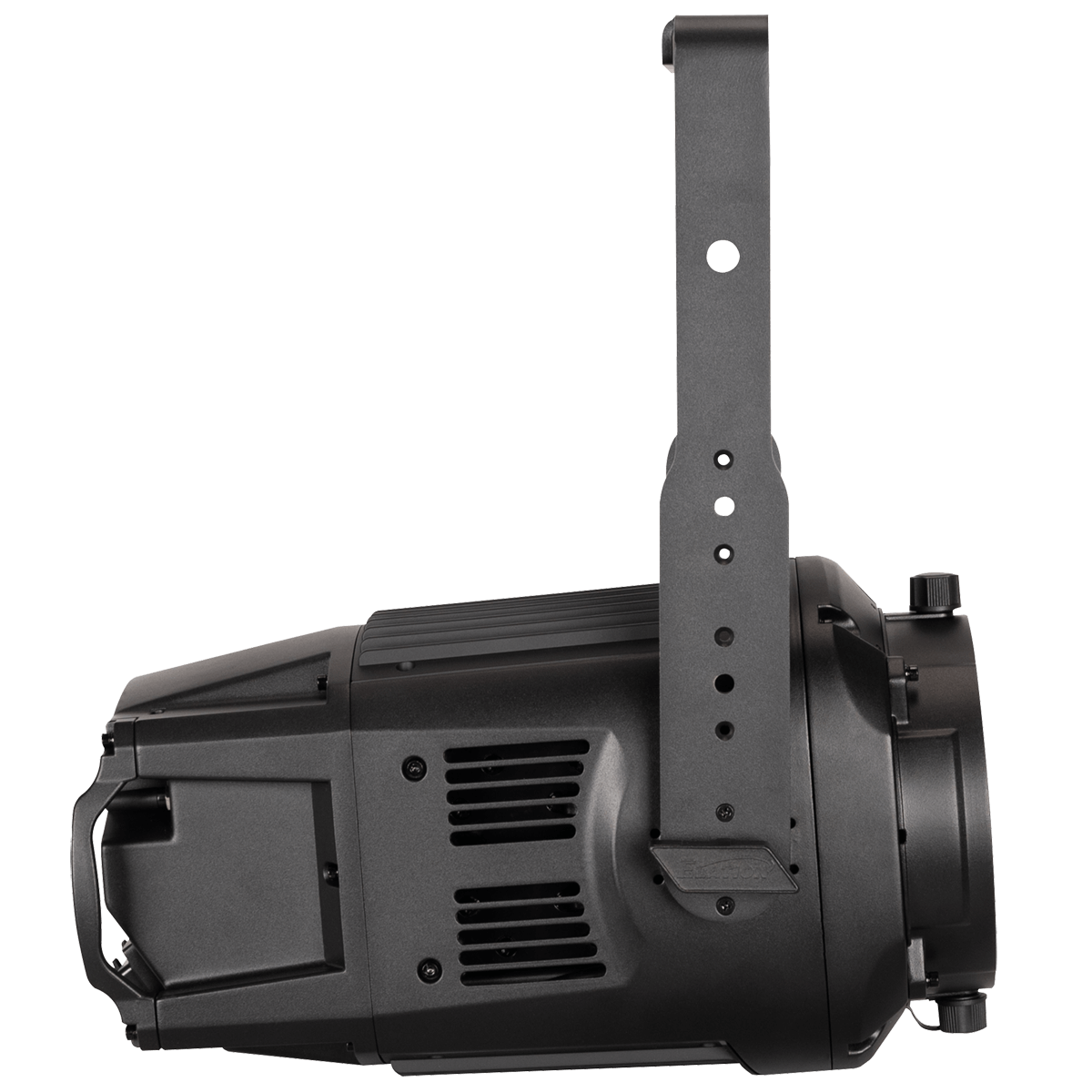

The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output.

UPC: 810008265352

SKU: KLC102

Use With

KL CORE IP SHUTTER BARREL

Replaced By

Related Products

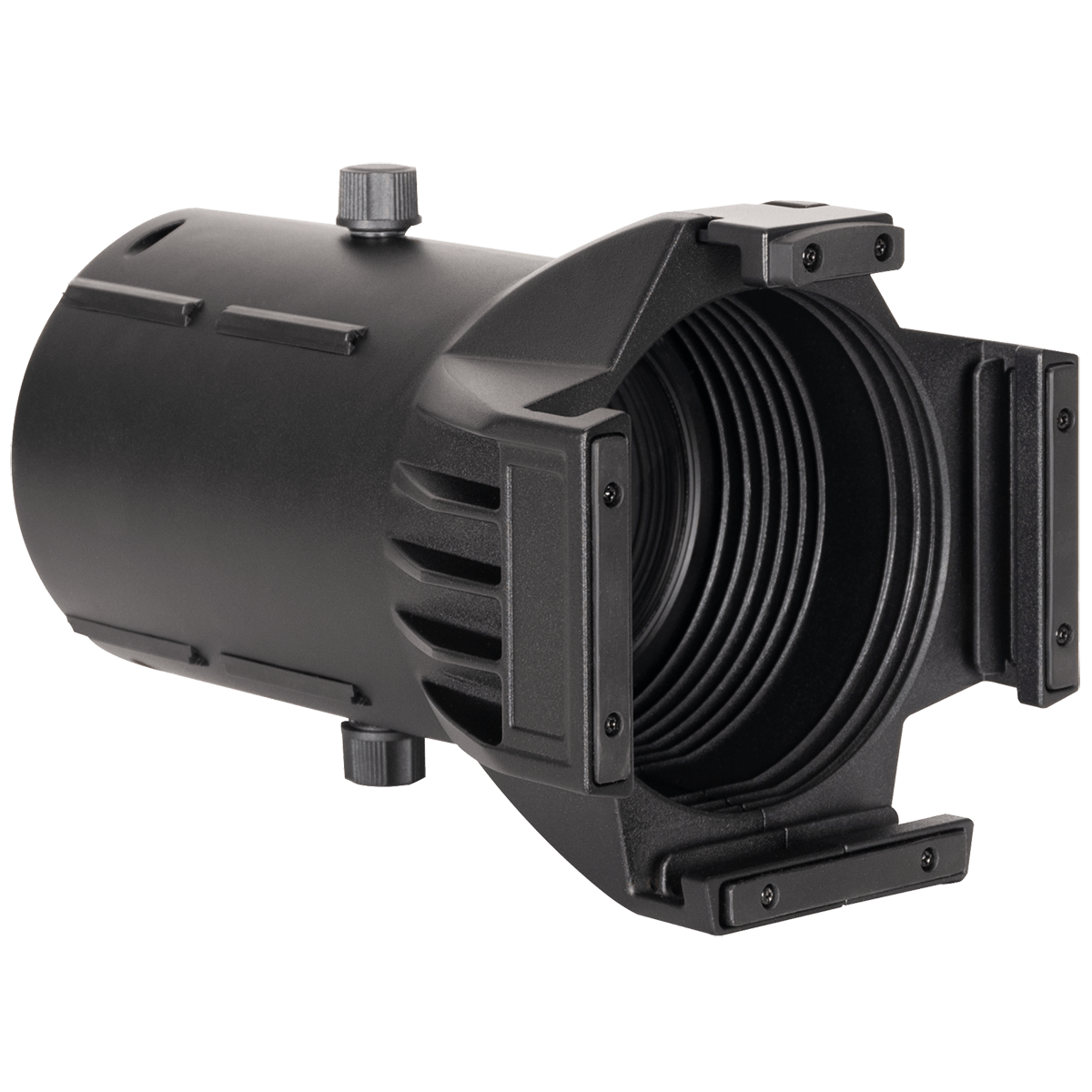

26 DEGREE IP LENS TUBE

36 DEGREE IP LENS TUBE

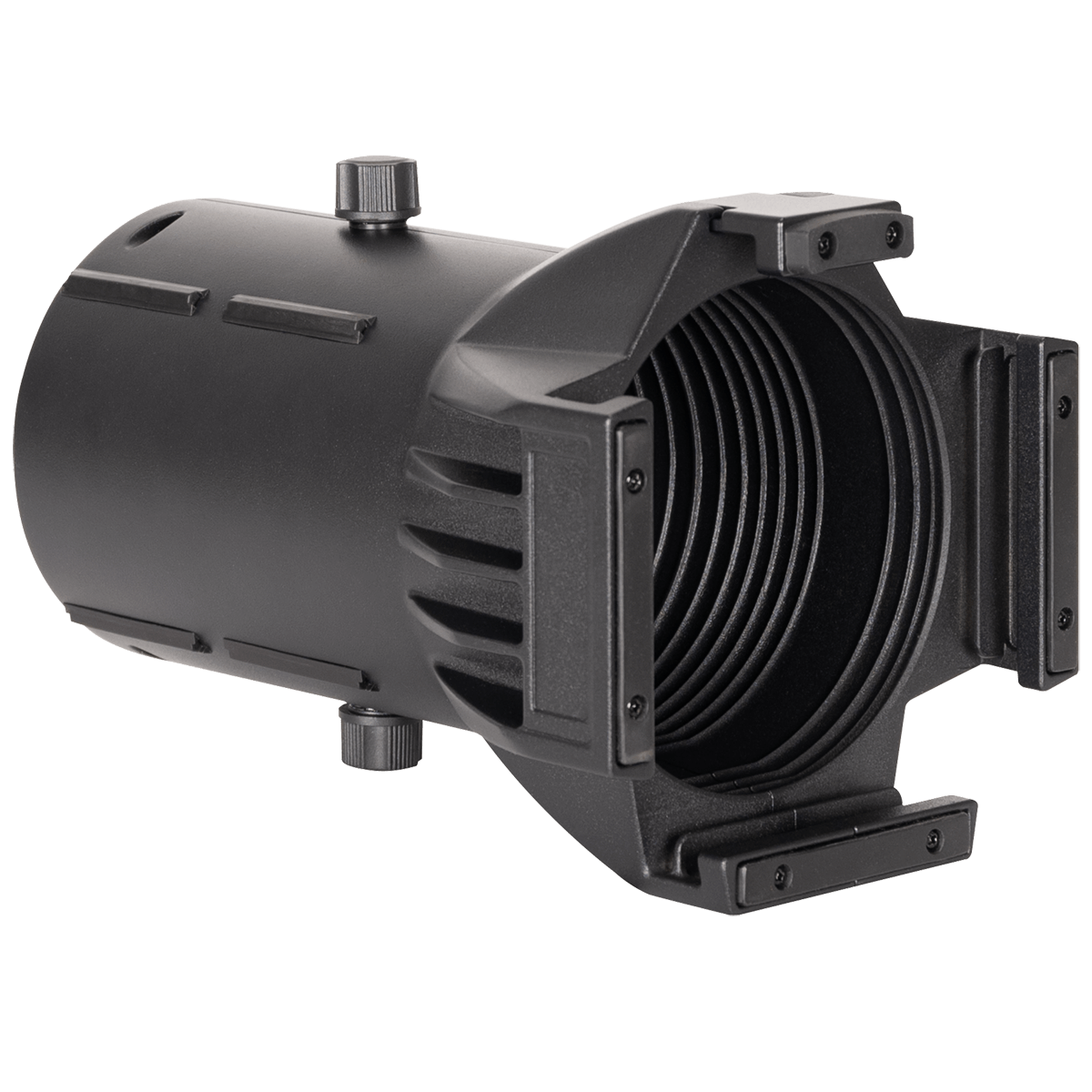

50 DEGREE IP LENS TUBE

KL CORE IP SHUTTER BARREL

KL CORE IP BOWENS MOUNT

KL CORE IP FRESNEL LENS

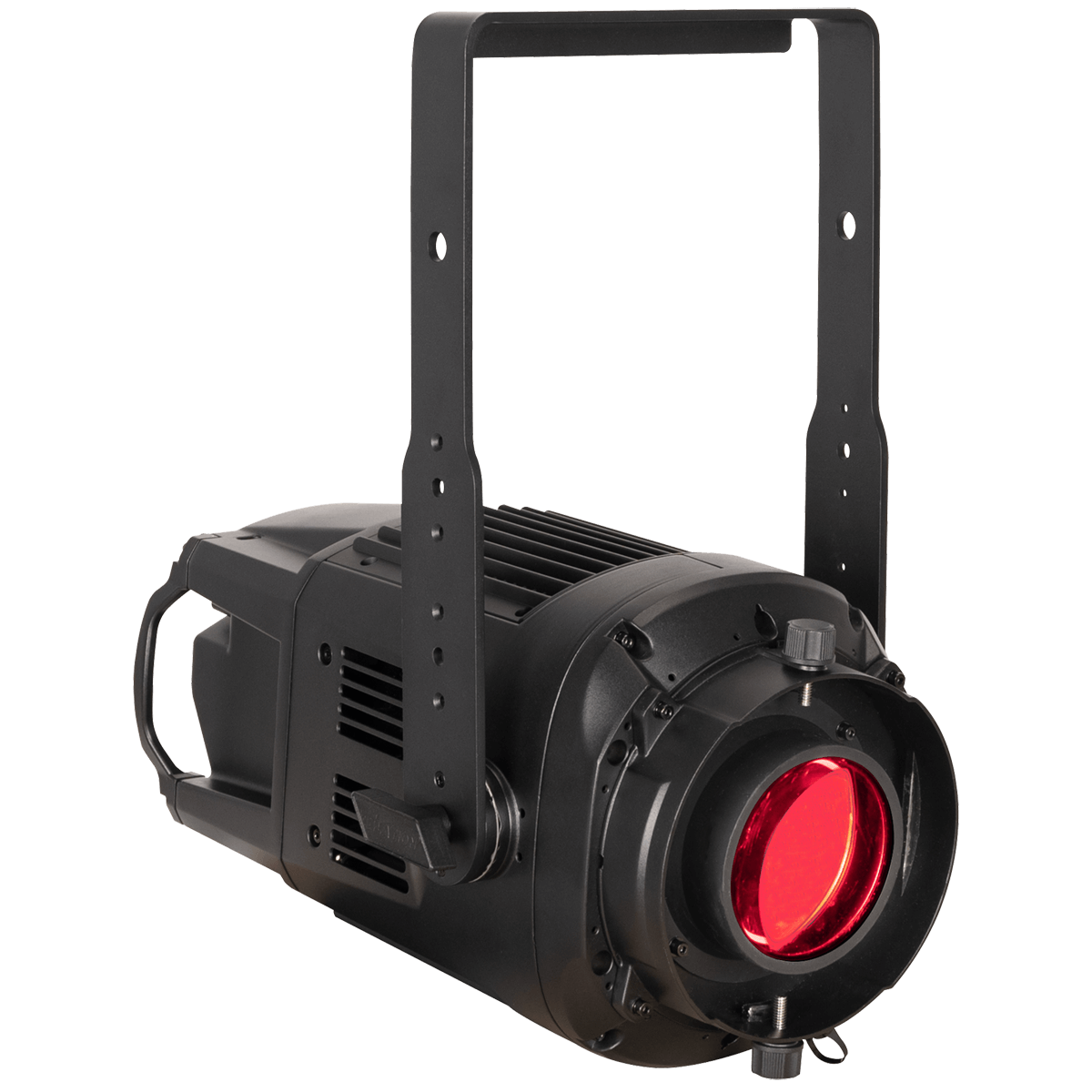

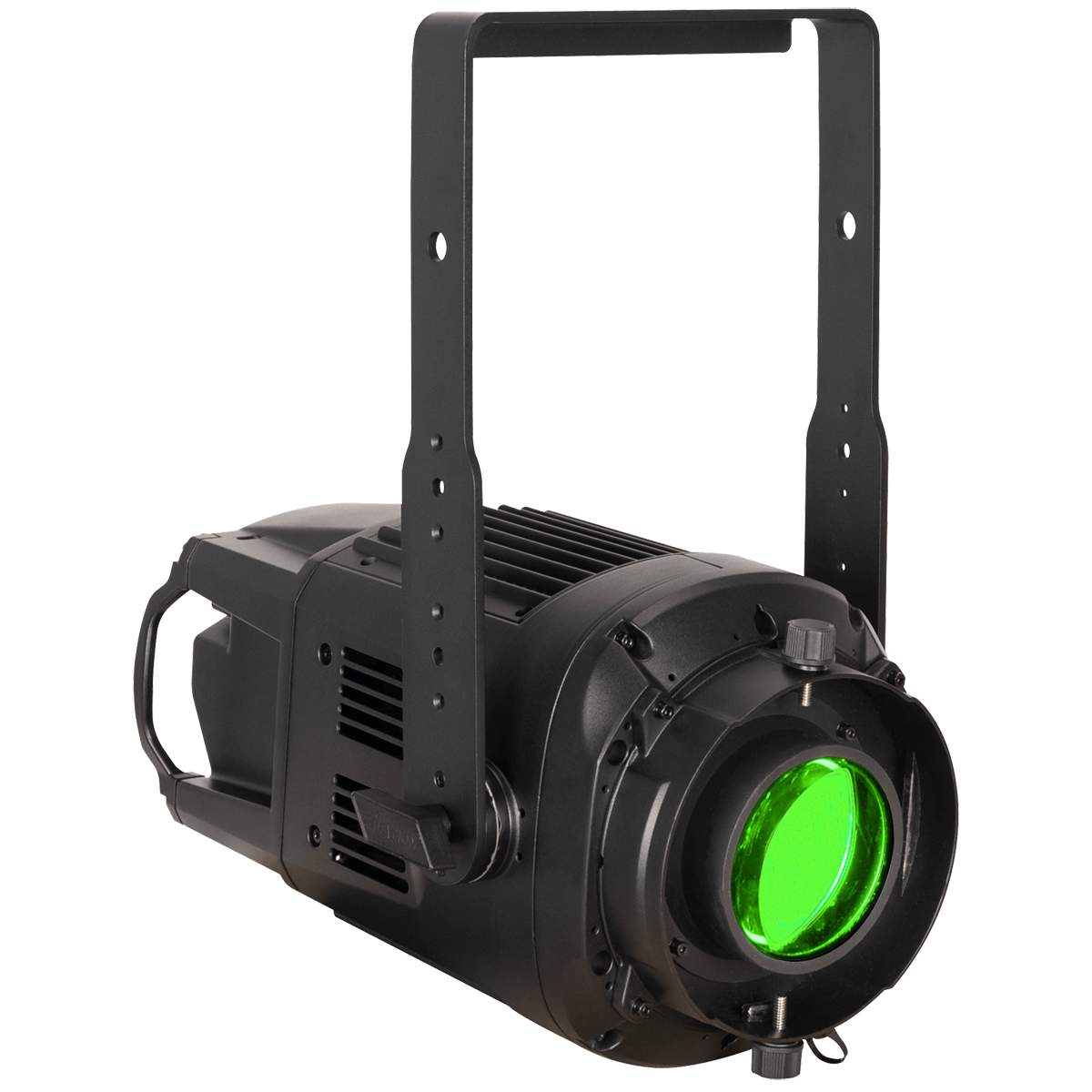

KL CORE IP

The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output.

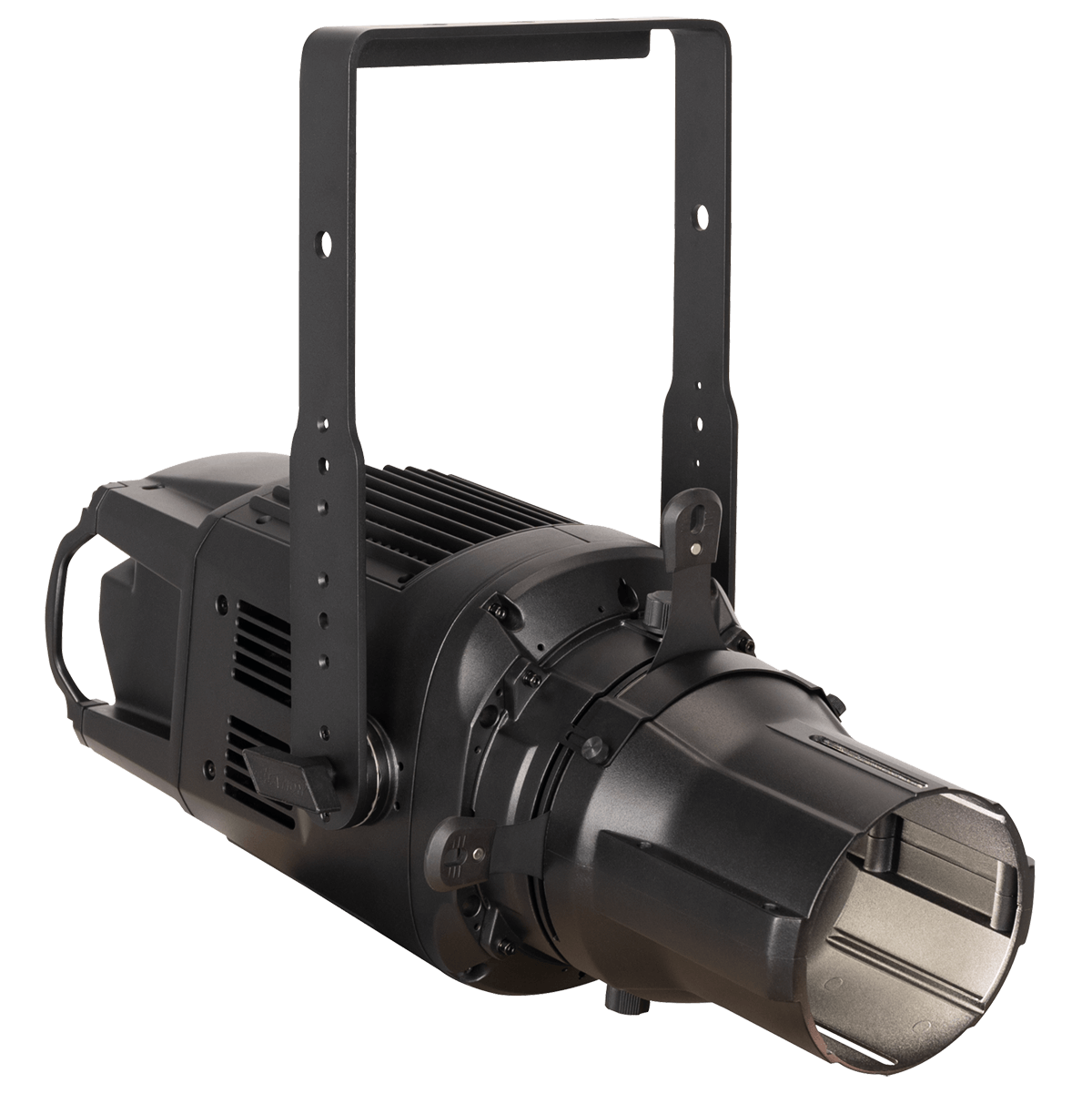

The KL CORE IP’s fully homogenized light source makes it incredibly adaptable. For ellipsoidal applications, the fixture can be paired with an optional KL CORE IP Shutter Barrel and used with any of the IP67-sealed lens tubes, functioning as a traditional LED ellipsoidal. The design is also compatible with most 3rd party shutter barrel assemblies, allowing seamless integration with existing setups. Further expanding its flexibility, the optional KL CORE IP Fresnel Lens transforms the fixture into a zoomable Fresnel, while the optional KL CORE IP Bowens Mount allows it to function as a monolight or lamp head for use with softboxes, lanterns, open-face reflectors, or other beam modifiers, making it ideal for TV/film and broadcast applications.

The KL CORE IPe offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency. The integrated touch bar encoder allows the device to be easily controlled in stand-alone applications, and the Aria x2 wireless device management integration also offers additional control options. Configuration is made simple with the use of onboard NFC.

While the IP65-rating of the KL CORE IP keeps it safe in the harshest outdoor environments, it also ensures the device will work well for any indoor application too- helping to keep the fixture cleaner and dust free over long periods of time.

With its exceptional light quality, robust design, and unmatched flexibility, the KL CORE IP is the ultimate fixture for professionals who need a high-performance solution that adapts to a wide range of lighting requirements.

400W RGBMA LED Engine

15,588 Total Fixture Lumen Output (Sphere)
Accepts 3rd Party Ellipsoidal Shutter Barrels

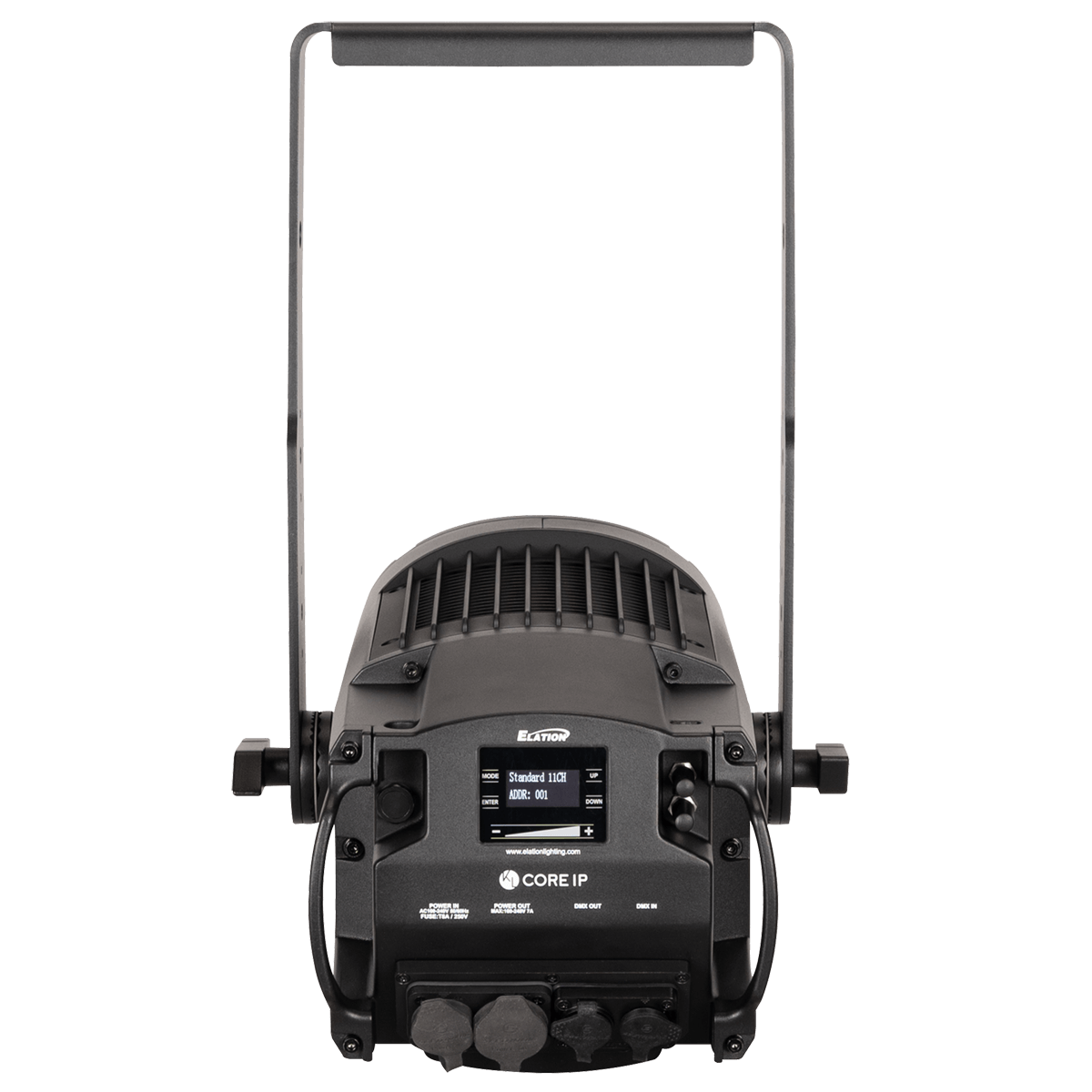

Stand-Alone Control with Touch Encoder and OLED Display
Direct Connection & Control for optional IP65 Gobo Rotator
NFC & Aria x2 Wireless Device Management
IP65 Rated

Specifications

SOURCE

400W 6,000K RGBMA LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA
Total Lumen Output:
15,588 (Integrating Sphere)

CRI 94.9
TLCI 95

EFFECTS

Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves

COLOR

High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

9 DMX Channel Modes (1, 4, 6, 10, 11 19, 9, 15, 13)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
Integrated IP65 Gobo Rotator Connector and Control
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Engine Dimensions:

Length: 9.1” (230 mm)

Length (Yoke 0°): 18.5” (469.8 mm)

Width: 11.5" (292 mm)

Height (Fixture Body): 8.9" (227.5 mm)

Height (Yoke 90°): 18.5" (471 mm)

Weight: 22.0 lbs (10.0 kg)

Assembled Dimensions:

KL CORE w/ Shutter & 14° Lens

Weight: 32.6 lbs (14.8 kg)

KL CORE w/ Shutter & 19° or 26° Lens

Weight: 31.5 lbs (14.3 kg)

KL CORE w/ Shutter & 36° Lens

Weight: 30.9 lbs (14 kg)

KL CORE w/ Shutter & 50° Lens

Weight: 30 lbs (13.6 kg)

KL CORE w/ Shutter & 70° Lens

Weight: 33.3 lbs (15.1 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

520W Max Power Consumption

Power Thru Capacity: 7A (1 units @115V, 4 units @240V)

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 1773.2

INCLUDED ITEMS

Size 'B' Metal Gobo Holder
Safety Cable
IP65 Locking Power Cable

OPTIONAL ACCESSORIES

KL CORE IP Shutter Barrel (KLC113)
KL CORE IP Bowens Mount (KLC136)
KL CORE IP Fresnel Lens (KLC125)
KL CORE IP with Shutter Barrel Kit (KLC124)

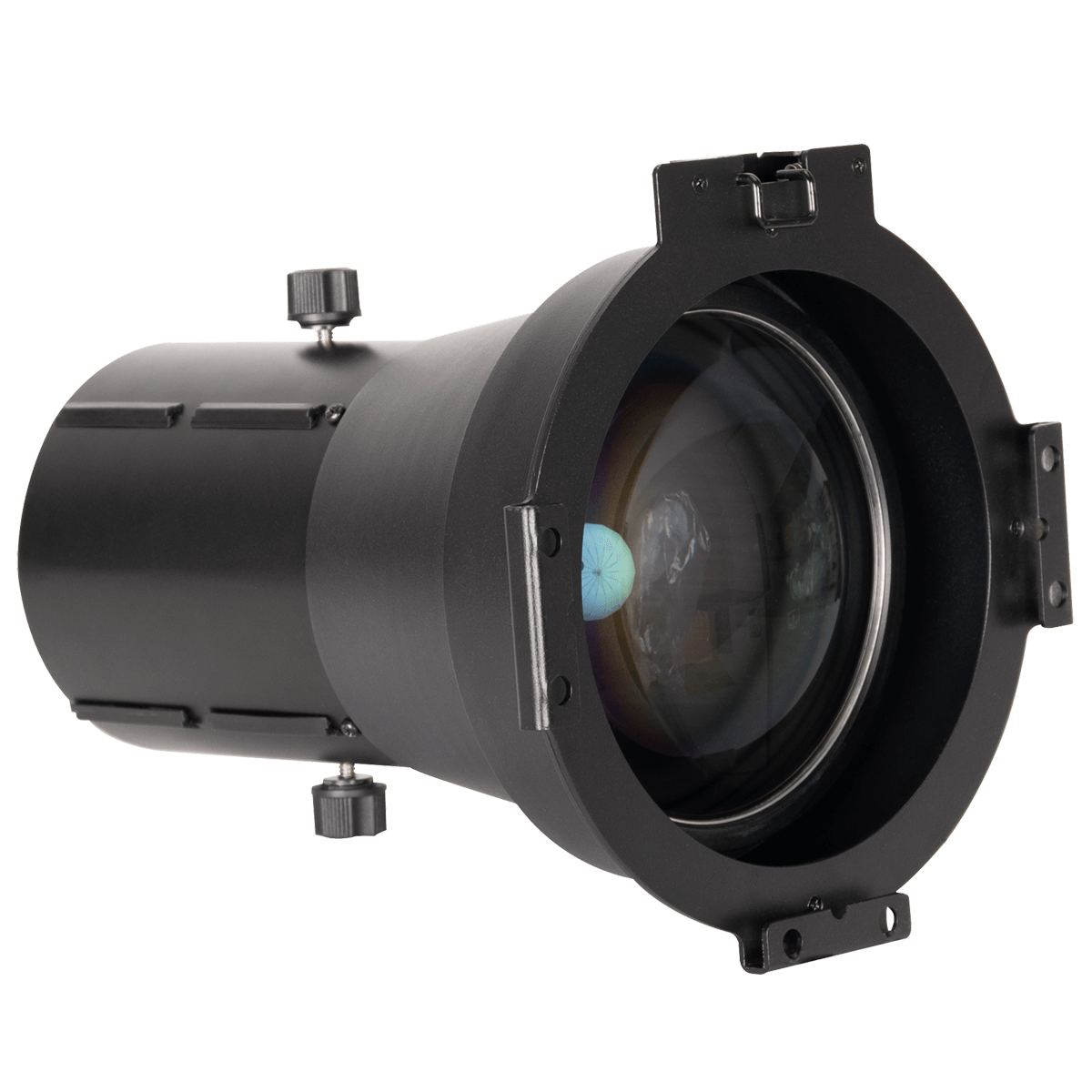

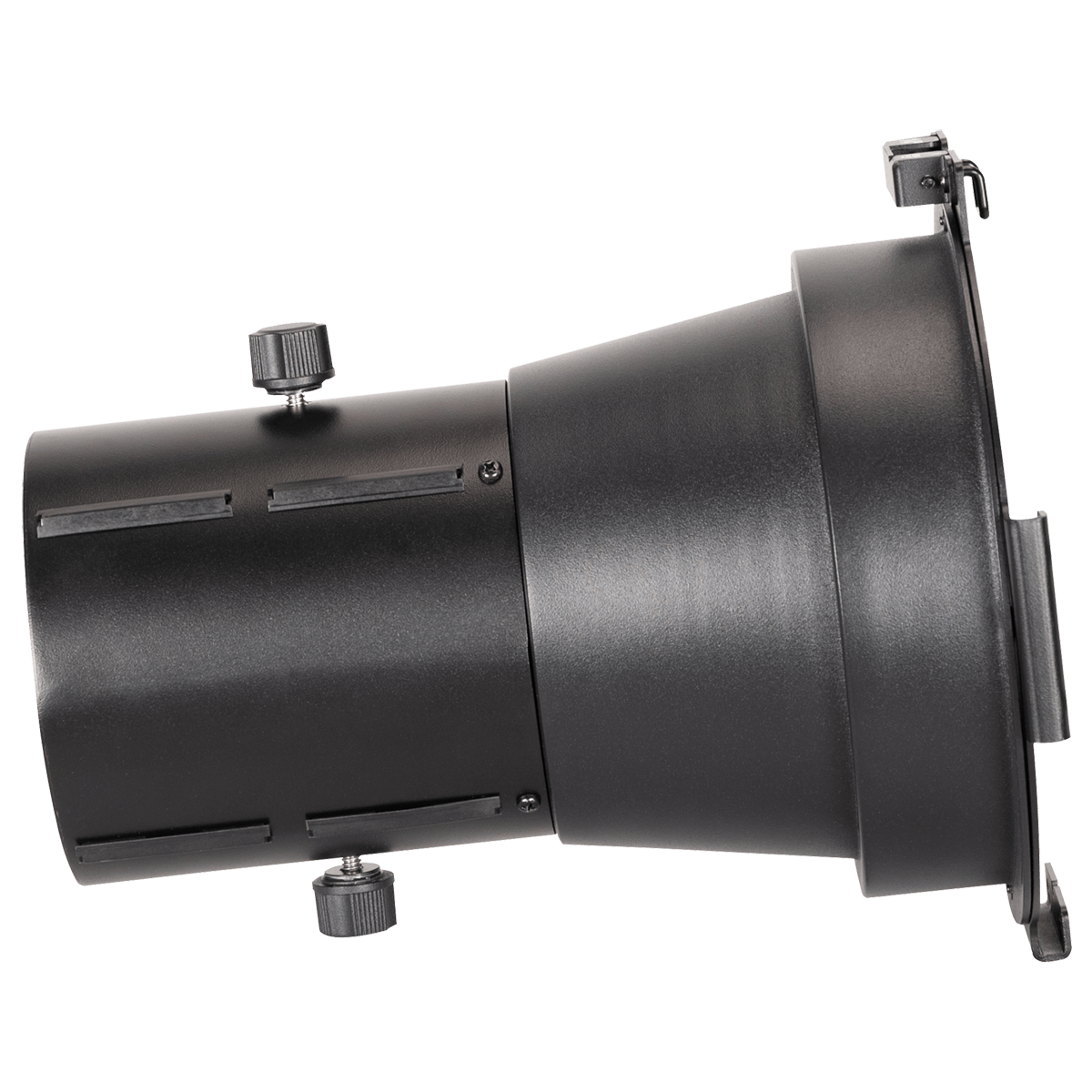

14deg IP Lens Tube (IPL014)

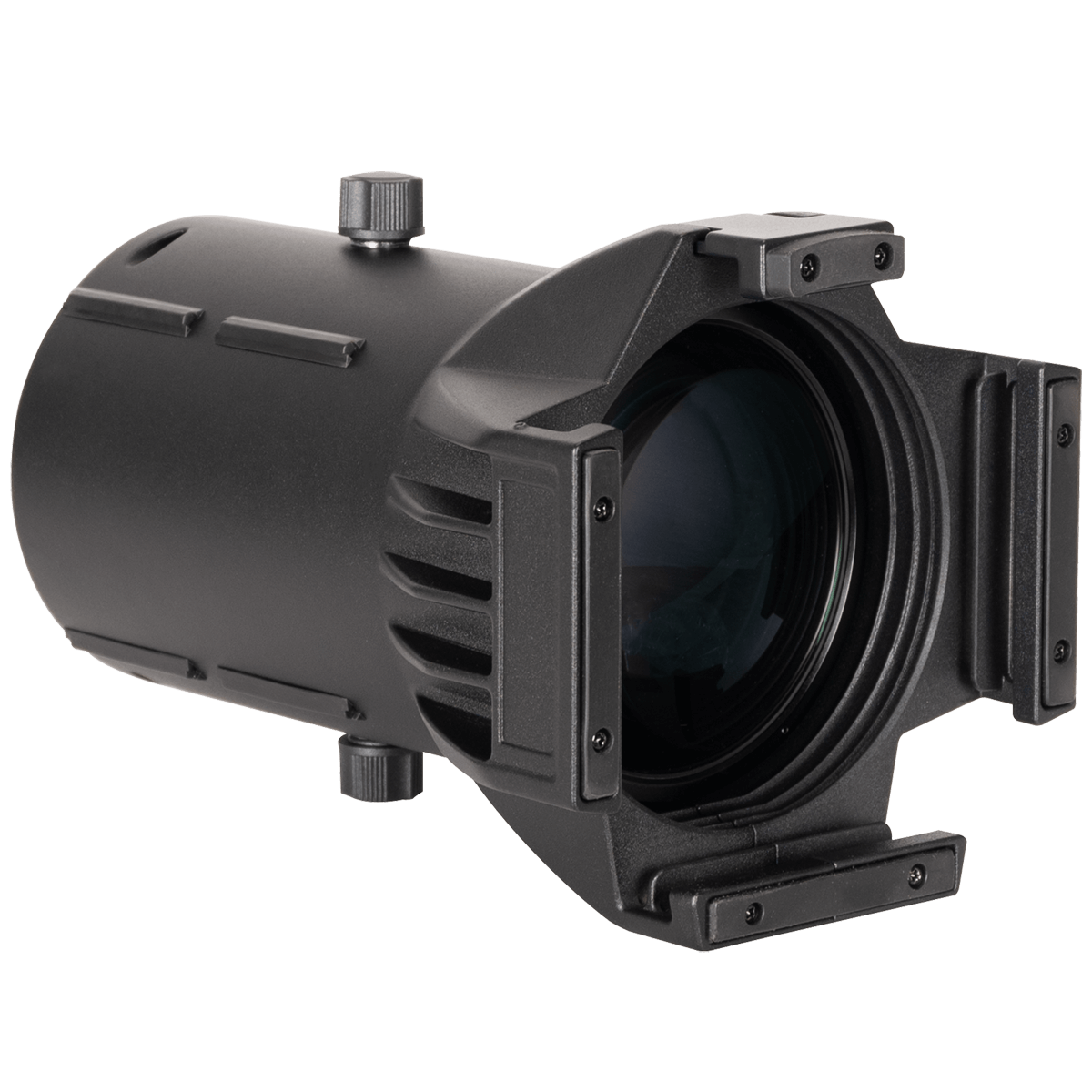

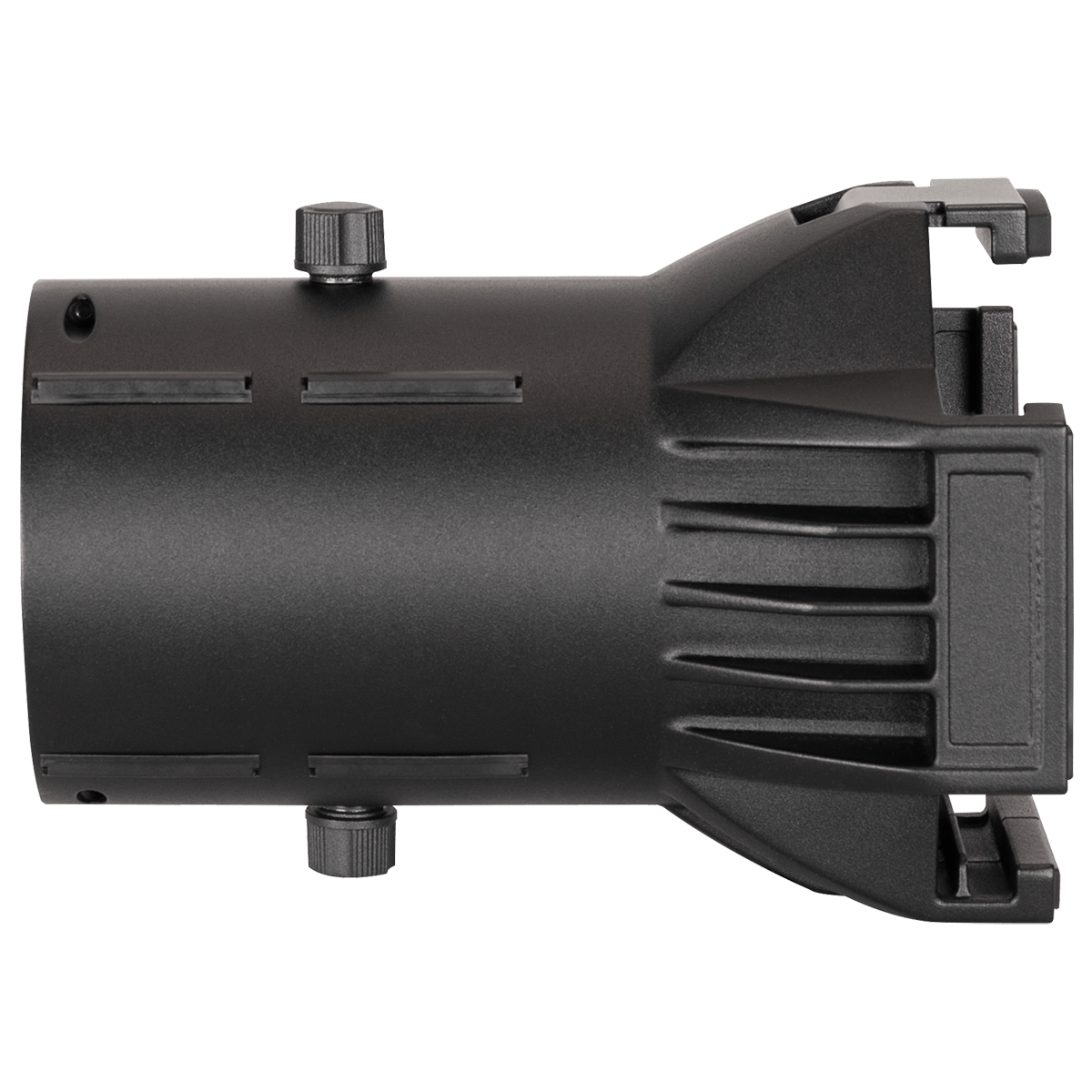

19deg IP Lens Tube (IPL119)

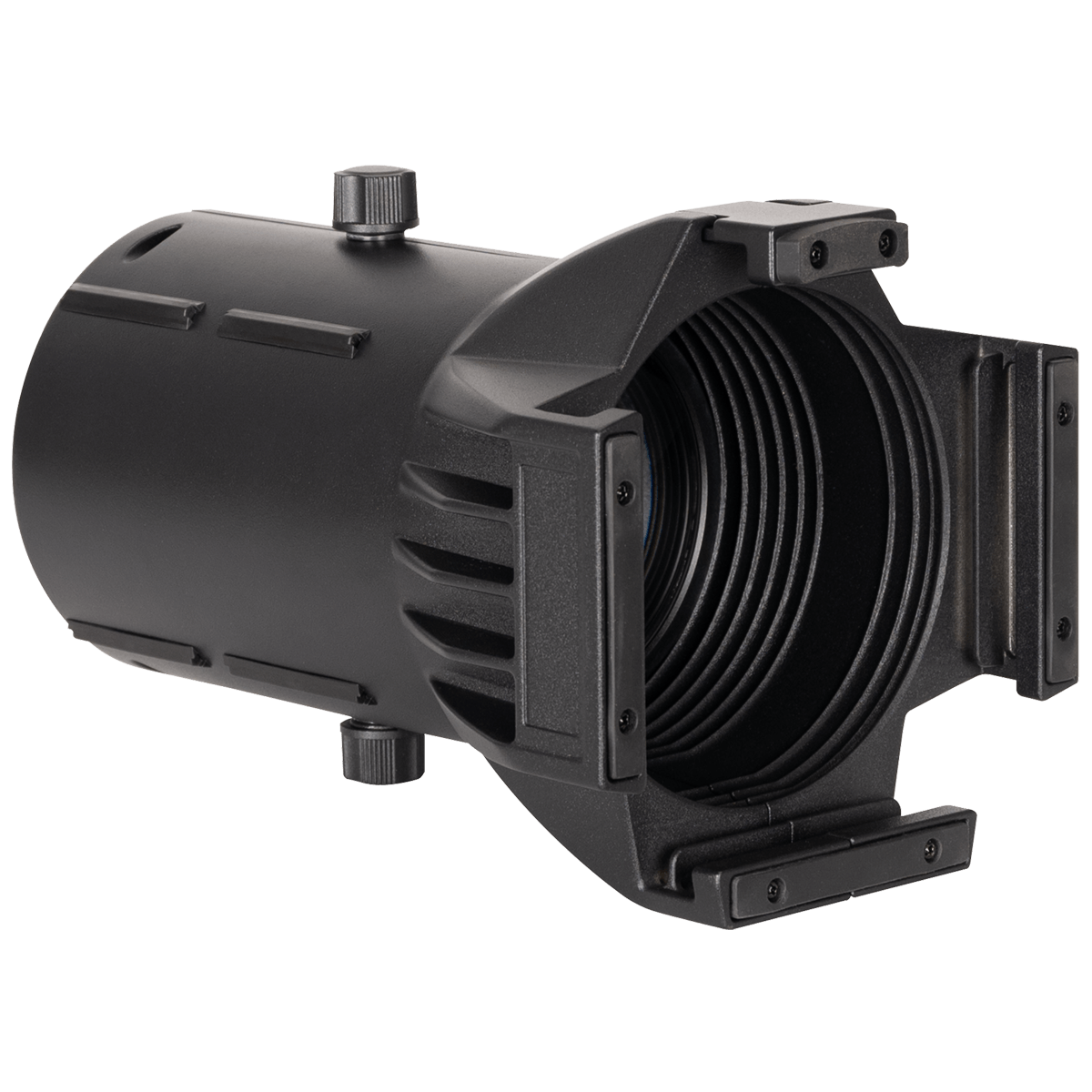

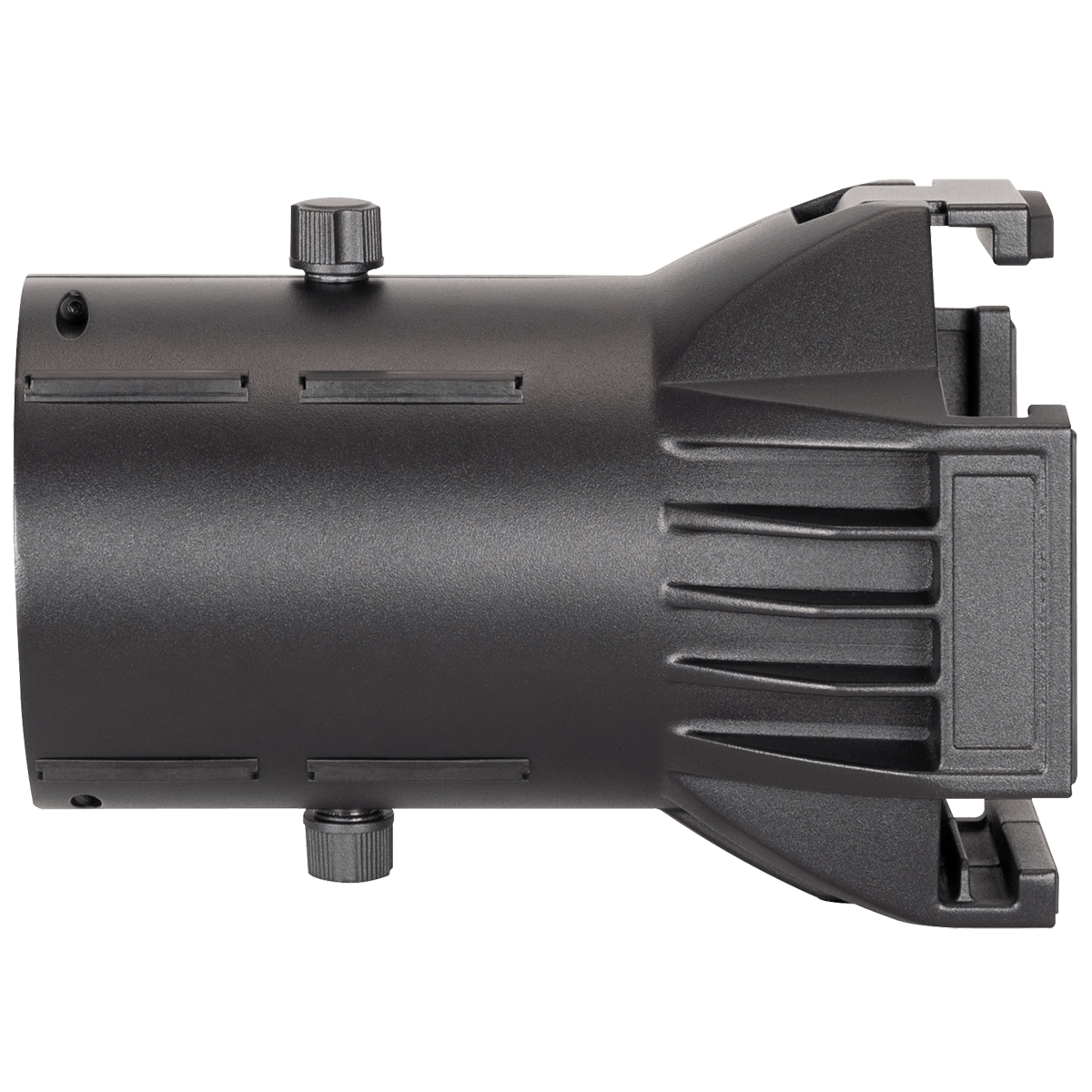

26deg IP Lens Tube (IPL226)

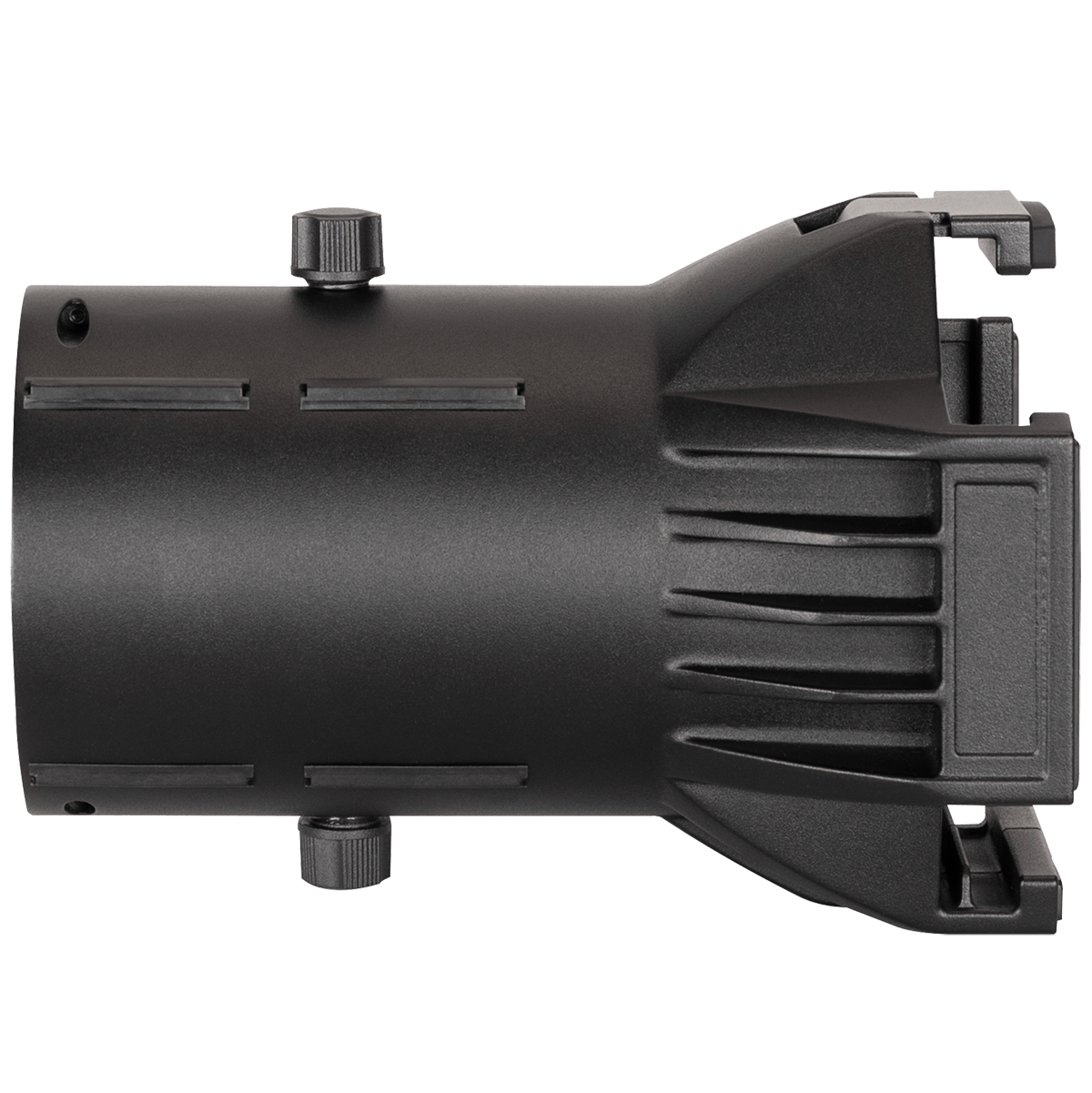

36deg IP Lens Tube (IPL336)
50deg IP Lens Tube (IPL450)
70deg IP Lens Tube (IPL570)
IP65 Gobo Rotator (IPGR01)
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)

APPROVALS / RATINGS

CE | cETLus | IP65 | FCC | UKCA

FIRMWARE UPDATES

Current Version: V1.01

Specifications and documentation are subject to change without notice.

Downloads

Cad drawing

Dimensional drawings

How do they compare?

Find the option that is right for you and your production.

KL CORE IP

KL PROFILE COMPACT

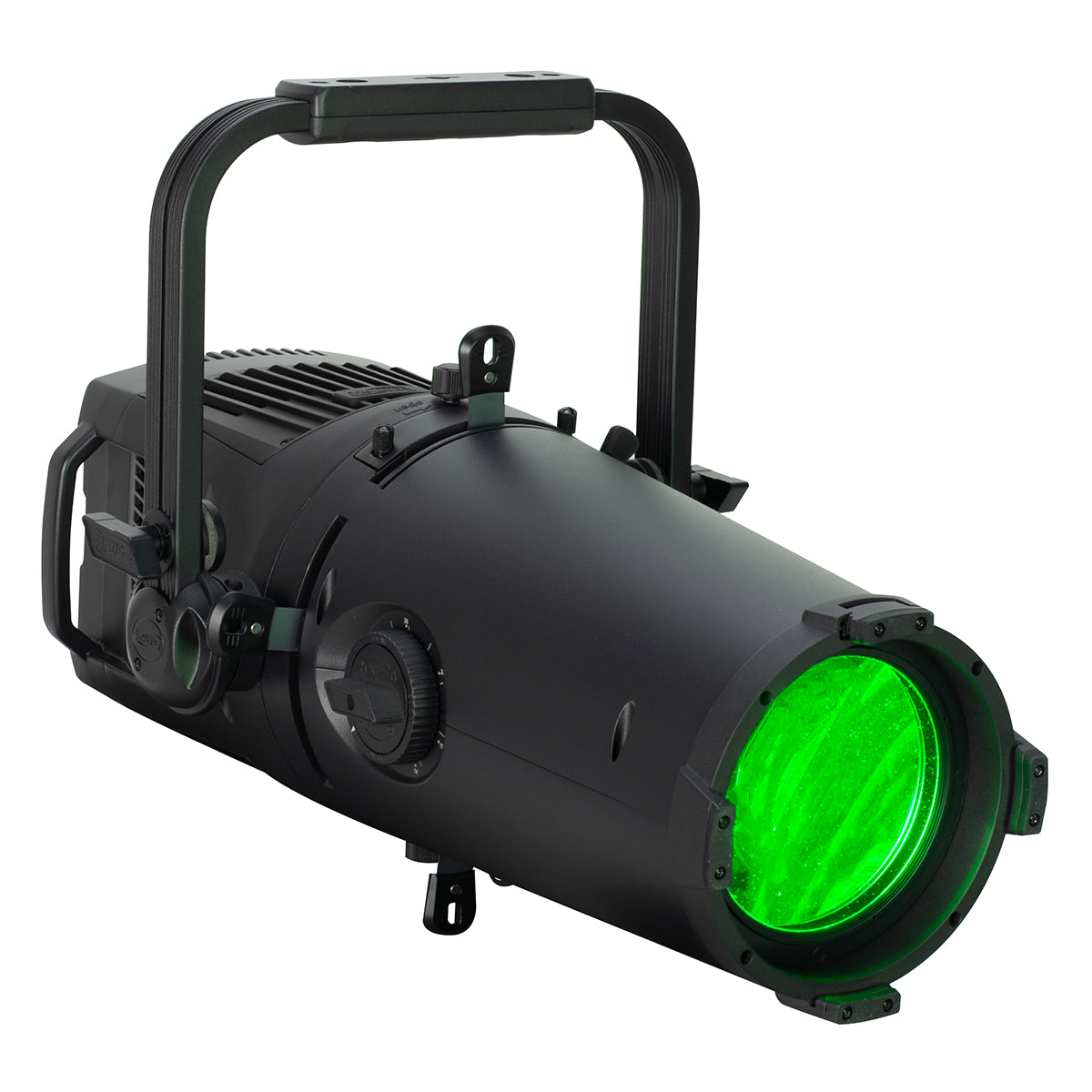

KL PROFILE FC

KL CORE IP

KL PROFILE COMPACT

KL PROFILE FC

Total Lumens

15588

5880

10000

Light Source Wattage

400

225

305

Color System

Red
Green
Blue
Mint
Amber

Red
Green
Blue
Mint
Amber

Red
Green
Blue
Mint
Amber

Framing

Optional

Yes

Yes

Zoom Range

—

25° - 50°

6° - 50°

Beam Angle

—

5.9° - 45.6°

IP Rating

65

20

Weight

22.0 lbs

15.4 lbs

32.5 lbs

MAX Power Consumption

520

290

358

Size (In Inches)

9.1 x 11.5 x 8.9

18.6 x 10.3 x 10.1

25.1 x 15.4 x 13.6

KL CORE IP

Use With

Replaced By

Related Products

Downloads

Cad drawing

Dimensional drawings

Dmx traits

Specification sheet

User manual

Generic

How do they compare?
