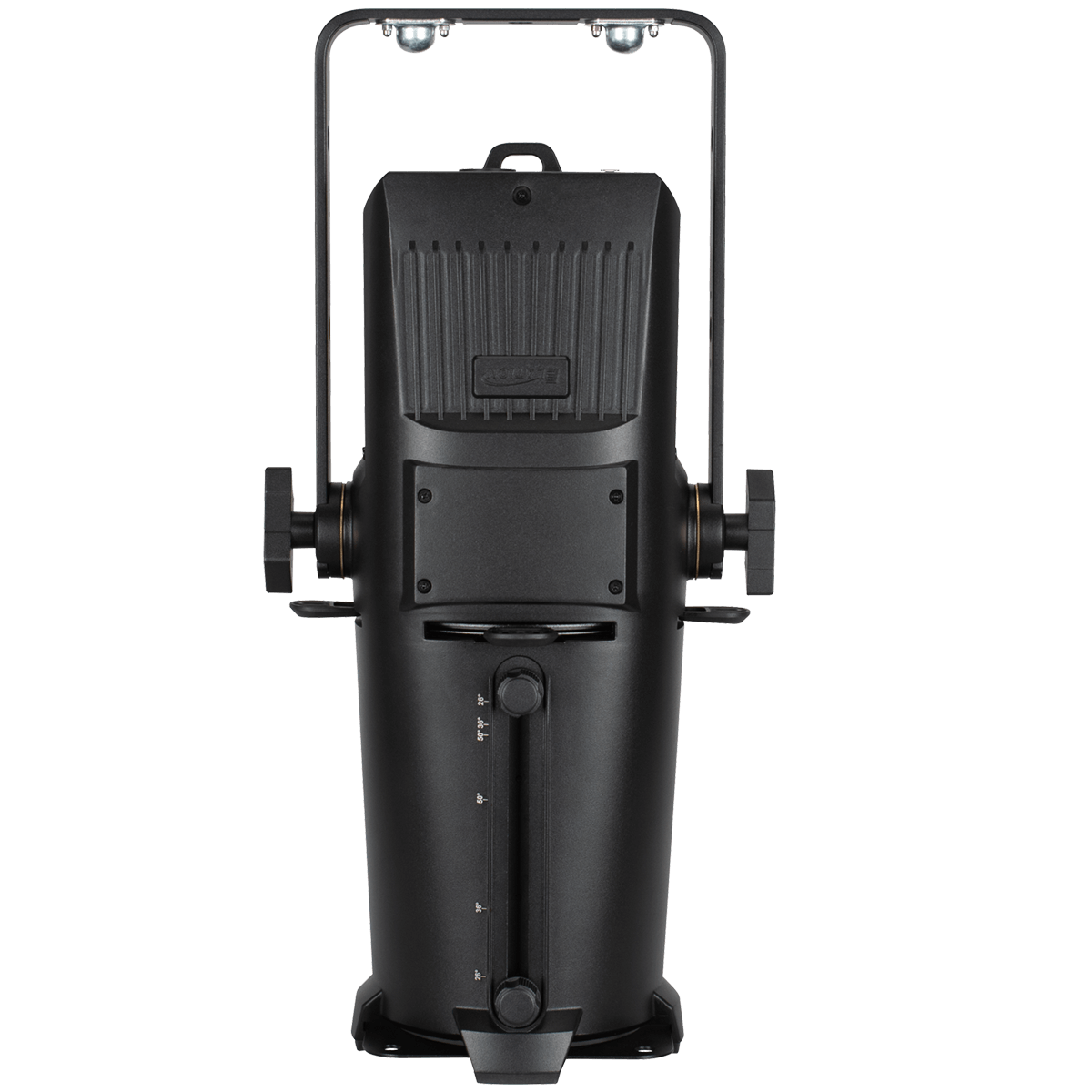

KL PROFILE COMPACT
225W Full Spectrum RGBMA LED Zooming Compact Ellipsoidal Fixture
KL PROFILE COMPACT is a professional-grade lighting solution. Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilizing a compact form factor that delivers exceptional results across diverse applications with vivid color and outstanding quality. Powered by Elation's ColourTune Technology and boasting a CRI of 94.9 and TLCI of 95., the fixture achieves superb color accuracy with 16-bit variable CCT control.
KL PROFILE COMPACT
Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilizing a compact form factor that delivers exceptional results across diverse applications with vivid color and outstanding quality.
It's advanced optical engineering, combined with integrated 25"“50-degree manual zoom and premium lens coatings, ensures sharp, flawless projections free from color shifts or aberrations, regardless of the zoom, focus, or framing position.
Powered by Elation's ColourTune Technology and boasting a CRI of 94.9 and TLCI of 95., the fixture achieves superb color accuracy with 16-bit variable CCT control. Coupled with the ultra-quiet Mute Mode for silent functionality, the KL PROFILE COMPACT redefines precision lighting for theaters, performance venues, and live events, allowing designers to perform brilliantly and broadcast their creative vision.
- 225W RGBMA LED Engine
- ColourTune Technology Software Integration
- 5,880 Total Fixture Lumen Output (Sphere)
- Stand-Alone Control with Touch Encoder and OLED Display
- Smooth 16-bit Selectable Dimming Modes and Curves
- Remote LED Refresh Rate and Fan Speed Adjustment
- Manual Zoom Range from 25° to 50°
- RDM (Remote Device Management)
- NFC & Aria x2 Wireless Device Management
Specifications
SOURCE
225W 6,000K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
5,880 (Integrating Sphere)
TBA (Goniometer)
CRI 94.9
TLCI 95
Zoom Range 25° - 50°
EFFECTS
Manual Zoom Focus

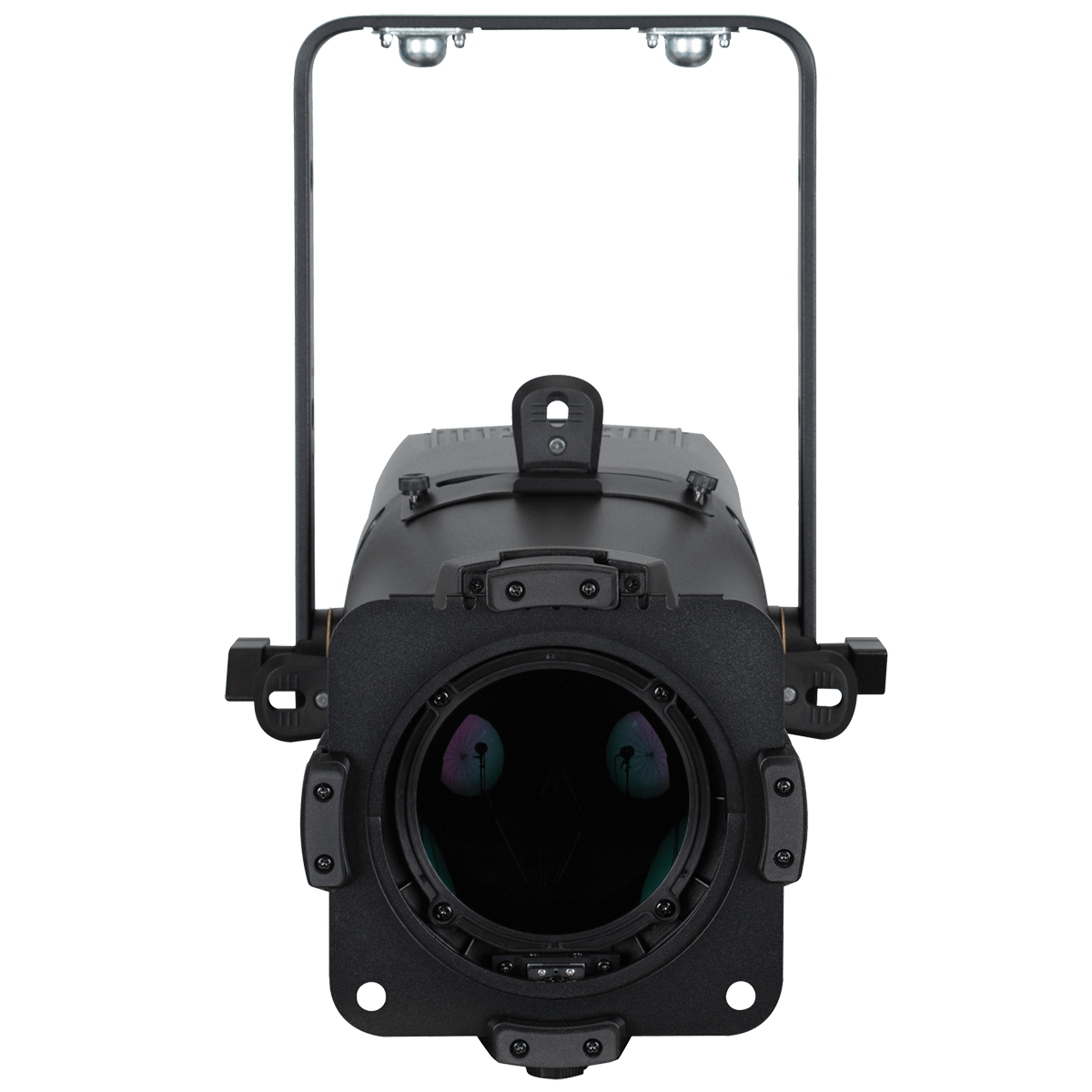

4 Manual Framing Shutters
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
COLOR
ColourTune Technology Software
High Brightness and High Fidelity Output Options

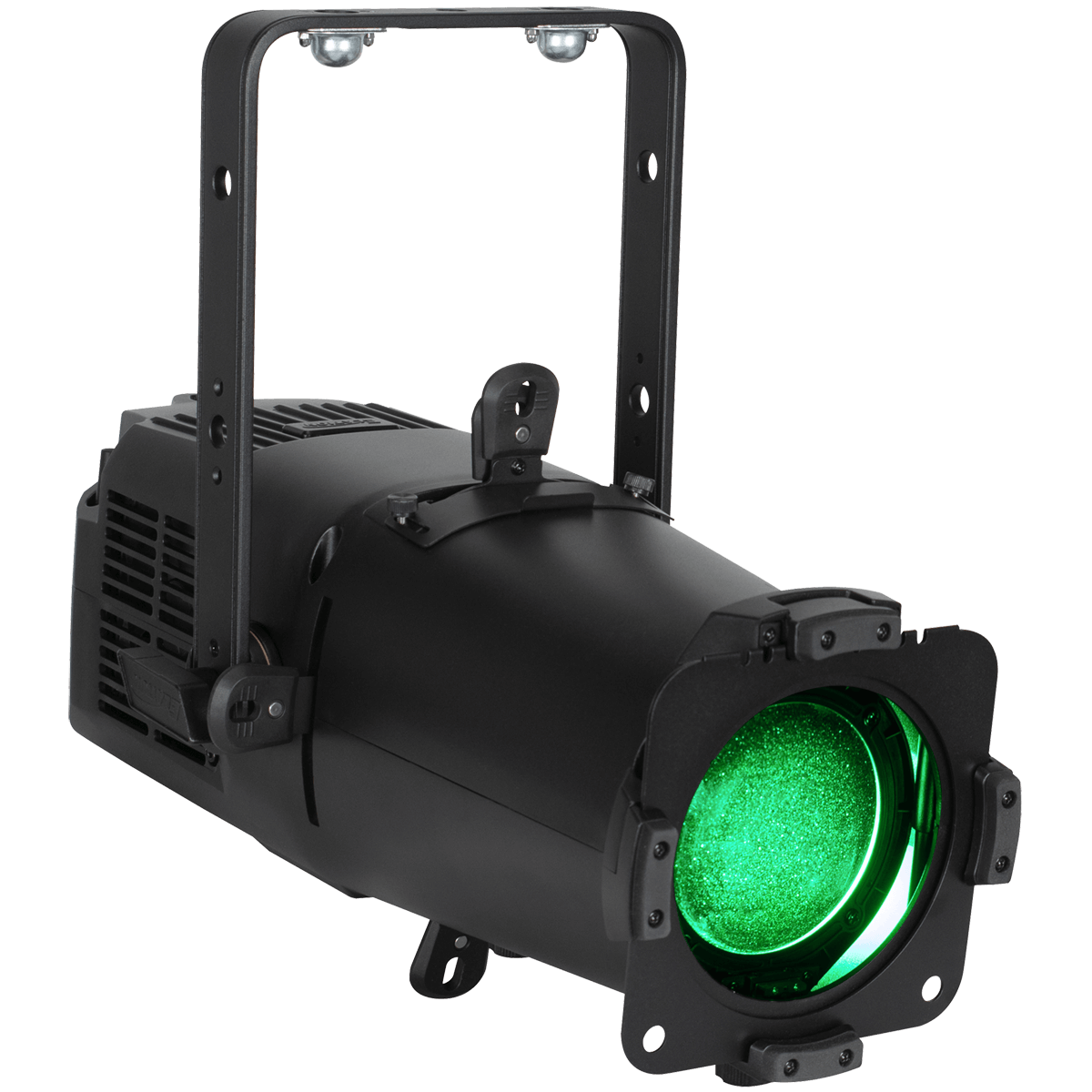

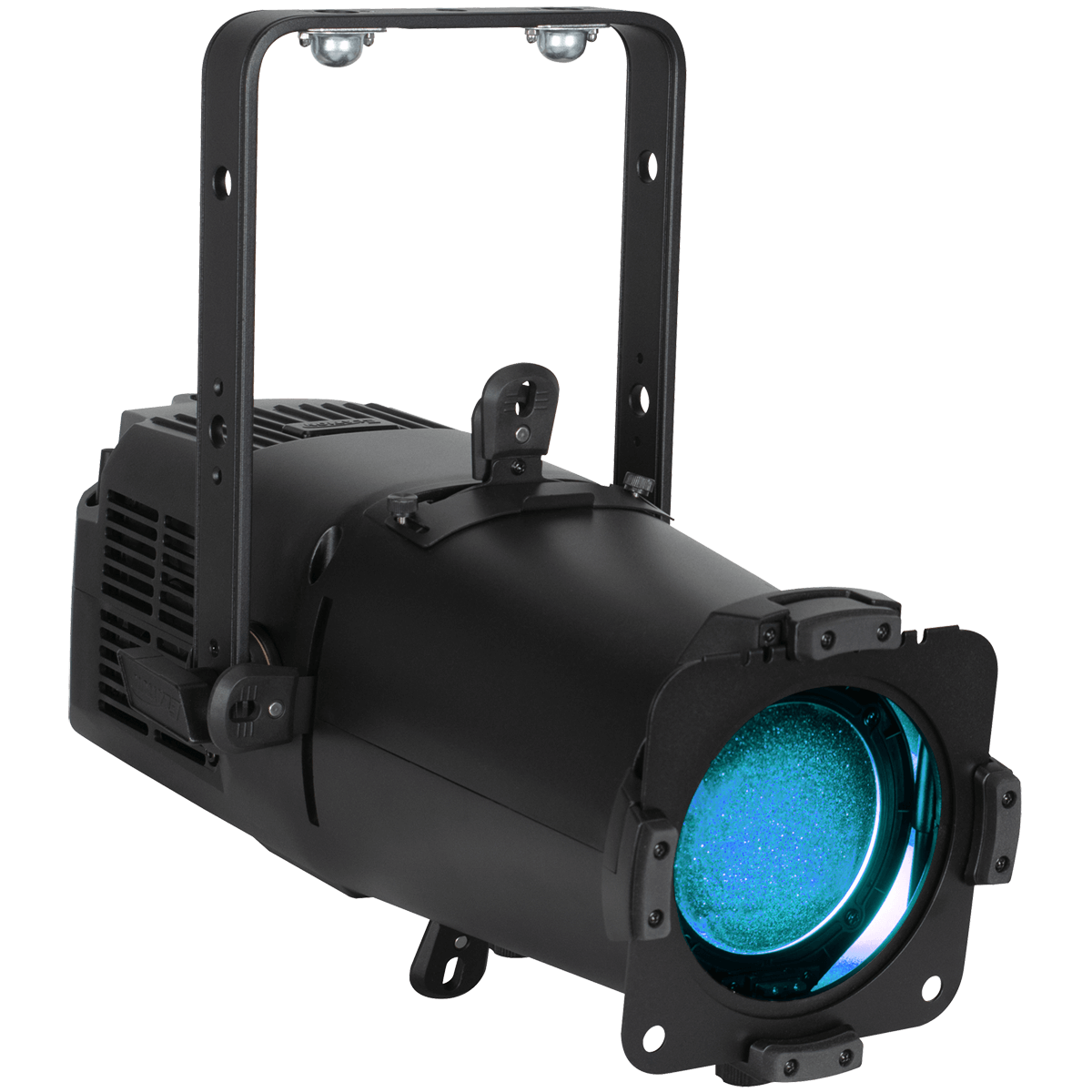

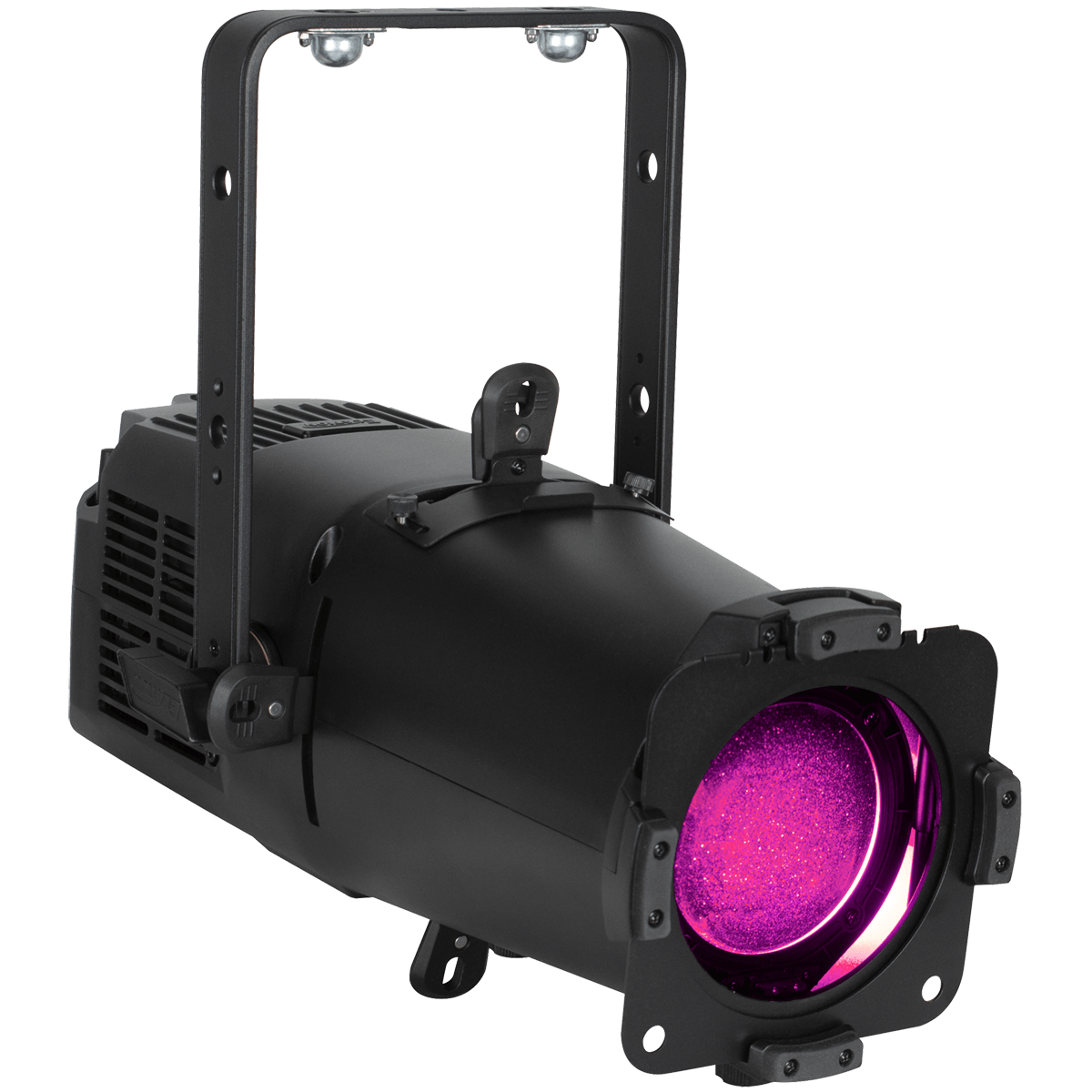

RGBMA Color Array
CMY Emulation

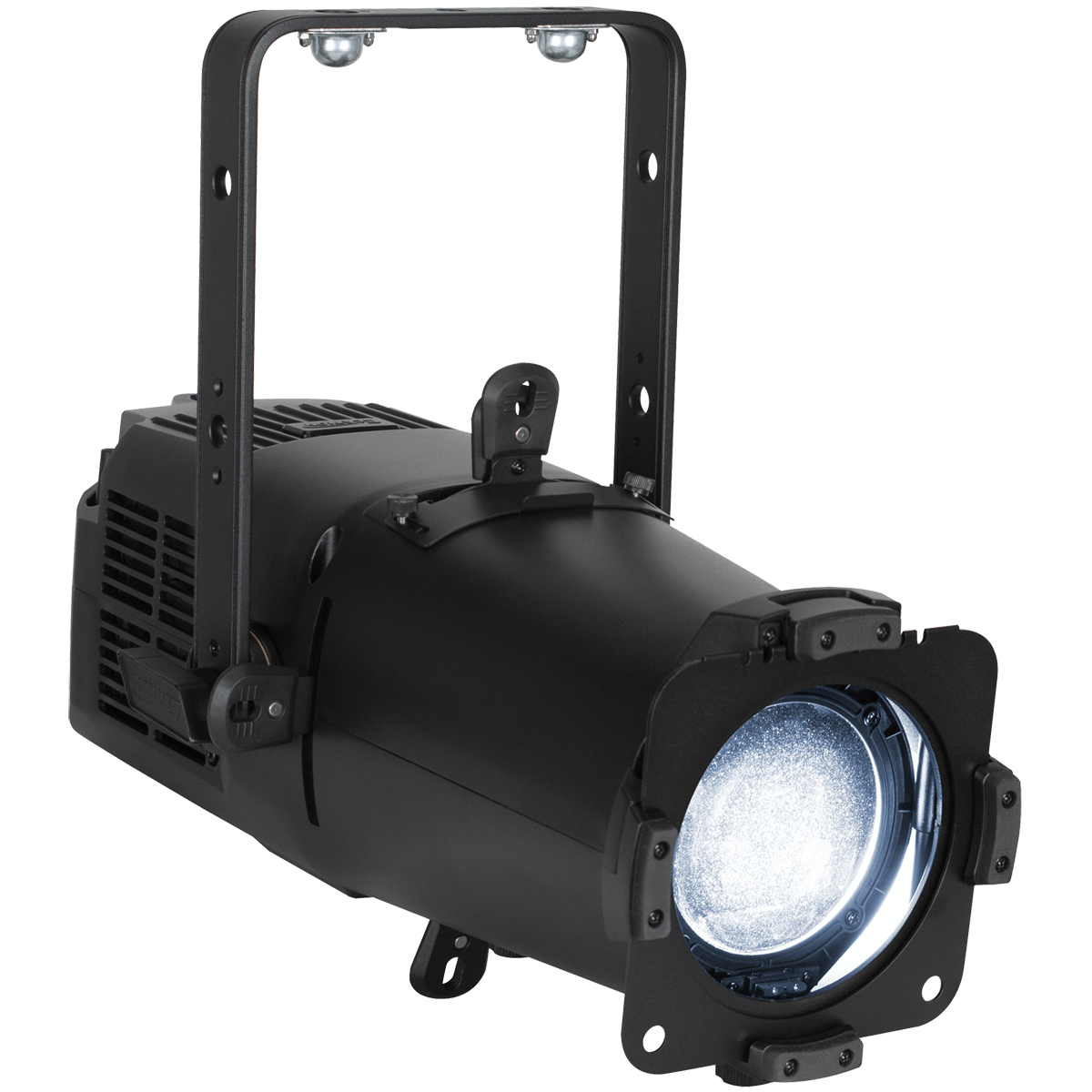

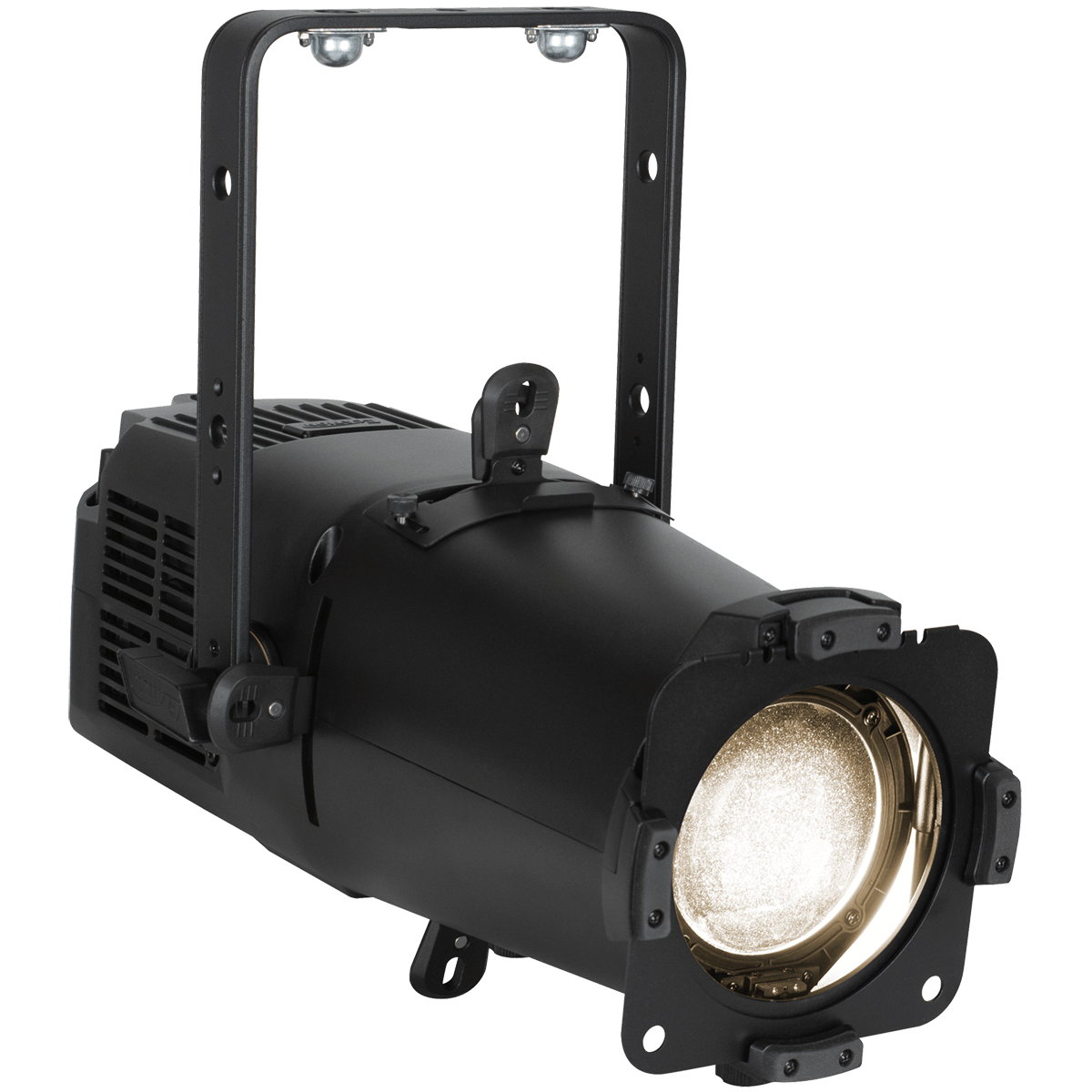

16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
Accepts 1x Size 'M' Gobo (Metal Gobo Holder Included)
CONTROL / CONNECTIONS
10 DMX Channel Modes (1, 3, 5, 6, 7, 10, 11 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder

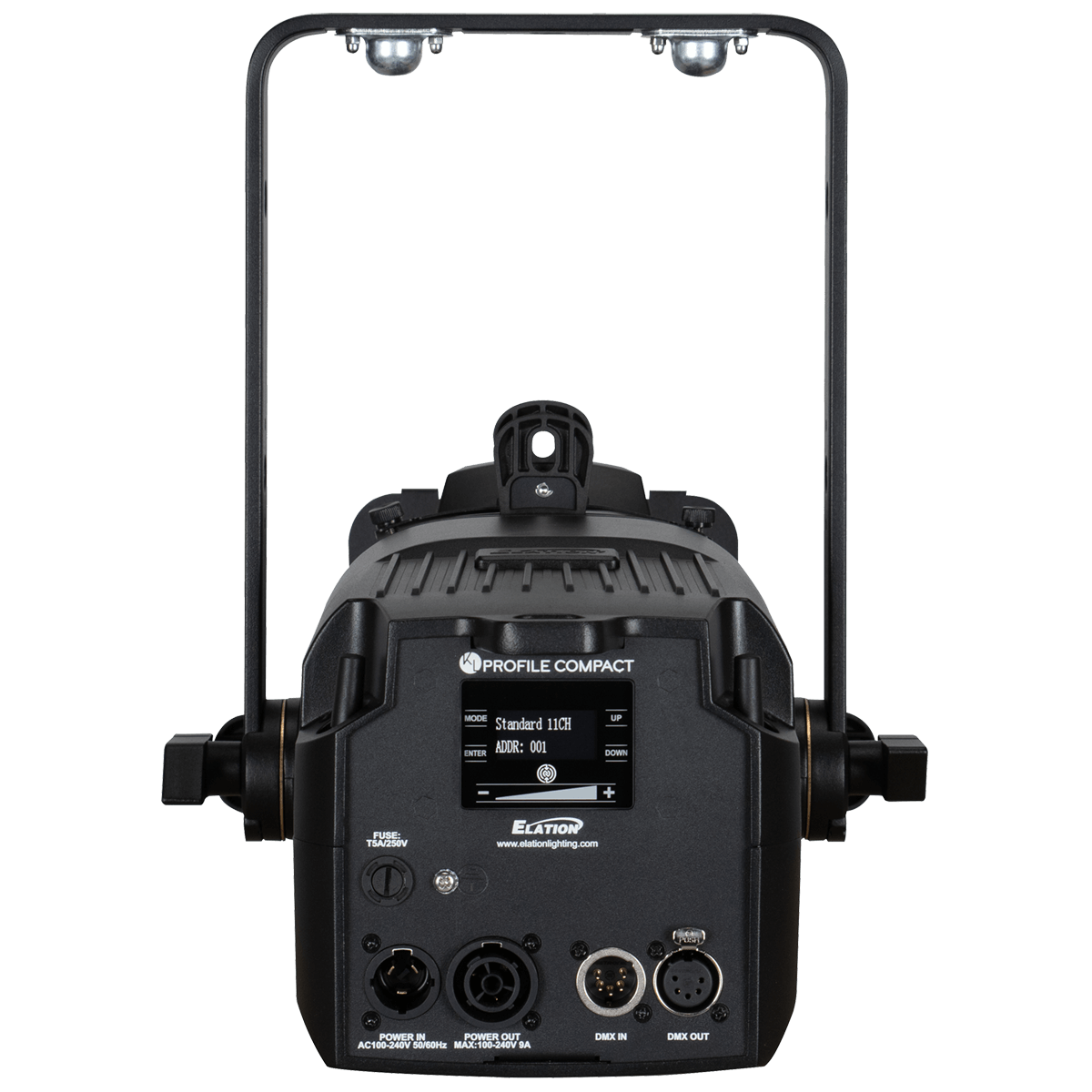

4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 18.6” (472mm)
Length (Yoke 0°): 21.1" (536mm)
Width: 10.3" (262mm)
Height (Fixture Body): 10.1" (256mm)
Height (Yoke 90°): 15.3" (394mm)
Weight: 15.4lbs (7.0kg)
6.25" Front Accessory Slot
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
290W Max Power Consumption
Power Thru Capacity: 9A (4 units @115V, 10 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 988.9
INCLUDED ITEMS
Gel Frame
Size 'M' Metal Gobo Holder
Safety Cable
IP65 Locking Power Cable
OPTIONAL ACCESSORIES
Omega Bracket
APPROVALS / RATINGS
CE | cETLus | FCC | UKCA | IP20
FIRMWARE UPDATES
Current Version: V1.01
Specifications and documentation are subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Specification sheet
User manual

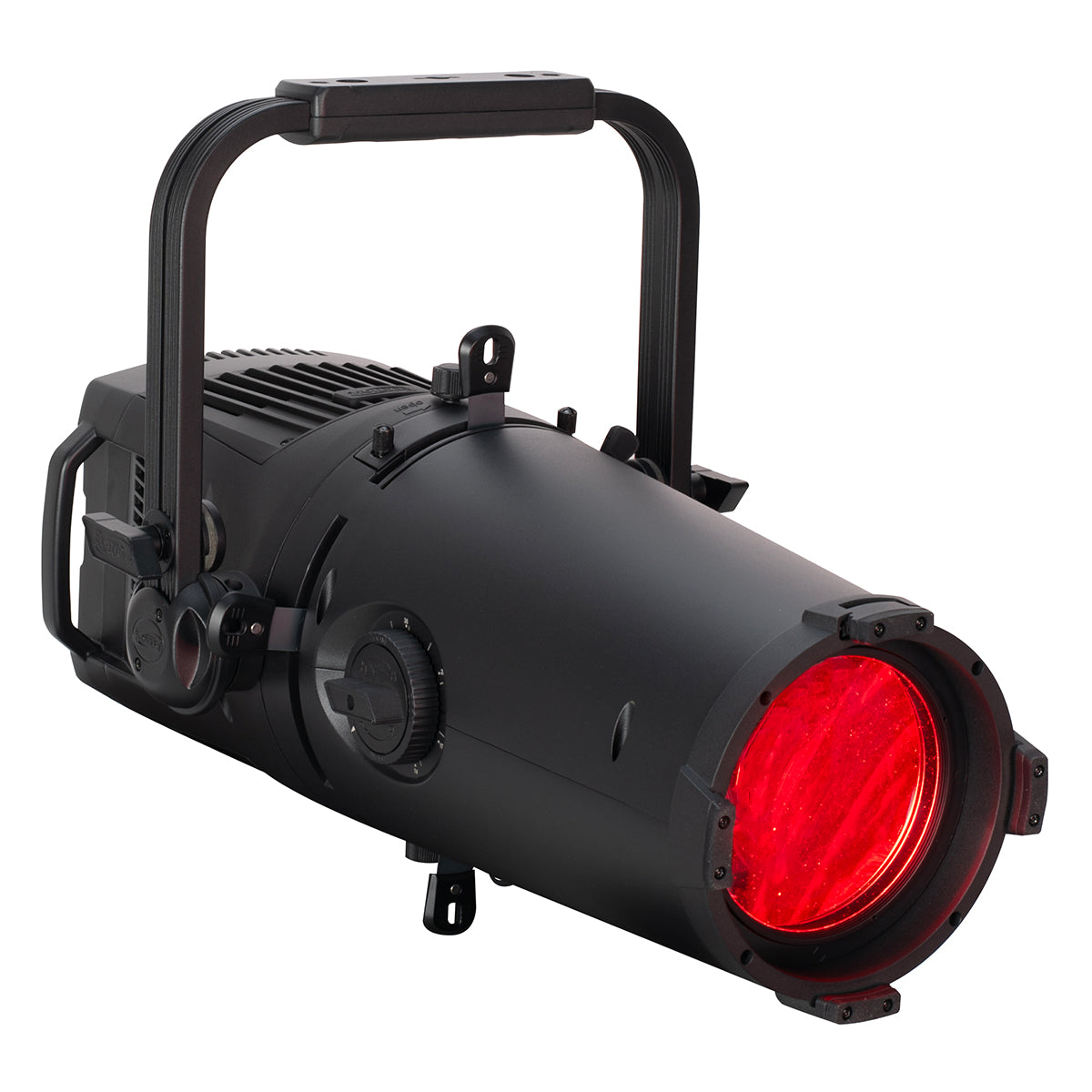

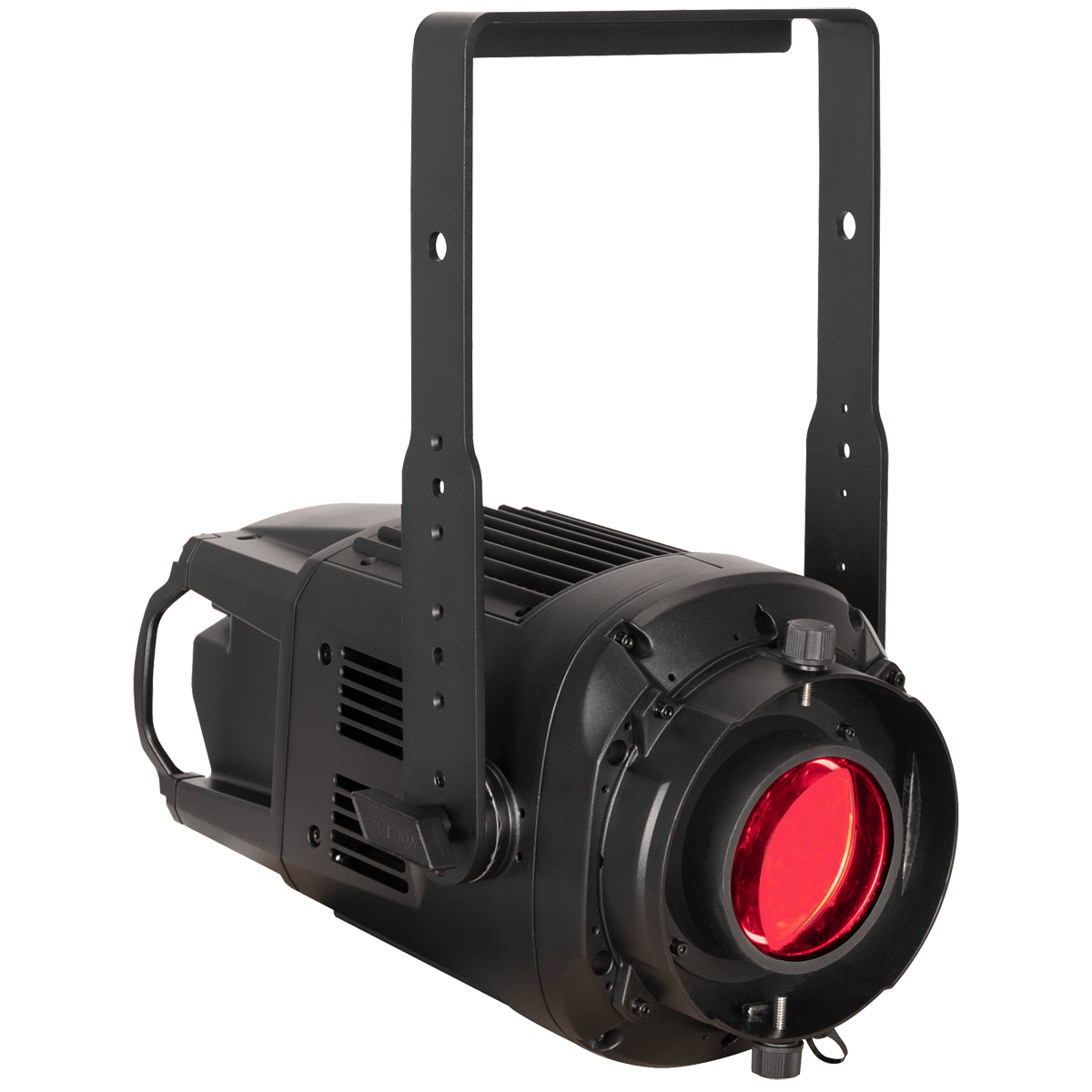

How do they compare?
Find the option that is right for you and your production.
5880
15588
10000
225
400
305
25° - 50°
6° - 50°
5.9° - 45.6°
20
65
20
15.4
22.0
32.5
290
520
358
18.6 x 10.3 x 10.1
9.1 x 11.5 x 8.9
25.1 x 15.4 x 13.6
