150W RGBMA IP65 LED PAR

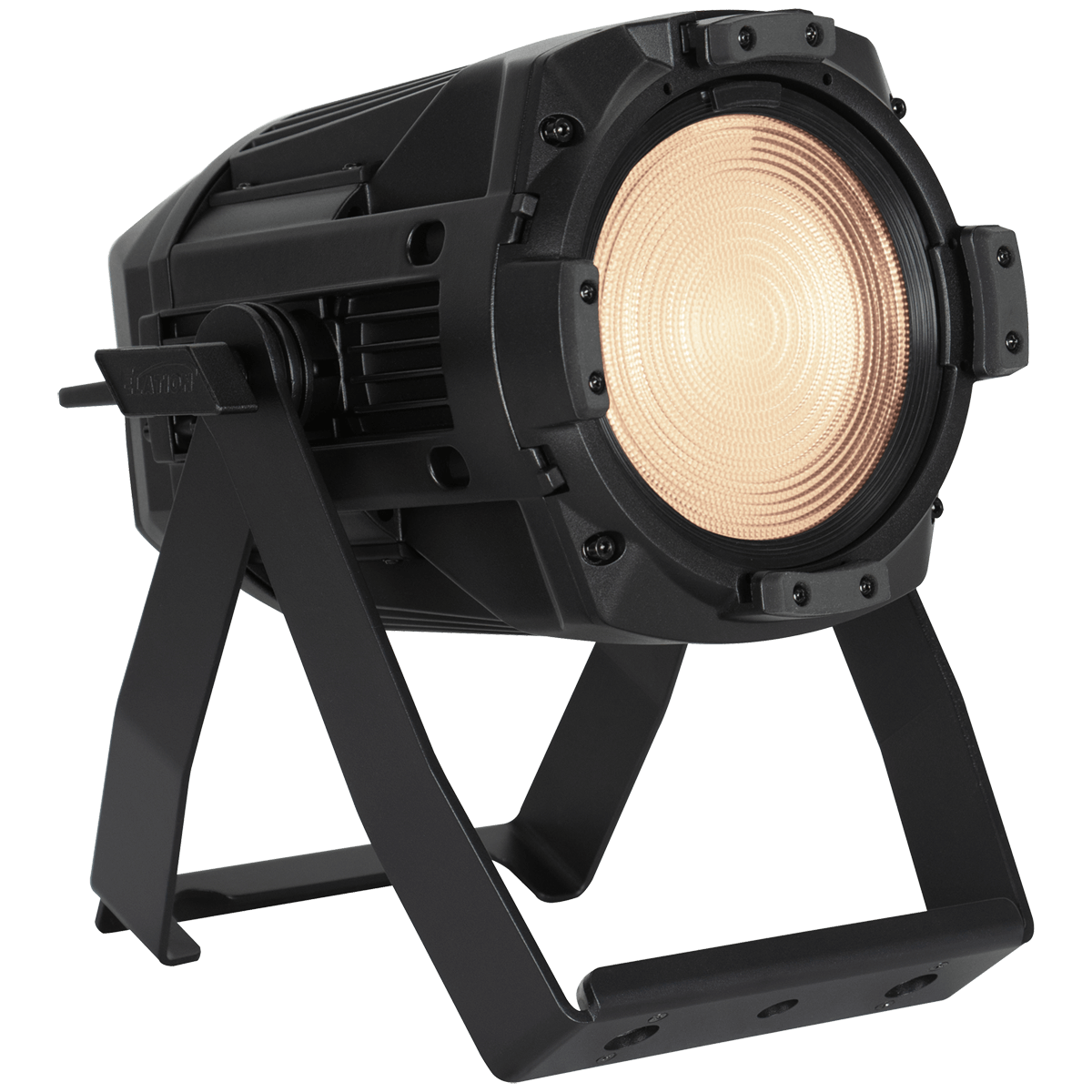

Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.
UPC: 810008265291SKU: KLP250

Replaced By

Related Products

KL PAR IP COMPACT

Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.

Its advanced control software delivers exceptional color accuracy (CRI 94.9, TLCI 95), 16-bit variable CCT control, and adjustable LED refresh frequency, making it perfect for film, television, and live events. With multiple lens options, DMX/RDM compatibility, and a touch bar encoder for instant adjustments, it’s ready for any production need.

Streamline your lighting setup and discover how the KL PAR IP COMPACT can elevate your next production.
150W RGBMA LED Engine

5,700 Total Fixture Lumen Output (Sphere)
Field Replaceable Lenses
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
RDM (Remote Device Management)
NFC & Aria x2 Wireless Device Management
6.25" Gel Frame and Four Lenses (10°, 22°, 30°, 55°) Included
IP65 Rated

Specifications

SOURCE
150W 6000K RGBMA LED Engine
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
Total Lumen Output:

5,700 (Integrating Sphere)
TBA (Goniometer)

CRI 94.9

TLCI 95

INCLUDED LENSES

VNSP (10°)
NSP (22°)
MFL (30°)
WFL (55°)


EFFECTS
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves

COLOR
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book


CONTROL / CONNECTIONS

8 DMX Channel Modes (1, 4, 6, 10, 11, 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out


SIZE / WEIGHT
Length: 7.2” (183mm)
Length (Yoke 0°): 14.25" (362mm)
Width: 10.1" (257mm)
Height (Fixture Body): 7.2" (183mm)
Height (Yoke 90°): 14.2" (361mm)
Weight: 12.1 lbs (5.5kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 10A (6 units @115V, 12 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 682


INCLUDED ITEMS
Gel Frame
Safety Cable
4 Lenses (10°, 22°, 30°, 55°)
IP65 Locking Power Cable


OPTIONAL ITEMS
6.25" Barndoors
Omega Bracket
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)


APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA


FIRMWARE UPDATE

Current Version:



Specifications and documentation subject to change without notice.
