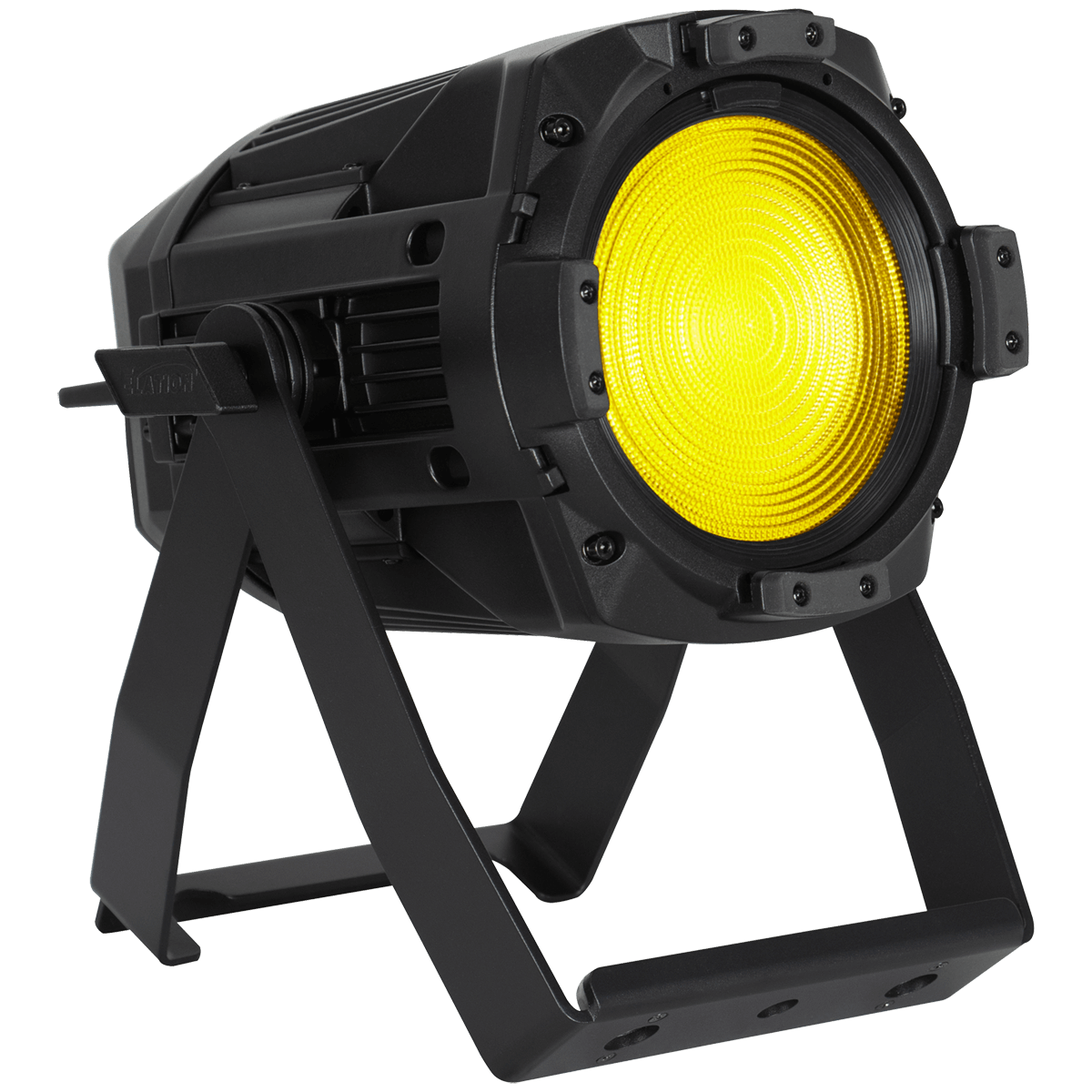

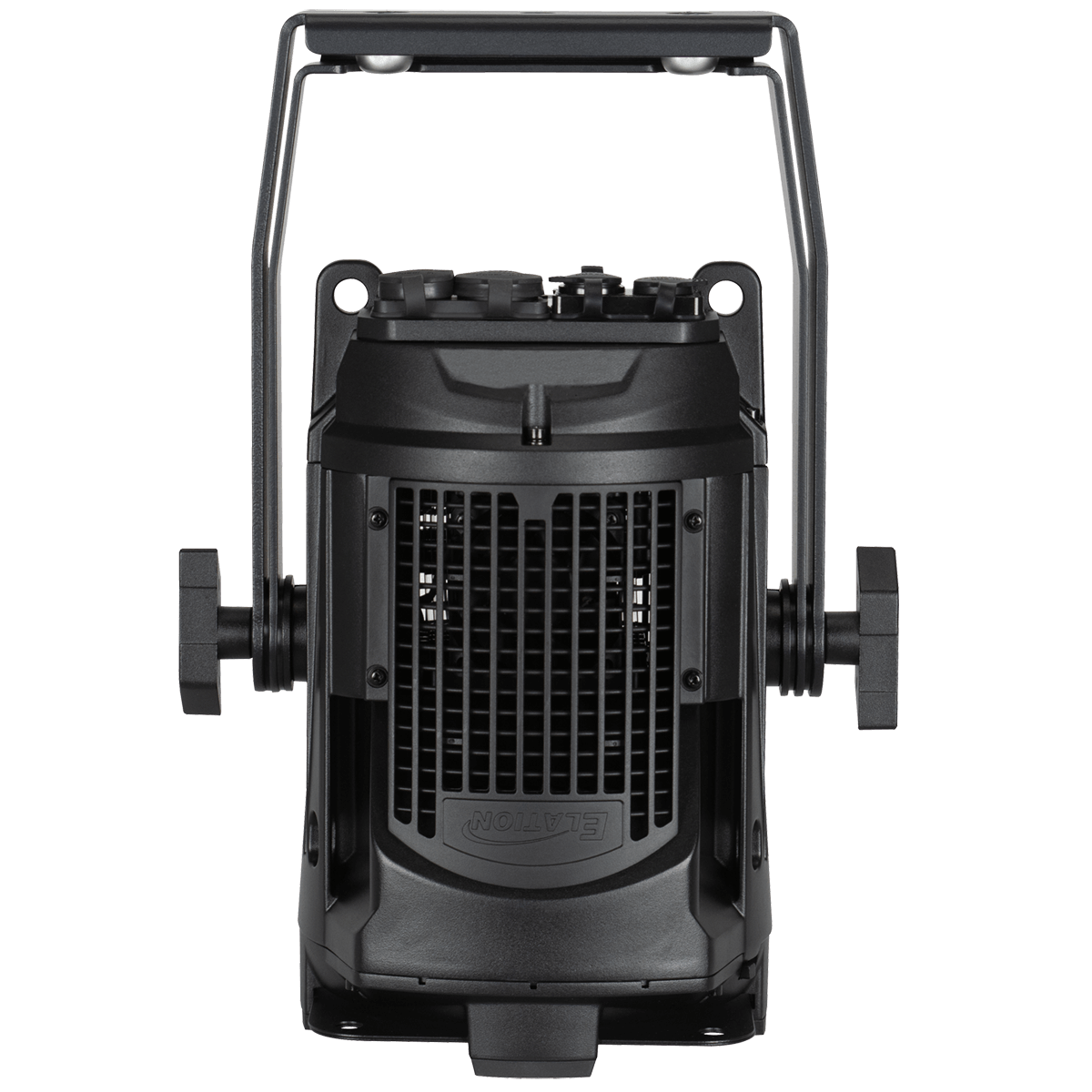

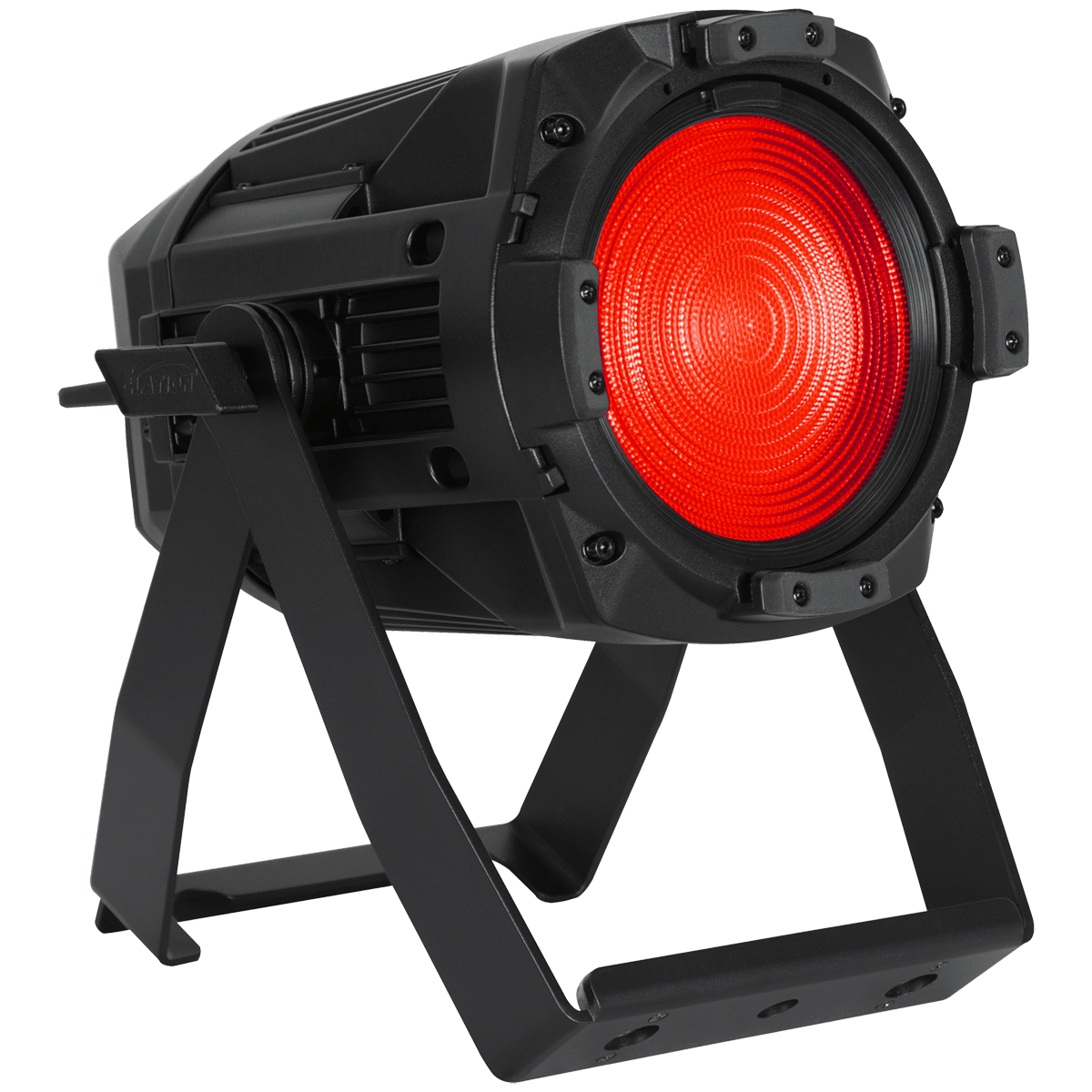

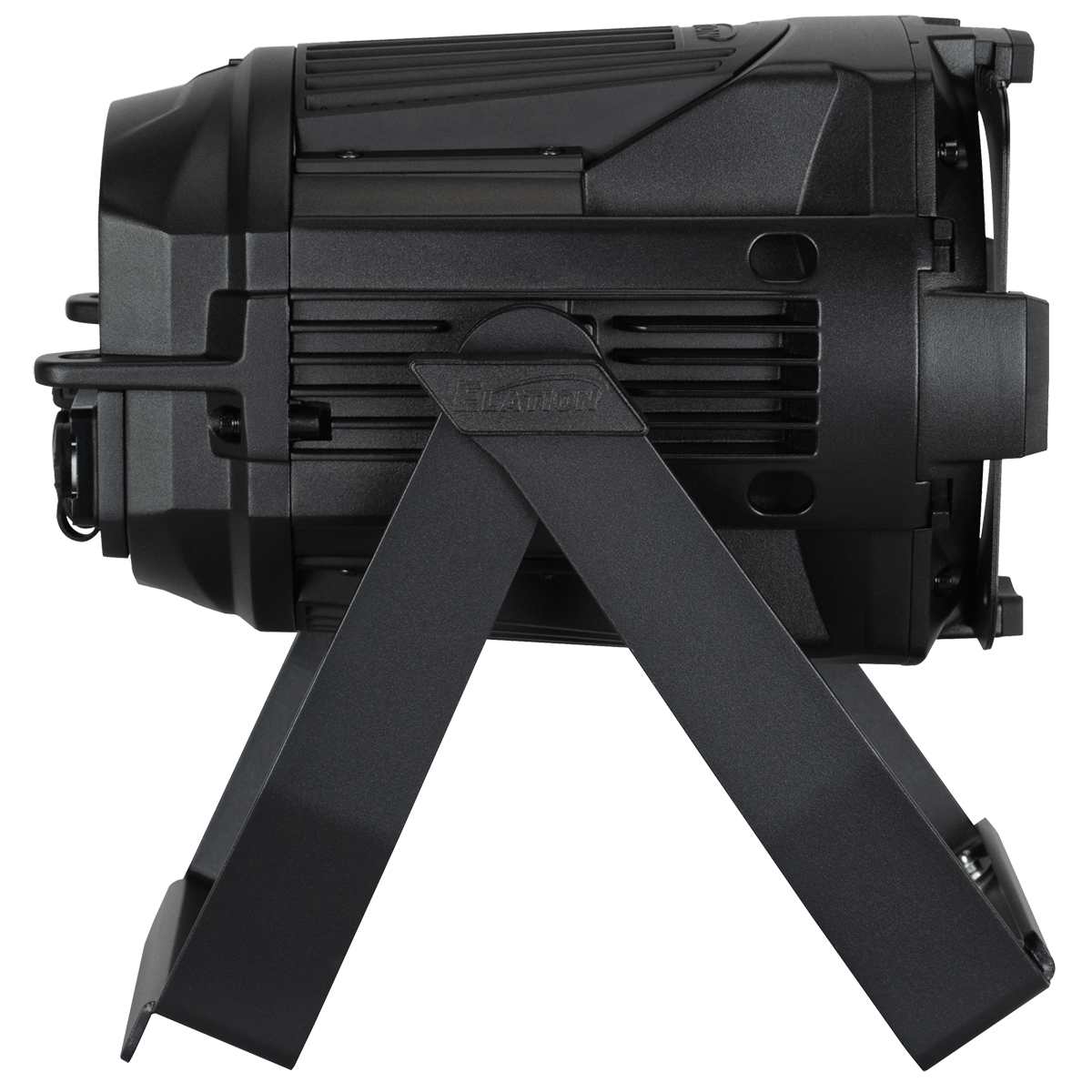

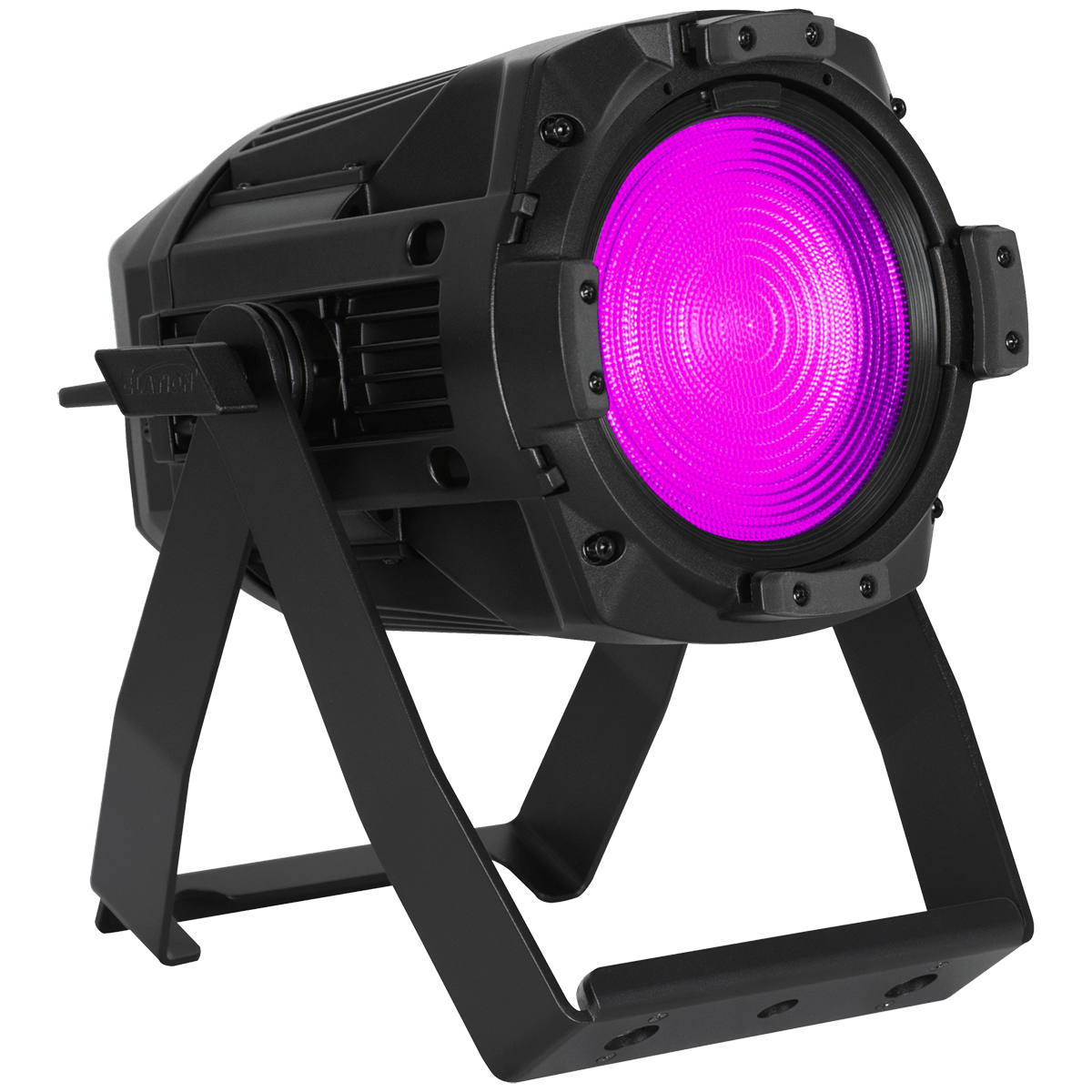

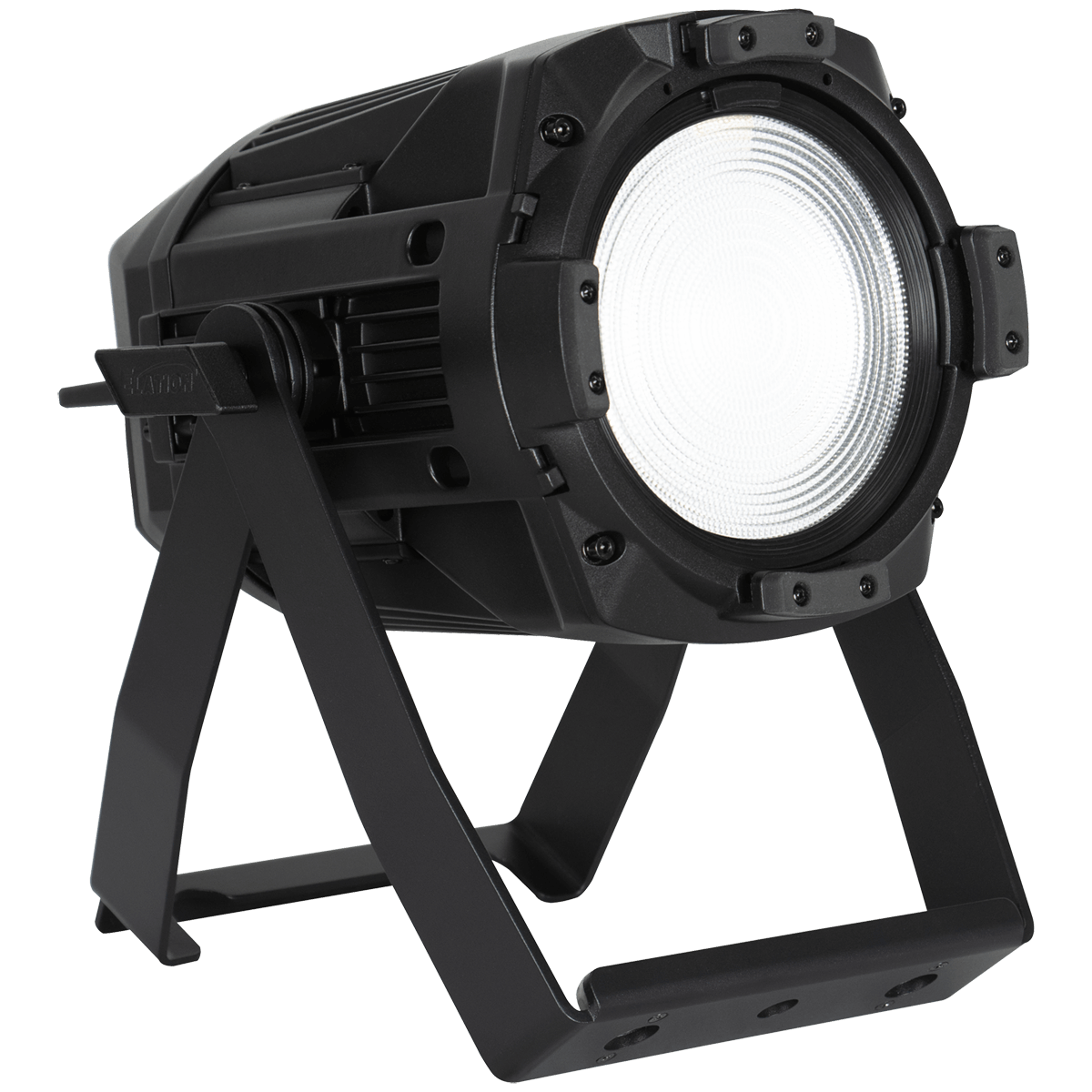

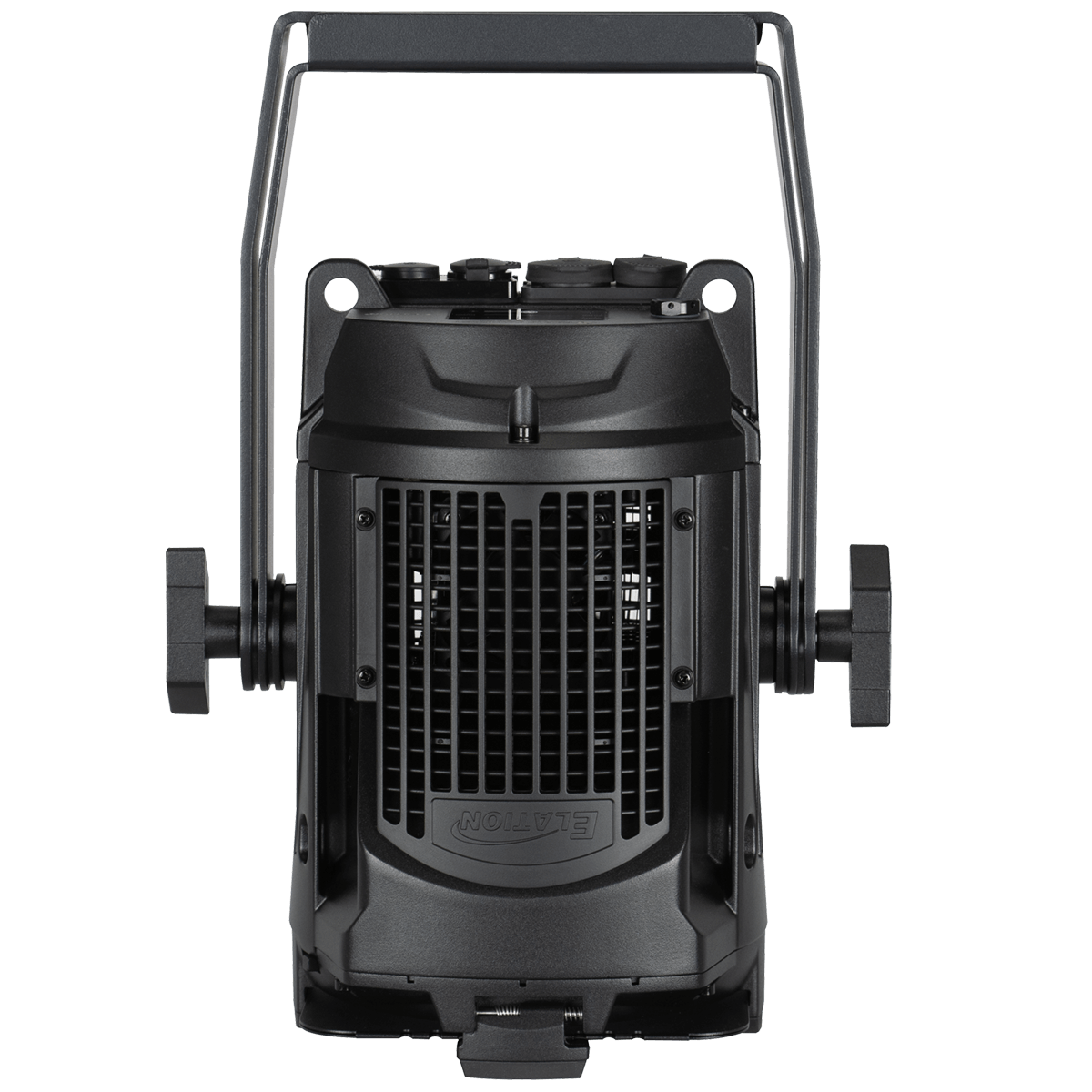

KL PAR IP Compact
KL PAR IP Compact
150W RGBMA LED Engine
5,474 Total Fixture Lumen Output (Sphere)
Field Replaceable Lenses
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
RDM (Remote Device Management)
NFC & Aria x2 Wireless Device Management
6.25" Gel Frame and Four Lenses (11°, 22°, 30°, 52°) Included
IP65 Rated
Specifications
150W 6000K RGBMA LED Engine
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
5,474 (Integrating Sphere)
4,722 (Goniometer)
CRI 94.9
TLCI 95

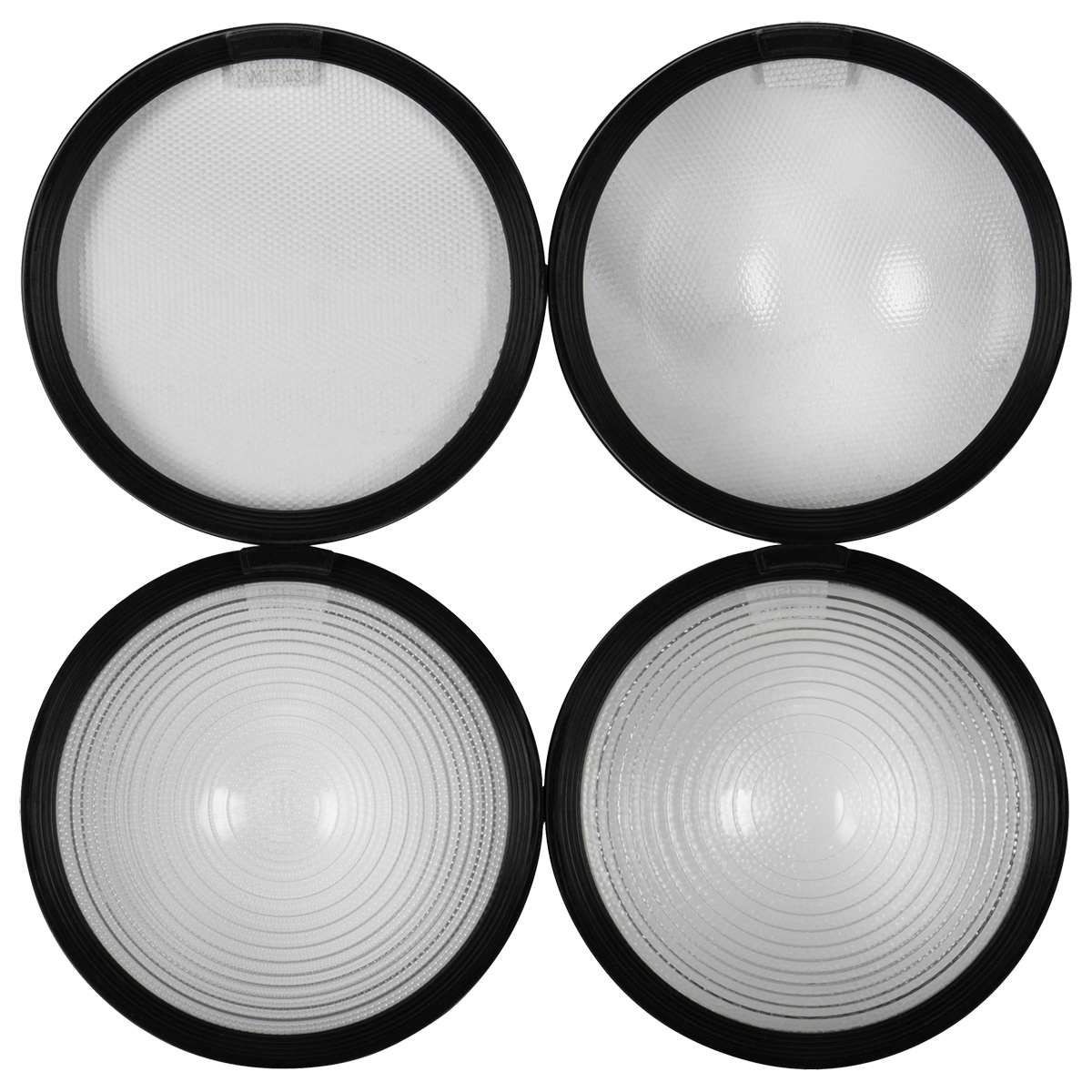

INCLUDED LENSES
VNSP (11°)
NSP (22°)
MFL (30°)
WFL (52°)
EFFECTS
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves

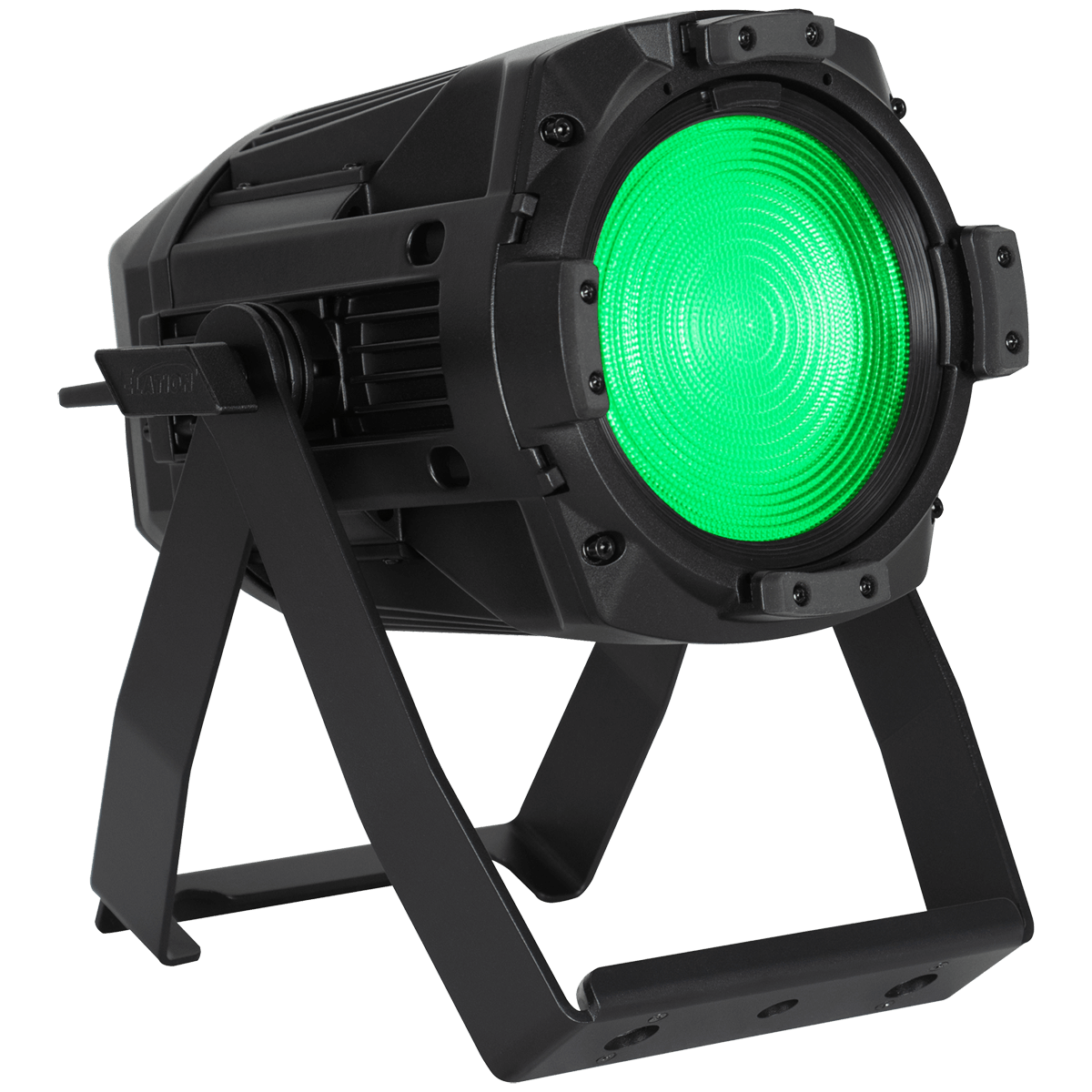

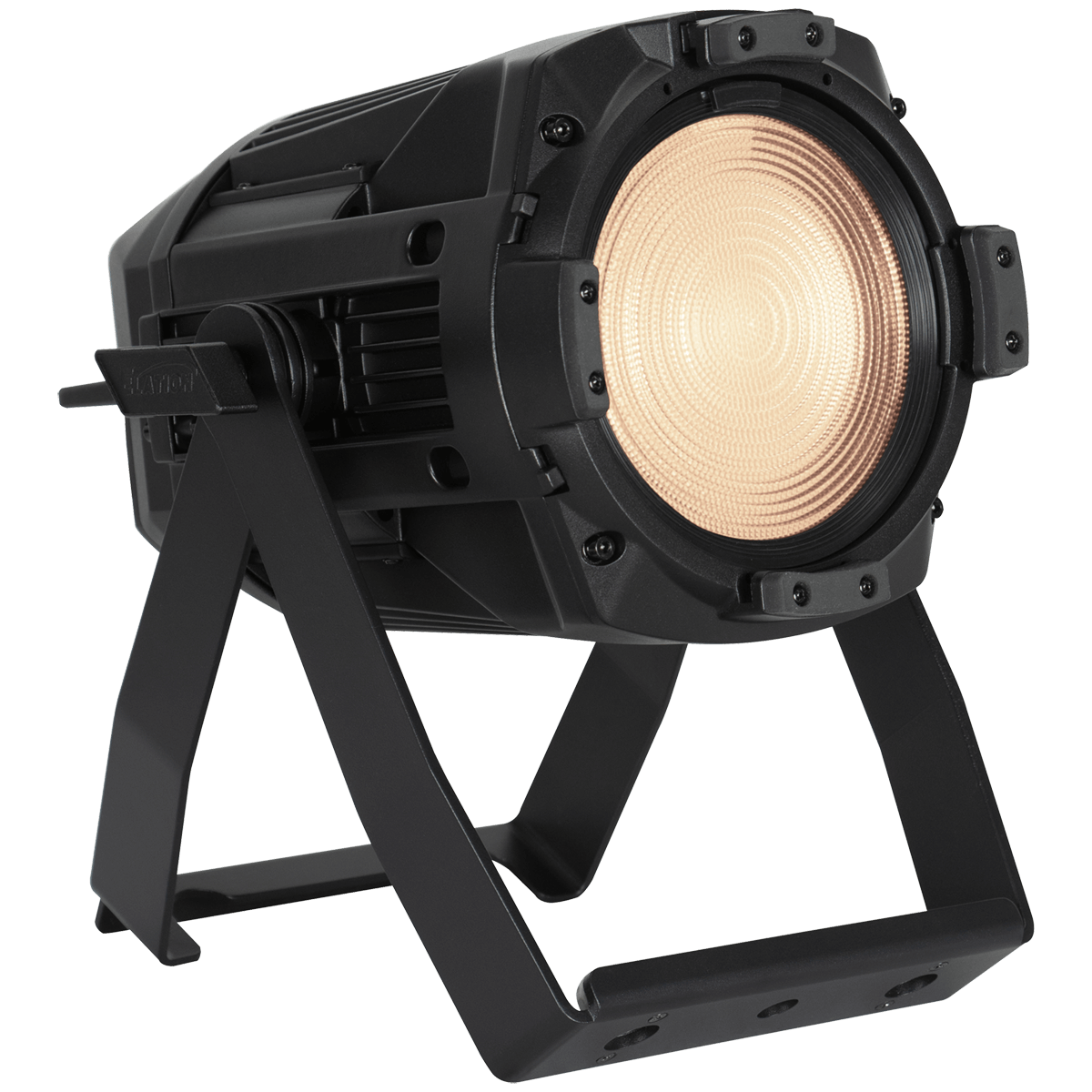

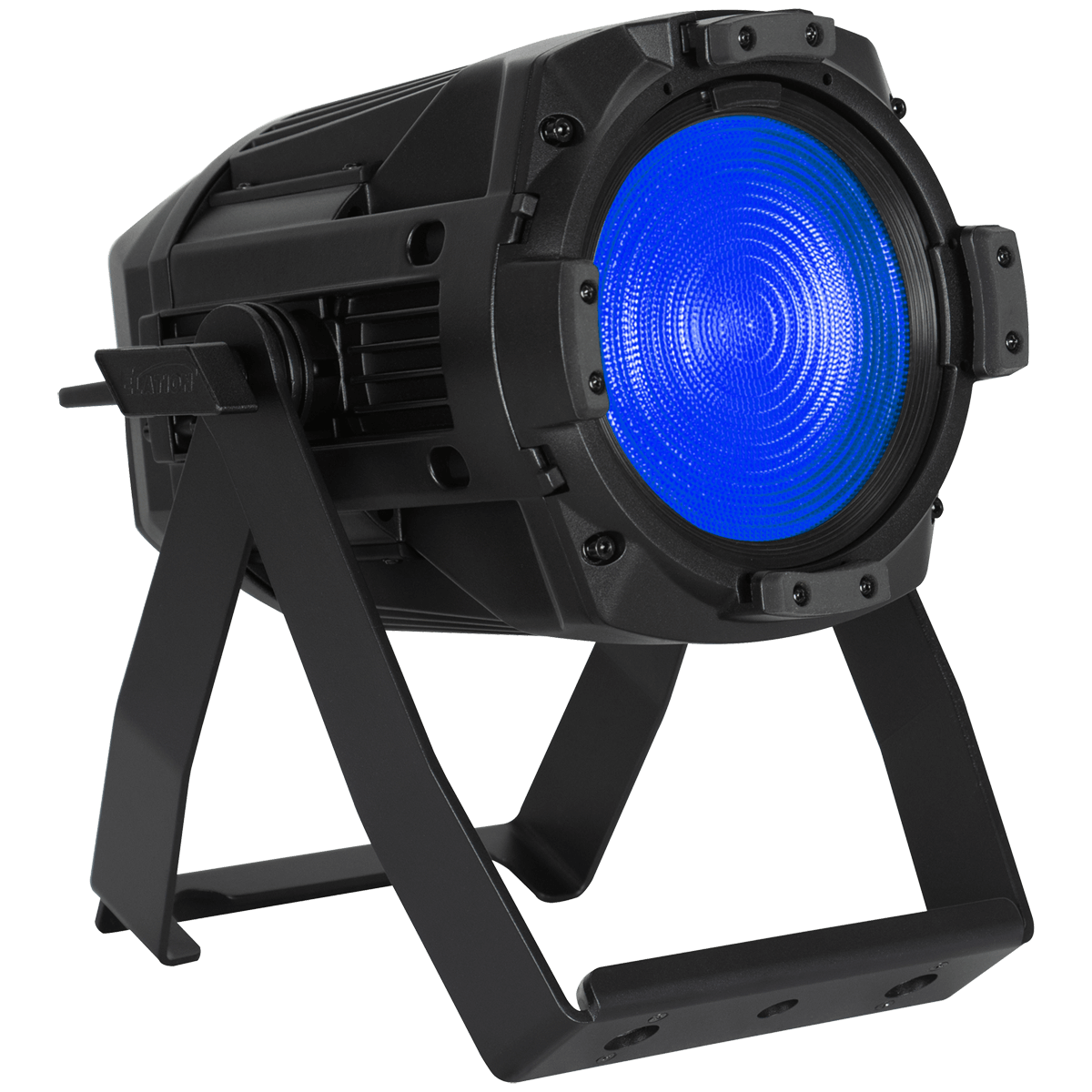

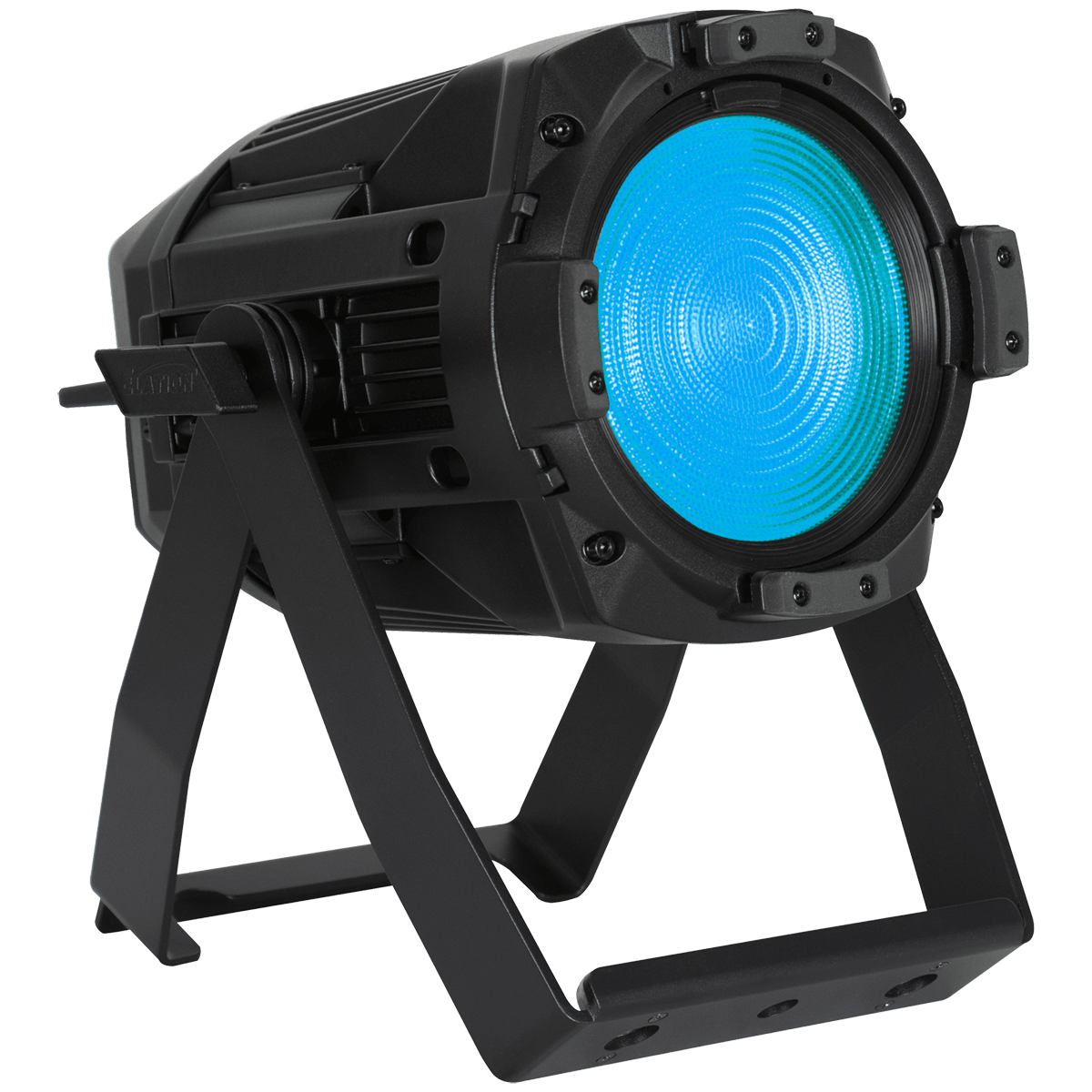

COLOR
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

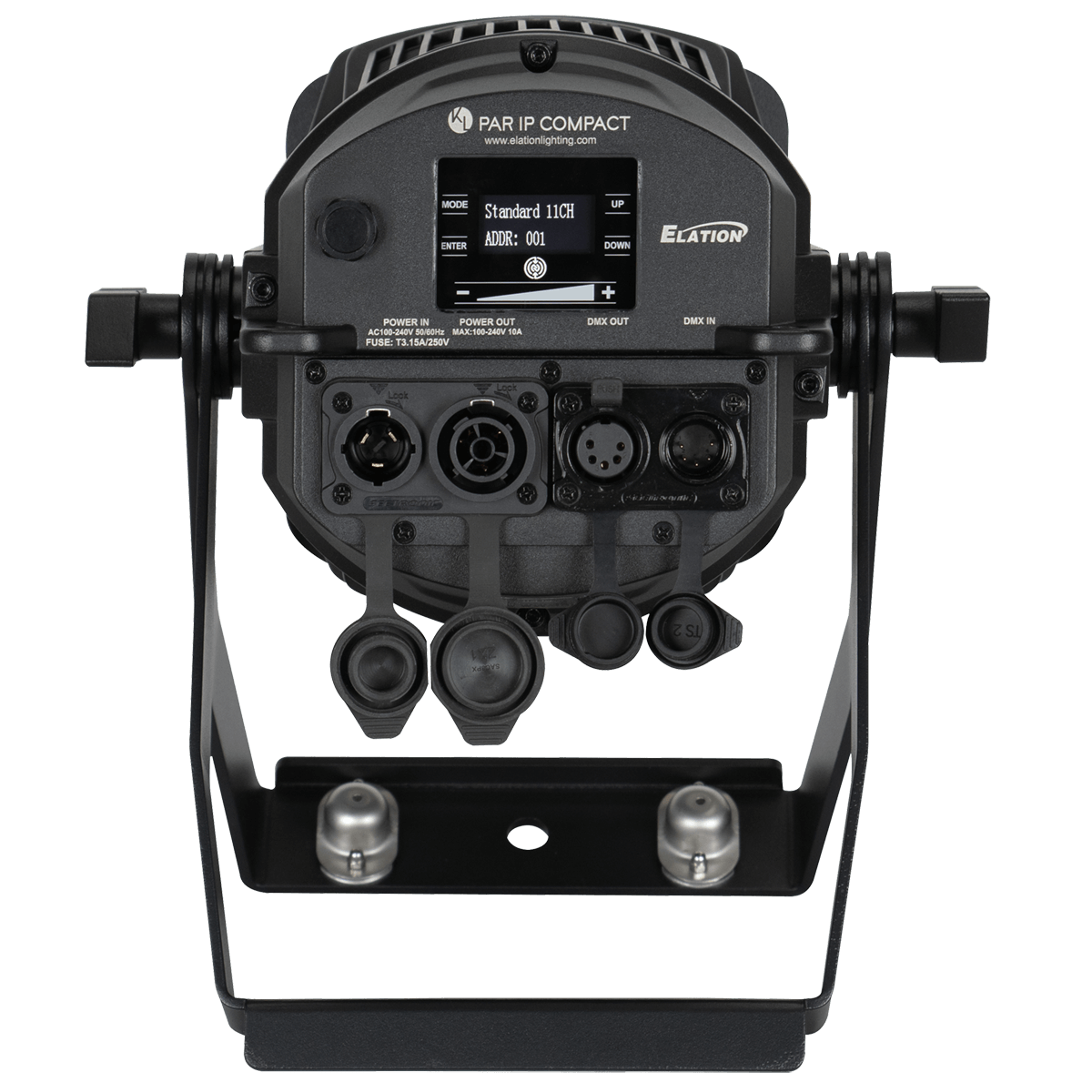

CONTROL / CONNECTIONS
9 DMX Channel Modes (1, 4, 5, 6, 10, 11, 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out

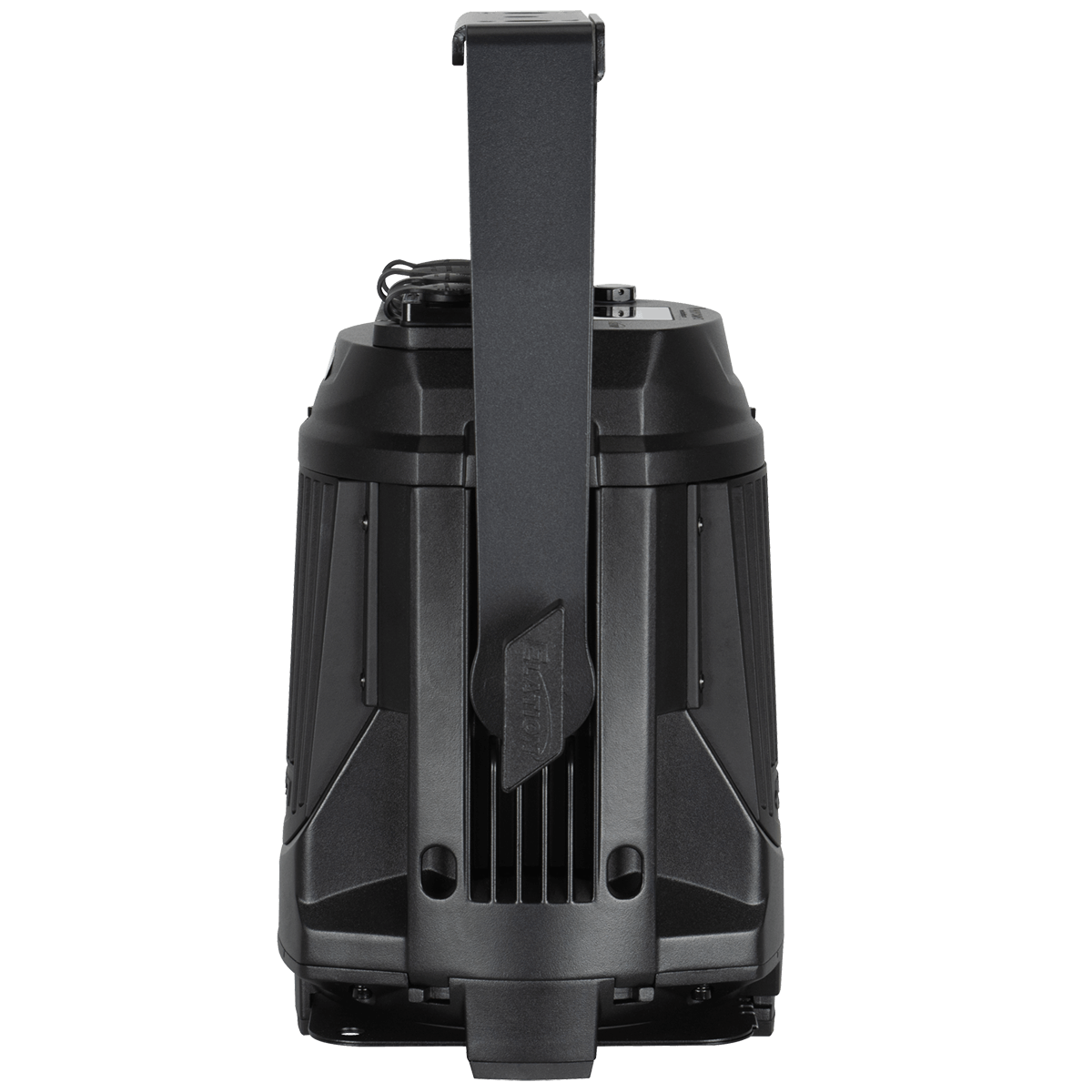

SIZE / WEIGHT
Length: 7.2” (183mm)
Length (Yoke 0°): 14.25" (362mm)
Width: 10.1" (257mm)
Height (Fixture Body): 7.2" (183mm)
Height (Yoke 90°): 14.2" (361mm)
Weight: 12.1 lbs (5.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 10A (6 units @115V, 12 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 682

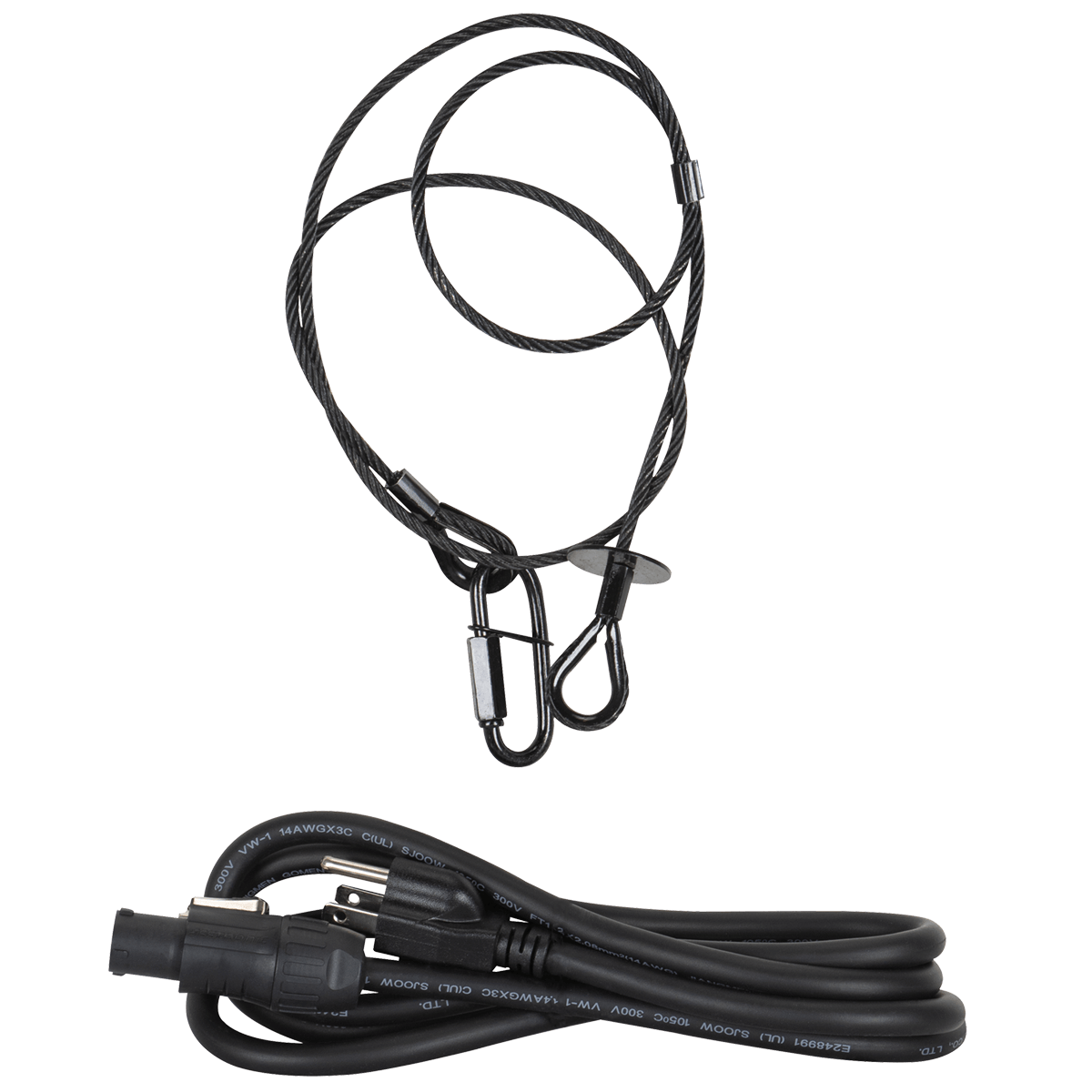

INCLUDED ITEMS
Gel Frame
Safety Cable
4 Lenses (11°, 22°, 30°, 52°)
IP65 Locking Power Cable
OPTIONAL ITEMS
6.25" Barndoors
Omega Bracket
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Version: V1.0.4
Click HEREfor software update
Specifications and documentation subject to change without notice.
