LIGHTJOCKEY 2

Features

Control of up to 100 Fixtures, 2048 DMX Channels

Large Fixture Library and User-Configurable Editor

Graphical Representation of all Fixture Functions

LED-Trix Plug-In included for Programming Color-Mixing Fixtures

LightJockey Manager included for Scheduling Events

Windows 7 and higher Lighting Controller Software (PC not included)

Supports MP3, Audio CD, SMPTE and MIDI Timecode

Free ShowDesigner 6 Lite™ 3D Visualizer 1 Year License

Specifications

Click here to download LIGHTJOCKEY2 Software

Click here to request new LIGHTJOCKEY2 Fixture Profiles

Click here to download LIGHTJOCKEY2 Fixture Profiles


PHYSICAL

M-DMX Interface Box
Length: 92 mm (3.6 in.)
Width: 82 mm (3.2 in.)
Height: 41 mm (1.6 in.)
Weight: 245 g (0.54 lbs.)
Ambient temperature: 0° – 50° C (32° – 122° F)
Protection rating: IP20

CONTROL AND PROGRAMMING
Trig sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI, Light Jockey Manager
Cue list time code synchronization (CLTCS) options
Internal timer, including 24-hour clock
Audio CD time code from CD-ROM drive
Digital Audio (MP3, WAV, etc.) time code using built-in media player
MIDI Time code, SMPTE with suitable SMPTE/MTC interface

PROGRAMMING
Number of fixtures: Up to 100, or 680 RGB fixtures
Number of DMX Universes: 4
Fixture library: All (DMX) fixtures, user-definable profiles, generic DMX profiles
Control: Graphical control of all fixture parameters
Visualization: Real-time realistic 3D visualizer MSD 6 Lite™ for off-site programming (One-Year version)
Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles

PLAYBACK
Cue contains 12 sequences with global or individual fade time adjustment
Master intensity control + 8 configurable intensity groups
Manual override with direct access to all functions
Independent background cue with 5 parallel sequences
Blackout and fade out function
Go button for manual cue lists
Assignable keyboard hotkeys for faster access
Smoke control independent from programming
Follow spot function
Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
Audio analyzer for trigging sequences by audio
Function and DMX channel override via DMX IN (M-DMX output can be converted to input in software)

SYSTEM REQUIREMENTS (PC not included)
1 GB RAM
Intel Core i3 or better
Monitor resolution of 1024x768
USB 2.0 port for DMX interface hardware
500 MB drive space available
Windows 7, 8, 10

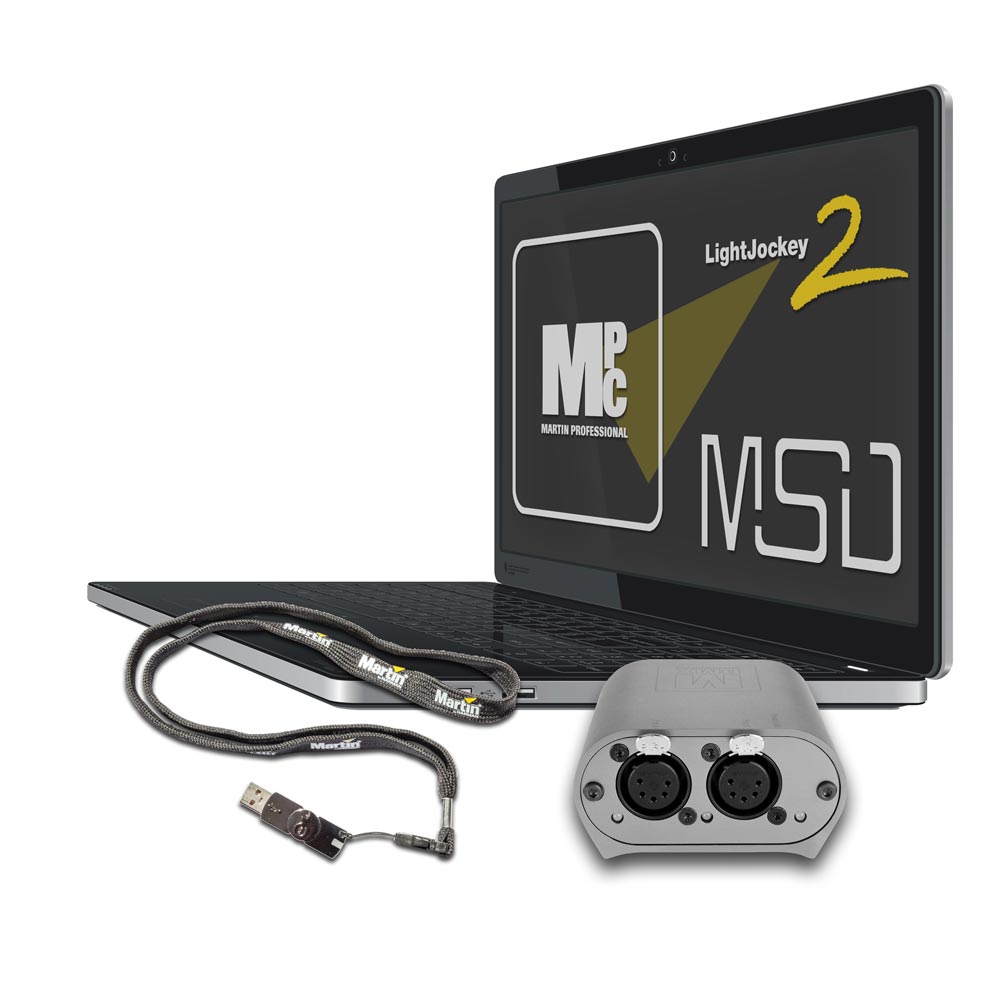

INCLUDED ITEMS
One-Key™ USB dongle with 64-universe M-PC™, 4-universe LightJockey 2™ licenses, and ShowDesigner 6 Lite™ 3D Visualizer one-year license
M-DMX USB-DMX Interface Box
USB cable



Specifications and documentation subject to change without notice.
