LIGHTJOCKEY 2
Discontinued
LIGHTJOCKEY 2 is a professional-grade lighting solution. One of the industry’s most popular PC-based controllers for well over a decade, LightJockey 2™ offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package.
LIGHTJOCKEY 2
Sale price$0.00
LIGHTJOCKEY 2

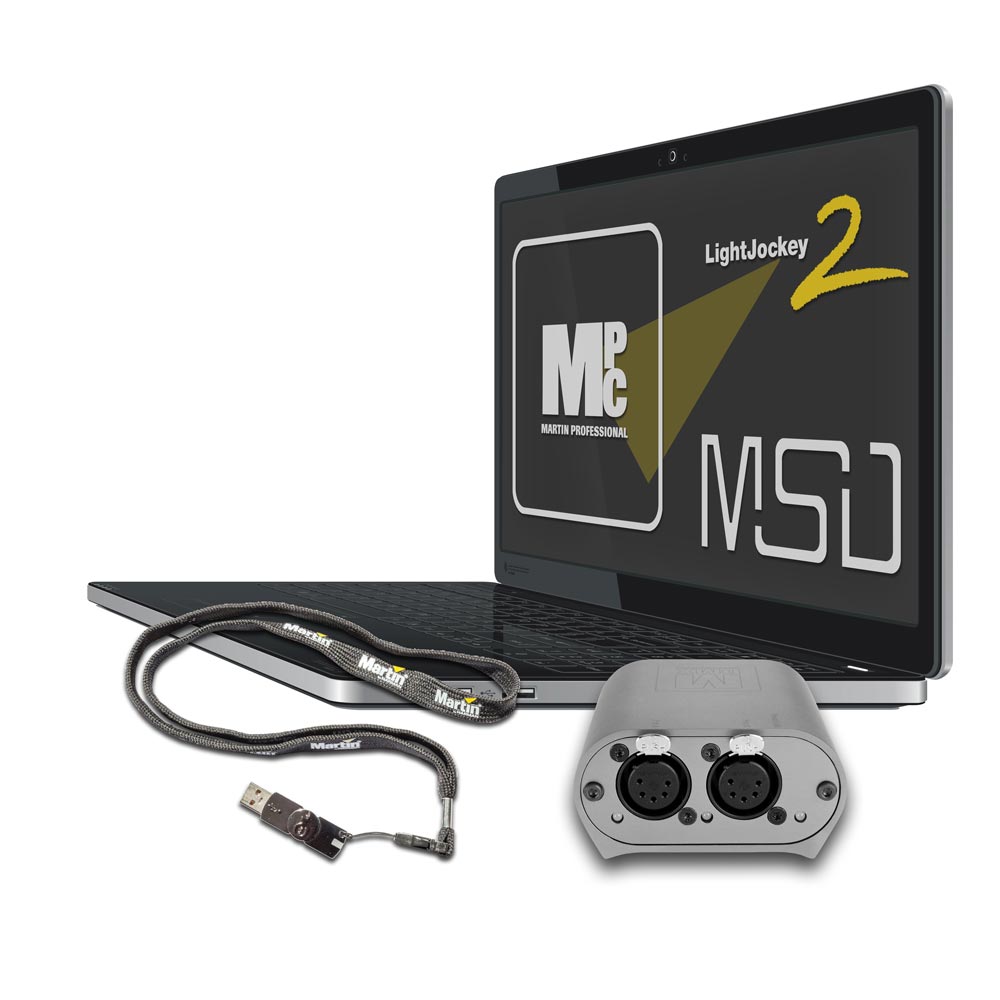

LightJockey 2™ is a flexible, easy-to-use Windows-based controller package that includes a USB Interface Box (laptop not included). One of the industry’s most popular PC-based controllers for well over a decade, LightJockey 2™ offers lighting designers greater flexibility, spontaneity and ease of use in a user-focused control package.
Control of up to 100 Fixtures, 2048 DMX Channels Large Fixture Library and User-Configurable Editor Graphical Representation of all Fixture Functions LED-Trix Plug-In included for Programming Color-Mixing Fixtures LightJockey Manager included for Scheduling Events Windows 7 and higher Lighting Controller Software (PC not included) Supports MP3, Audio CD, SMPTE and MIDI Timecode Free MyShowDesigner 6 Lite™ 3D Visualizer 1 Year License.
Specifications
Visit support.obsidiancontrol.com for ONYX Support and Downloads
PHYSICAL
M-DMX Interface Box
Length: 92 mm (3.7 in.)
Width: 82 mm (3.3 in.)
Height: 41 mm (1.7 in.)
Weight: 245 g (0.6 lbs.)
Ambient temperature: 0° - 50° C (32° - 122° F)
Protection rating: IP20
CONTROL AND PROGRAMMING
Protocol: DMX 512, Art-Net, RDM-compatible, sACN
Two DMX universes maximum with M-PC 2U
128 DMX universes with M-PC Pro
Free MSD 6 3-D Visualizer Lite™ one-year license with M-PC Pro
Extensive fixture library for all known manufacturers
65000 x presets for each group of functions (P/T, color, gobo, etc.)
Effect generator for automated programming of complex effects
Fan function for all channels (including timing parameters)
On-the-fly global timing changes
Individual parameter timings
Intuitive patch feature
Fixture type cloning and swapping
CONTROL/USER INTERFACE
All controls listed below are virtual, on-screen only, and are operated via touchscreen or mouse click Real-world paradigm intuitive interface (images, dynamic text labels and actuals preferred to figures) 10 x playback faders, each with four function-assignable buttons
10 x playback buttons, each with one function-assignable button
24 x submaster faders, each with one function-assignable button
Numeric and functional keypad
Main playback control section
Flash master fader and button
8 x view buttons
PLAYBACK
500 x playback banks, each containing 10 x playbacks
500 x submaster banks, each containing 24 x submasters, can all be active simultaneously
100 x pages of 100 x playbacks activated by touchscreen button
Cuelists can be executed in tracking or non-tracking mode
Unique Q-blender effect on playback override
SYSTEM REQUIREMENTS (PC not included)
Windows 7 or higher
Dual core processor, 2.0 GHz (Intel i5 recommended)
4 GB RAM
2 GB available disk space (SSD recommended)
Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)
USB 2.0 port for One Key™ and M-DMX Interface Box
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for MAXNET, Remote operation and sACN
Full administrator rights on PC
ENVIRONMENT
Direct communication with M-Series Modules via USB
Art-Net and sACN compatible DMX distribution
Supports M-DMX, Universal USB/DMX™ and USB Duo™ DMX Interface Boxes
Supports all M-Series Modules, M-Touch and M-play
Free M-Series Manager™ add-on for custom user interfaces and advanced scheduling, astronomical clock, supports GPS, commands by RS232, Telnet, UDP, and HTML
DMX RDM bi-directional communication over M-DMX
and compatible Art-Net devices
INCLUDED ITEMS
One-Key™ USB dongle with 128-universe M-PC™, 4-universe LightJockey 2™ licenses
M-DMX USB-DMX Interface Box
USB cable
Specifications and documentation subject to change without notice.
