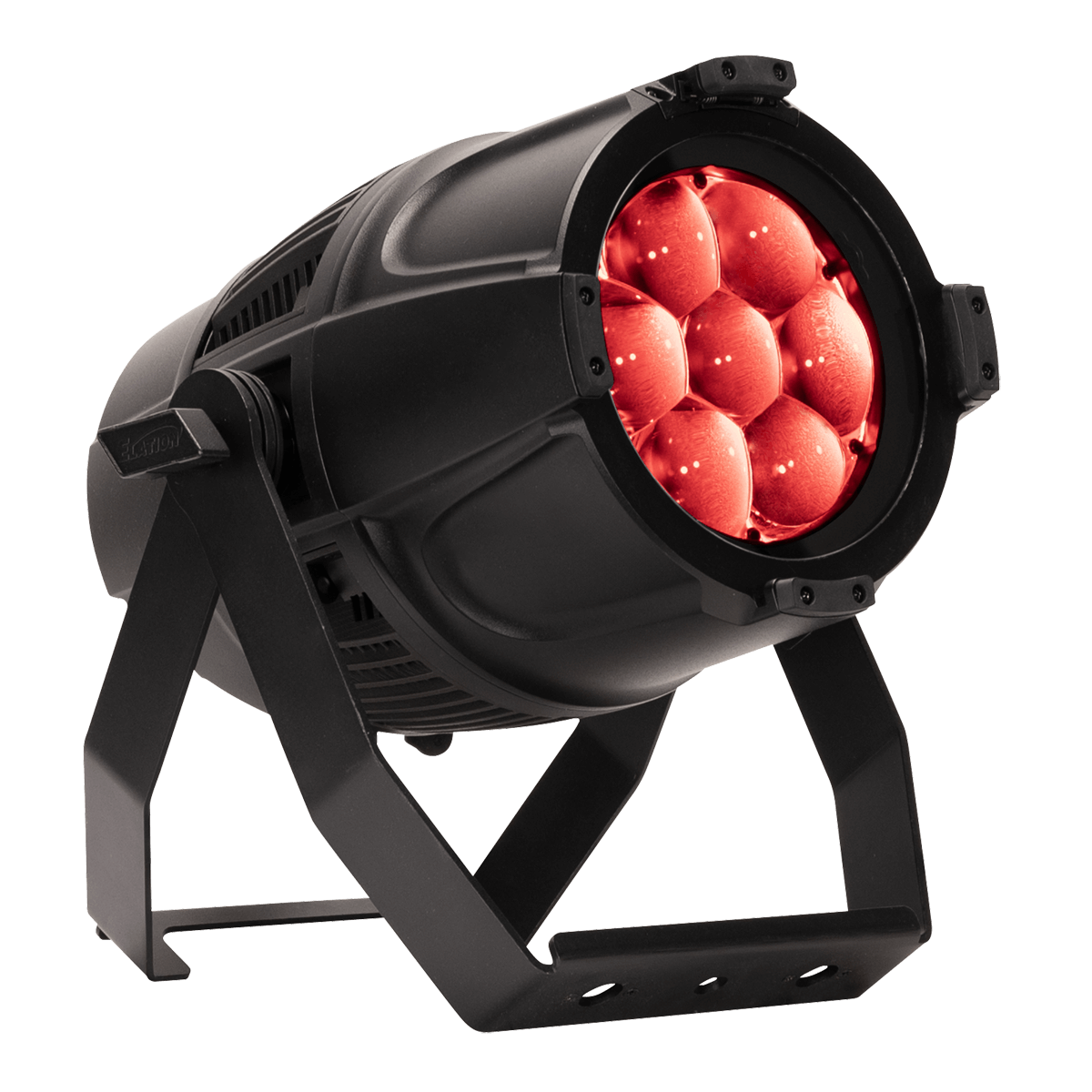

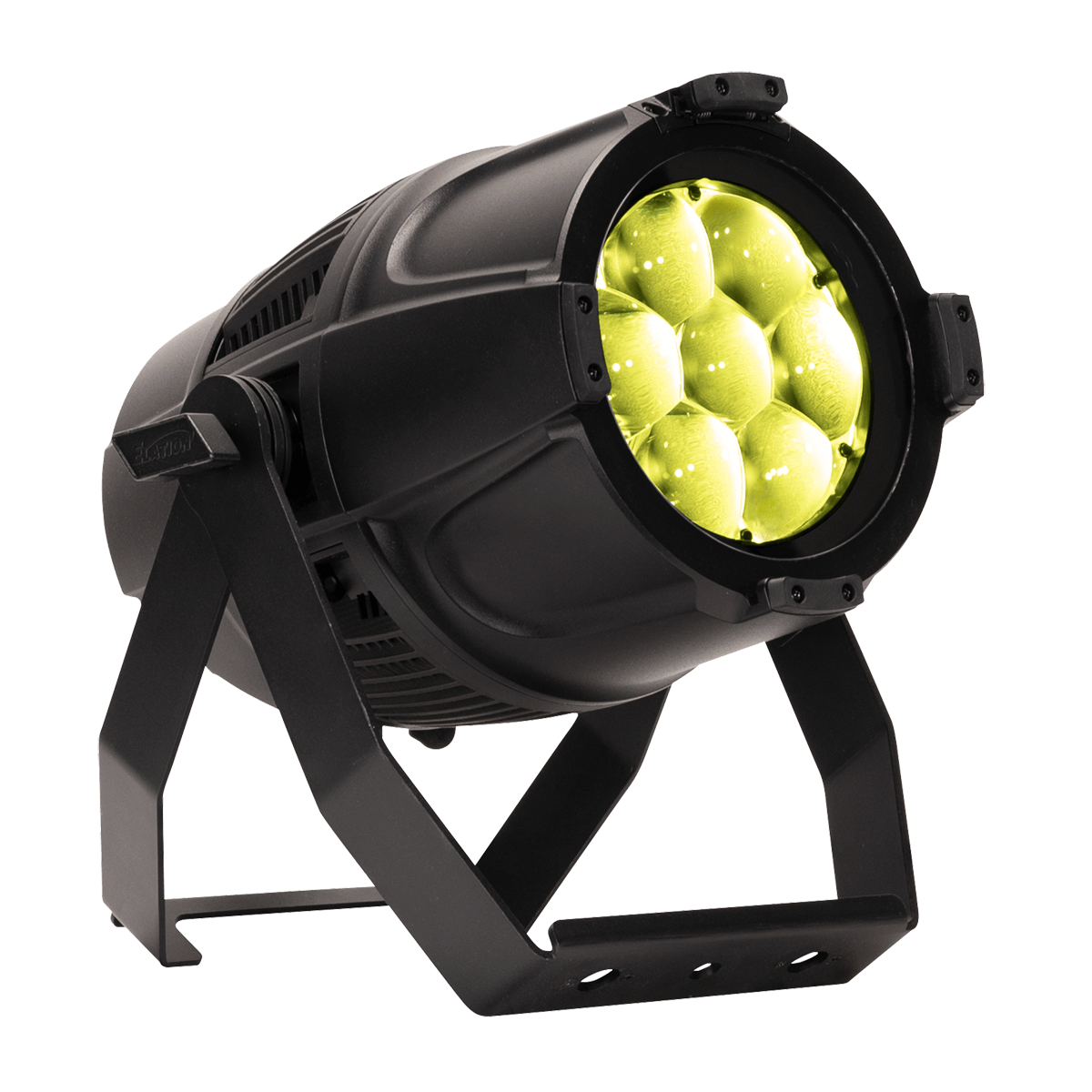

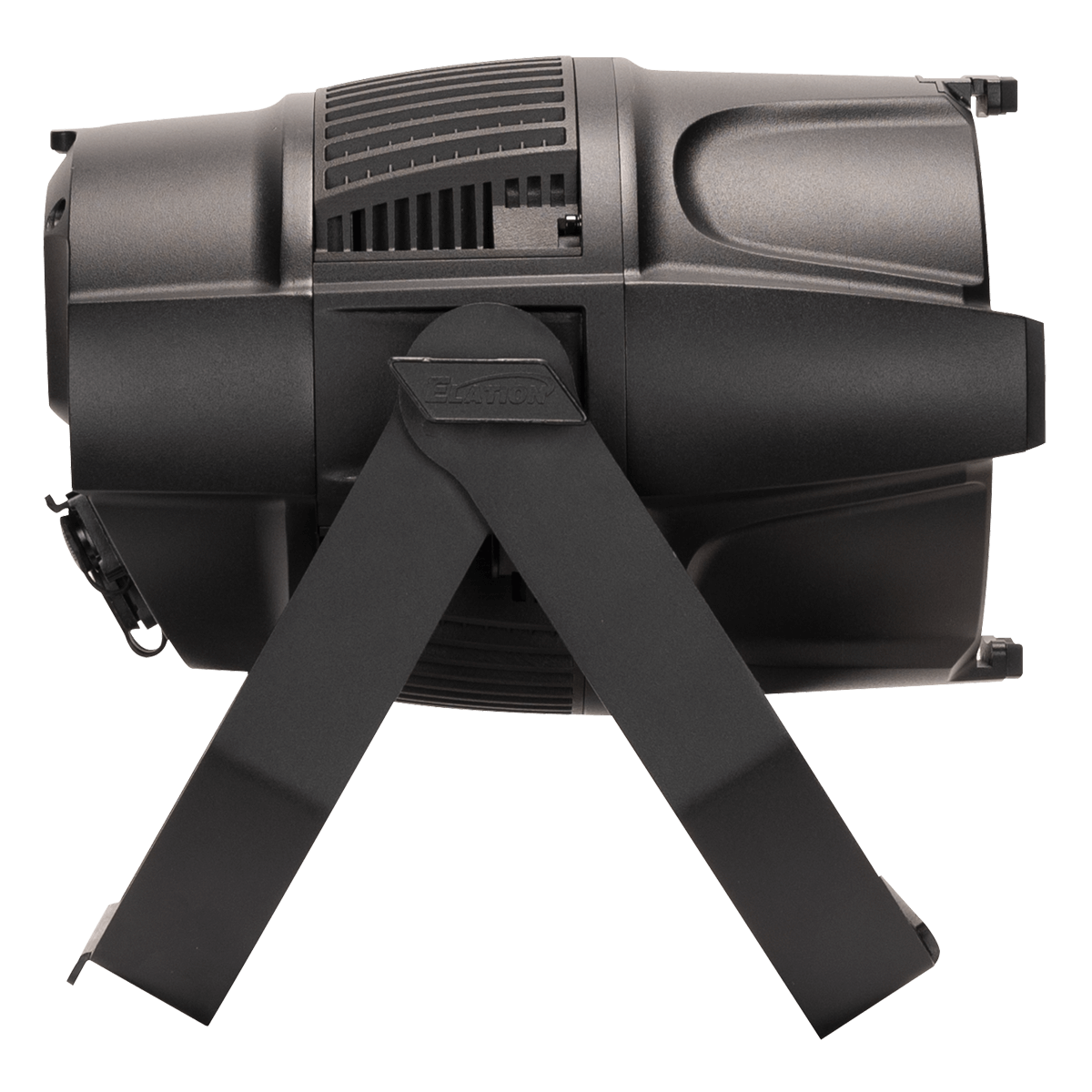

LIMELIGHT PAR S
LIMELIGHT PAR S
New!
7x 60W RGBL LED PAR with Zoom, IP65
SKU# LLP301
The LIMELIGHT PAR S is a compact and robust LED fixture that offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. It’s IP65 rating allows it to be used in any environment, indoors or out.
The LIMELIGHT PAR S engine features (7) 60W RGBL LED’s, capable of producing 4200 lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.
To expand the control capabilities on the LIMELIGHT PAR S, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.
The IP65 housing includes an integrated gel frame holder that can accommodate industry standard 7.5” accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
The LIMELIGHT PAR S is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.
Features
(7) 60W RGBL LED Array
4200 Lumens, (TBD) CRI
5°- 42° Beam Angle
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
7.5” Accessory Holder
IP65 Rated
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
CAD File
Related Categories
Specifications
SOURCE
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
(7) 60W RGBL LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
4200 Total Lumen Output
CRI - TBD
TLCI - TBD
Zoom Range 5° - 42°
Beam Angle: 5° - 42°
Field Angle: 8° - 60°
EFFECTS
Dual Zone LED Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBL Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
7 DMX Channel Modes (4ch/12ch/15ch/13ch/17ch/17ch/25ch)
Manual and DMX Controlled Dimmer and Color

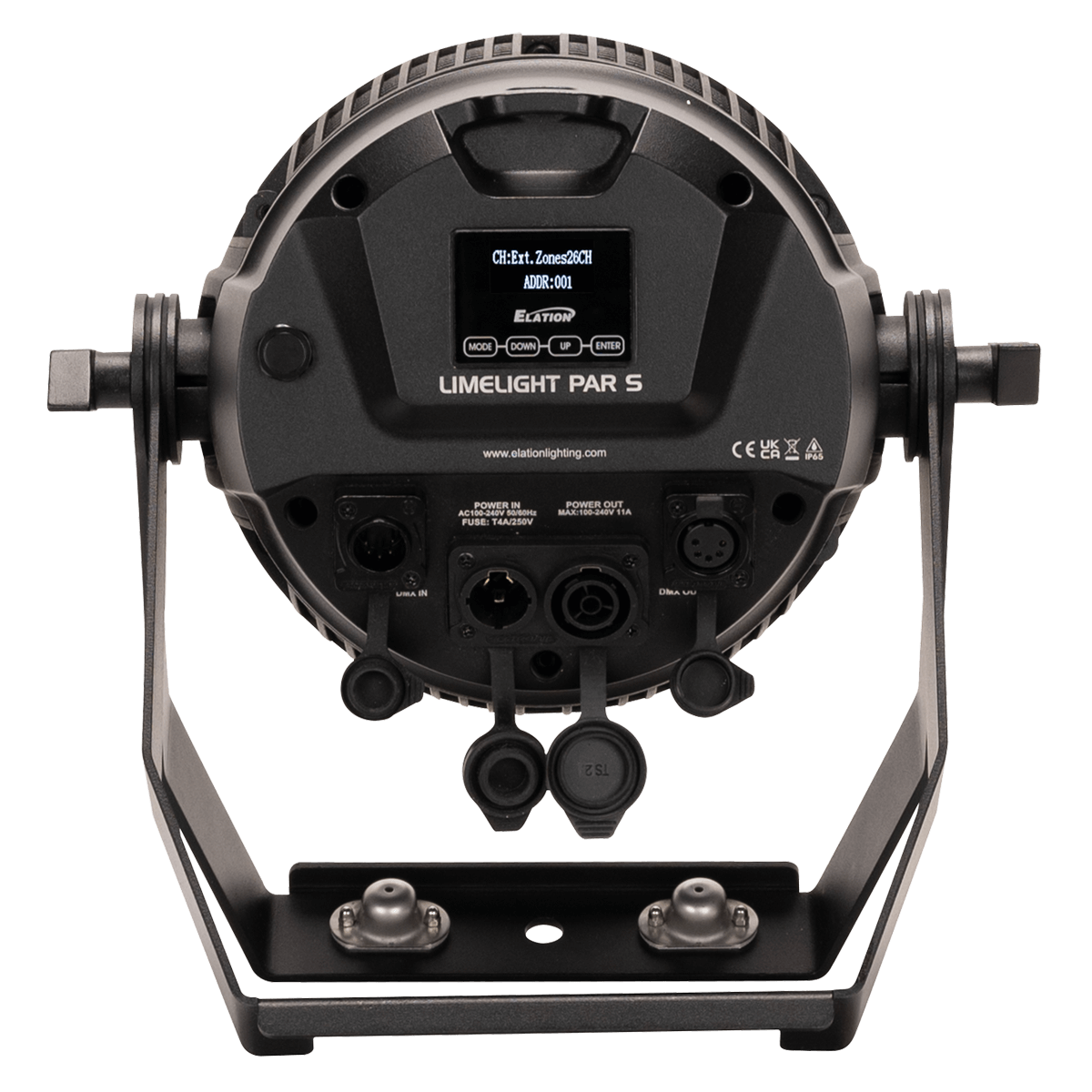

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 12.5" (317mm)
Width: 8.8” (224mm)
Vertical Height: 16.7” (423mm)
Weight: 18.74lbs. (8.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
332W Max Power Consumption
Power Thru Capacity: @110V: 5 Units; @240V: 10 Units
5°F to 113°F (-15°C to 45°C)
1132.8 BTU/hr (+/- 10%)
INCLUDED ITEMS
IP65 Locking Power Cable
Safety Cable
OPTIONAL ITEMS
7.5" Gel Frame

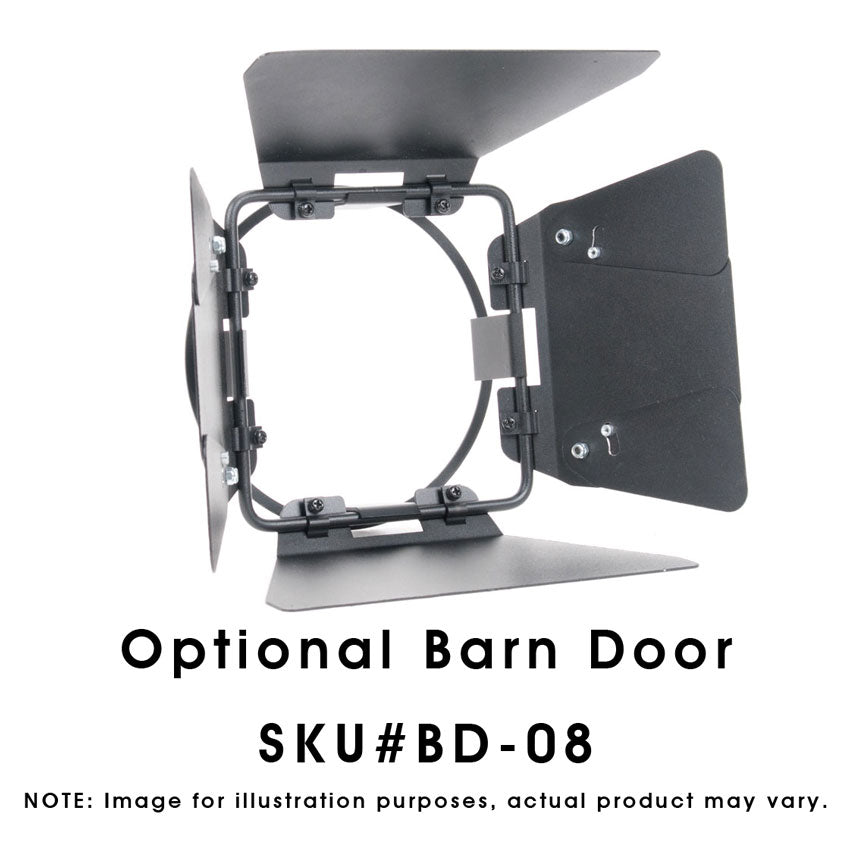

7.5" Barndoor (KLP959)
# 8050000053 - Omega Bracket
APPROVALS / RATINGS
CE | cETLus(pend) | UL | IP65c| FCC | UKCA
FIRMWARE UPDATE
Current Update:
Specifications and documentation subject to change without notice.
