LIMELIGHT PAR L
12x 60W RGBL LED PAR with Zoom, IP65
Built to stand out, the LIMELIGHT PAR L delivers rugged, high-output performance with 12x 60W RGBL LEDs pushing up to 8,213 lumens of vibrant color and high CRI whites.

LIMELIGHT PAR L
- (12) 60W RGBL LED Array
- 8,213 Total Fixture Lumen Output (Sphere) Lumens
- 5°- 40° Beam Angle
- Smooth 16-bit Selectable Dimming Modes and Curves
- Remote LED Refresh Rate
- Flicker Free Operation for TV and Film
- IP65 Rated
Specifications
(12) 60W RGBL LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
8,213 (Integrating Sphere)
7,922 (Goniometer)
CRI - 83.4
TLCI - 67
Zoom Range 5° - 40°
Beam Angle: 5° - 40°
Field Angle: 8.5° - 56.5°
EFFECTS
Dual Zone LED Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBL Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
7 DMX Channel Modes (4ch/12ch/15ch/13ch/17ch/17ch/25ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 13.4" (341mm)
Width: 9.8” (248mm)
Vertical Height: 17.8” (451mm)
Weight: 21.8 lbs. (9.9kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
570W Max Power Consumption
Power Thru Capacity: 8A (1 unit @110V; 3 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1943.7
INCLUDED ITEMS
IP65 Locking Power Cable
Safety Cable
OPTIONAL ITEMS
Gel Frame

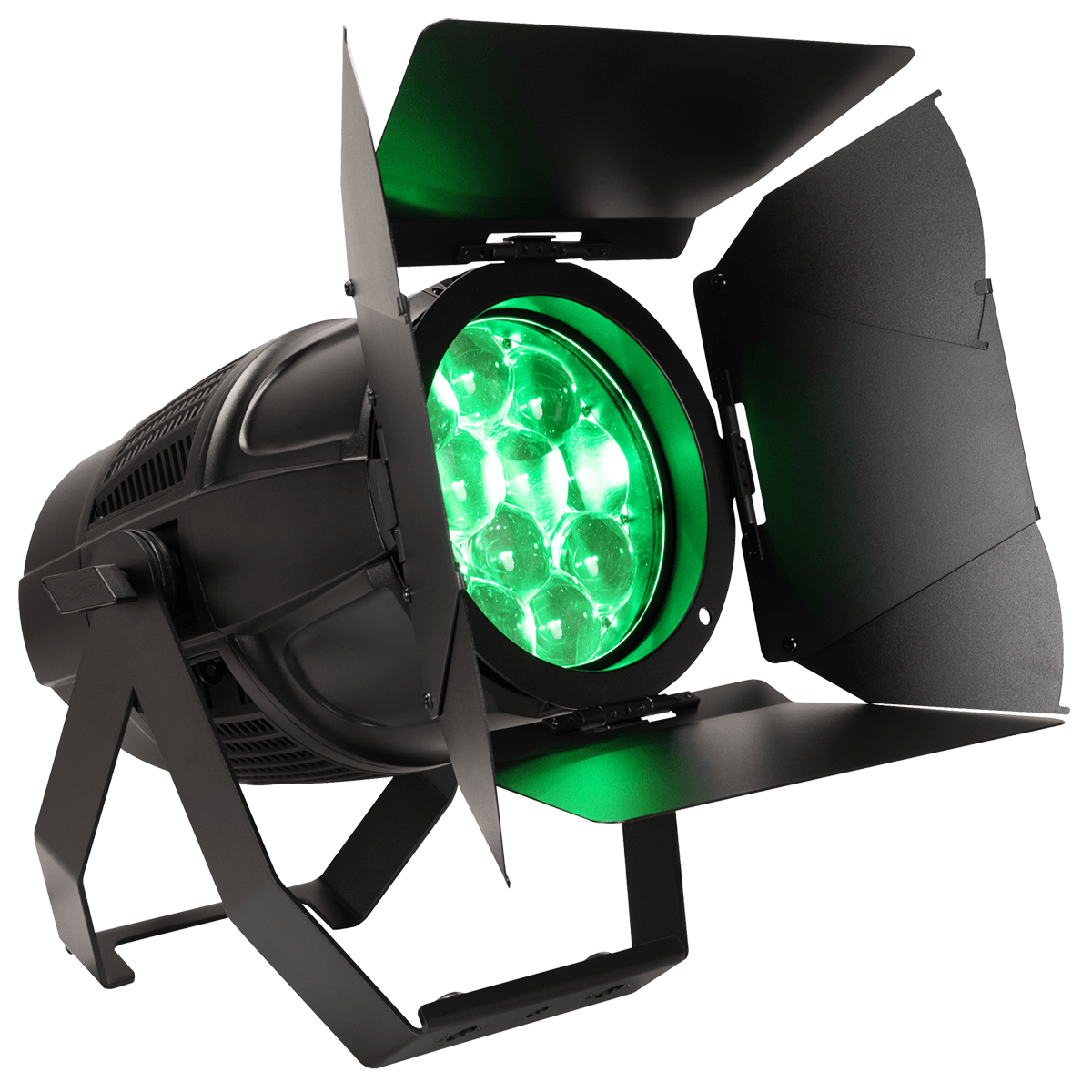

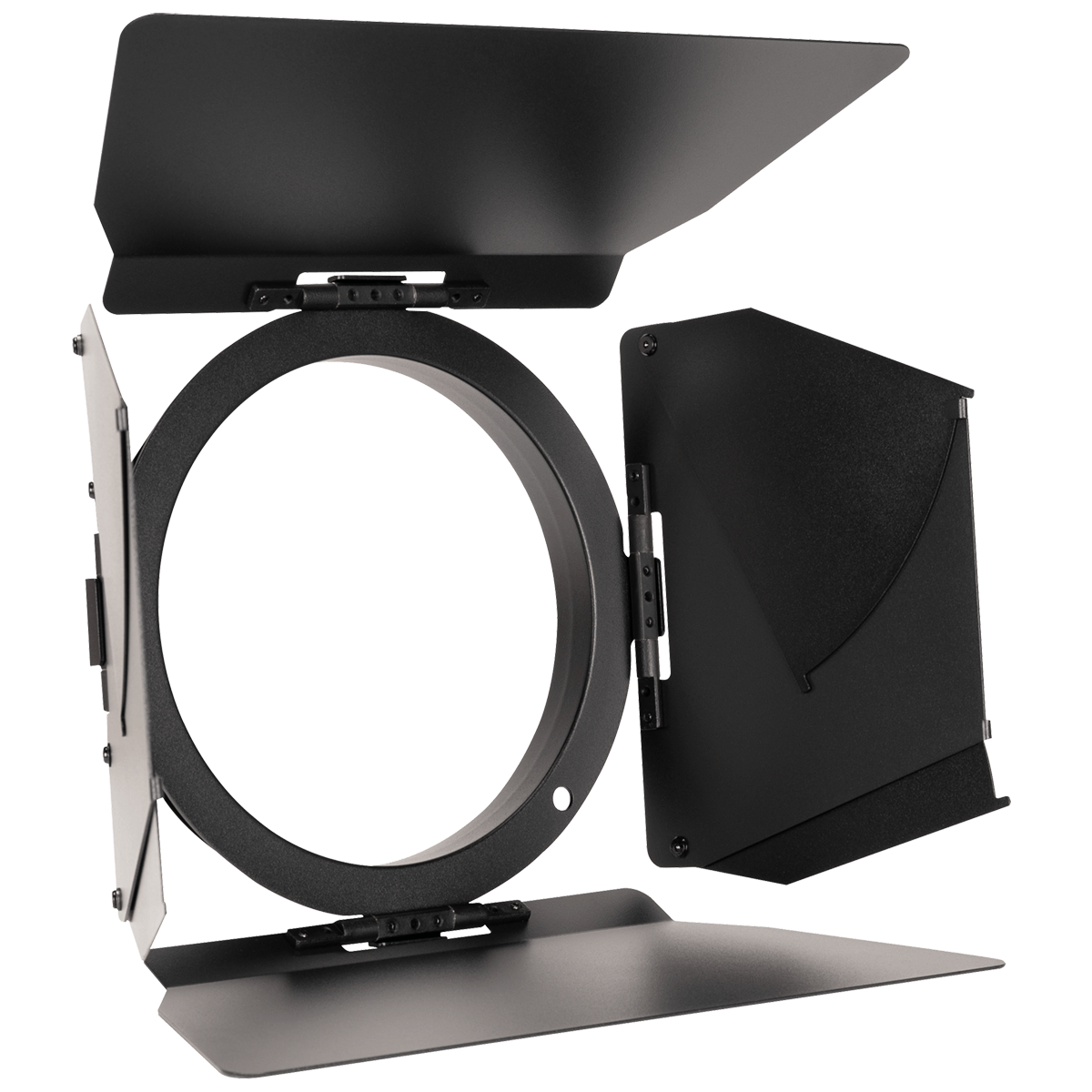

Black Barndoor (LLP332)
# 8050000053 - Omega Bracket
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Update: V1.03
Click HERE for software update
Specifications and documentation subject to change without notice.
