LIMELIGHT PAR S
5,345 Total Fixture Lumen Output (Sphere)
5°- 42° Beam Angle
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
7.5” Accessory Holder
IP65 Rated
Specifications
(7) 60W RGBL LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
5,345 (Integrating Sphere)
4,844 (Goniometer)
CRI 82.8
TLCI 74
Zoom Range 5° - 42°
Beam Angle: 5° - 42°
Field Angle: 8° - 60°
EFFECTS
Dual Zone LED Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBL Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
7 DMX Channel Modes (4ch/12ch/15ch/13ch/17ch/17ch/25ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 12.5" (317mm)
Width: 8.8” (224mm)
Vertical Height: 16.7” (423mm)
Weight: 20.1lbs. (9.1kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
332W Max Power Consumption
Power Thru Capacity: 11A (3 units @110V; 7 units @240V)
5°F to 113°F (-15°C to 45°C)
1132.8 BTU/hr (+/- 10%)
INCLUDED ITEMS
IP65 Locking Power Cable
Safety Cable
OPTIONAL ITEMS
7.5" Gel Frame

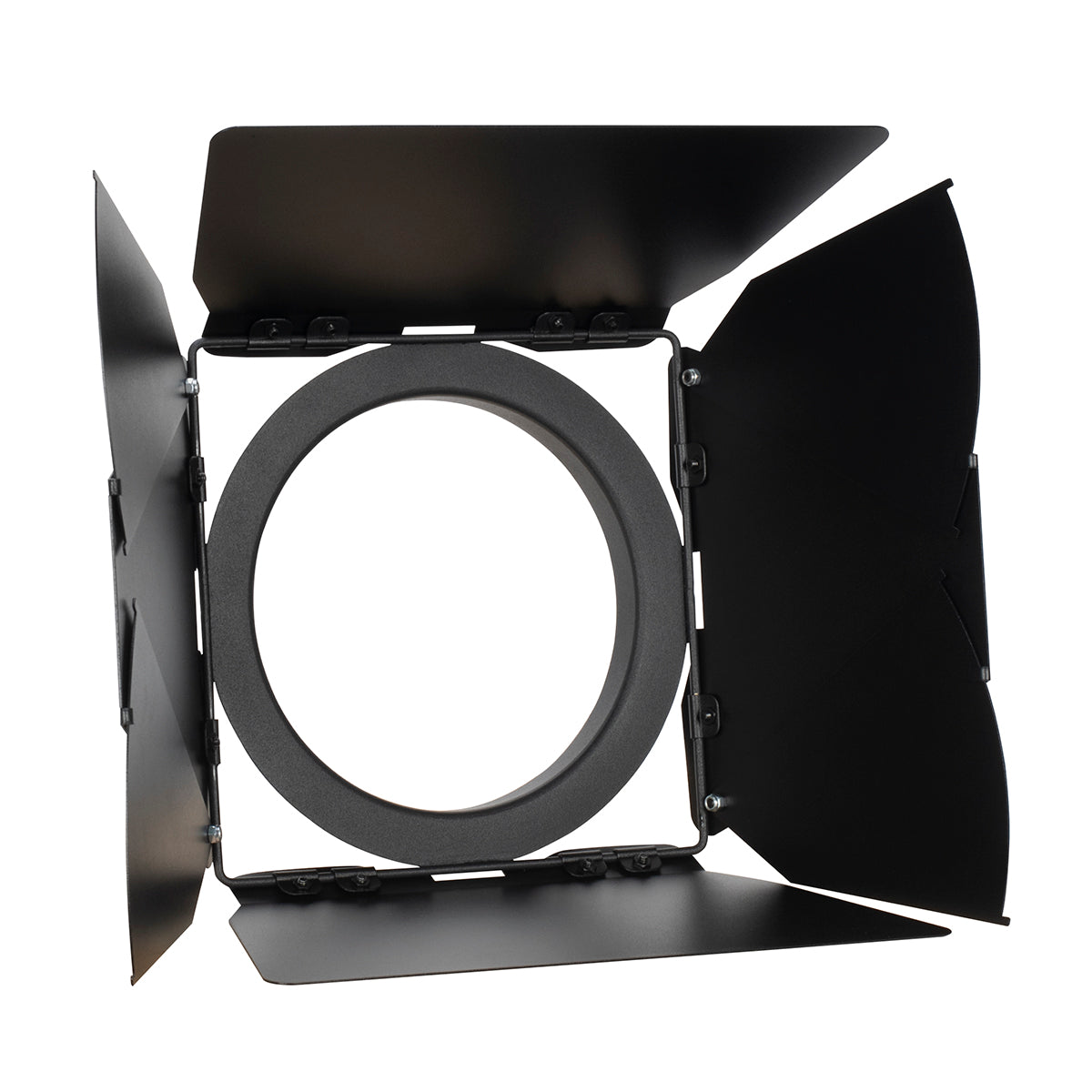

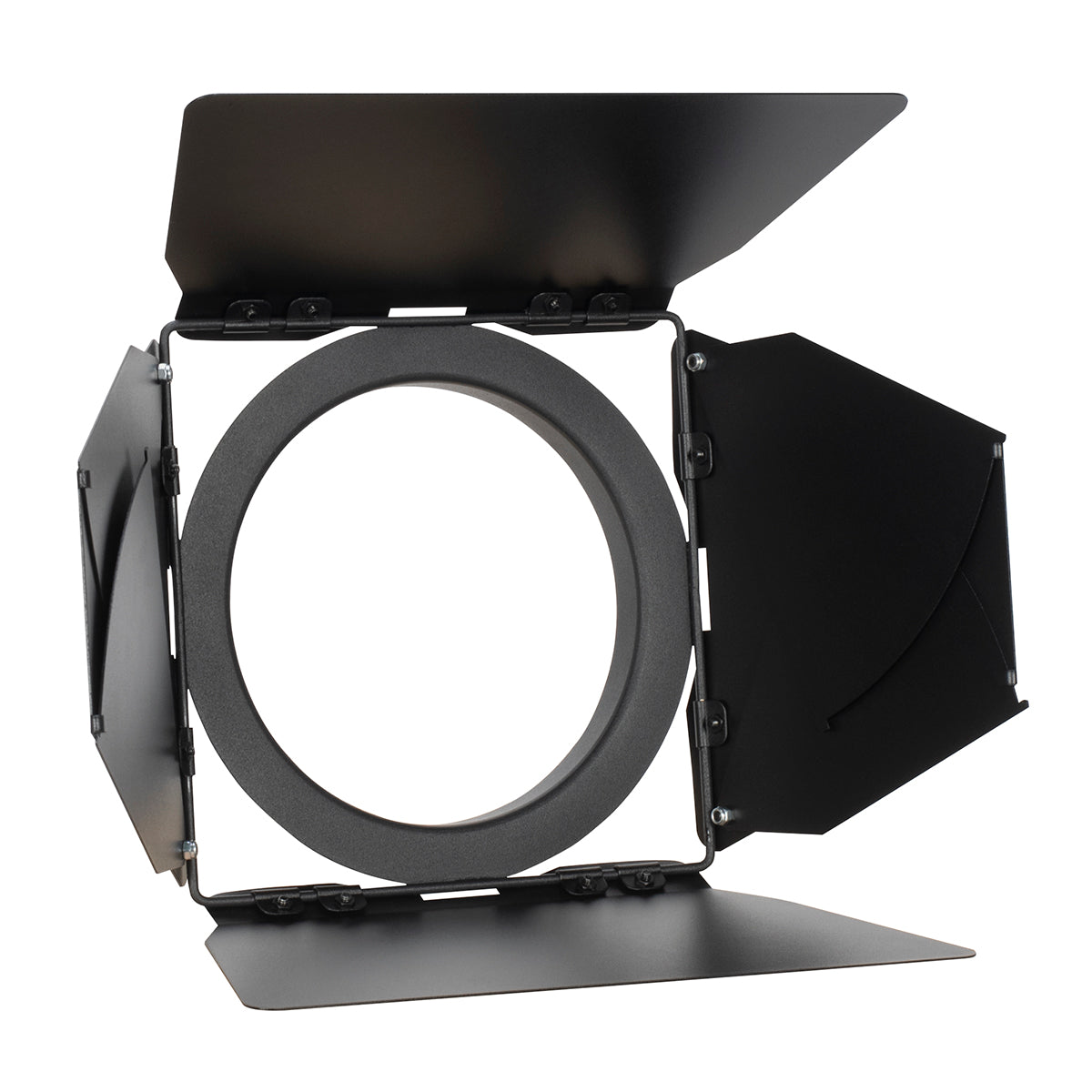

7.5" Barndoor (KLP959)
# 8050000053 - Omega Bracket
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Update: V1.03
Click HERE for software update
Specifications and documentation subject to change without notice.
