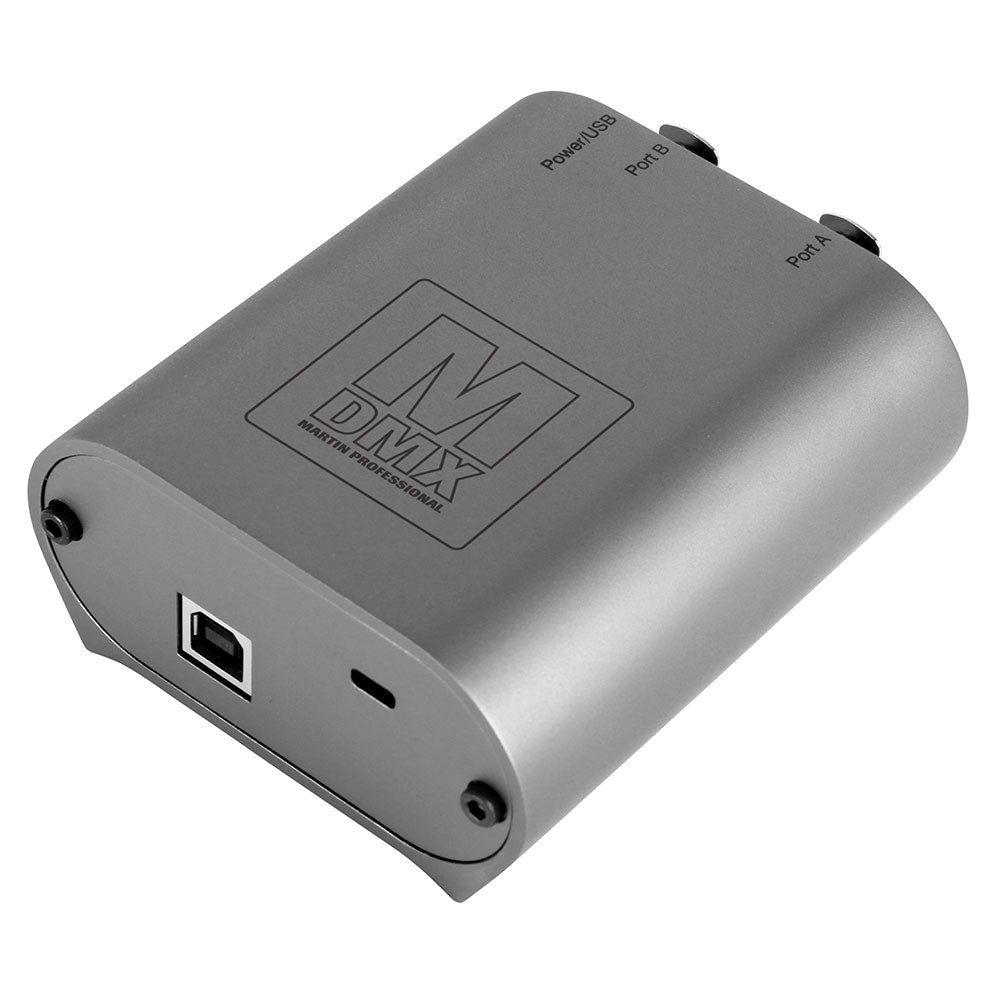

M-DMX

Features

2 port DMX node for M-PC, M-Series console or LightJockey2 expansion

Plug and Play USB connection

Bidirectional ports for DMX Input

RDM support

Specifications

Visit support.obsidiancontrol.com for ONYX Support and Downloads

PHYSICAL
Length: 92 mm (3.7 in)
Width: 82 mm (3.3 in)
Height: 41 mm (1.7 in)
Weight: 245 g (0.6 lbs.)

CONTROL/USER INTERFACE
Capacity: Up to two DMX universes
Device status: 3 x multicolor status LEDs

CONSTRUCTION
Housing: Aluminum
IP Rating: IP20
Non-domestic use in dry location only

CONNECTIONS
DMX data: 2 x 5-pin locking XLR, both configurable for DMX in/out
PC/controller: USB 2.0
K-Lock security slot

ELECTRICAL
Power: 5 VDC over USB Maximum current: 300 mA

THERMAL
Ambient temperature: 0° – 50° C (32° – 122° F)

INCLUDED ITEMS
USB cable, 1.5 m (4.9 ft.)



Specifications and documentation subject to change without notice.
