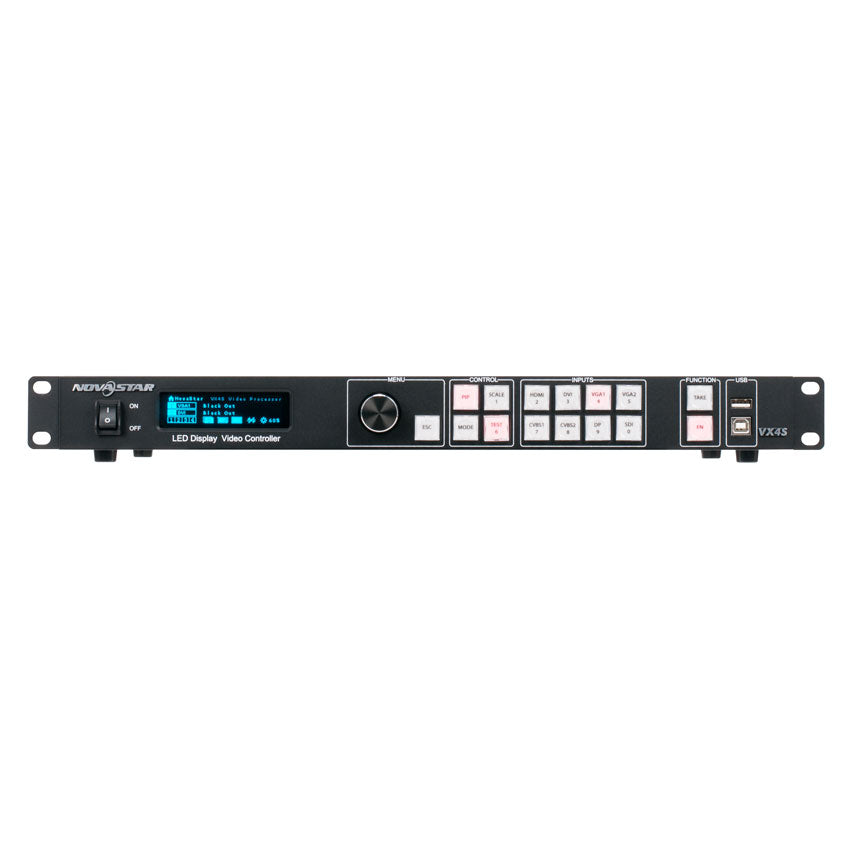

NOVASTAR VX4S

Features

The new NOVASTAR VX4s™ is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.



NOVASTAR VX4s™ is compatible with the ADJ AV6, AV6X, AV4IP and AV3 video panels.

Resources

Specification information

Guides/ Manuals

Drawings

Specifications

FEATURES:

User Friendly LED Display Controller

Powerful Front End Processor

Up to 1920 x 1200 p @60Hz Input Resolution

Multiple Video Signal Format Support

New Generation Point-By-Point Correction Technology

Cascade Multiple Units Together Via USB

Rack Mountable Aluminum Enclosure (screws not included)

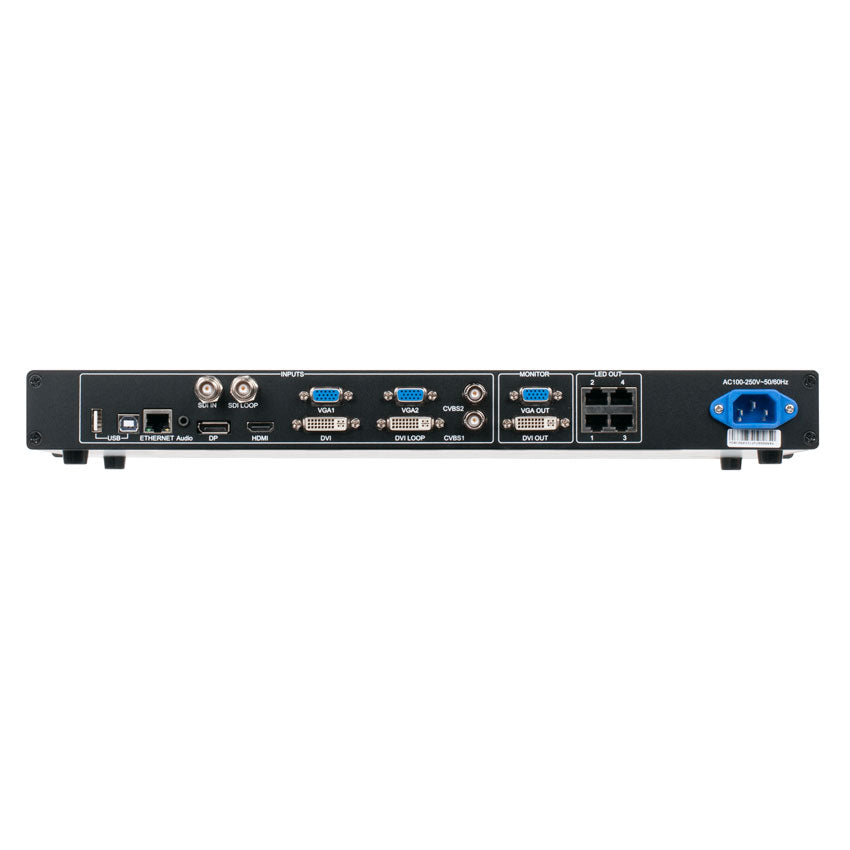

CONTROL / CONNECTIONS:

(1) RJ45 LAN for IP Based Control

(4) RJ45 Outputs for up to 2.6 million Pixels of LED Control

(2) USB Type A and (2) USB Type B Ports (1 set on each side)

(1) 1/8 inch (3.5mm) Audio Input

Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI

Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop

Locking IEC Power Input

SIZE / WEIGHT:

Length: 19.0” (483mm)

Width: 10.8” (275mm)

Height: 1.8” (45mm)

Weight: 5.6 lbs. (2.55 kg)

ELECTRICAL:

AC 100-240V - 50/60Hz - 0.65A

Max Power Consumption: 16W

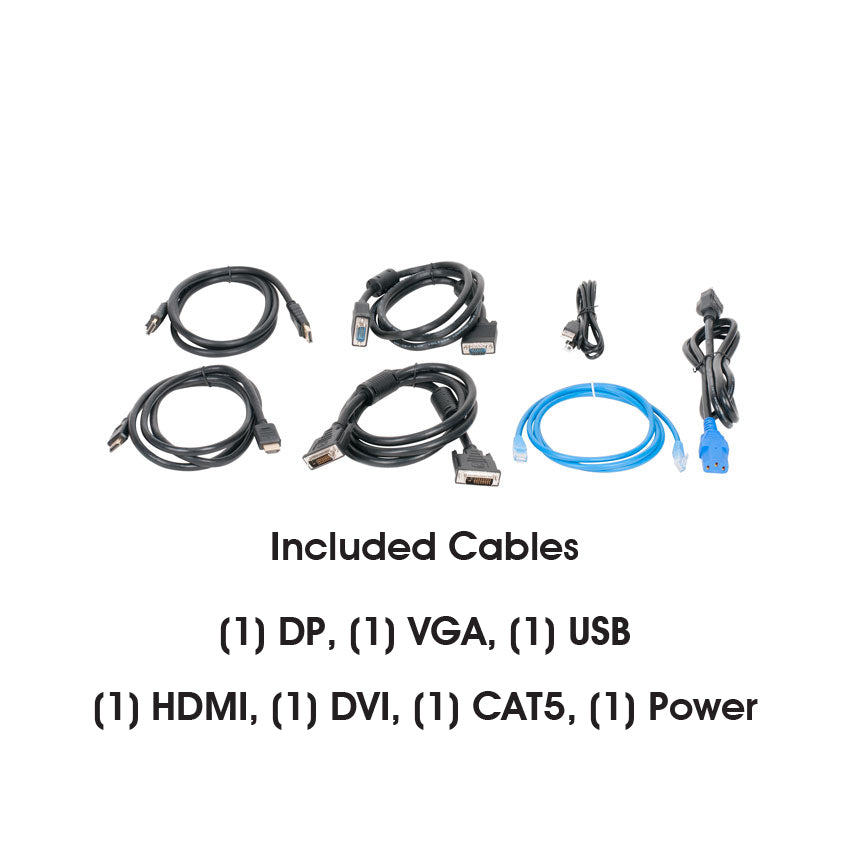

INCLUDED CABLES (1 each):

DP, VGA, USB, HDMI, DVI, CAT5, Power
