STUDIO SERVER
STUDIO SERVER is a professional-grade lighting solution. The ArKaos Studio Server is a powerful system designed for Professional Lighting Designers.

STUDIO SERVER
The ArKaos Studio Server is a powerful system designed for Professional Lighting Designers.
- Plug and Play Simplicity
- Vast library of high quality digital media from world's best visual content providers
- Comes installed with MediaMaster Pro
- Smart Design
- Runs full HD video on up to four EDID managed outputs
- One HD-SDI input and fast SSD drive
- Large LED status strip for quick visual feedback on the server's operation state
- Front display allows use of server without the need of additional screens
- Fast recovery system by Acronis allows extremely simple reset from the boot menu
- Pre-configured to work directly with all market-leading DMX lighting desks
- Blistering Performance
- Shock-resistant up to 2G
- Easy access to fans and filters
- Thoroughly tested in structural strength, and toleration of heat and vibration
Specifications

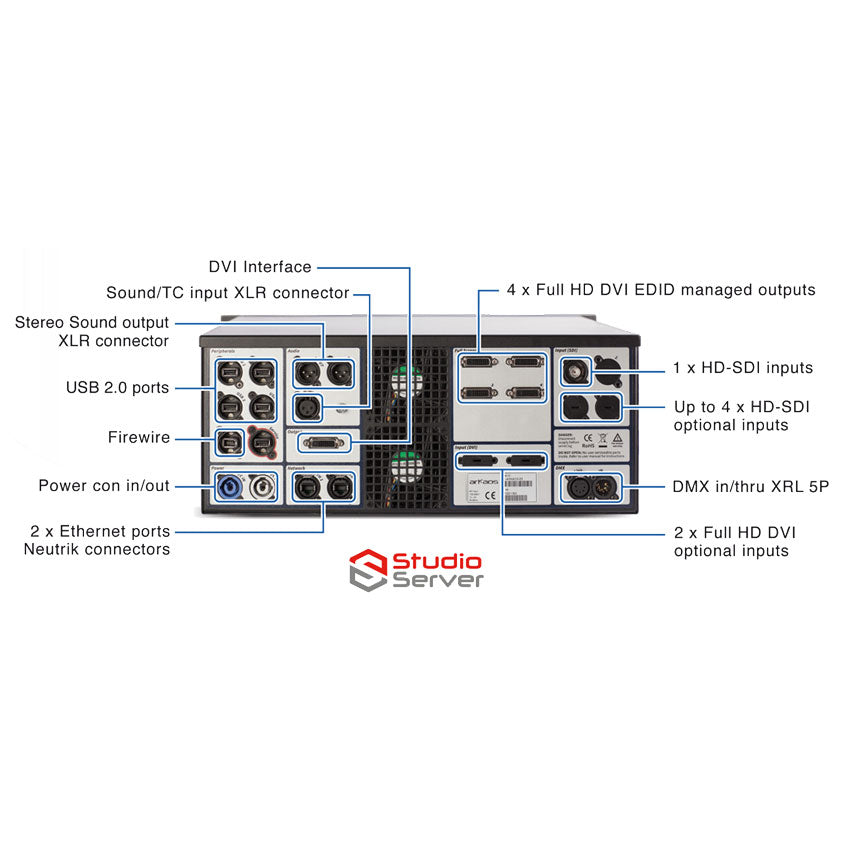

I/O
Interface Output: 1 (DVI)
Output: 4 (DVI)
EDID Management: Yes
Input (Standard): 1x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI 2 x DVI
Output Resolution: 4 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2
STORAGE
System Drive: SSD 128 GB
Separate Drive: SSD 256 GB
SOFTWARE
MediaMaster: Pro
CuePlayer (Theater mode): Yes
LED Mapper: Yes
Kling-Net Mapper: Yes
Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes
CONTROL
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes
HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: Yes
SIZE / WEIGHT
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)
Specifications and documentation subject to change without notice.
