NX Touch
Discontinued

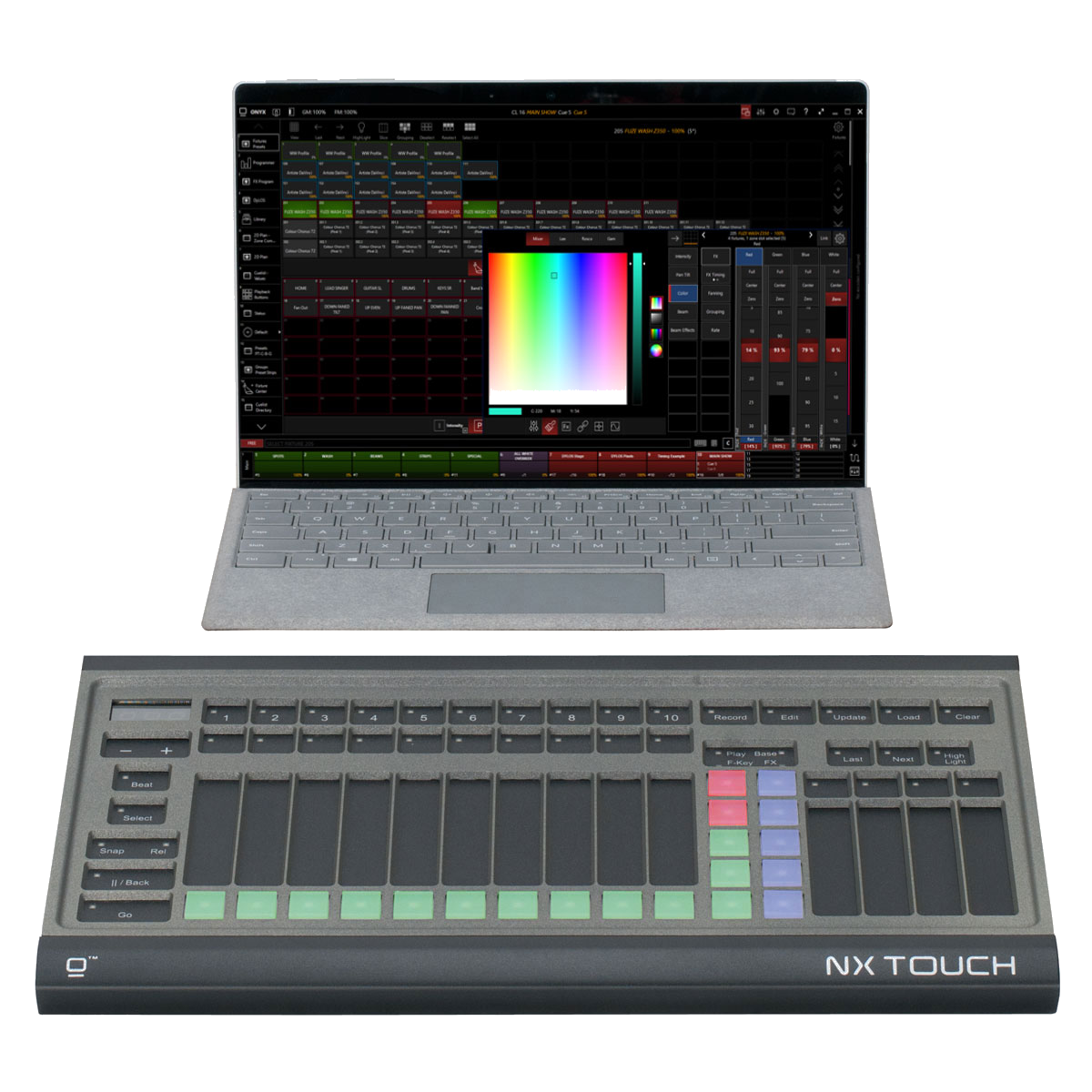

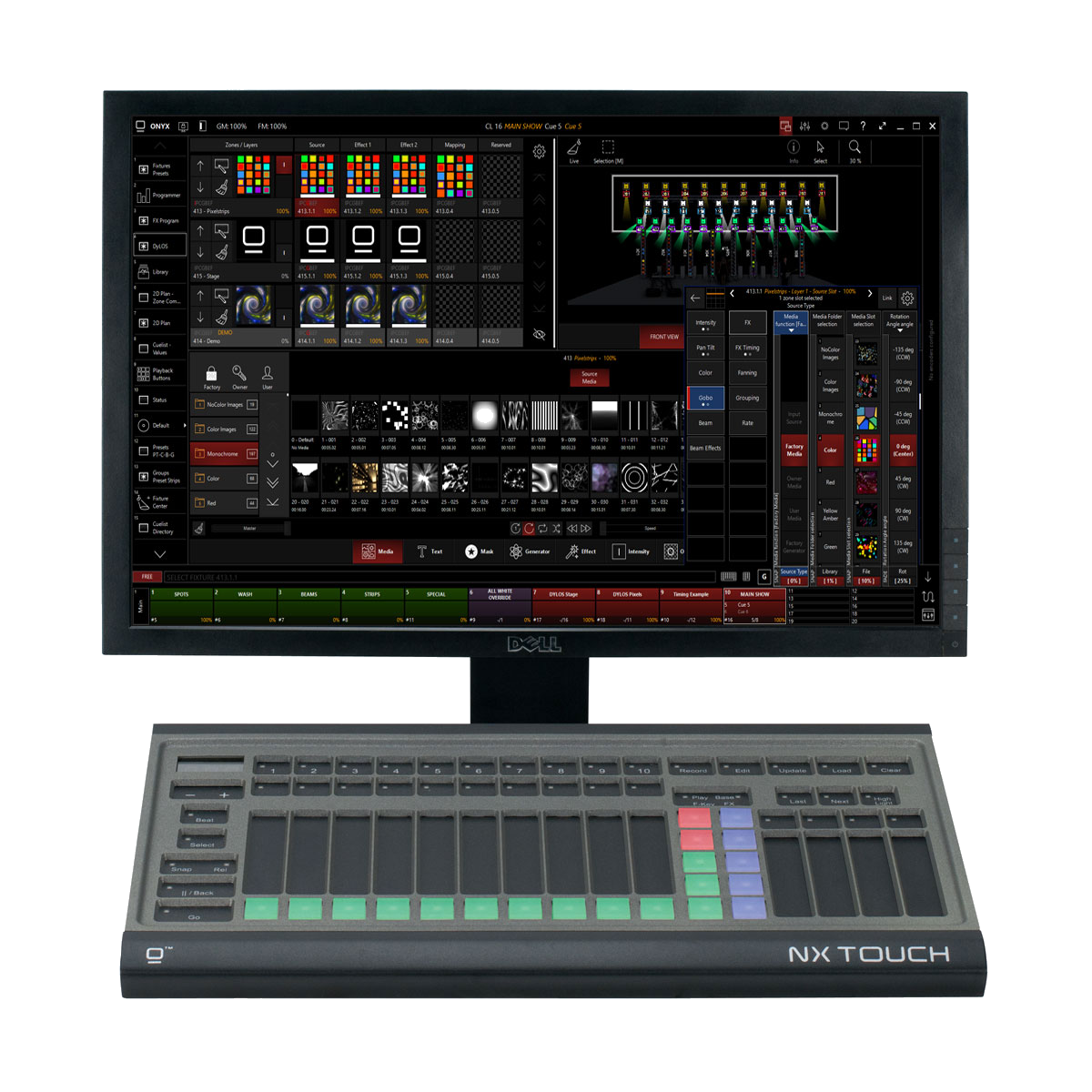

The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.
NX Touch
Sale price$0.00

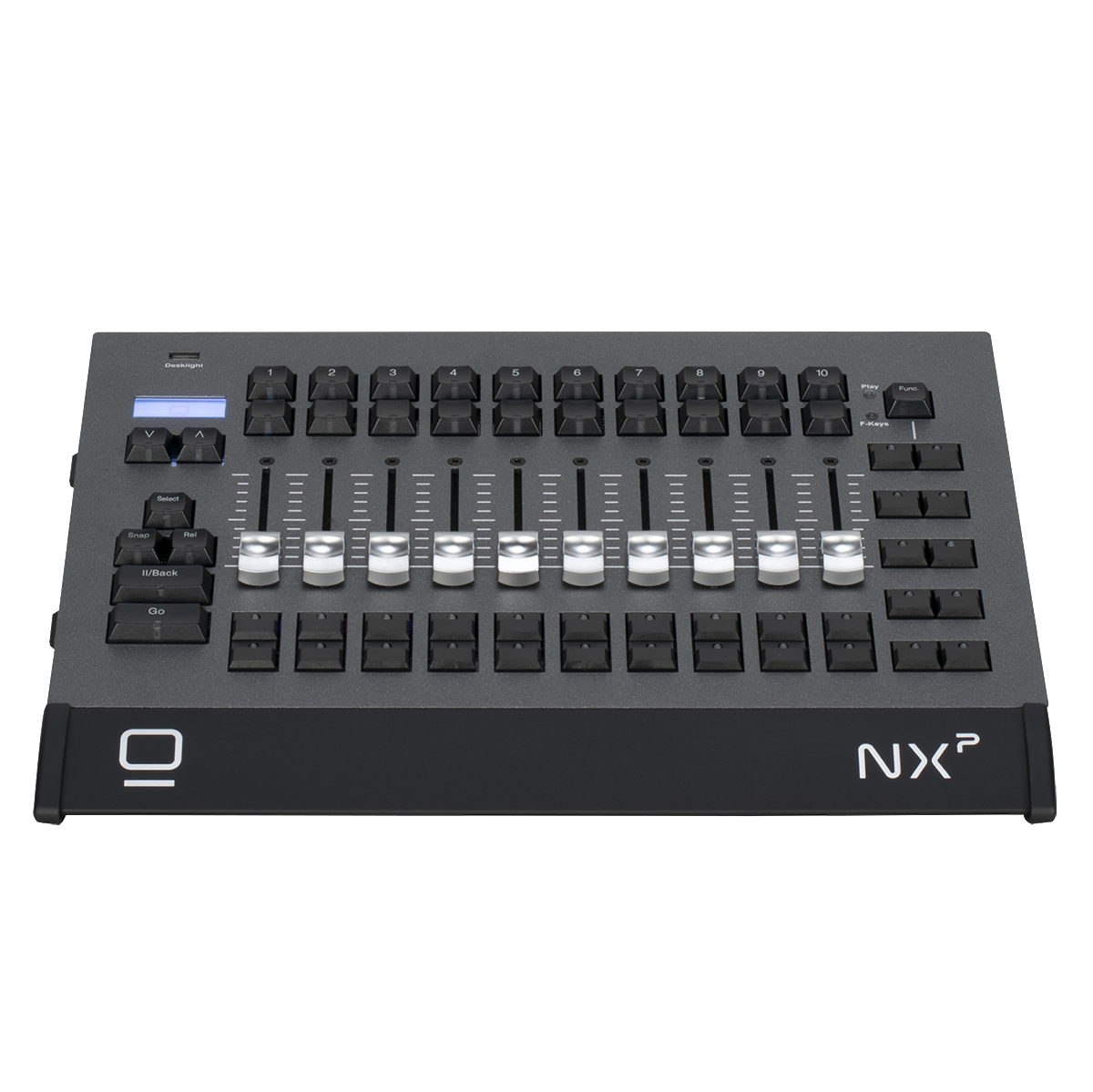

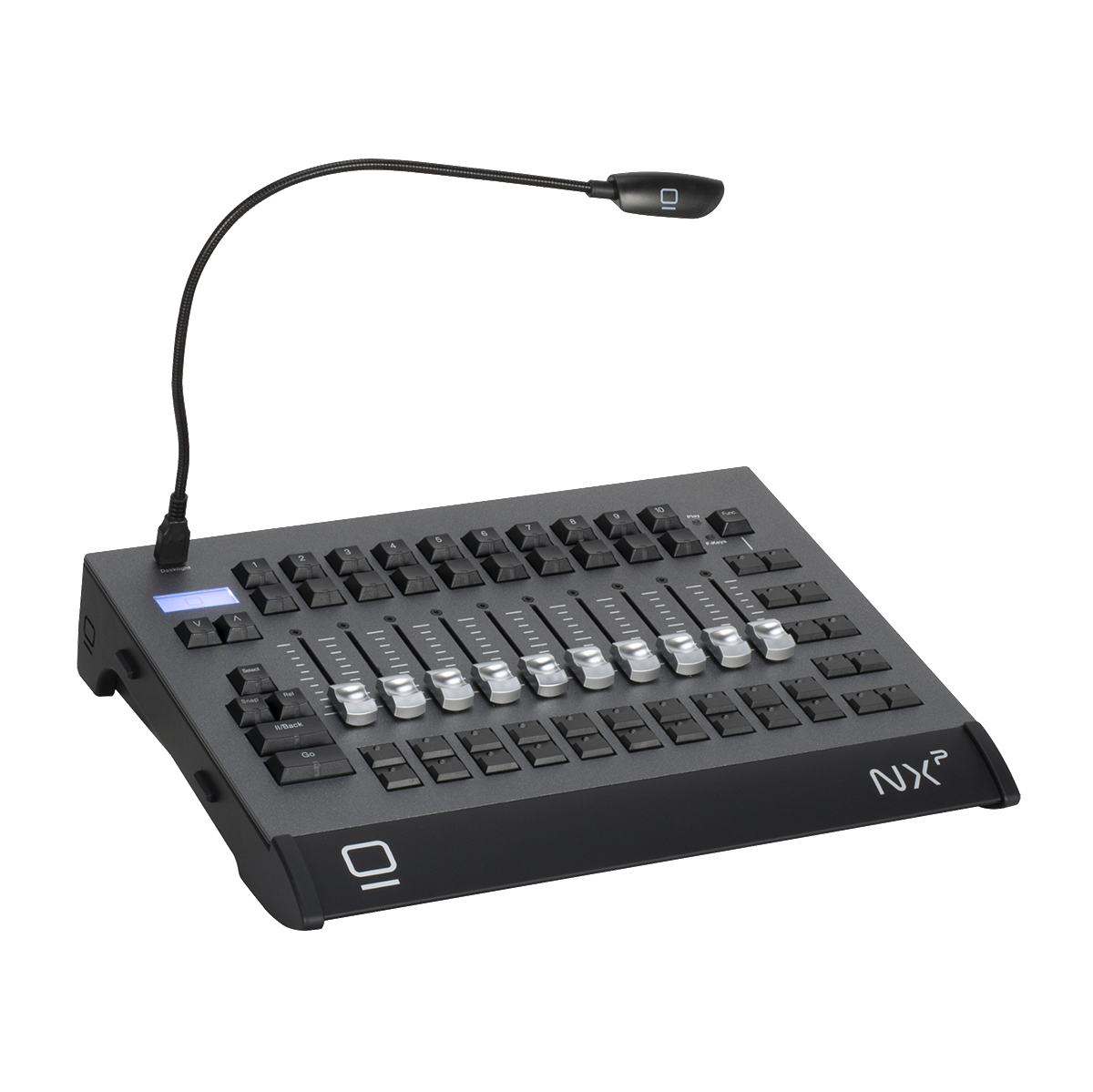

Replaced by
NX Touch

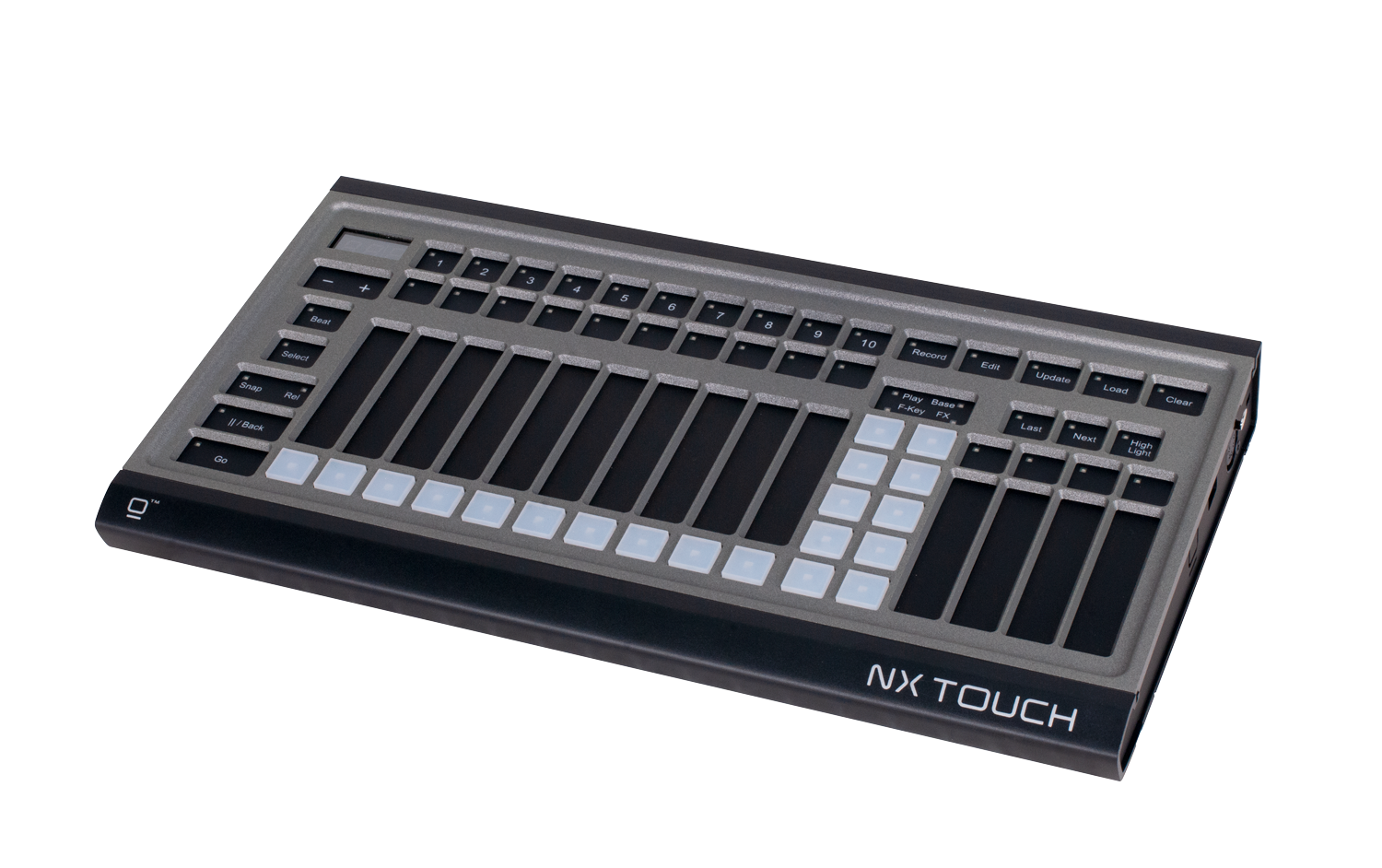

The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.

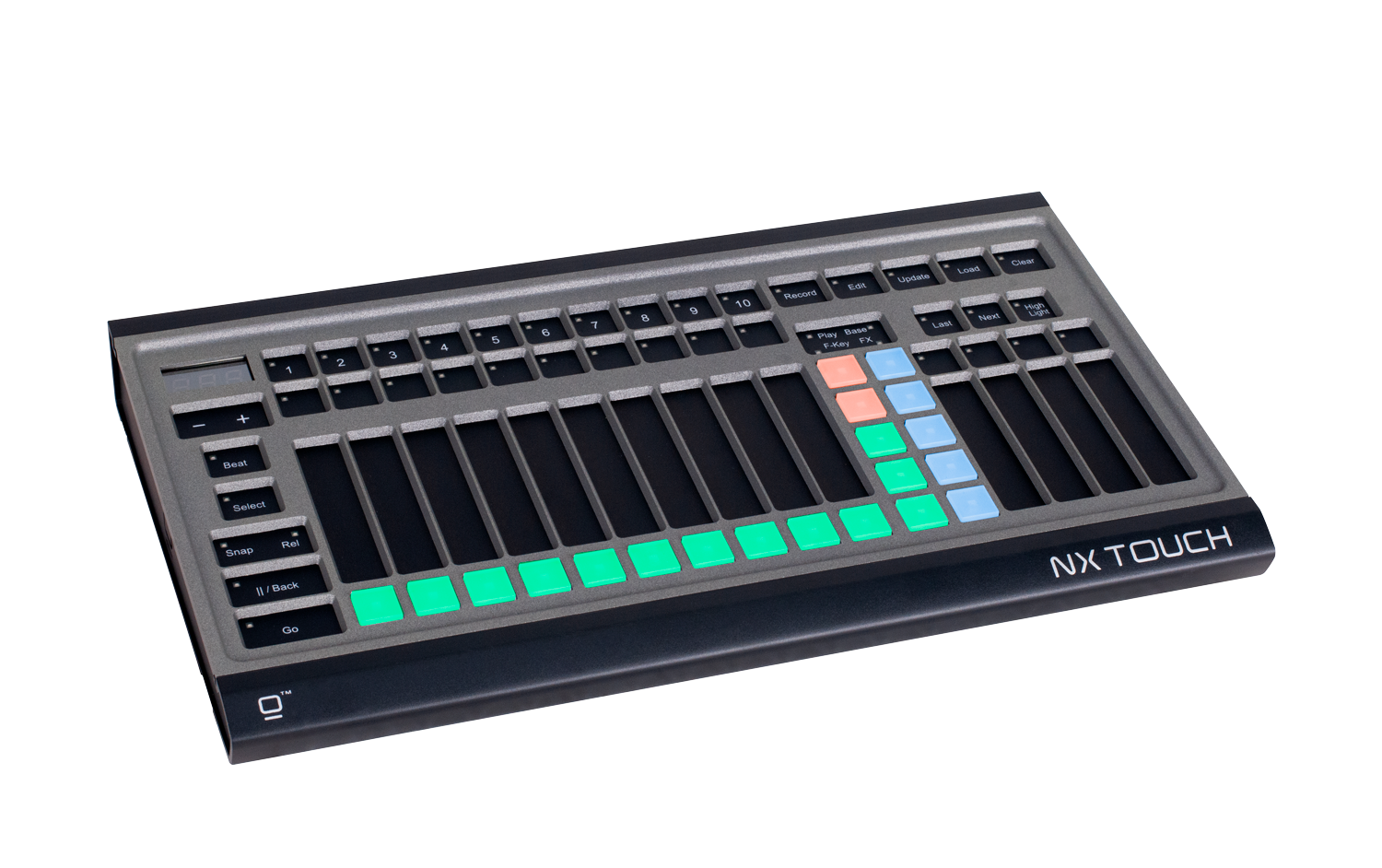

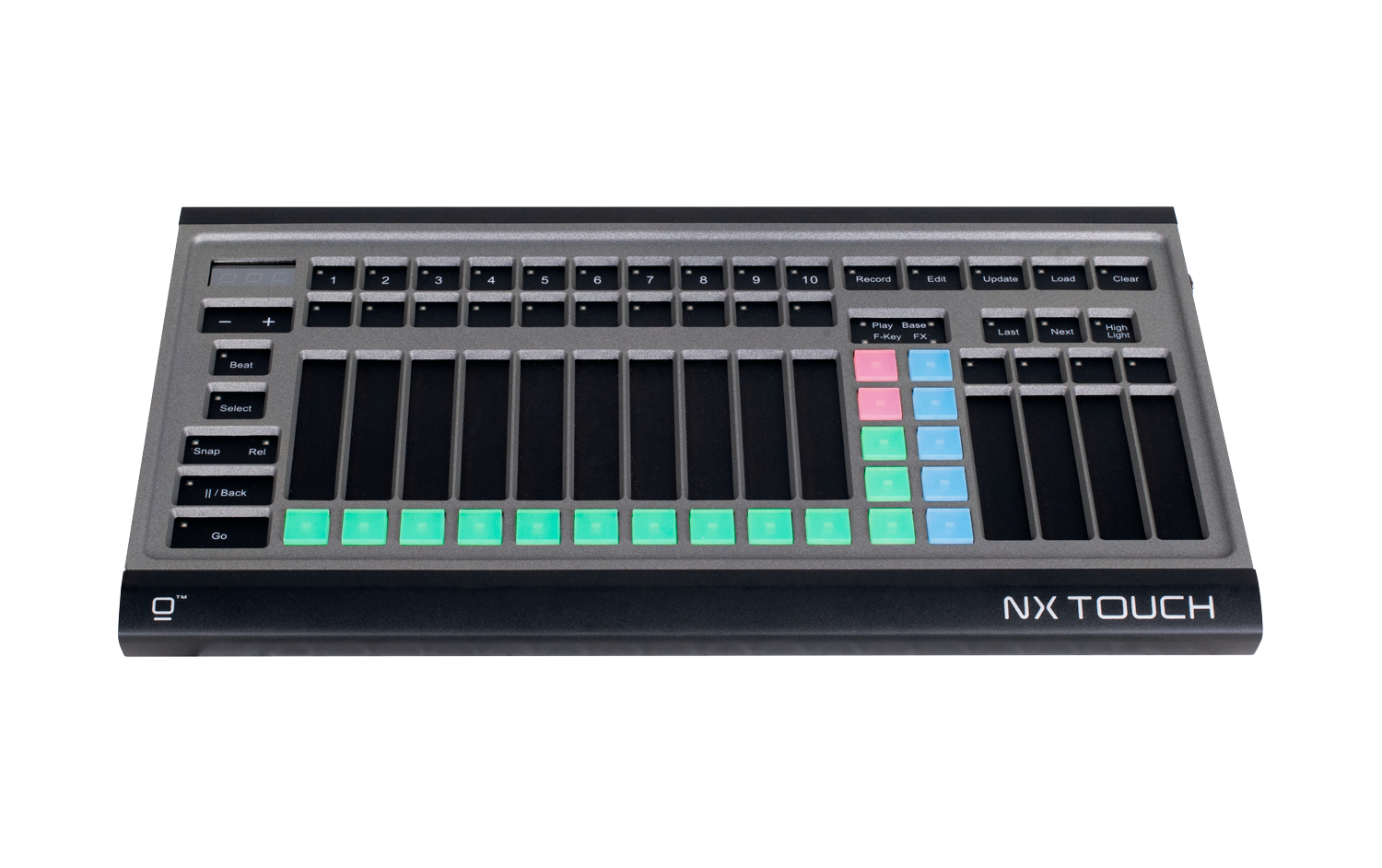

14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device and enables the ONYX NOVA+ license for up to 4 Universes and full OSC, MIDI and Timecode control.
Specifications
[tab name="Surface" icon="g"]
- Bank Navigation Up/Down with numerical display
- Main Go section: Snap, Release, Pause and Go buttons
- Command Buttons: Record, Edit, Update, Load, Clear
- Multifunction Mode Select button
- Fixture Selection buttons: Last, Next, Highlight
- 4x Parameter Select buttons
- 4x Parameter Adjust touch faders
- 10x Function velocity pads
- 10x Playback touch faders with 3 buttons
- (2x touch pad, 1x velocity pad)
[/tab]
[tab name="Connections" icon=""]

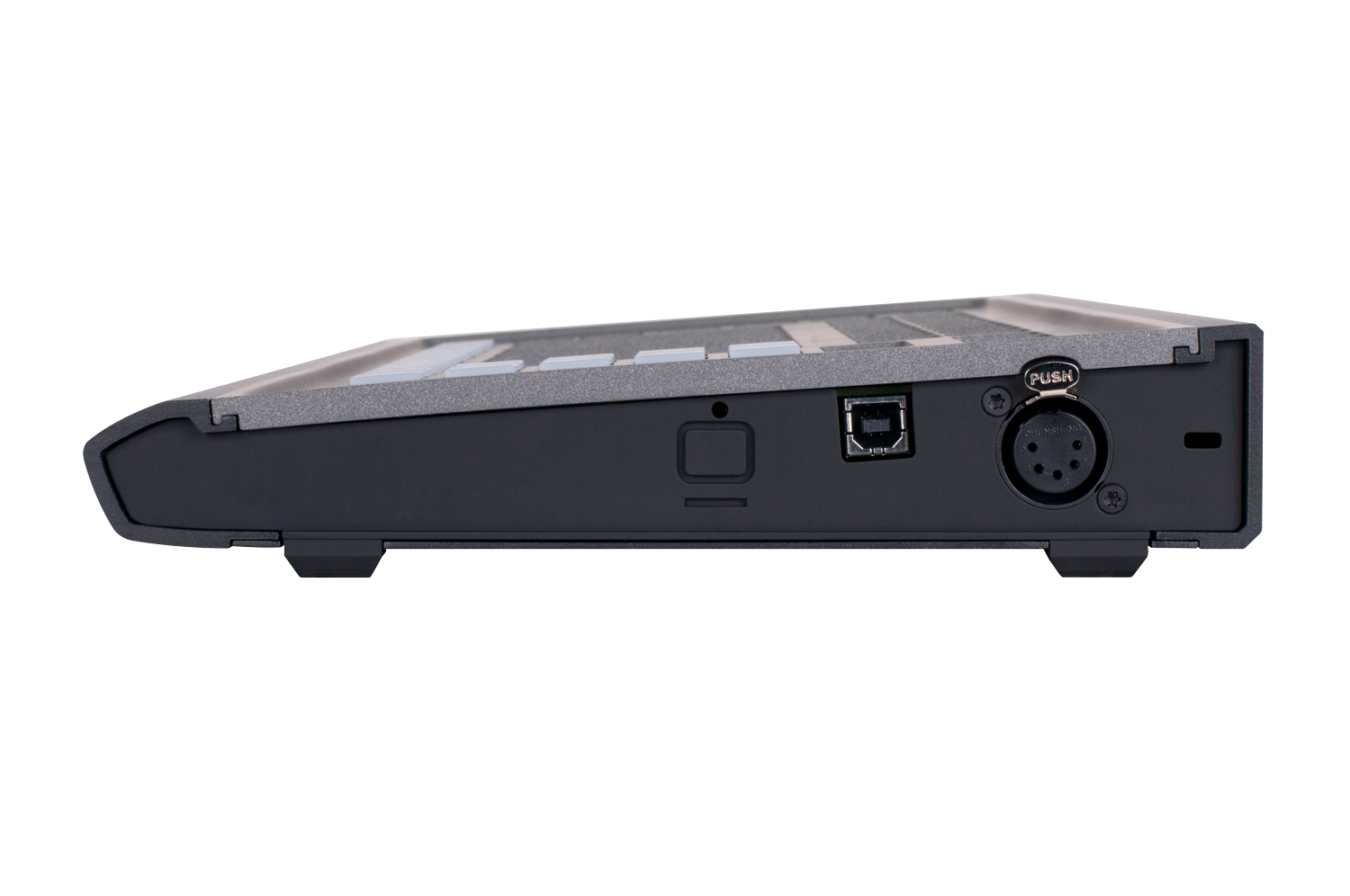

- DMX Out: 1x 5pin locking XLR
- USB Input: USB B 2.0
[/tab]
[tab name="Requirements" icon=""]
- Windows 10, Windows 11 64bit (Home/Pro/Enterprise)
- Intel Core i3 processor 6th Generation+ (or other comparable multi-core processor)
- 8 GB RAM
- SSD storage drive
- 40 GB available disk space for software, DYLOS factory content and storage
- Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
- USB 2.0 port
- 10/100 Ethernet port for Art-Net DMX output
- 100/1000 Ethernet port for X-Net, Remote operation and sACN
[/tab]
[tab name="Specifications" icon="Z"]

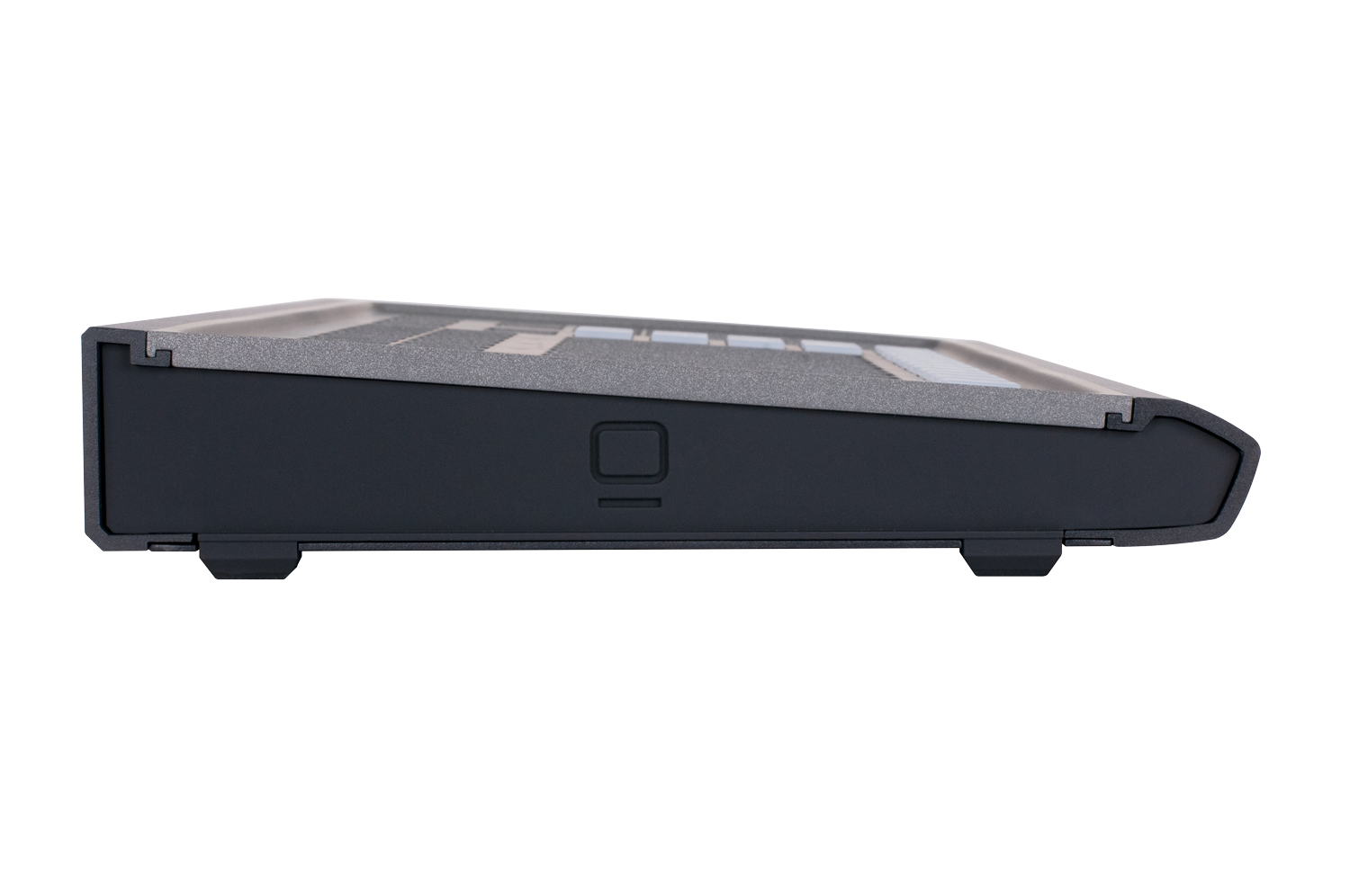

Physical
- Length: 394 mm (15.5 in.)
- Width: 218.5 mm (8.6 in.)
- Height: 46.5 mm (1.8 in.)
- Weight: 1.5 kg (3.3 lbs.)
- Housing: Aluminum, steel, plastic

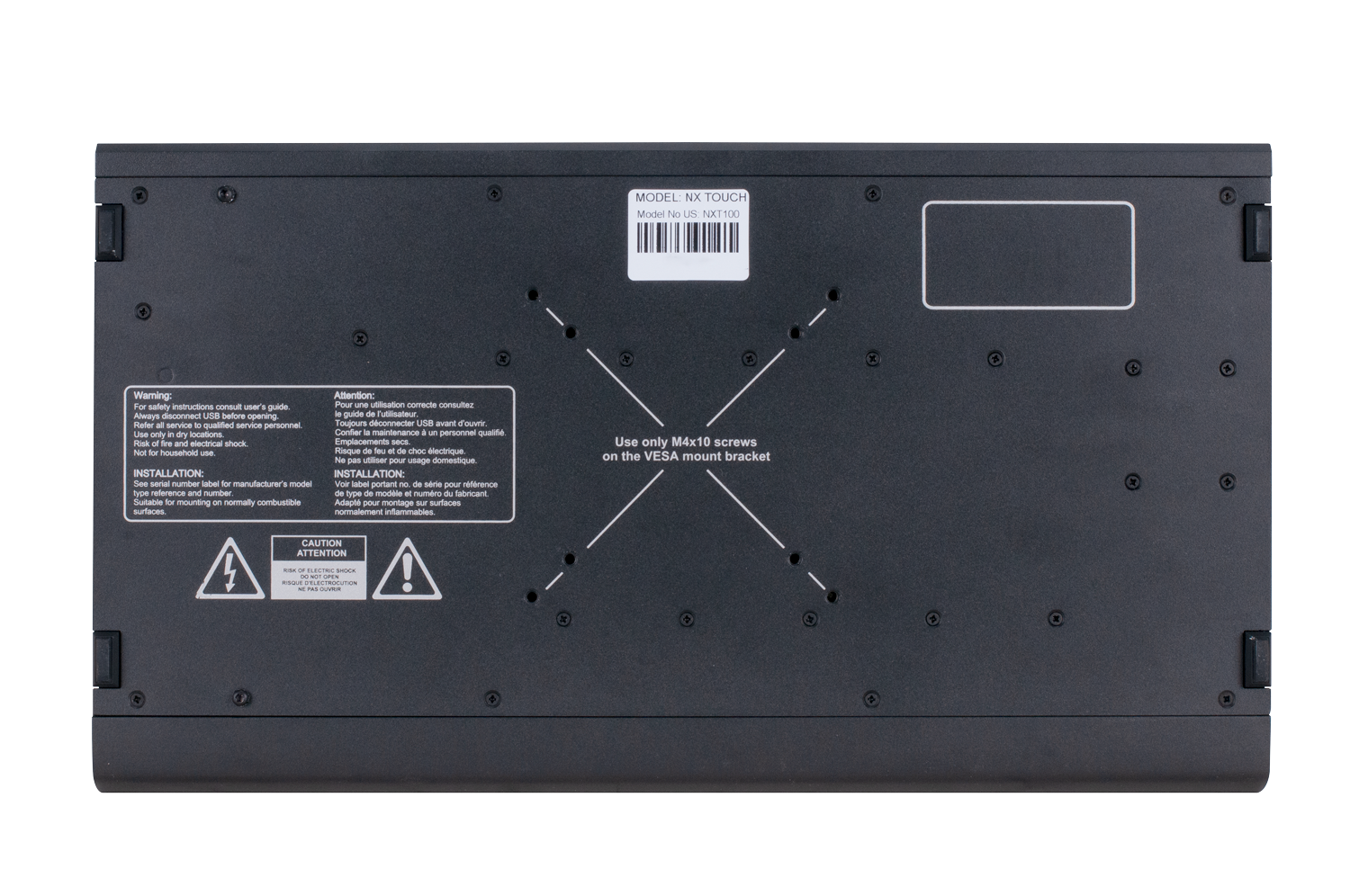

- Mounting: VESA 75x75, 100x100
- Security: K-Lock locking slot
- IP Rating: IP20
Electrical
- Power source: 5 VDC over USB
- Maximum current: 500 mA
[/tab]
[tab name="Ordering" icon=""]
Included Items

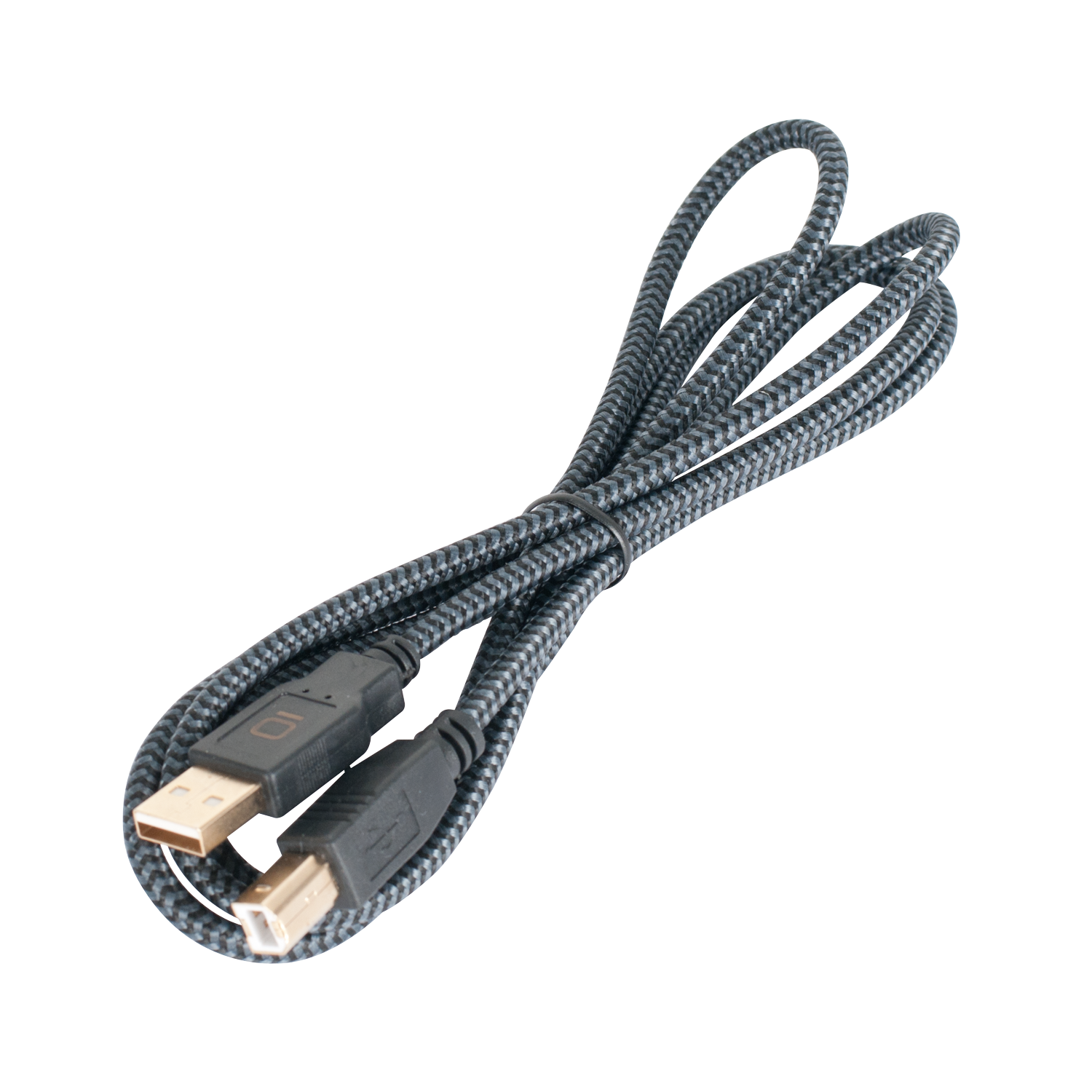

- Obsidian USB Cable
- Dust Cover
SKU
- US #: NXT100
- EU #: 1330000051
[/tab]
Downloads
Dimensional drawings
Installation guide
