Opti QA PAR
Opti QA PAR

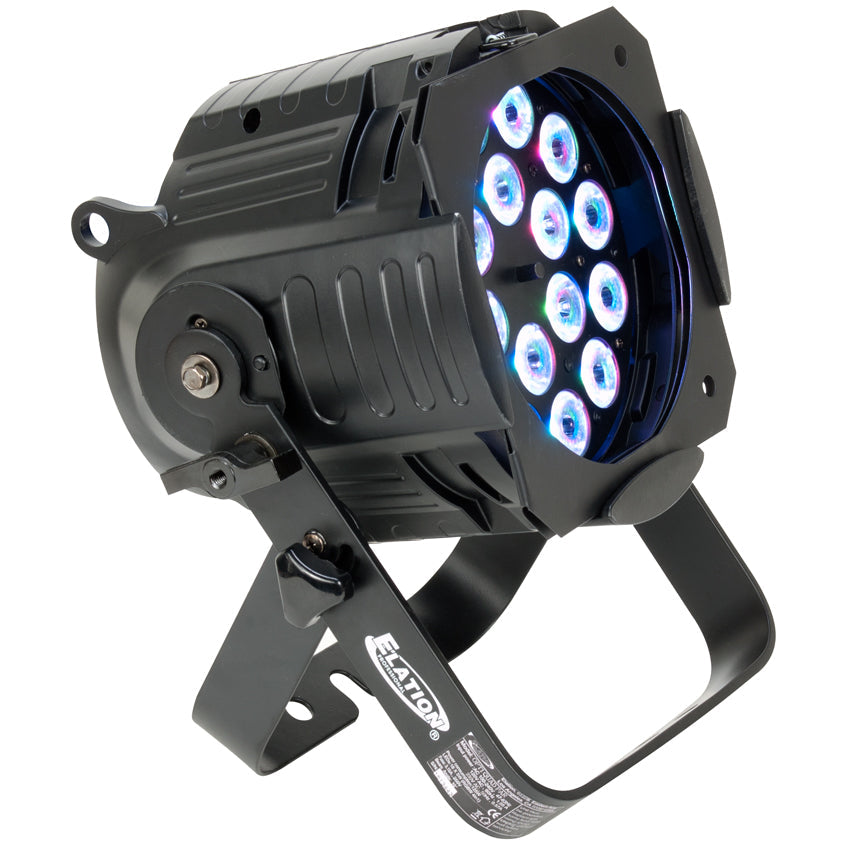

The OPTI QA Par™ features (18) 5W QUAD RGBA Color LEDs, a 10° beam angle, smooth and variable curve dimming control, variable color and strobe effects, flicker free operation for TV and FILM, 3 and 5pin DMX and powerCON in/out connections, 3 button control LCD panel display, integrated dual rigging yoke / floor stand, included gel frame, linkable power for up to (10) units at 120V, 140W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features
The OPTI QA Par™ features (18) 5W QUAD RGBA Color LEDs, a 10° beam angle, smooth and variable curve dimming control, variable color and strobe effects, flicker free operation for TV and FILM, 3 and 5pin DMX and powerCON in/out connections, 3 button control LCD panel display, integrated dual rigging yoke / floor stand, included gel frame, linkable power for up to (10) units at 120V, 140W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
10° Beam Angle
Smooth Dimming Control
Flicker Free Operation for TV and FILM
Resources
Guides/ Manuals
- OPTI QA Par Specification Sheet
- OPTI QA Par User Manual ver 1
- OPTI QA Par User Manual ver 2
- OPTI QA Par Dimensional Drawings
- OPTI QA Par Photometric Data
Related Categories
Specifications
18 x 5W QUAD Color (RGBA) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
2065 LUX (192 FC) @9 ft. (2.7m) 10° Full ON
EFFECTS
Variable Color and Strobe Macros
Variable Electronic Dimming Curves
COLOR
RGBA (Red, Green, Blue, Amber)
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 / 3 / 5 / 6 / 8 / 9)

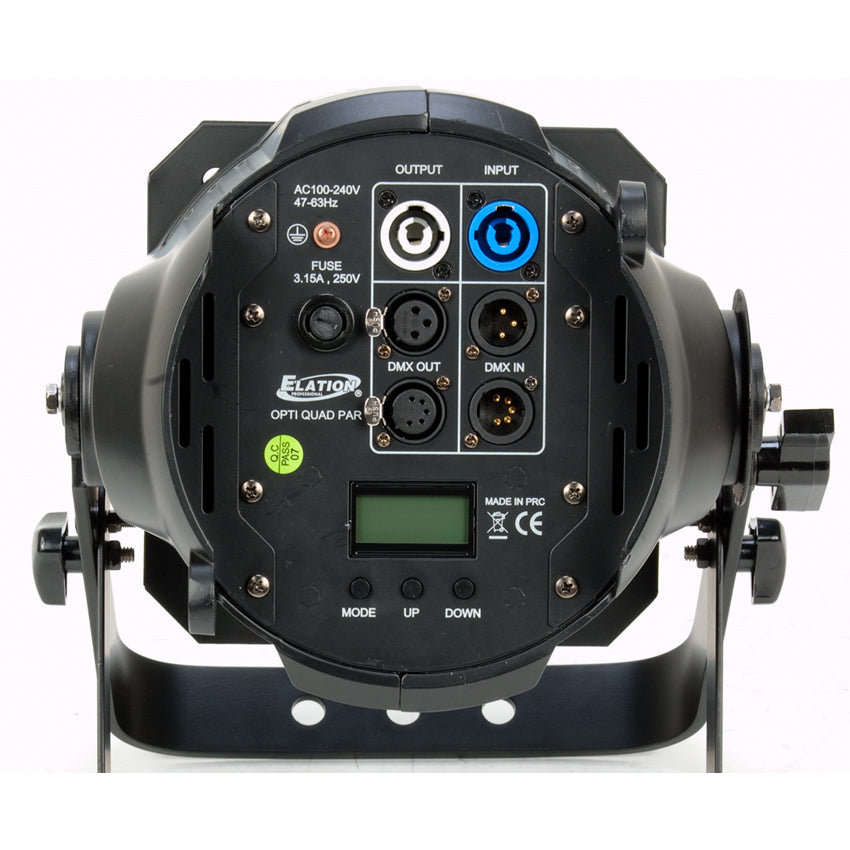

3pin & 5pin DMX In/Out
3 Button Control Panel / LCD Menu Display
powerCON Power In/Out
Power Link Up To (10) Units at 120V
SIZE / WEIGHT
Length: 10.9” (278mm)
Width: 8.7” (221mm)
Vertical Height: 14.1” (358mm)
Weight: 10.6 lbs. (4.8kg)
ELECTRICAL
AC 100-240V - 47/63Hz
135W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20 Rated
INSTALLATION
Rigging: Dual Yoke / Floor Stand
Working Position: Any (360°)
INCLUDED ITEMS
Gel Frame
6 ft (1.8m) powerCON Cable
OPTIONAL ACCESSORIES:

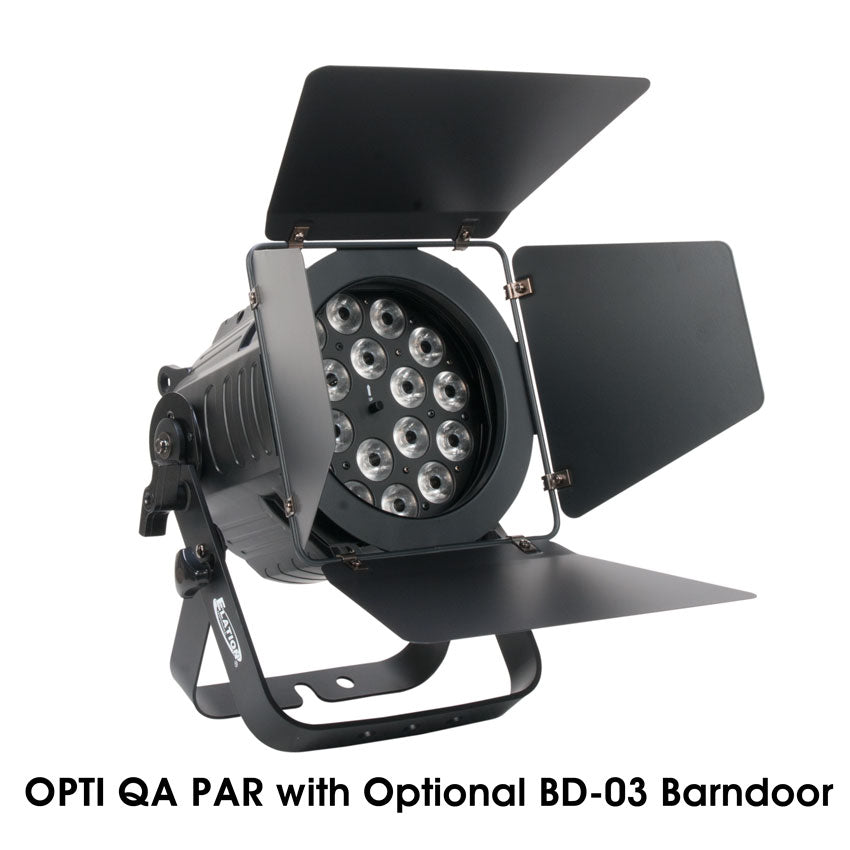

BARNDOOR SKU# BD-03
LSF SERIES LIGHT SHAPING FILTERS (click for more info)
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
