OPTI QA PAR
Opti QA PAR is a professional-grade lighting solution.
OPTI QA PAR

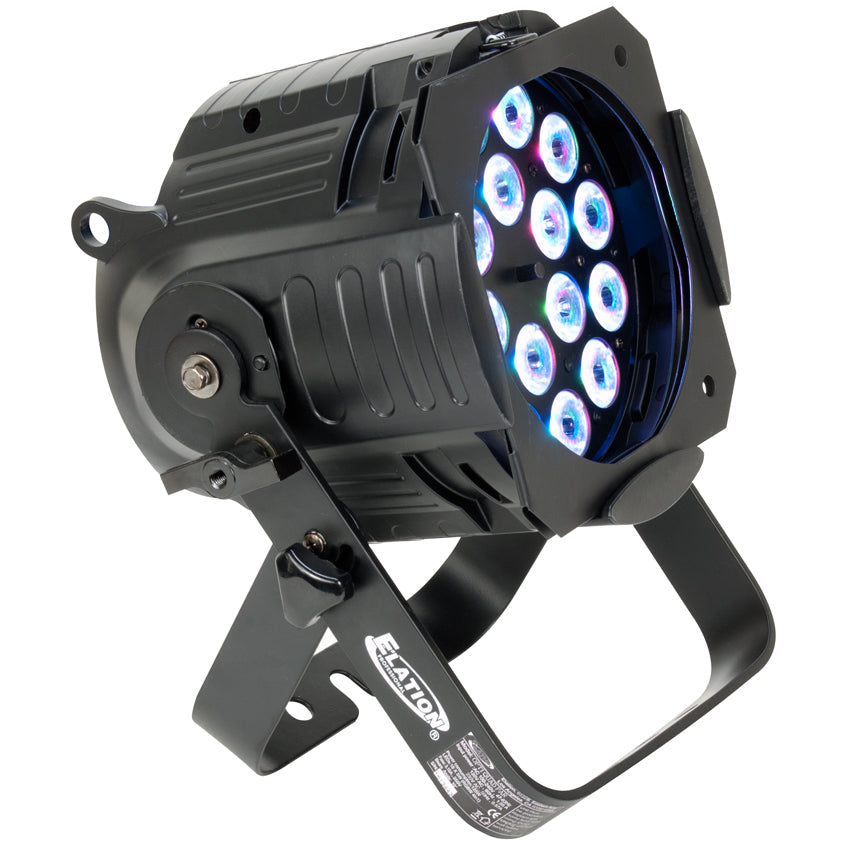

The OPTI QA Par™ features (18) 5W QUAD RGBA Color LEDs, a 10° beam angle, smooth and variable curve dimming control, variable color and strobe effects, flicker free operation for TV and FILM, 3 and 5pin DMX and powerCON in/out connections, 3 button control LCD panel display, integrated dual rigging yoke / floor stand, included gel frame, linkable power for up to (10) units at 120V, 140W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
The OPTI QA Par™ features (18) 5W QUAD RGBA Color LEDs, a 10° beam angle, smooth and variable curve dimming control, variable color and strobe effects, flicker free operation for TV and FILM, 3 and 5pin DMX and powerCON in/out connections, 3 button control LCD panel display, integrated dual rigging yoke / floor stand, included gel frame, linkable power for up to (10) units at 120V, 140W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- FEATURES
- 10° Beam Angle
- Smooth Dimming Control
- Flicker Free Operation for TV and FILM
Specifications
18 x 5W QUAD Color (RGBA) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
2065 LUX (192 FC) @9 ft. (2.7m) 10deg; Full ON
EFFECTS
Variable Color and Strobe Macros
Variable Electronic Dimming Curves
COLOR
RGBA (Red, Green, Blue, Amber)

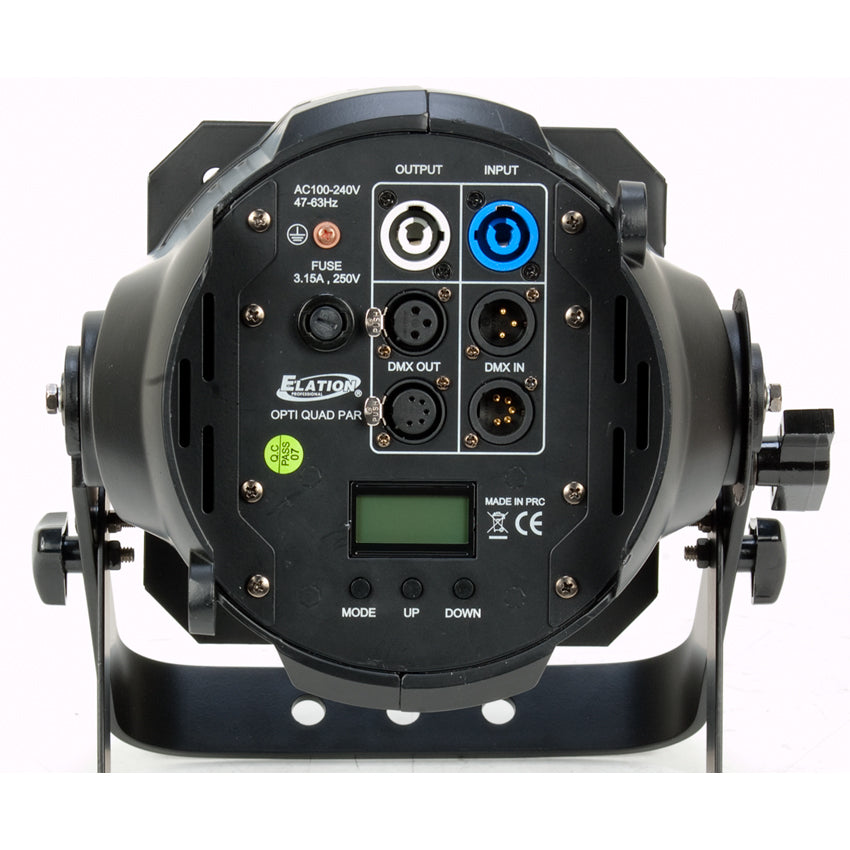

CONTROL / CONNECTIONS
6 DMX Channel Modes (1 / 3 / 5 / 6 / 8 / 9)
3pin amp; 5pin DMX In/Out
3 Button Control Panel / LCD Menu Display
powerCON Power In/Out
Power Link Up To (10) Units at 120V
SIZE / WEIGHT
Length: 10.9" (278mm)
Width: 8.7" (221mm)
Vertical Height: 14.1" (358mm)
Weight: 10.6 lbs. (4.8kg)
ELECTRICAL
AC 100-240V - 47/63Hz
135W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20 Rated
INSTALLATION
Rigging: Dual Yoke / Floor Stand
Working Position: Any (360deg;)
INCLUDED ITEMS
Gel Frame
6 ft (1.8m) powerCON Cable
OPTIONAL ACCESSORIES:

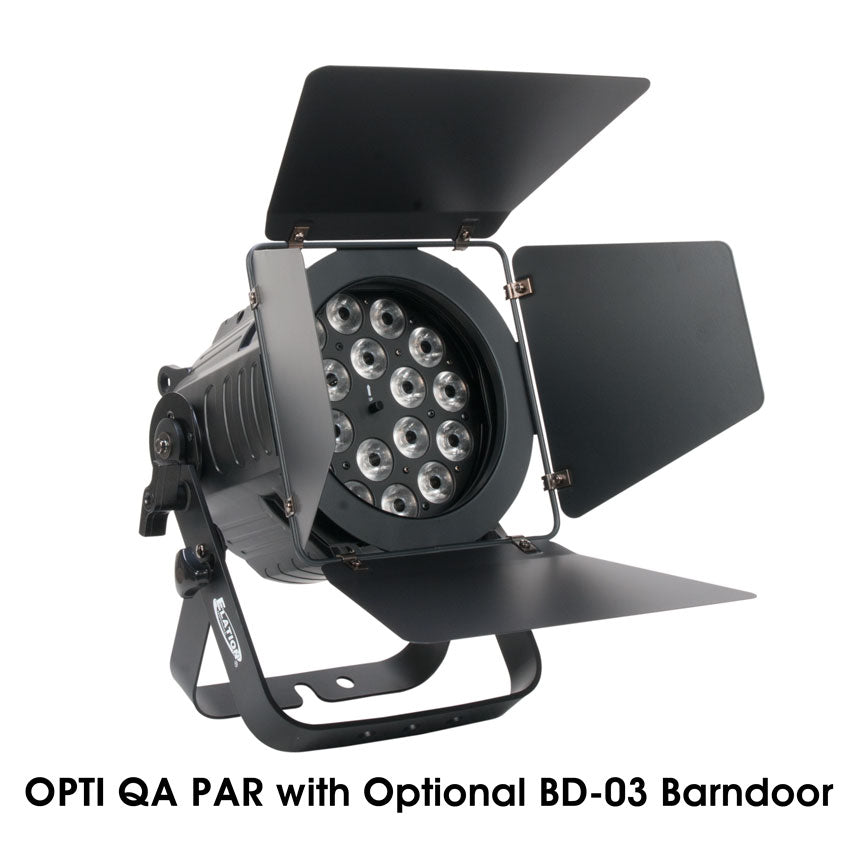

BARNDOOR SKU# BD-03
LSF SERIES LIGHT SHAPING FILTERS(click for more info)
CLAMPS(click for more info)
PRO CABLES(click for more info)
DMX SOLUTIONS(click for more info)
Specifications and documentation subject to change without notice.
