Opti Tri White II
Opti Tri White II

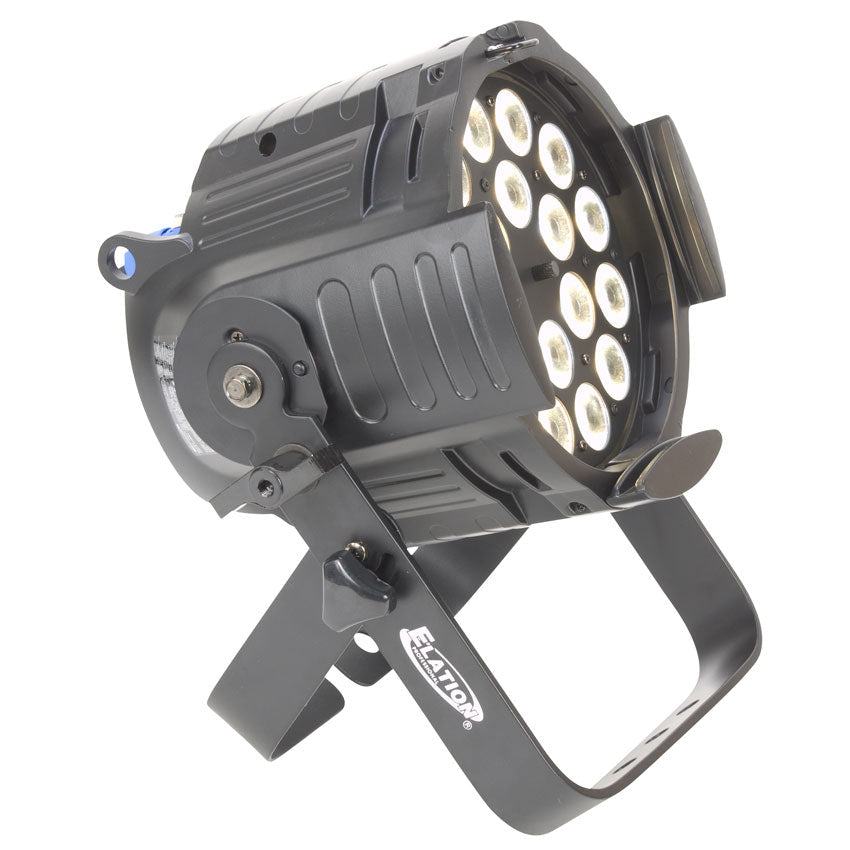

The new updated Opti Tri White II™ features (18) 5W 4-in-1 Multi-Chip Variable White (Cool, Warm, and Amber) LEDs, 100,000 average hour LED life, 20° standard beam lens, electronic strobe and dimming (0-100%), (5) variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 120W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).
Features
HIgh Output Tri-White LED Par
Cool White, Warm White, and Amber
20° Standard Beam Lens
(5) Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Resources
Guides/ Manuals
- Opti Tri White II Specification Sheet
- Opti Tri White II 3D CAD
- Opti Tri White II Vectorworks 2014 Symbol
- Opti Tri White II Vectorworks 2015 Symbol
- Opti Tri White II Vectorworks 2016 Symbol
- Opti Tri White II Dimensional Drawings
- Opti Tri White II Photometric Report - Amber
- Opti Tri White II Photometric IES File - Amber
- Opti Tri White II Photometric Report - Cool White
- Opti Tri White II Photometric IES File - Cool White
- Opti Tri White II Photometric Report - Warm White
- Opti Tri White II Photometric IES File - Warm White
- Opti Tri White II Photometric Report - FULL ON
- Opti Tri White II Photometric IES File - FULL ON
- Opti Tri White II Photometric Data
- Opti Tri White II User Manual
- Opti Tri White II 2D CAD
Related Categories
Specifications
(18) 5W 4-in1 Multi-Chip Variable White LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
20,190 LUX (1,876 FC) @ 3.3’ (1m) (FULL ON)
5,681 LUX (528 FC) @ 6.6’ (2m) (FULL ON)
2,605 LUX (242 FC) @ 9.8’ (3m) (FULL ON)
1,583 LUX (147 FC) @ 13.1’ (4m) (FULL ON)
1009 LUX ( FC) @ 16.4’ (5m) (FULL ON)
EFFECTS
Electronic Strobe
Variable Color Temperature Macros
Electronic Dimming: 0% - 100%
(5) Variable Dimming Curve Modes

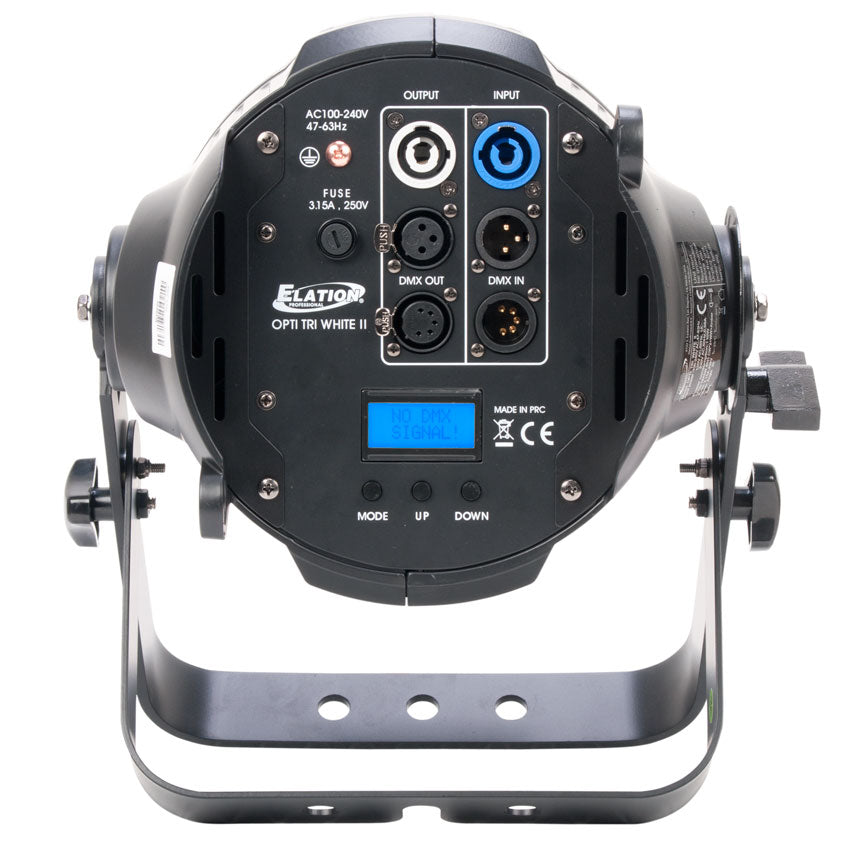

CONTROL / CONNECTIONS
(2) DMX Channel Modes (4 / 8)
(3) Button Control Panel
LCD Menu Display
3pin/5pin DMX In/Out
powerCON In/Out
SIZE / WEIGHT
Length: 11.0” (278mm)
Width: 8.6” (221mm)
Vertical Height: 14.1” (358mm)
Weight: 10.5 lbs. (4.8 kg)
ELECTRICAL / THERMAL
AC 120-230V - 50/60Hz
200W Max Power Consumption
Power Linking: 5pcs Max @110V / 10pcs Max @230V
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)
INCLUDED ITEMS
(1) Gel Frame
(1) powerCON Cable
OPTIONAL ACCESSORIES:

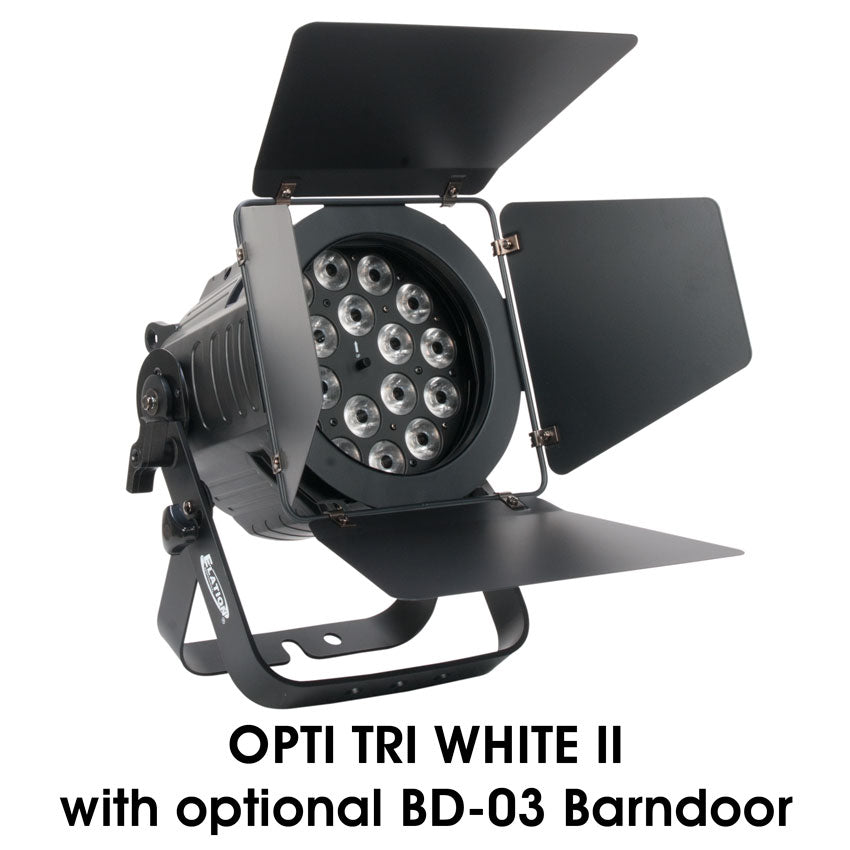

BARNDOOR SKU# BD-03
LSF FILTERS (click for more info)
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
