Discontinued

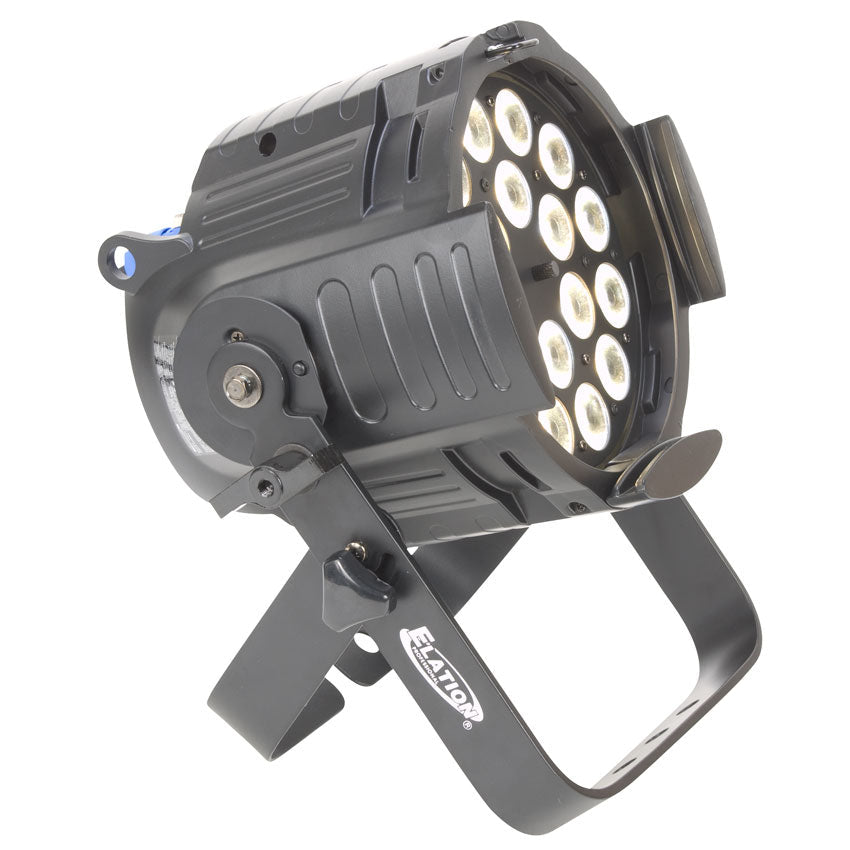

Opti Tri White II is a professional-grade lighting solution. The new updated Opti Tri White II™ features (18) 5W 4-in-1 Multi-Chip Variable White (Cool, Warm, and Amber) LEDs, 100,000 average hour LED life, 20° standard beam lens, electronic strobe and dimming (0-100%), (5) variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 120W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

UPC: 837874017878SKU: OTW801

Replaced By

Related Products

OPTI-PAR ETLOPTI-PAR ETL
OPTI-PAR ETL

OPTI TRI WHITE II

The new updated Opti Tri White II™ features (18) 5W 4-in-1 Multi-Chip Variable White (Cool, Warm, and Amber) LEDs, 100,000 average hour LED life, 20° standard beam lens, electronic strobe and dimming (0-100%), (5) variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 120W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

  • HIgh Output Tri-White LED Par
  • Cool White, Warm White, and Amber
  • 20° Standard Beam Lens
  • (5) Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE
(18) 5W 4-in1 Multi-Chip Variable White LEDs
100,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
20,190 LUX (1,876 FC) @ 3.3rsquo; (1m) (FULL ON)
5,681 LUX (528 FC) @ 6.6rsquo; (2m) (FULL ON)
2,605 LUX (242 FC) @ 9.8rsquo; (3m) (FULL ON)
1,583 LUX (147 FC) @ 13.1rsquo; (4m) (FULL ON)
1009 LUX ( FC) @ 16.4rsquo; (5m) (FULL ON)

EFFECTS
Electronic Strobe
Variable Color Temperature Macros
Electronic Dimming: 0% - 100%
(5) Variable Dimming Curve Modes

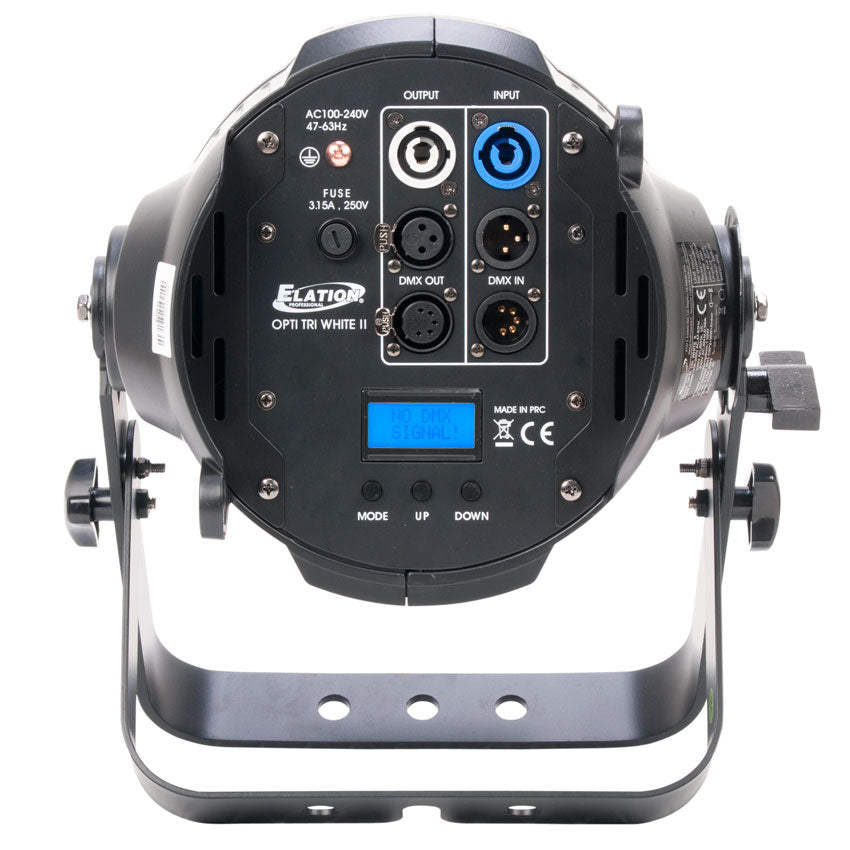

CONTROL / CONNECTIONS
(2) DMX Channel Modes (4 / 8)
(3) Button Control Panel
LCD Menu Display
3pin/5pin DMX In/Out
powerCON In/Out

SIZE / WEIGHT
Length: 11.0" (278mm)
Width: 8.6" (221mm)
Vertical Height: 14.1" (358mm)
Weight: 10.5 lbs. (4.8 kg)

ELECTRICAL / THERMAL
AC 120-230V - 50/60Hz
200W Max Power Consumption
Power Linking: 5pcs Max @110V / 10pcs Max @230V

APPROVALS / RATINGS
CE | cETLus | IP20

INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360deg;)

INCLUDED ITEMS
(1) Gel Frame
(1) powerCON Cable

OPTIONAL ACCESSORIES:

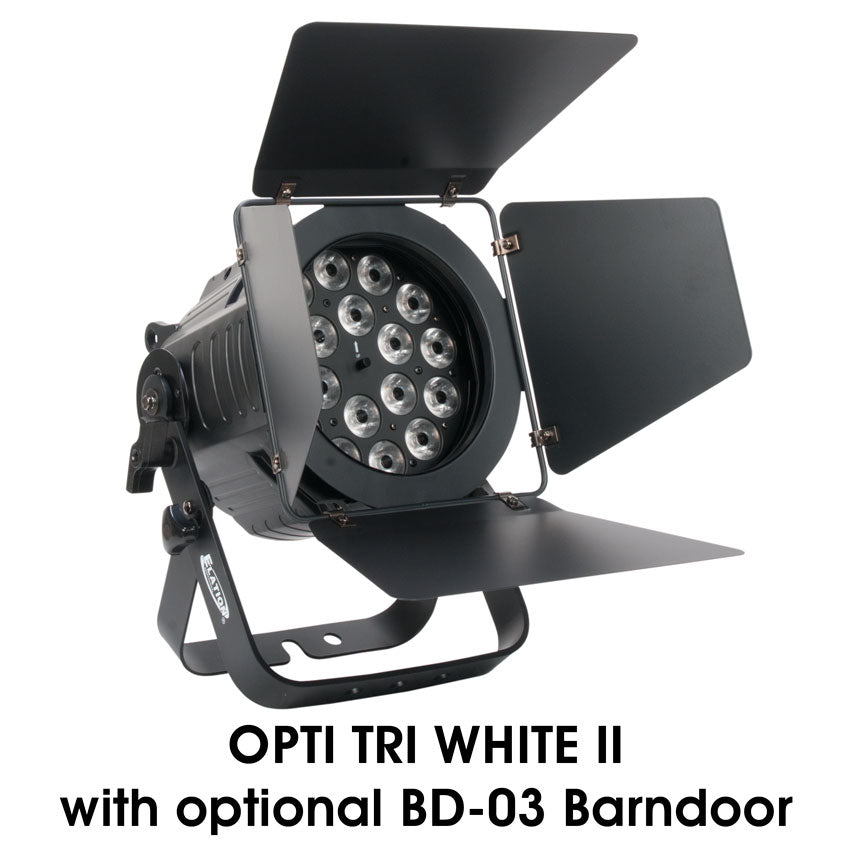

BARNDOOR SKU# BD-03

LSF FILTERS(click for more info)

CLAMPS(click for more info)

PRO CABLES(click for more info)

DMX SOLUTIONS(click for more info)

Specifications and documentation subject to change without notice.
